Isuzu WW
▶
TRUCKS
▶
NQR
▶
51390 - NQR A/BRAKE MIDEAST
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

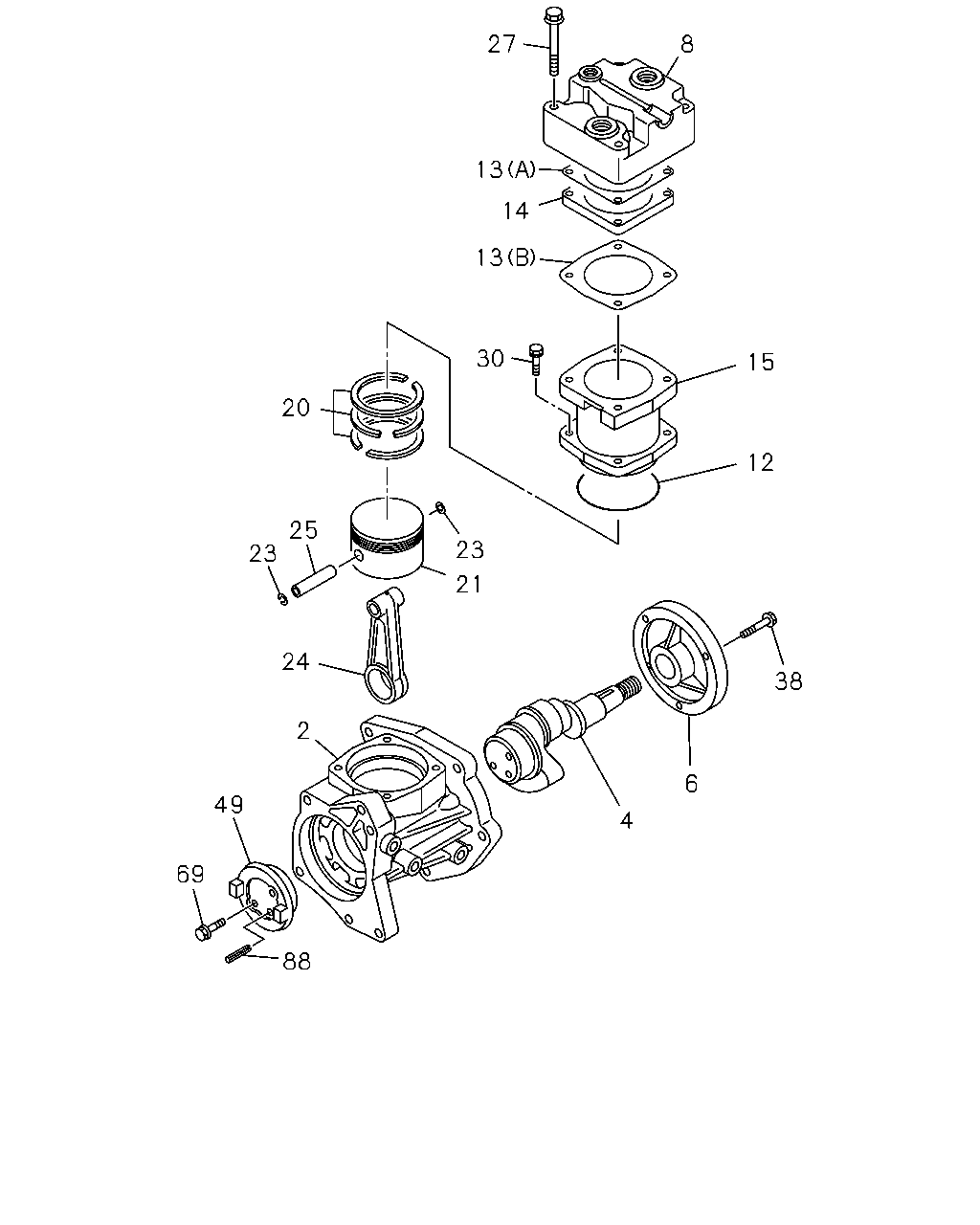

0-39 — AIR COMPRESSOR; BRAKE
(#125004) — 21 parça
88
69
4
6
38
2
49
12
15
8
27
13
13
14
30
20
23
21
25
23
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
04.852 CRANKCASE; AIR CMPR
1-19151-303-0
01
1
1307-
4
04.860 CRANKSHAFT; AIR CMPR
1-19171-090-1
01
1
1307-
6
04.852 COVER ASM; BRG,AIR CMPR
1-19156-086-1
01
1
1307-
8
04.852 HEAD ASM; CYL,AIR CMPR
1-19110-075-0
01
1
1307-
12
04.868 GASKET; AIR CMPR
8-98185-684-0
01
1
1307-
13
04.868 GASKET; AIR CMPR
(A)
1-19115-015-0
01
1
1307-
13
04.868 GASKET; AIR CMPR
(B)
1-19115-016-0
01
1
1307-
14
04.862 PLATE; AIR CMPR
1-19130-010-1
01
1
1307-1405
14
04.862 PLATE; AIR CMPR
8-98271-713-0
01
1
1406-
15
04.852 CYLINDER; AIR CMPR
1-19163-068-1
01
1
1307-
20
04.856 RING KIT; PISTON,AIR CMPR
1-19163-058-0
01
1
1307-
21
04.856 PISTON; AIR CMPR
1-19161-027-0
01
1
1307-
23
04.856 RING; SNAP,PISTON,AIR CMPR
1-19169-004-0
02
1
1307-
24
04.858 ROD ASM; CONN,AIR CMPR
1-19173-023-0
01
1
1307-
25
04.856 PIN; PISTON,AIR CMPR
1-19167-003-0
01
1
1307-
27
04.852 BOLT; HD
8-98188-172-0
04
1
1307-
30
04.852 BOLT; CYL TO CRANKCASE
02.277 M10X25
9-01911-025-0
04
1
1307-
38
04.852 BOLT; COVER FIX
1-19159-023-0
03
1
1307-
49
04.872 COUPLING ASM
1-19179-032-0
01
1
1307-
69
04.862 BOLT ASM; AIR COMP
1-19179-033-0
02
1
1307-
88
04.856 PIN; SPRING
1-19179-034-0
01
1
1307-
