3-22 — AIR CONTROL PARTS (#1250) — 185 parça

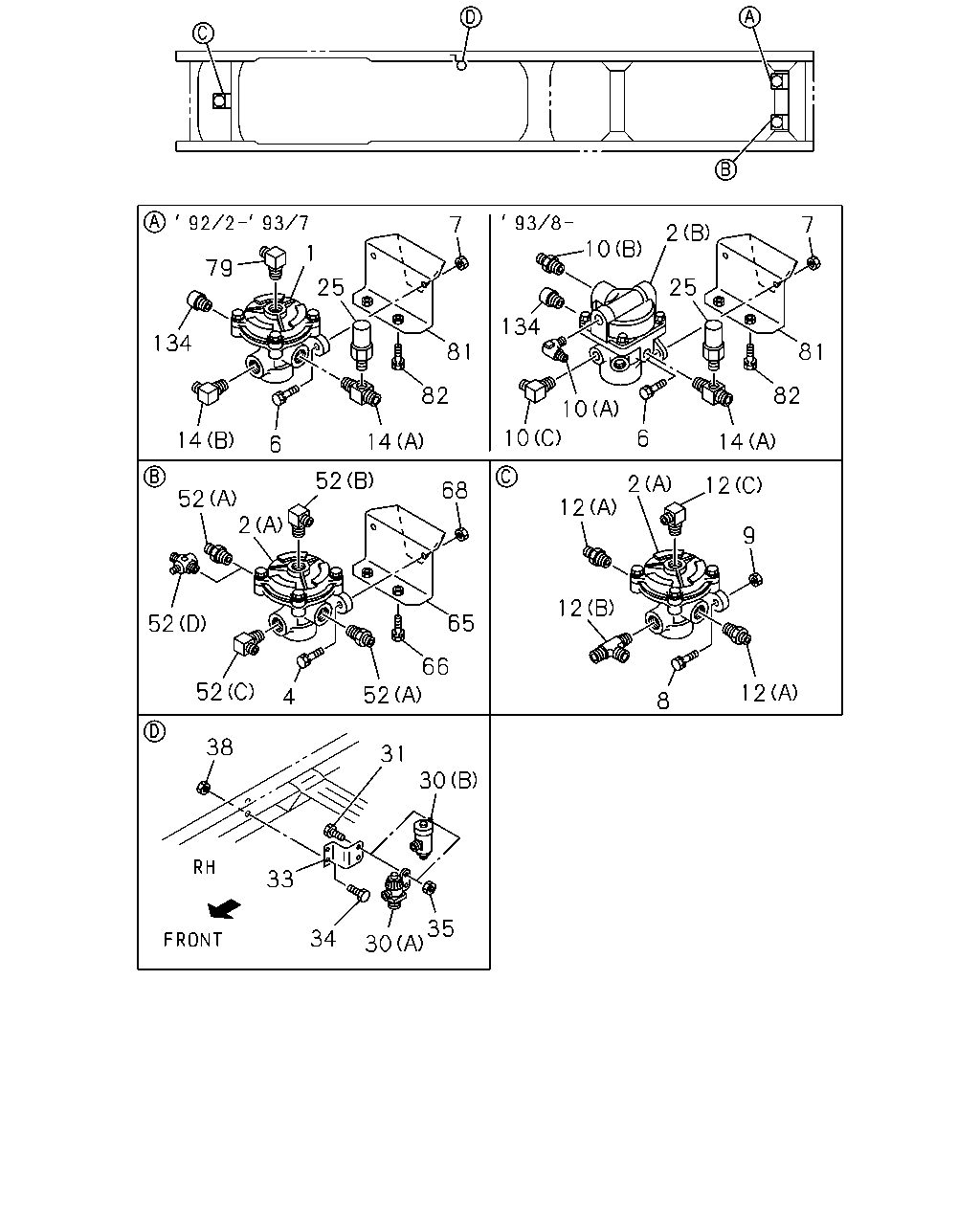

7 7 2 10 1 79 25 25 134 134 81 81 82 82 10 10 6 14 14 14 6 52 2 12 68 52 2 12 9 12 65 52 66 52 12 52 4 8 38 31 30 33 35 34 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR	1-48210-278-0	01	1	9202-9307	●
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9202-9307		●
2	VALVE; RELAY (B)	1-48210-143-0	01	1	9308-	●
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48210-143-0	01	1	9308-		●
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-278-0	02	1	9202-	●	●
4	BOLT; RELAY VLV TO BRKT M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-	●
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-		●
6	BOLT; VLV M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-		●
7	NUT; RELAY VLV M10	9-09110-510-0	02	1	9202-	●
7	NUT; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-510-0	02	1	9202-		●
8	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-	●
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 W/LK WASHER	0-50041-030-0	02	1	9202-		●
9	NUT M10	9-09110-510-0	02	1	9202-	●
9	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-510-0	02	1	9202-		●
10	CONNECTOR (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9308-	●
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9308-		●
10	CONNECTOR (B)	1-09660-569-0	01	1	9308-	●
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-569-0	01	1	9308-		●
10	CONNECTOR (C)	1-09660-571-0	01	1	9308-	●
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09660-571-0	01	1	9308-		●
12	CONNECTOR; RELAY VLV (A) M16	1-09650-245-1	02	1	9202-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16	1-09650-245-1	02	1	9202-		●
12	CONNECTOR; RELAY VLV (C)	1-09660-569-0	01	1	9202-9205	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09660-569-0	01	1	9202-9205		●
12	CONNECTOR; RELAY VLV (C)	1-09660-570-0	01	1	9206-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09660-570-0	01	1	9206-		●
12	CONNECTOR; RELAY VLV (B)	1-09660-645-0	01	1	9202-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-645-0	01	1	9202-		●
14	CONNECTOR; RELAY VLV (A)	1-09656-476-0	01	1	9202-	●
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09656-476-0	01	1	9202-		●
14	CONNECTOR; RELAY VLV (B)	1-09660-571-0	01	1	9202-9307	●
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-571-0	01	1	9202-9307		●
25	SWITCH; PRESSURE	1-82410-138-0	01	1	9202-9502	●
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82410-138-0	01	1	9202-9502		●
25	SWITCH; PRESSURE	1-82410-163-0	01	1	9503-	●
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82410-163-0	01	1	9503-		●
30	GOVERNOR; AIR CONT (A)	1-48350-037-0	01	1	9202-9208	●	●
30	GOVERNOR; AIR CONT (B)	1-48350-050-1	01	1	9209-9409	●	●
30	GOVERNOR; AIR CONT (B)	1-48350-059-0	01	1	9410-	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28010-830-0	02	1	9202-9204	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28080-830-0	02	1	9205-	●	●
33	BRACKET; GOV,AIR CONT	1-48359-045-0	01	1	9202-	●
33	BRACKET; GOV,AIR CONT 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-48359-045-0	01	1	9202-		●
33	BRACKET; GOV,AIR CONT 6HE1 STD ENG(46L)	1-48359-045-0	01	1	9202-		●
33	BRACKET; GOV,AIR CONT 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48359-069-0	01	1	9202-		●
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
34	BOLT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204		●
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28080-825-0	02	1	9205-	●
34	BOLT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9205-		●
34	BOLT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9205-		●
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9202-	●	●
38	NUT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9202-		●
52	CONNECTOR; RELAY VLV (A) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	9202-9307	●
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M20 & PT1/2 STRAIGHT	1-09650-249-1	02	1	9202-9307		●
52	CONNECTOR; RELAY VLV (A) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9308-	●
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9308-		●
52	CONNECTOR; RELAY VLV (B)	1-09660-570-0	01	1	9202-	●
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-570-0	01	1	9202-		●
52	CONNECTOR; RELAY VLV (C)	1-09660-571-0	01	1	9202-	●
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09660-571-0	01	1	9202-		●
52	CONNECTOR; RELAY VLV (D)	1-09656-475-1	01	1	9308-	●
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09656-475-1	01	1	9308-		●
65	BRACKET; RELAY VLV RR	1-48495-132-0	01	1	9202-	●
65	BRACKET; RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48495-132-0	01	1	9202-		●
66	BOLT; BRKT,RELAY VLV RR M8X20 FLANGE	0-28080-820-0	03	1	9202-	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	03	1	9202-		●
68	NUT; RELAY VLV TO BRKT M10	9-09110-510-0	02	1	9202-	●
68	NUT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-510-0	02	1	9202-		●
79	CONNECTOR; RELAY VLV	1-09660-570-0	01	1	9202-9307	●
79	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09660-570-0	01	1	9202-9307		●
81	BRACKET; RELAY VLV,PARKING BRK	1-48495-132-0	01	1	9202-	●
81	BRACKET; RELAY VLV,PARKING BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48495-132-0	01	1	9202-		●
82	BOLT; BRKT,RELAY VLV M8X20 FLANGE	0-28080-820-0	03	1	9202-	●
82	BOLT; BRKT,RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	03	1	9202-		●
134	PLUG; RELAY VALVE PT1/2	9-09204-521-0	01	1	9202-	●
134	PLUG; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/2	9-09204-521-0	01	1	9202-		●

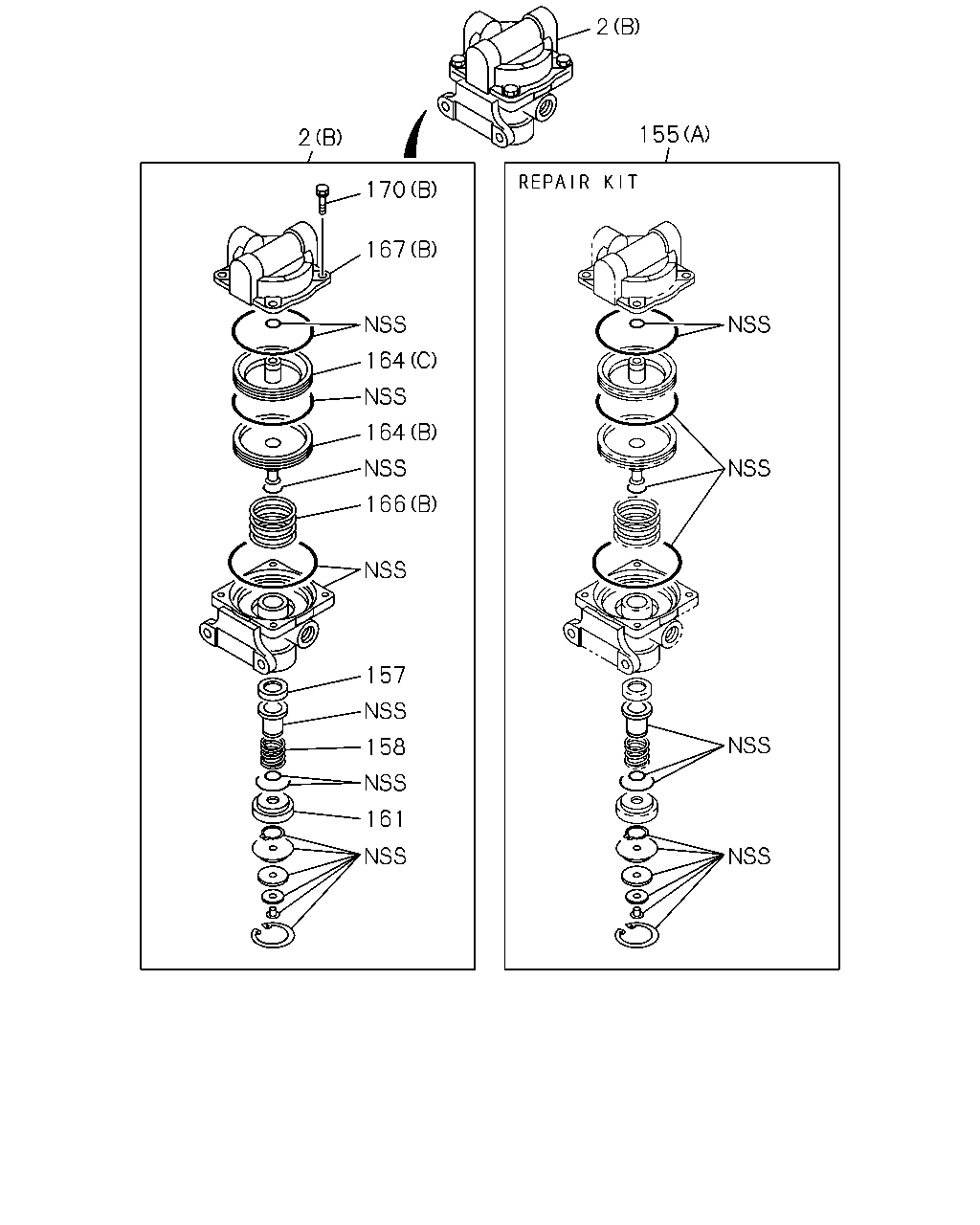

2 155 2 170 167 164 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY (B)	1-48210-143-0	01	1	9308-	●
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48210-143-0	01	1	9308-		●
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-278-0	02	1	9202-	●	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	03	1	9202-9307	●
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-033-0	03	1	9202-9307		●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	02	1	9308-	●
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-033-0	02	1	9308-		●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-035-0	01	1	9308-	●
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-035-0	01	1	9308-		●
157	RETAINER; VALVE	1-48213-002-0	03	1	9202-9307	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	03	1	9202-9307		●
157	RETAINER; VALVE	1-48213-002-0	02	1	9308-	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	02	1	9308-		●
157	RETAINER; VALVE	1-48213-002-0	01	1	9308-	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	9308-		●
158	SPRING; VALVE	1-47819-089-0	03	1	9202-9307	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	03	1	9202-9307		●
158	SPRING; VALVE	1-47819-089-0	02	1	9308-	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	02	1	9308-		●
158	SPRING; VALVE	1-47819-089-0	01	1	9308-	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	9308-		●
161	GUIDE; VALVE	1-48129-014-0	03	1	9202-9307	●
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	03	1	9202-9307		●
161	GUIDE; VALVE	1-48129-014-0	02	1	9308-	●
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	02	1	9308-		●
161	GUIDE; VALVE	1-48129-014-0	01	1	9308-	●
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	9308-		●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	03	1	9202-9307	●
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-071-0	03	1	9202-9307		●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	02	1	9308-	●
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-071-0	02	1	9308-		●
164	PISTON; RELAY VALVE (B)	1-48219-032-0	01	1	9308-	●
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48219-032-0	01	1	9308-		●
164	PISTON; RELAY VALVE (C)	1-48219-047-0	01	1	9308-	●
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48219-047-0	01	1	9308-		●
166	SPRING; PISTON (A)	1-47819-090-0	03	1	9202-9307	●
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-090-0	03	1	9202-9307		●
166	SPRING; PISTON (A)	1-47819-090-0	02	1	9308-	●
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-090-0	02	1	9308-		●
166	SPRING; PISTON (B)	1-48219-048-0	01	1	9308-	●
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48219-048-0	01	1	9308-		●
167	COVER; VALVE (A)	1-48219-070-0	03	1	9202-9307	●
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	03	1	9202-9307		●
167	COVER; VALVE (A)	1-48219-070-0	02	1	9308-	●
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	02	1	9308-		●
167	COVER; VALVE (B)	1-48219-050-1	01	1	9308-	●
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48219-050-1	01	1	9308-		●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	12	1	9202-9307	●
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-039-0	12	1	9202-9307		●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	08	1	9308-	●
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-039-0	08	1	9308-		●
170	SCREW; COVER TO BODY (B)	1-48219-041-0	04	1	9308-	●
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48219-041-0	04	1	9308-		●

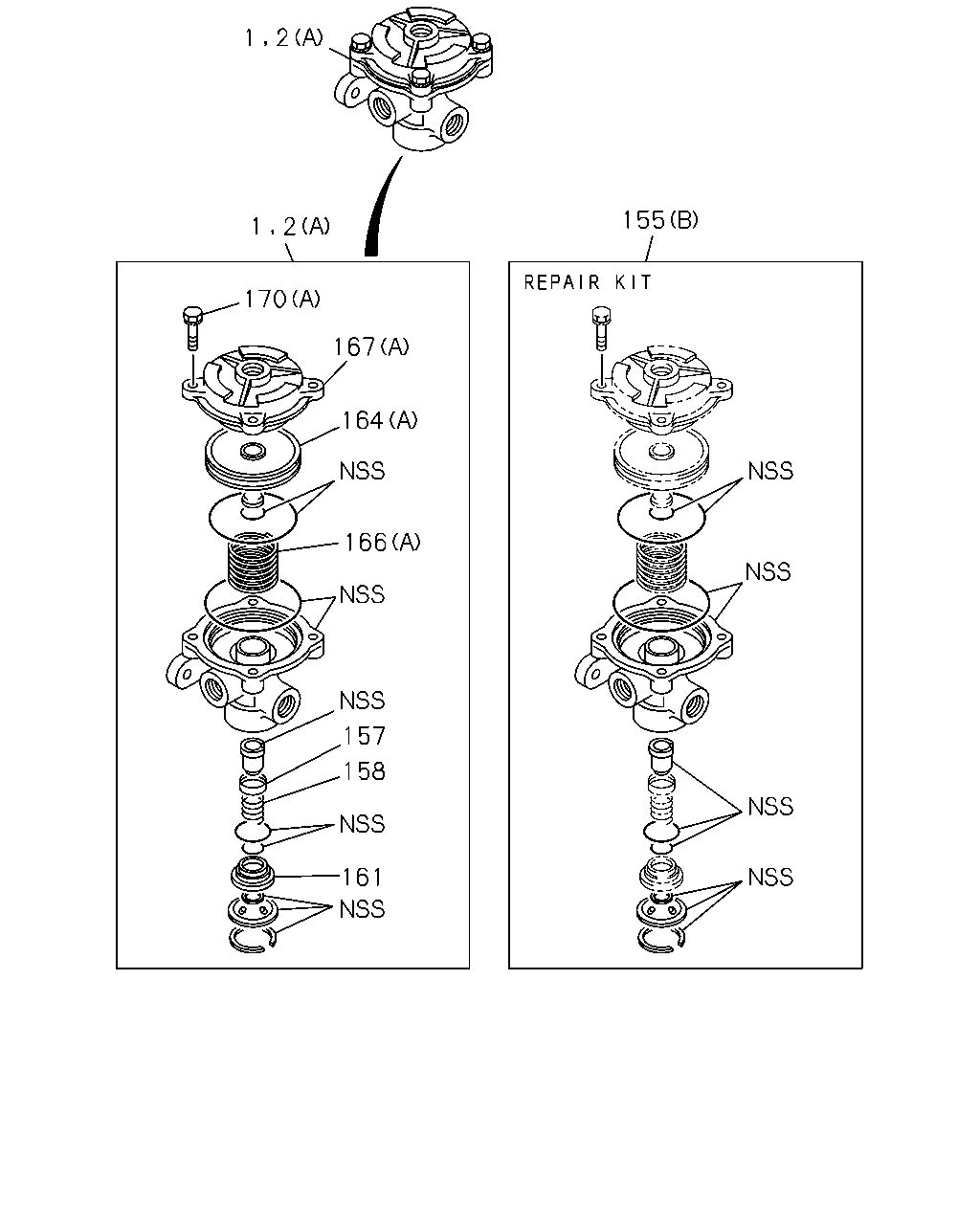

2 1 155 2 1 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR	1-48210-278-0	01	1	9202-9307	●
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9202-9307		●
2	VALVE; RELAY (B)	1-48210-143-0	01	1	9308-	●
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48210-143-0	01	1	9308-		●
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-278-0	02	1	9202-	●	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	03	1	9202-9307	●
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-033-0	03	1	9202-9307		●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	02	1	9308-	●
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-033-0	02	1	9308-		●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-035-0	01	1	9308-	●
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-035-0	01	1	9308-		●
157	RETAINER; VALVE	1-48213-002-0	03	1	9202-9307	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	03	1	9202-9307		●
157	RETAINER; VALVE	1-48213-002-0	02	1	9308-	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	02	1	9308-		●
157	RETAINER; VALVE	1-48213-002-0	01	1	9308-	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	9308-		●
158	SPRING; VALVE	1-47819-089-0	03	1	9202-9307	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	03	1	9202-9307		●
158	SPRING; VALVE	1-47819-089-0	02	1	9308-	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	02	1	9308-		●
158	SPRING; VALVE	1-47819-089-0	01	1	9308-	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	9308-		●
161	GUIDE; VALVE	1-48129-014-0	03	1	9202-9307	●
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	03	1	9202-9307		●
161	GUIDE; VALVE	1-48129-014-0	02	1	9308-	●
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	02	1	9308-		●
161	GUIDE; VALVE	1-48129-014-0	01	1	9308-	●
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	9308-		●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	03	1	9202-9307	●
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-071-0	03	1	9202-9307		●
164	PISTON; RELAY VALVE (A)	1-48219-071-0	02	1	9308-	●
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-071-0	02	1	9308-		●
164	PISTON; RELAY VALVE (B)	1-48219-032-0	01	1	9308-	●
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48219-032-0	01	1	9308-		●
164	PISTON; RELAY VALVE (C)	1-48219-047-0	01	1	9308-	●
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48219-047-0	01	1	9308-		●
166	SPRING; PISTON (A)	1-47819-090-0	03	1	9202-9307	●
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-090-0	03	1	9202-9307		●
166	SPRING; PISTON (A)	1-47819-090-0	02	1	9308-	●
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-090-0	02	1	9308-		●
166	SPRING; PISTON (B)	1-48219-048-0	01	1	9308-	●
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48219-048-0	01	1	9308-		●
167	COVER; VALVE (A)	1-48219-070-0	03	1	9202-9307	●
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	03	1	9202-9307		●
167	COVER; VALVE (A)	1-48219-070-0	02	1	9308-	●
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	02	1	9308-		●
167	COVER; VALVE (B)	1-48219-050-1	01	1	9308-	●
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48219-050-1	01	1	9308-		●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	12	1	9202-9307	●
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-039-0	12	1	9202-9307		●
170	SCREW; COVER TO BODY (A)	1-48219-039-0	08	1	9308-	●
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-039-0	08	1	9308-		●
170	SCREW; COVER TO BODY (B)	1-48219-041-0	04	1	9308-	●
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48219-041-0	04	1	9308-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
