0-32 — WATER PIPING; ENGINE (#124998) — 20 parça

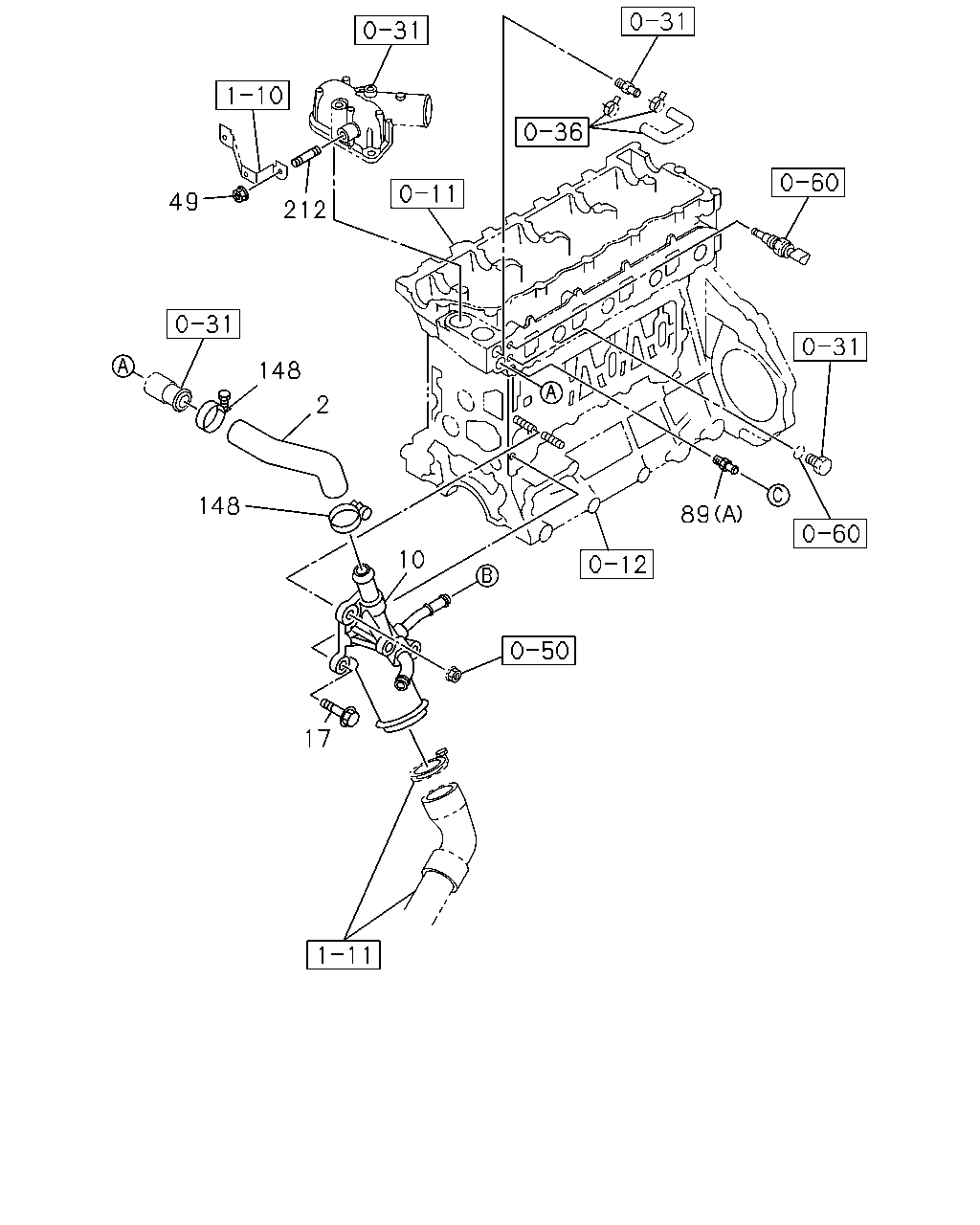

17 148 148 49 212 2 10 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	01.097 HOSE; WATER,BY-PASS	8-97379-228-1	01	1	1307-
10	01.153 PIPE; SUCTION	8-98166-995-0	01	1	1307-
17	01.153 BOLT; SUCTION PIPE 03.415 M8X48 FLANGE	8-94458-473-1	01	1	1307-
49	01.153 NUT; WATER PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	1307-
89	04.867 PIPE; WATER,AIR CMPR,IN 01.153 (A)	8-97358-699-0	01	1	1307-
89	04.867 PIPE; WATER,AIR CMPR,IN (B)	8-97376-783-1	01	1	1307-
148	01.097 CLIP; BYPASS HOSE 03.417 ID=30	9-09915-315-1	02	1	1307-
212	01.153 STUD; PIPE 00.413 M8X45 L=55	8-94217-227-0	02	1	1307-

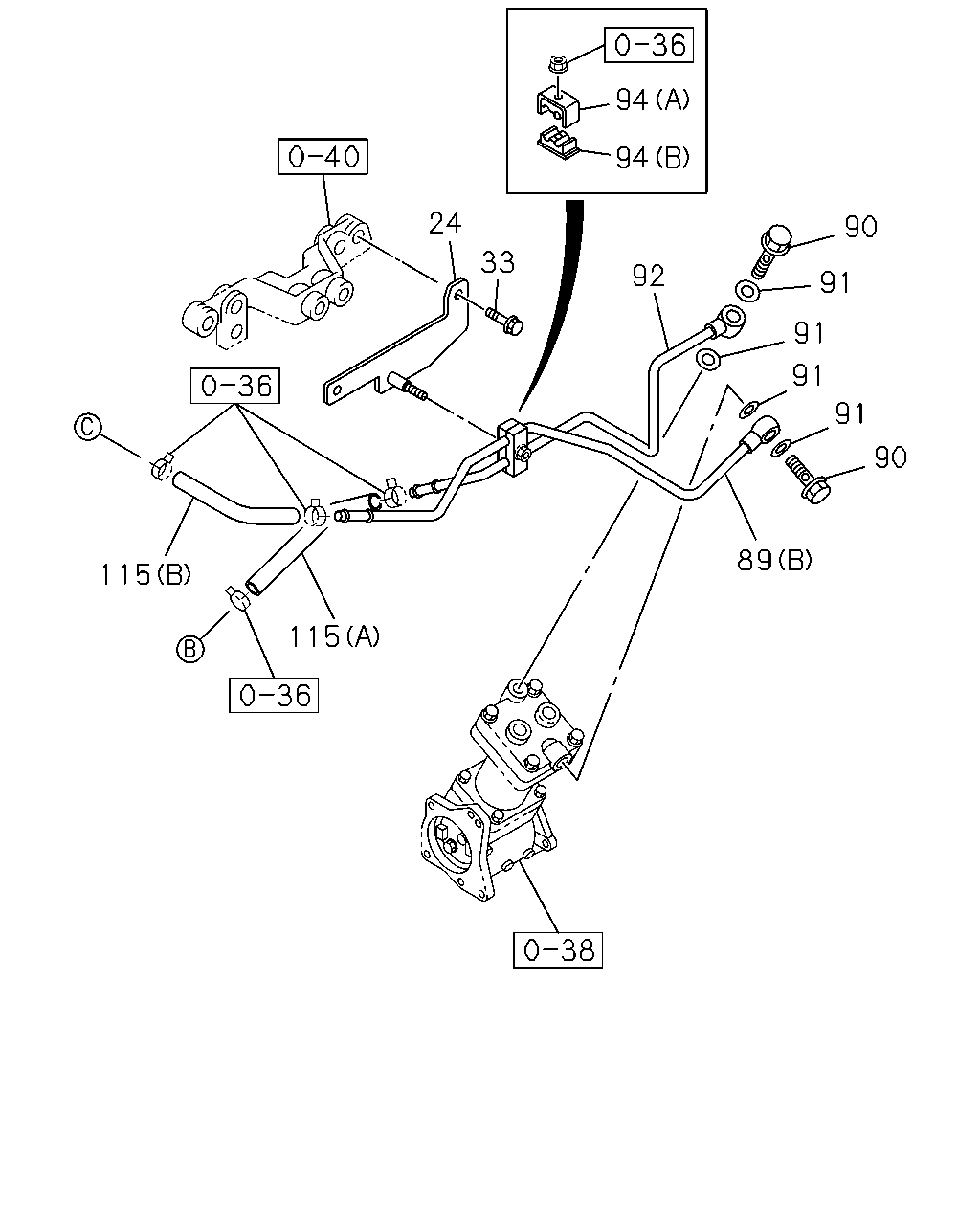

115 115 24 92 94 94 33 90 91 91 91 91 90 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	01.166 BRACKET; WATER PIPE	8-97379-140-0	01	1	1307-
33	01.166 BOLT; BRKT 03.671 M6X10 FLANGE	0-28050-610-0	02	1	1307-
89	04.867 PIPE; WATER,AIR CMPR,IN 01.153 (A)	8-97358-699-0	01	1	1307-
89	04.867 PIPE; WATER,AIR CMPR,IN (B)	8-97376-783-1	01	1	1307-
90	04.866 BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	02	1	1307-
91	04.866 GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	1307-1312
91	04.866 GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-
92	04.867 PIPE; WATER,AIR CMPR,OUT	8-97376-784-0	01	1	1307-
94	01.153 CLIP; WATER PIPE 03.162 (B) ID=9 & 9 L=25	1-09701-180-0	01	1	1307-
94	01.153 CLIP; WATER PIPE 03.162 (A) ID=9 & 9 L=25	8-94393-280-3	01	1	1307-
115	01.855 HOSE; RUBBER 01.097 (A) L=130 SERVICED BY L=3000	0-03559-300-0	01	1	1307-
115	01.855 HOSE; RUBBER (B)	8-98009-361-0	01	1	1307-
