1 |

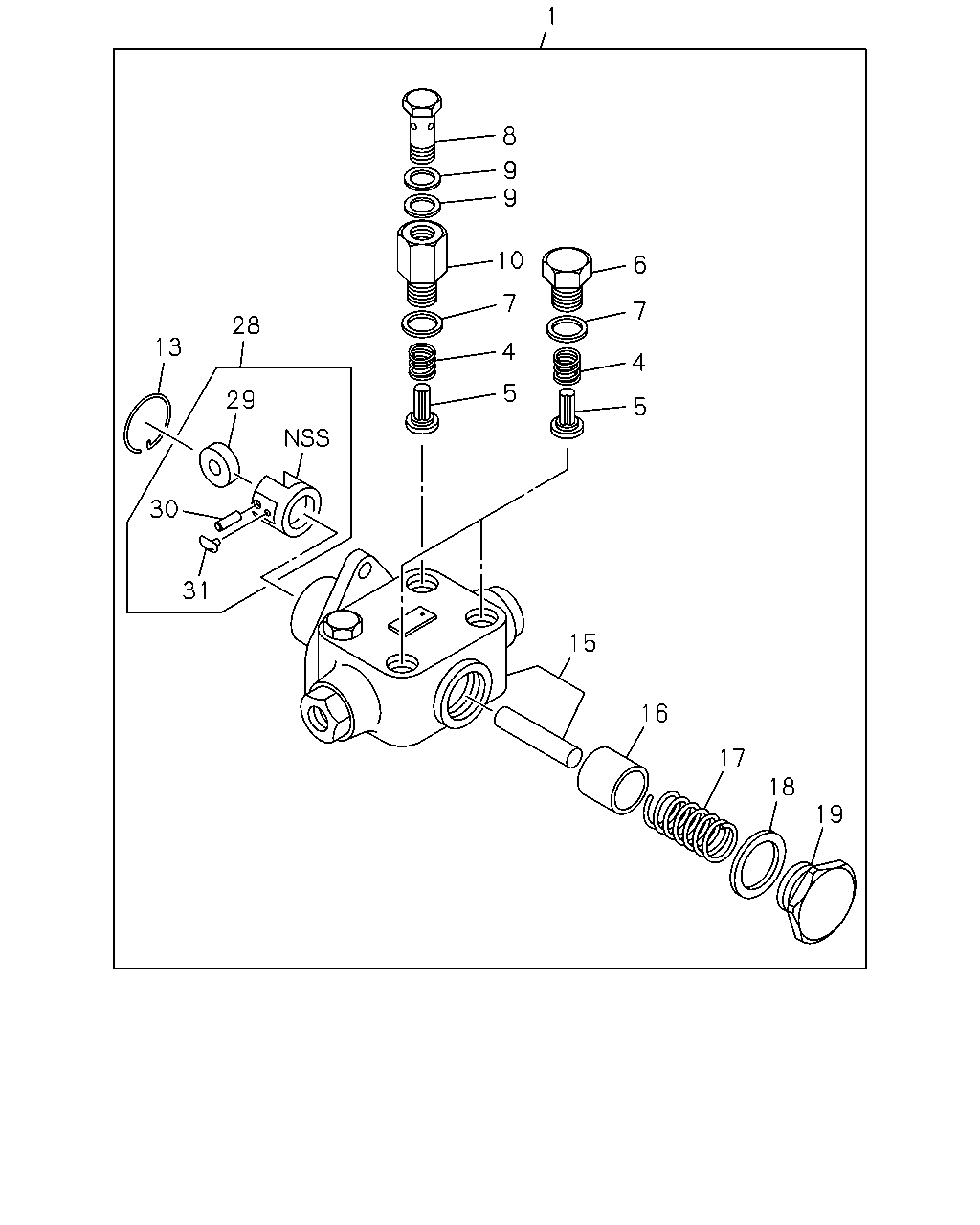

PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-97178-485-5, B = 8-97215-704-2,
C = 8-98268-832-0, D = 8-98285-612-0,
E = 8-98317-243-0
|
8-97214-533-1 |
01 |
1 |
- |
| |
4 |
SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, B = 8-97215-704-2,
C = 8-98268-832-0, D = 8-98285-612-0,
E = 8-98317-243-0
|
9-81351-702-0 |
04 |
1 |
- |
| |
5 |
VALVE; FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, B = 8-97215-704-2,
C = 8-98268-832-0, D = 8-98285-612-0,
E = 8-98317-243-0
|
1-15755-002-0 |
04 |
1 |
- |
| |
6 |
PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, B = 8-97215-704-2,
C = 8-98268-832-0, D = 8-98285-612-0,
E = 8-98317-243-0
|
1-15759-066-0 |
03 |
1 |
- |
| |
7 |
GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, B = 8-97215-704-2,
C = 8-98268-832-0, D = 8-98285-612-0,
E = 8-98317-243-0
|
1-19623-016-0 |
04 |
1 |
- |
| |
8 |
BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: A = 8-97178-485-5, B = 8-97215-704-2,
C = 8-98268-832-0, D = 8-98285-612-0,
E = 8-98317-243-0
|
1-15759-011-0 |
01 |
1 |
- |
| |
9 |
GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=14.2 OD=19.2
ASM PART: A = 8-97178-485-5, B = 8-97215-704-2,
C = 8-98268-832-0, D = 8-98285-612-0,
E = 8-98317-243-0
|
1-09630-085-0 |
02 |
1 |
- |
| |
10 |
ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, B = 8-97215-704-2,
C = 8-98268-832-0, D = 8-98285-612-0,
E = 8-98317-243-0
|
1-15759-067-0 |
01 |
1 |
- |
| |
13 |
RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, B = 8-97215-704-2,
C = 8-98268-832-0, D = 8-98285-612-0,
E = 8-98317-243-0
|
9-81355-025-0 |
01 |
1 |
- |
| |
15 |
HOUSING; FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, B = 8-97215-704-2,
C = 8-98268-832-0, D = 8-98285-612-0,
E = 8-98317-243-0
|
1-15751-043-0 |
01 |
1 |
- |
| |
16 |
PISTON; FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, B = 8-97215-704-2,
C = 8-98268-832-0, D = 8-98285-612-0,
E = 8-98317-243-0
|
9-81351-205-0 |
01 |
1 |
- |
| |
17 |
SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, B = 8-97215-704-2,
C = 8-98268-832-0, D = 8-98285-612-0,
E = 8-98317-243-0
|
8-97214-466-0 |
01 |
1 |
- |
| |
18 |
GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, B = 8-97215-704-2,
C = 8-98268-832-0, D = 8-98285-612-0,
E = 8-98317-243-0
|
9-81355-035-0 |
01 |
1 |
- |
| |
19 |
PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, B = 8-97215-704-2,
C = 8-98268-832-0, D = 8-98285-612-0,
E = 8-98317-243-0
|
8-94171-185-0 |
01 |
1 |
- |
| |
28 |
TAPPET ASM; FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, B = 8-97215-704-2,
C = 8-98268-832-0, D = 8-98285-612-0,
E = 8-98317-243-0
|
1-15754-002-0 |
01 |
1 |
- |
| |
29 |
ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, B = 8-97215-704-2,
C = 8-98268-832-0, D = 8-98285-612-0,
E = 8-98317-243-0
|
1-15759-043-0 |
01 |
1 |
- |
| |
30 |
PIN; TAPPET ROLLER,FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, B = 8-97215-704-2,
C = 8-98268-832-0, D = 8-98285-612-0,
E = 8-98317-243-0
|
9-81351-406-0 |
01 |
1 |
- |
| |
31 |
GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: A = 8-97178-485-5, B = 8-97215-704-2,
C = 8-98268-832-0, D = 8-98285-612-0,
E = 8-98317-243-0
|
9-81351-416-0 |
02 |
1 |
- |
