Sayfa 0-82 - Isuzu EPC

0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#124986) — 181 parça

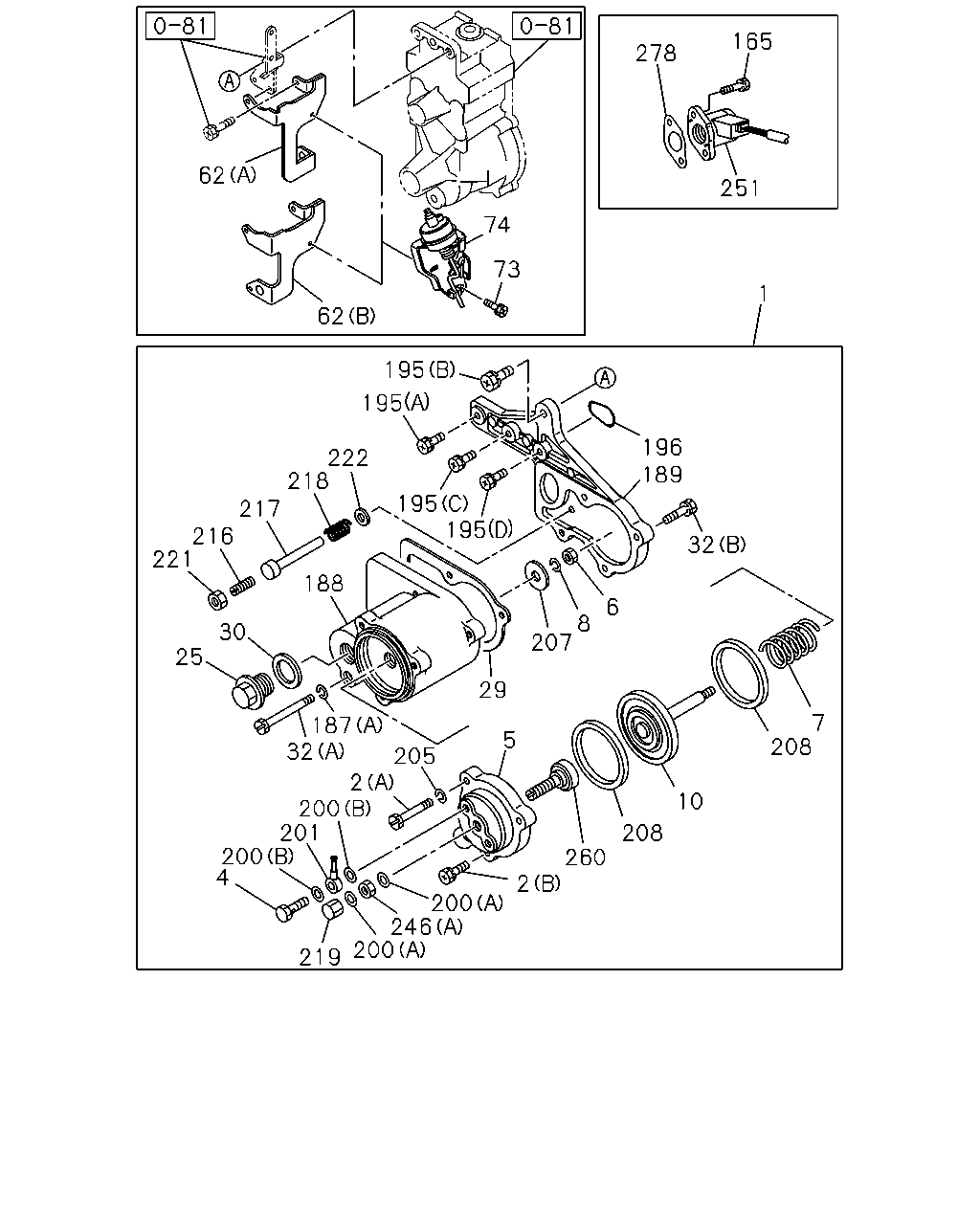

62 62 251 278 74 73 195 195 222 1 196 32 189 6 208 10 7 208 260 5 29 218 217 216 221 30 25 188 32 205 207 195 8 187 2 200 201 200 4 2 200 246 200 219 195 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-459-1	01	1	-
1	COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: B = 8-97215-704-2	8-97225-866-0	01	1	-
2	BOLT; COVER FIX,BOOST COMPENSATOR (A) ASM PART: A = 8-97178-485-5	1-15779-202-0	02	1	-
2	BOLT; COVER FIX,BOOST COMPENSATOR (B), M6X20 ASM PART: A = 8-97178-485-5	9-81325-187-0	01	1	-
2	BOLT; COVER FIX,BOOST COMPENSATOR (C) ASM PART: B = 8-97215-704-2	9-81325-321-0	03	1	-
4	BOLT; EYE,BOOST PIPE,COMPENSATOR ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	1-15729-325-0	01	1	-
5	COVER; HSG,BOOST COMPENSATOR,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	1-15619-283-0	01	1	-
6	NUT; DIAPH,BOOST COMPENSATOR ASM PART: B = 8-97215-704-2	1-15729-249-0	01	1	-
6	NUT; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5	9-88410-525-0	01	1	-
7	SPRING; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5	8-97085-017-0	01	1	-
7	SPRING; DIAPH,BOOST COMPENSATOR ASM PART: B = 8-97215-704-2	8-97225-867-0	01	1	-
8	WASHER; LK,DIAPH,BOOST COMPENSATOR ID=6.1 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	9-09150-506-0	01	1	-
10	DIAPHRAGM; BOOST COMPENSATOR,GOV ASM PART: A = 8-97178-485-5	1-15712-004-0	01	1	-
10	DIAPHRAGM; BOOST COMPENSATOR,GOV ASM PART: B = 8-97215-704-2	8-97037-286-0	01	1	-
25	PLUG; HSG,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5	1-15729-254-0	01	1	-
29	GASKET; HSG,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5	8-97085-018-0	01	1	-
29	GASKET; HSG,BOOST COMPENSATOR ASM PART: B = 8-97215-704-2	8-97104-950-0	01	1	-
30	GASKET; HSG PLUG,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5	1-15729-850-0	01	1	-
32	BOLT; BOOST COMPENSATOR FIX,INJ PUMP (A) ASM PART: A = 8-97178-485-5	1-15729-251-0	01	1	-
32	BOLT; BOOST COMPENSATOR FIX,INJ PUMP (C), M6X16 ASM PART: B = 8-97215-704-2	9-02050-616-0	01	1	-
32	BOLT; BOOST COMPENSATOR FIX,INJ PUMP (D), M6X20 ASM PART: B = 8-97215-704-2	9-81325-187-0	02	1	-
32	BOLT; BOOST COMPENSATOR FIX,INJ PUMP (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	9-88410-094-0	03	1	-
62	BRACKET; ACTUATOR (A) ASM PART: A = 8-97178-485-5	8-97085-019-0	01	1	-
62	BRACKET; ACTUATOR (B) ASM PART: C = 8-98285-612-0	8-97121-647-0	01	1	-
73	BOLT; ACTUATOR ASM PART: A = 8-97178-485-5, C = 8-98285-612-0	8-94121-627-0	02	1	-
74	ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP ASM PART: A = 8-97178-485-5, C = 8-98285-612-0	8-97037-274-4	01	1	-
165	BOLT; SENSOR ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	1-83579-438-0	02	1	-
187	WASHER; LK,BOOST COMPENSATOR FIX (A) ASM PART: A = 8-97178-485-5	8-94128-928-0	01	1	-
187	WASHER; LK,BOOST COMPENSATOR FIX (B) ASM PART: B = 8-97215-704-2	8-97037-295-0	01	1	-
187	WASHER; LK,BOOST COMPENSATOR FIX (C), ID=6.4 OD=14 ASM PART: B = 8-97215-704-2	9-09160-606-0	01	1	-
188	HOUSING; BOOST COMPENSATOR,INJ PUMP ASM PART: A = 8-97178-485-5	1-15721-163-0	01	1	-
188	HOUSING; BOOST COMPENSATOR,INJ PUMP ASM PART: B = 8-97215-704-2	8-97037-281-1	01	1	-
189	SPACER; BOOST COMPENSATOR HSG ASM PART: A = 8-97178-485-5	1-15729-851-0	01	1	-
189	SPACER; BOOST COMPENSATOR HSG ASM PART: B = 8-97215-704-2	8-97037-282-1	01	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (C), M6X25 ASM PART: A = 8-97178-485-5	1-15729-242-0	01	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (C), M6X25 ASM PART: B = 8-97215-704-2	1-15729-242-0	02	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (B), M8X30 ASM PART: A = 8-97178-485-5	1-15729-243-0	01	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (E) ASM PART: B = 8-97215-704-2	8-97037-283-0	01	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (D) ASM PART: A = 8-97178-485-5	9-81325-321-0	01	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	9-88410-094-0	01	1	-
196	GASKET; SPACER,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94424-220-0	01	1	-
200	GASKET; EYE BOLT,BOOST COMPENSATOR (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	1-15729-849-0	02	1	-
200	GASKET; EYE BOLT,BOOST COMPENSATOR (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	1-15729-868-0	02	1	-
201	JOINT; HOSE ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94171-178-0	01	1	-
205	WASHER; LK,COVER FIX,BOOST COMPENSATOR ID=6.1 ASM PART: A = 8-97178-485-5	9-09150-506-0	02	1	-
207	DISC; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	1-15729-248-0	01	1	-
208	GASKET; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	1-15779-129-0	02	1	-
216	SCREW; ADJ,DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5	8-94171-179-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=125.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	1-15729-245-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=127.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-282-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=128.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-283-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=127.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-284-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=126.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-285-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=129.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-286-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=128.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-287-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=125.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-288-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=126.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-289-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=119.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-290-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=120.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-291-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=120.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-292-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=121.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-293-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=121.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-294-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=122.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-295-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=122.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-296-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=123.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-297-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=123.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-298-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=129.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94443-435-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=130.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94443-436-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=130.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94443-437-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=131.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94443-438-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=131.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94443-439-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=132.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94443-440-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=132.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94443-441-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=133.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94443-442-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=133.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94443-443-0	01	1	-
218	SPRING; PUSH ROD,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94171-176-0	01	1	-
219	NUT; CAP,ADJ SCREW,BOOST COMPENSATOR CAP NUT ASM PART: A = 8-97178-485-5	1-15729-093-0	01	1	-
219	NUT; CAP,ADJ SCREW,BOOST COMPENSATOR ASM PART: B = 8-97215-704-2	8-97137-792-0	01	1	-
221	NUT; ADJ SCREW LOCK,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5	9-88410-525-0	01	1	-
222	WASHER; PUSH ROD,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	1-83539-045-0	01	1	-
246	NUT; SET BOLT (B) ASM PART: B = 8-97215-704-2	8-17137-793-0	01	1	-
246	NUT; SET BOLT (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	9-88410-525-0	01	1	-
251	SENSOR; RACK,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-97129-636-0	01	1	-
260	SCREW; DIAPHRAGM ASM PART: A = 8-97178-485-5	1-15729-386-0	01	1	-
260	SCREW; DIAPHRAGM ASM PART: B = 8-97215-704-2	8-97225-868-0	01	1	-
278	GASKET; SENSOR ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-97121-637-0	01	1	-

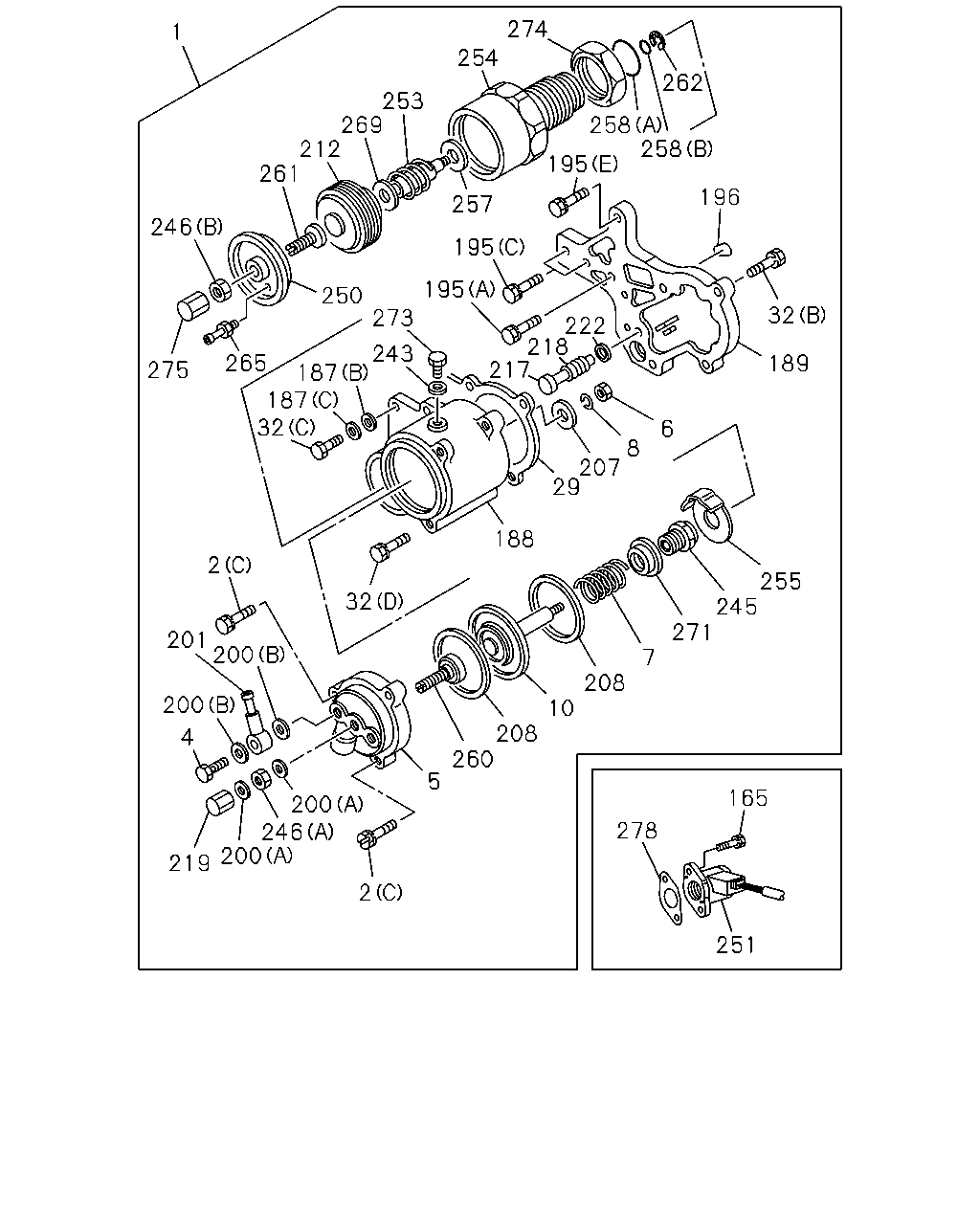

251 165 278 2 5 260 208 10 208 7 271 245 255 200 246 200 219 4 200 200 201 2 32 188 29 207 8 6 189 32 196 258 262 258 195 257 195 195 222 218 217 273 243 187 187 32 250 265 275 246 261 212 269 253 254 274 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-459-1	01	1	-
1	COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: B = 8-97215-704-2	8-97225-866-0	01	1	-
2	BOLT; COVER FIX,BOOST COMPENSATOR (A) ASM PART: A = 8-97178-485-5	1-15779-202-0	02	1	-
2	BOLT; COVER FIX,BOOST COMPENSATOR (B), M6X20 ASM PART: A = 8-97178-485-5	9-81325-187-0	01	1	-
2	BOLT; COVER FIX,BOOST COMPENSATOR (C) ASM PART: B = 8-97215-704-2	9-81325-321-0	03	1	-
4	BOLT; EYE,BOOST PIPE,COMPENSATOR ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	1-15729-325-0	01	1	-
5	COVER; HSG,BOOST COMPENSATOR,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	1-15619-283-0	01	1	-
6	NUT; DIAPH,BOOST COMPENSATOR ASM PART: B = 8-97215-704-2	1-15729-249-0	01	1	-
6	NUT; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5	9-88410-525-0	01	1	-
7	SPRING; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5	8-97085-017-0	01	1	-
7	SPRING; DIAPH,BOOST COMPENSATOR ASM PART: B = 8-97215-704-2	8-97225-867-0	01	1	-
8	WASHER; LK,DIAPH,BOOST COMPENSATOR ID=6.1 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	9-09150-506-0	01	1	-
10	DIAPHRAGM; BOOST COMPENSATOR,GOV ASM PART: A = 8-97178-485-5	1-15712-004-0	01	1	-
10	DIAPHRAGM; BOOST COMPENSATOR,GOV ASM PART: B = 8-97215-704-2	8-97037-286-0	01	1	-
29	GASKET; HSG,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5	8-97085-018-0	01	1	-
29	GASKET; HSG,BOOST COMPENSATOR ASM PART: B = 8-97215-704-2	8-97104-950-0	01	1	-
32	BOLT; BOOST COMPENSATOR FIX,INJ PUMP (A) ASM PART: A = 8-97178-485-5	1-15729-251-0	01	1	-
32	BOLT; BOOST COMPENSATOR FIX,INJ PUMP (C), M6X16 ASM PART: B = 8-97215-704-2	9-02050-616-0	01	1	-
32	BOLT; BOOST COMPENSATOR FIX,INJ PUMP (D), M6X20 ASM PART: B = 8-97215-704-2	9-81325-187-0	02	1	-
32	BOLT; BOOST COMPENSATOR FIX,INJ PUMP (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	9-88410-094-0	03	1	-
165	BOLT; SENSOR ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	1-83579-438-0	02	1	-
187	WASHER; LK,BOOST COMPENSATOR FIX (A) ASM PART: A = 8-97178-485-5	8-94128-928-0	01	1	-
187	WASHER; LK,BOOST COMPENSATOR FIX (B) ASM PART: B = 8-97215-704-2	8-97037-295-0	01	1	-
187	WASHER; LK,BOOST COMPENSATOR FIX (C), ID=6.4 OD=14 ASM PART: B = 8-97215-704-2	9-09160-606-0	01	1	-
188	HOUSING; BOOST COMPENSATOR,INJ PUMP ASM PART: A = 8-97178-485-5	1-15721-163-0	01	1	-
188	HOUSING; BOOST COMPENSATOR,INJ PUMP ASM PART: B = 8-97215-704-2	8-97037-281-1	01	1	-
189	SPACER; BOOST COMPENSATOR HSG ASM PART: A = 8-97178-485-5	1-15729-851-0	01	1	-
189	SPACER; BOOST COMPENSATOR HSG ASM PART: B = 8-97215-704-2	8-97037-282-1	01	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (C), M6X25 ASM PART: A = 8-97178-485-5	1-15729-242-0	01	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (C), M6X25 ASM PART: B = 8-97215-704-2	1-15729-242-0	02	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (B), M8X30 ASM PART: A = 8-97178-485-5	1-15729-243-0	01	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (E) ASM PART: B = 8-97215-704-2	8-97037-283-0	01	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (D) ASM PART: A = 8-97178-485-5	9-81325-321-0	01	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	9-88410-094-0	01	1	-
196	GASKET; SPACER,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94424-220-0	01	1	-
200	GASKET; EYE BOLT,BOOST COMPENSATOR (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	1-15729-849-0	02	1	-
200	GASKET; EYE BOLT,BOOST COMPENSATOR (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	1-15729-868-0	02	1	-
201	JOINT; HOSE ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94171-178-0	01	1	-
207	DISC; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	1-15729-248-0	01	1	-
208	GASKET; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	1-15779-129-0	02	1	-
212	BELLOWS; BOOST COMPENSATOR ASM PART: B = 8-97215-704-2	1-15729-622-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=125.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	1-15729-245-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=127.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-282-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=128.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-283-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=127.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-284-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=126.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-285-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=129.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-286-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=128.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-287-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=125.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-288-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=126.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-289-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=119.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-290-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=120.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-291-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=120.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-292-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=121.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-293-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=121.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-294-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=122.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-295-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=122.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-296-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=123.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-297-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=123.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94172-298-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=129.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94443-435-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=130.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94443-436-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=130.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94443-437-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=131.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94443-438-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=131.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94443-439-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=132.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94443-440-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=132.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94443-441-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=133.0 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94443-442-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=133.5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94443-443-0	01	1	-
218	SPRING; PUSH ROD,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-94171-176-0	01	1	-
219	NUT; CAP,ADJ SCREW,BOOST COMPENSATOR CAP NUT ASM PART: A = 8-97178-485-5	1-15729-093-0	01	1	-
219	NUT; CAP,ADJ SCREW,BOOST COMPENSATOR ASM PART: B = 8-97215-704-2	8-97137-792-0	01	1	-
222	WASHER; PUSH ROD,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	1-83539-045-0	01	1	-
243	GASKET; HSG L=96 ASM PART: B = 8-97215-704-2	1-15729-066-0	01	1	-
245	BUSHING; DIAPHRAGM ASM PART: B = 8-97215-704-2	8-97104-945-0	01	1	-
246	NUT; SET BOLT (B) ASM PART: B = 8-97215-704-2	8-17137-793-0	01	1	-
246	NUT; SET BOLT (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	9-88410-525-0	01	1	-
250	COVER; HSG ASM PART: B = 8-97215-704-2	1-15721-103-0	01	1	-
251	SENSOR; RACK,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-97129-636-0	01	1	-
253	SPRING; PUSH ROD ASM PART: B = 8-97215-704-2	1-15723-221-0	01	1	-
254	HOUSING; BOOST COMPENSATOR ASM PART: B = 8-97215-704-2	8-97037-289-1	01	1	-
255	PLATE; DIAPHRAGM ASM PART: B = 8-97215-704-2	8-94122-719-0	01	1	-
257	SHIM; SPRING ASM PART: B = 8-97215-704-2	8-97037-292-0	01	1	-
258	GASKET; HSG (A) ASM PART: B = 8-97215-704-2	8-97037-290-0	01	1	-
258	GASKET; HSG (B) ASM PART: B = 8-97215-704-2	8-97037-291-0	01	1	-
260	SCREW; DIAPHRAGM ASM PART: A = 8-97178-485-5	1-15729-386-0	01	1	-
260	SCREW; DIAPHRAGM ASM PART: B = 8-97215-704-2	8-97225-868-0	01	1	-
261	BOLT; SET,BELLOWS ASM PART: B = 8-97215-704-2	1-15729-342-0	01	1	-
262	RING; SNAP,HSG ASM PART: B = 8-97215-704-2	8-94244-599-0	01	1	-
265	JOINT; HOSE ASM PART: B = 8-97215-704-2	1-15729-360-0	01	1	-
269	ROD; PUSH,BELLOWS ASM PART: B = 8-97215-704-2	8-97225-869-0	01	1	-
271	NUT; DIAPHRAGM ASM PART: B = 8-97215-704-2	8-97104-978-0	01	1	-
273	PLUG; HSG ASM PART: B = 8-97215-704-2	8-97037-288-0	01	1	-
274	NUT; HSG ASM PART: B = 8-97215-704-2	8-97037-294-0	01	1	-
275	NUT; CAP,SET BOLT CAP NUT ASM PART: B = 8-97215-704-2	1-15729-093-0	01	1	-
278	GASKET; SENSOR ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-97121-637-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
