Sayfa 0-81 - Isuzu EPC

0-81 — GOVERNOR; INJECTION PUMP (#124985) — 199 parça

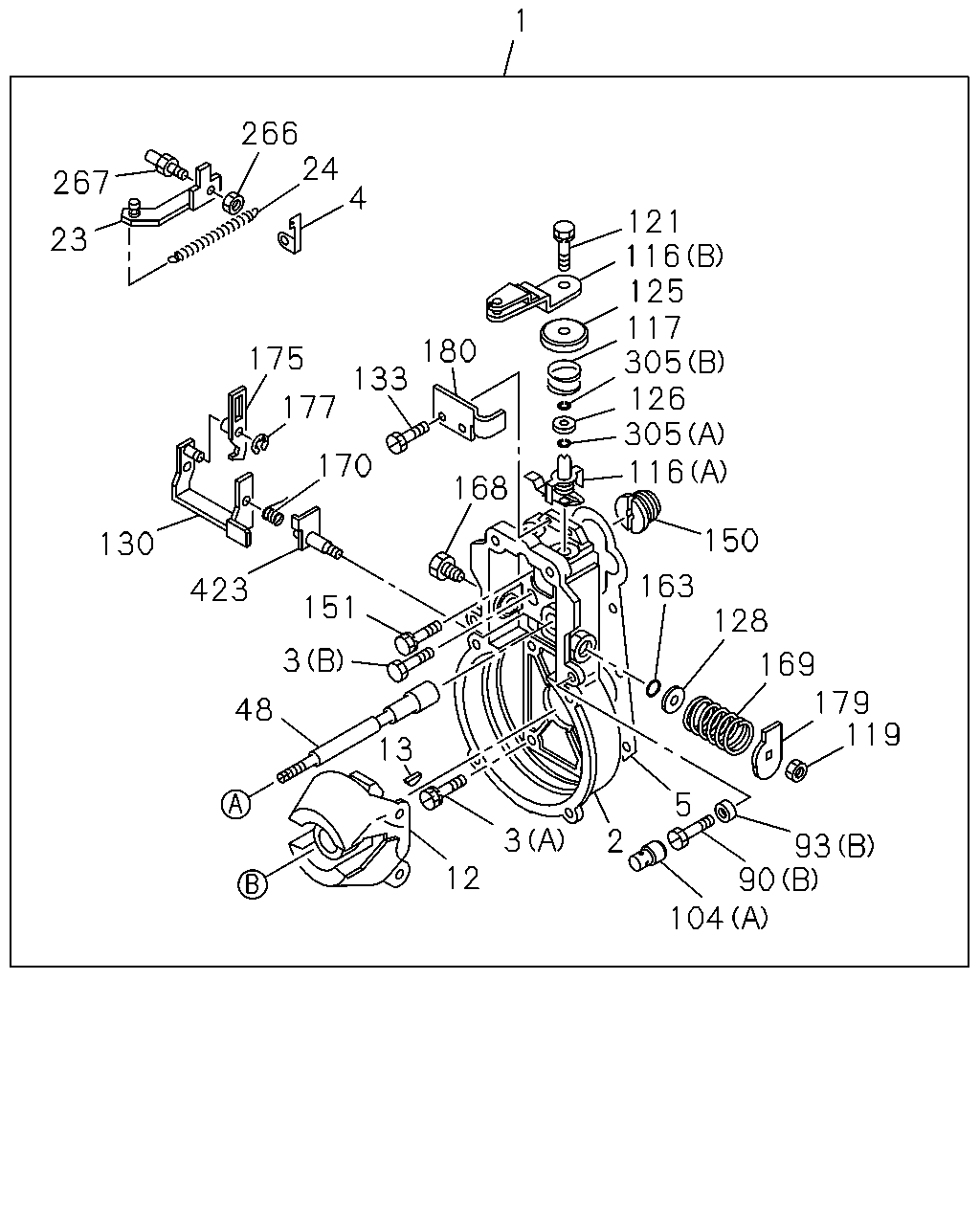

104 90 93 119 179 169 128 163 150 116 305 126 305 117 125 116 121 180 133 168 170 177 175 130 423 151 3 48 13 12 3 2 5 4 24 266 267 23 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-531-3	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 8-97215-704-2	8-97225-684-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 8-98268-832-0, E = 8-98317-243-0	8-98272-998-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 8-98285-612-0	8-98304-430-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15721-265-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP (A), M6X15 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-027-0	05	1	-
3	BOLT; GOV HSG,INJ PUMP (B), M6X16 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-071-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15779-591-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15779-106-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15722-017-0	01	1	-
13	KEY; FLYWEIGHT,GOV 16MM ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-19619-049-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, D = 8-98285-612-0	1-15725-928-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15723-035-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-146-1	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X62 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X65 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-761-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: D = 8-98285-612-0	1-15729-799-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: D = 8-98285-612-0	1-15729-800-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: D = 8-98285-612-0	1-15729-801-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: D = 8-98285-612-0	1-15729-802-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: D = 8-98285-612-0	1-15729-803-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: D = 8-98285-612-0	1-15729-842-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: D = 8-98285-612-0	1-15729-843-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-843-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97026-924-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97085-021-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97085-022-0	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97121-631-0	01	1	-
116	LEVER; ENG STOP,GOV (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97121-632-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94336-925-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-236-0	01	1	-
121	BOLT; ENG STOP LEVER,GOV M6X12 W/LK WASHER ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-01910-612-0	01	1	-
125	CAP; STOP LEVER SPRING,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-168-0	01	1	-
126	GASKET; STOP LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-853-0	01	1	-
128	SHIM; CONT SHAFT,GOV T=0.60 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.80 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.90 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.50 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.30 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.40 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.25 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.35 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.20 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	1-15725-496-0	01	1	-
130	LEVER; CONT,GOV ASM PART: C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15725-527-0	01	1	-
133	BOLT; BRKT FIX,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-834-0	02	1	-
150	ADAPTER; GOV HSG,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81315-065-0	01	1	-
151	BOLT; ADAPTER,GOV HSG,INJ PUMP M8X18 W/LK WASHER ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-01900-818-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15629-859-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-796-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15723-032-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: A = 8-97178-485-5, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15723-033-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: B = 8-97215-704-2	8-97225-865-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97176-488-0	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-445-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-132-0	01	1	-
180	PLATE; GOV COVER ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97121-643-0	01	1	-
266	NUT; PIN TO LINK,CONT RACK,GOV M5 ASM PART: D = 8-98285-612-0	1-15729-050-0	01	1	-
266	NUT; PIN TO LINK,CONT RACK,GOV M5 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	9-99110-405-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, D = 8-98285-612-0	1-15729-858-0	01	1	-
305	SHIM; STOP LEVER,GOV (B), T=0.20 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97089-308-0	AR	1	-
305	SHIM; STOP LEVER,GOV (B), T=0.30 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97089-309-0	AR	1	-
305	SHIM; STOP LEVER,GOV (B), T=0.40 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97089-310-0	AR	1	-
305	SHIM; STOP LEVER,GOV (B), T=0.60 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97089-311-0	AR	1	-
305	SHIM; STOP LEVER,GOV (B), T=0.80 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97089-312-0	AR	1	-
305	SHIM; STOP LEVER,GOV (A), T=1.00 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-553-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-820-0	01	1	-

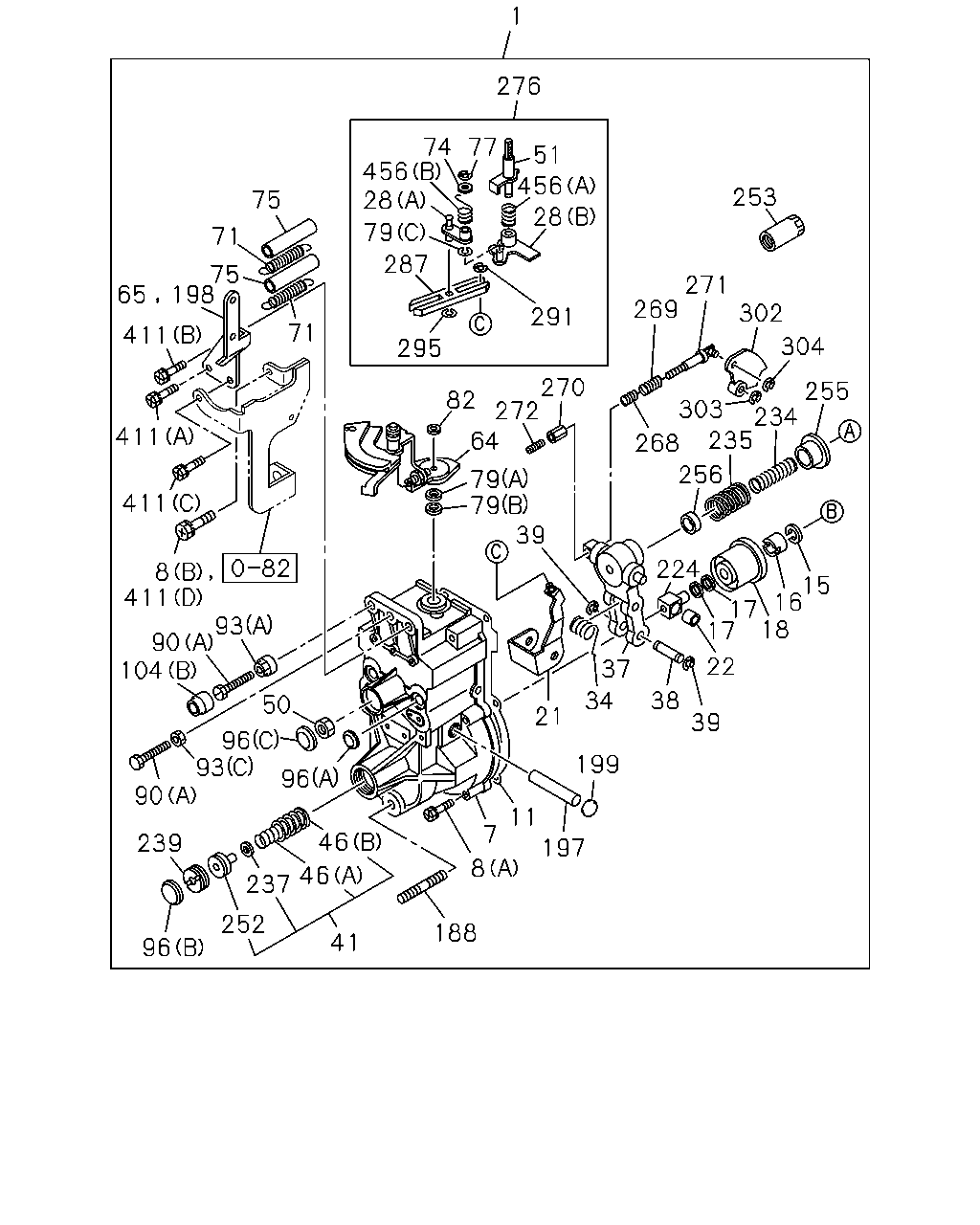

224 17 17 22 16 255 304 302 271 269 268 235 303 15 18 39 38 37 75 71 198 276 253 291 270 272 82 295 287 34 21 199 11 197 8 46 46 41 252 96 239 90 188 104 411 411 411 411 65 75 71 79 28 456 77 74 51 1 456 28 256 79 39 64 79 93 50 96 93 96 90 8 7 234 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97178-485-5	8-97214-531-3	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 8-97215-704-2	8-97225-684-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 8-98268-832-0, E = 8-98317-243-0	8-98272-998-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 8-98285-612-0	8-98304-430-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97142-961-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-97142-962-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: D = 8-98285-612-0	1-15719-005-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: A = 8-97178-485-5	1-15729-535-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	5-15729-033-0	07	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 8-97178-485-5	5-15729-033-0	05	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: D = 8-98285-612-0	5-15729-033-0	06	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15779-107-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-372-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97223-398-0	01	1	-
22	COLLAR; LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94368-298-1	01	1	-
28	LEVER; SUPPORTING,GOV (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15725-472-0	01	1	-
28	LEVER; SUPPORTING,GOV (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15725-485-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-140-1	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97214-455-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-370-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-88410-201-0	02	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97085-009-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97115-982-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97115-983-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-147-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-876-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97026-934-1	01	1	-
65	BRACKET; RETURN SPRING,GOV ASM PART: D = 8-98285-612-0	8-97026-928-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97026-929-0	02	1	-
74	WASHER; LEVER SPR ID=6.4 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-09160-506-0	01	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-963-0	02	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94244-599-0	01	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	9-88410-201-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.95 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-076-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.20 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-077-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.25 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-078-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.30 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-079-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.35 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-080-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.40 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-081-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.50 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-082-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-517-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.70 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-617-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.90 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-618-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.80 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-619-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (B), T=0.60 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-896-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97066-844-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X62 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-642-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X65 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-761-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: D = 8-98285-612-0	1-15729-799-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: D = 8-98285-612-0	1-15729-800-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: D = 8-98285-612-0	1-15729-801-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: D = 8-98285-612-0	1-15729-802-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: D = 8-98285-612-0	1-15729-803-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: D = 8-98285-612-0	1-15729-842-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: D = 8-98285-612-0	1-15729-843-0	AR	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, E = 8-98317-243-0	1-15729-843-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-807-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97026-924-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-076-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-145-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-148-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97085-021-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97085-022-0	01	1	-
188	STUD; COVER ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-790-0	01	1	-
197	SHAFT; LEVER,GOV COVER ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15725-008-0	01	1	-
198	BRACKET; COVER ASM PART: C = 8-98268-832-0, E = 8-98317-243-0	8-97026-928-0	01	1	-
198	BRACKET; COVER ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-97085-014-0	01	1	-
199	PLUG; LEVER SHAFT,GOV COVER ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-076-0	02	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-142-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97214-457-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-97214-456-0	01	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-966-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-967-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.80 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15729-968-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94472-268-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94472-269-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.25 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94472-270-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94472-271-0	AR	1	-
239	SCREW; GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-144-0	01	1	-
252	SCREW; GUIDE ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15779-003-1	01	1	-
253	LIMITTER; GOV CONT ASM PART: C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94167-792-0	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-173-0	01	1	-
256	SEAT; GOV SPRING ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15779-214-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15723-056-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15723-070-1	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-051-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15725-009-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94171-138-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15725-534-0	01	1	-
287	LEVER; GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15725-542-0	01	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-023-0	01	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	9-81325-445-0	01	1	-
295	RING; SNAP ASM PART: C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-023-0	01	1	-
295	RING; SNAP ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	9-81325-445-0	01	1	-
302	PLATE; CAM,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2	8-97214-458-0	01	1	-
302	PLATE; CAM,GOV ASM PART: C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-98283-545-0	01	1	-
303	RING; SNAP,CAM PLATE,GOV ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	9-09185-404-0	01	1	-
411	BOLT; BRKT (C) ASM PART: D = 8-98285-612-0	1-15619-187-0	01	1	-
411	BOLT; BRKT (A) ASM PART: C = 8-98268-832-0, E = 8-98317-243-0	1-15719-005-0	02	1	-
411	BOLT; BRKT (A) ASM PART: D = 8-98285-612-0	1-15719-005-0	01	1	-
411	BOLT; BRKT (D) ASM PART: D = 8-98285-612-0	1-15729-535-0	01	1	-
411	BOLT; BRKT (B) ASM PART: C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	5-15729-304-0	01	1	-
456	SPRING; LEVER,GOV (B) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	1-15723-295-0	01	1	-
456	SPRING; LEVER,GOV (A) ASM PART: A = 8-97178-485-5, B = 8-97215-704-2, C = 8-98268-832-0, D = 8-98285-612-0, E = 8-98317-243-0	8-94413-728-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
