Sayfa 0-65 - Isuzu EPC

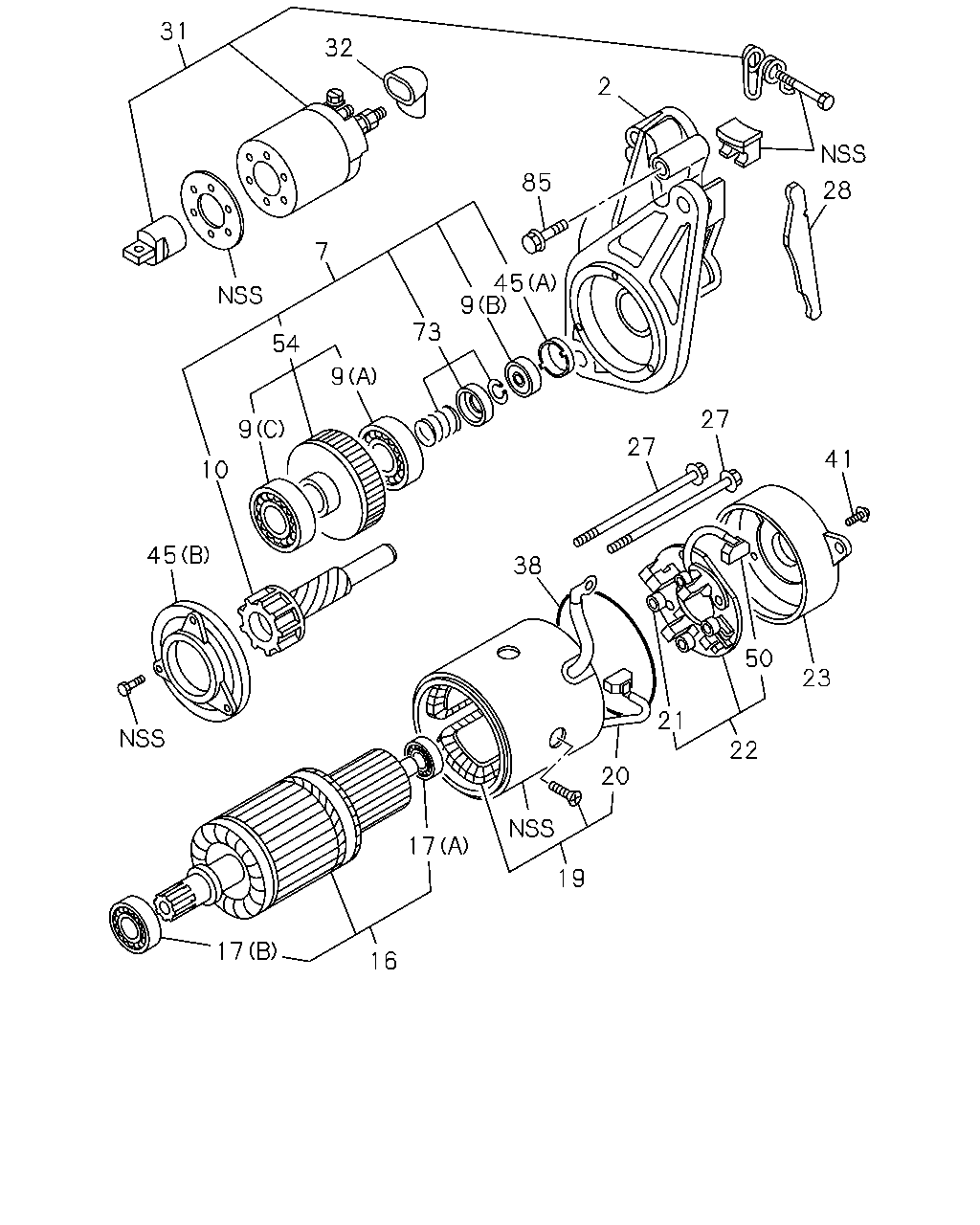

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	51	COVER SET; DUST ENGAGE SW STARTER MAL ASM PART: A = 8-98222-018-2	8-97179-778-0	01	1	-
	51	COVER SET; DUST ENGAGE SW STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-98022-789-0	01	1	-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	51	COVER SET; DUST ENGAGE SW STARTER MAL ASM PART: A = 8-98222-018-2	8-97179-778-0	01	1	-
	51	COVER SET; DUST ENGAGE SW STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-98022-789-0	01	1	-

31 32 2 28 85 45 27 27 41 7 54 73 9 9 10 45 9 38 23 50 22 21 20 19 17 16 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: B = 8-98222-021-0	8-98022-776-0	01	1	-
2	CASE; PINION,STARTER MAL ASM PART: A = 8-98222-018-2	8-98055-786-1	01	1	-
2	CASE; PINION,STARTER ASM PART: C = 8-98245-258-0	8-98246-368-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-98222-018-2	8-98222-100-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-98222-104-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A), MAL ASM PART: A = 8-98222-018-2	8-97025-673-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A), MAL ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-97025-673-0	02	1	-
9	BEARING; GEAR SHAFT STARTER (C), MAL ASM PART: A = 8-98222-018-2	8-97025-674-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B), MAL ASM PART: A = 8-98222-018-2	8-97025-676-0	01	1	-
10	SHAFT; GEAR STARTER MAL ASM PART: A = 8-98222-018-2	8-97179-772-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-98159-734-0	01	1	-
16	ARMATURE; STARTER MAL ASM PART: A = 8-98222-018-2	8-97192-299-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-97230-557-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), MAL ASM PART: A = 8-98222-018-2	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), MAL ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-97025-676-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), MAL ASM PART: A = 8-98222-018-2, B = 8-98222-021-0, C = 8-98245-258-0	8-97030-387-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: B = 8-98222-021-0	8-97377-688-0	01	1	-
19	COIL; FIELD,STARTER MAL ASM PART: A = 8-98222-018-2	8-98055-295-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: C = 8-98245-258-0	8-98253-306-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-97230-560-0	02	1	-
20	BRUSH; (+),STARTER MAL ASM PART: A = 8-98222-018-2	8-98055-296-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER MAL ASM PART: A = 8-98222-018-2, B = 8-98222-021-0, C = 8-98245-258-0	8-94152-972-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-97230-562-0	01	1	-
22	HOLDER; BRUSH STARTER MAL ASM PART: A = 8-98222-018-2	8-98055-298-0	01	1	-
23	COVER; RR COVER STARTER MAL ASM PART: A = 8-98222-018-2	8-97227-901-0	01	1	-1306
23	COVER; RR COVER STARTER ASM PART: B = 8-98222-021-0	8-98022-772-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-98222-018-2	8-98246-185-0	01	1	1307-
23	COVER; RR COVER STARTER ASM PART: C = 8-98245-258-0	8-98246-366-0	01	1	-
27	BOLT; THROUGH,STARTER MAL ASM PART: A = 8-98222-018-2, B = 8-98222-021-0, C = 8-98245-258-0	8-97192-423-0	02	1	-
28	LEVER; SHIFT,STARTER MAL ASM PART: A = 8-98222-018-2	8-97179-776-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-98179-218-0	01	1	-
31	SWITCH; ENGAGE STARTER MAL ASM PART: A = 8-98222-018-2	8-97161-789-0	01	1	-1507
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-98222-021-0	8-97217-569-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 8-98245-258-0	8-98246-367-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-98222-018-2	8-98322-549-0	01	1	1508-
32	COVER; RUBBER,STARTER MAL ASM PART: A = 8-98222-018-2	5-81129-069-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: B = 8-98222-021-0	8-97217-570-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: C = 8-98245-258-0	8-98253-307-0	01	1	-
38	GASKET; RR COVER,STARTER MAL ASM PART: A = 8-98222-018-2	8-97115-763-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-97230-559-0	01	1	-
41	SCREW; RR COVER,STARTER MAL ASM PART: A = 8-98222-018-2, B = 8-98222-021-0, C = 8-98245-258-0	8-97117-107-0	02	1	-
45	RETAINER; BEARING,STARTER (A), MAL ASM PART: A = 8-98222-018-2	8-94435-567-0	01	1	-
45	RETAINER; BEARING,STARTER (C) ASM PART: B = 8-98222-021-0	8-97030-401-0	01	1	-
45	RETAINER; BEARING,STARTER (B), MAL ASM PART: A = 8-98222-018-2	8-97179-774-0	01	1	-
45	RETAINER; BEARING,STARTER (C) ASM PART: C = 8-98245-258-0	8-98246-369-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-97230-560-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: A = 8-98222-018-2	8-98055-297-0	02	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-98222-018-2	8-98222-101-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-98222-106-0	01	1	-
73	STOPPER SET; PINION MAL ASM PART: A = 8-98222-018-2	8-97030-396-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER MAL ASM PART: A = 8-98222-018-2, B = 8-98222-021-0, C = 8-98245-258-0	8-94408-500-0	02	1	-

31 32 7 54 10 9 9 85 28 2 27 27 41 23 22 50 21 38 20 19 14 17 16 45 17

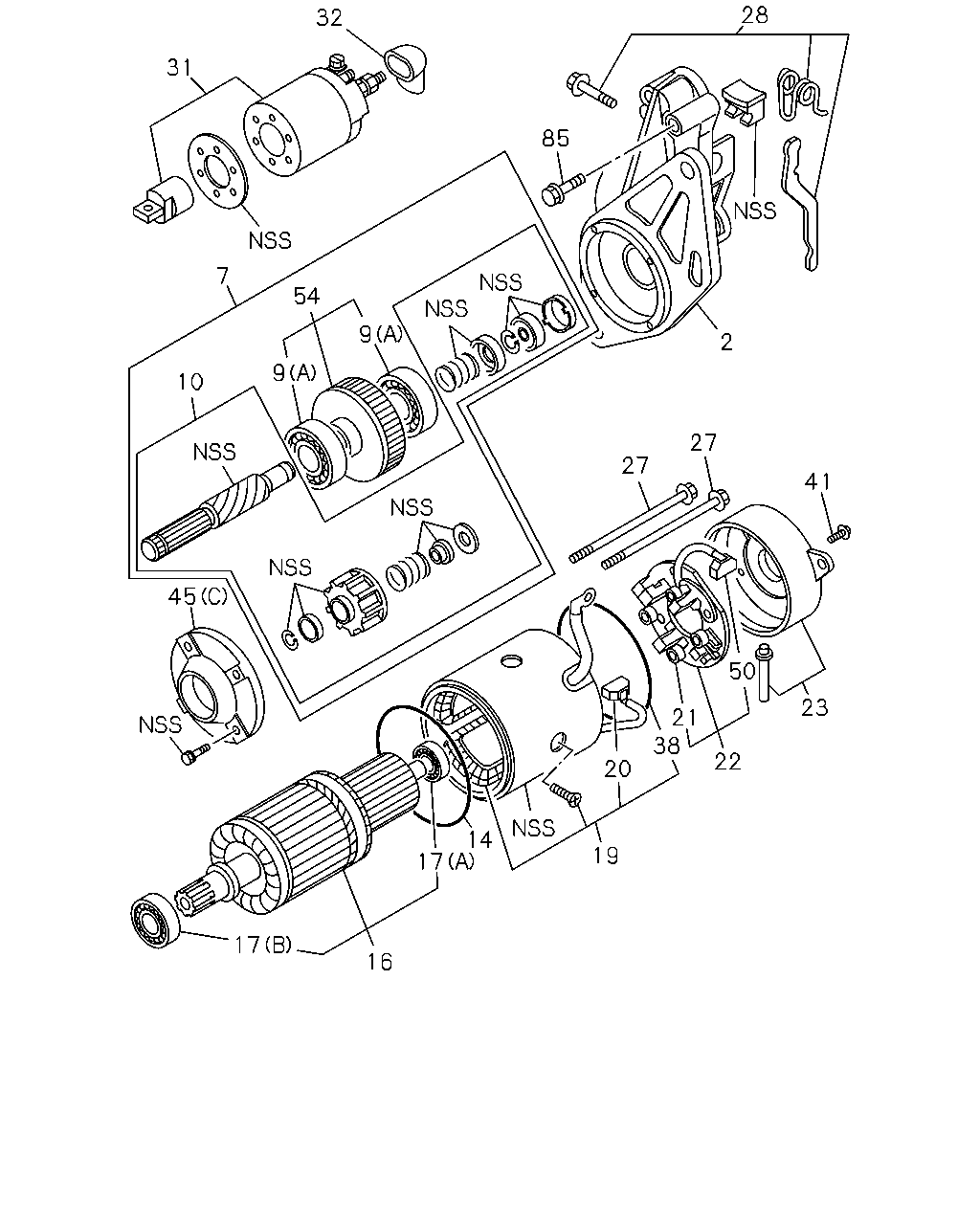

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: B = 8-98222-021-0	8-98022-776-0	01	1	-
2	CASE; PINION,STARTER MAL ASM PART: A = 8-98222-018-2	8-98055-786-1	01	1	-
2	CASE; PINION,STARTER ASM PART: C = 8-98245-258-0	8-98246-368-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-98222-018-2	8-98222-100-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-98222-104-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A), MAL ASM PART: A = 8-98222-018-2	8-97025-673-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A), MAL ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-97025-673-0	02	1	-
9	BEARING; GEAR SHAFT STARTER (C), MAL ASM PART: A = 8-98222-018-2	8-97025-674-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B), MAL ASM PART: A = 8-98222-018-2	8-97025-676-0	01	1	-
10	SHAFT; GEAR STARTER MAL ASM PART: A = 8-98222-018-2	8-97179-772-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-98159-734-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-97377-691-0	01	1	-
16	ARMATURE; STARTER MAL ASM PART: A = 8-98222-018-2	8-97192-299-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-97230-557-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), MAL ASM PART: A = 8-98222-018-2	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), MAL ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-97025-676-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), MAL ASM PART: A = 8-98222-018-2, B = 8-98222-021-0, C = 8-98245-258-0	8-97030-387-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: B = 8-98222-021-0	8-97377-688-0	01	1	-
19	COIL; FIELD,STARTER MAL ASM PART: A = 8-98222-018-2	8-98055-295-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: C = 8-98245-258-0	8-98253-306-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-97230-560-0	02	1	-
20	BRUSH; (+),STARTER MAL ASM PART: A = 8-98222-018-2	8-98055-296-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER MAL ASM PART: A = 8-98222-018-2, B = 8-98222-021-0, C = 8-98245-258-0	8-94152-972-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-97230-562-0	01	1	-
22	HOLDER; BRUSH STARTER MAL ASM PART: A = 8-98222-018-2	8-98055-298-0	01	1	-
23	COVER; RR COVER STARTER MAL ASM PART: A = 8-98222-018-2	8-97227-901-0	01	1	-1306
23	COVER; RR COVER STARTER ASM PART: B = 8-98222-021-0	8-98022-772-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-98222-018-2	8-98246-185-0	01	1	1307-
23	COVER; RR COVER STARTER ASM PART: C = 8-98245-258-0	8-98246-366-0	01	1	-
27	BOLT; THROUGH,STARTER MAL ASM PART: A = 8-98222-018-2, B = 8-98222-021-0, C = 8-98245-258-0	8-97192-423-0	02	1	-
28	LEVER; SHIFT,STARTER MAL ASM PART: A = 8-98222-018-2	8-97179-776-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-98179-218-0	01	1	-
31	SWITCH; ENGAGE STARTER MAL ASM PART: A = 8-98222-018-2	8-97161-789-0	01	1	-1507
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-98222-021-0	8-97217-569-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 8-98245-258-0	8-98246-367-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-98222-018-2	8-98322-549-0	01	1	1508-
32	COVER; RUBBER,STARTER MAL ASM PART: A = 8-98222-018-2	5-81129-069-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: B = 8-98222-021-0	8-97217-570-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: C = 8-98245-258-0	8-98253-307-0	01	1	-
38	GASKET; RR COVER,STARTER MAL ASM PART: A = 8-98222-018-2	8-97115-763-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-97230-559-0	01	1	-
41	SCREW; RR COVER,STARTER MAL ASM PART: A = 8-98222-018-2, B = 8-98222-021-0, C = 8-98245-258-0	8-97117-107-0	02	1	-
45	RETAINER; BEARING,STARTER (A), MAL ASM PART: A = 8-98222-018-2	8-94435-567-0	01	1	-
45	RETAINER; BEARING,STARTER (C) ASM PART: B = 8-98222-021-0	8-97030-401-0	01	1	-
45	RETAINER; BEARING,STARTER (B), MAL ASM PART: A = 8-98222-018-2	8-97179-774-0	01	1	-
45	RETAINER; BEARING,STARTER (C) ASM PART: C = 8-98245-258-0	8-98246-369-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-97230-560-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: A = 8-98222-018-2	8-98055-297-0	02	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-98222-018-2	8-98222-101-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-98222-021-0, C = 8-98245-258-0	8-98222-106-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER MAL ASM PART: A = 8-98222-018-2, B = 8-98222-021-0, C = 8-98245-258-0	8-94408-500-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
