Isuzu WW
▶
TRUCKS
▶
NPS
▶
51500 - NPS(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

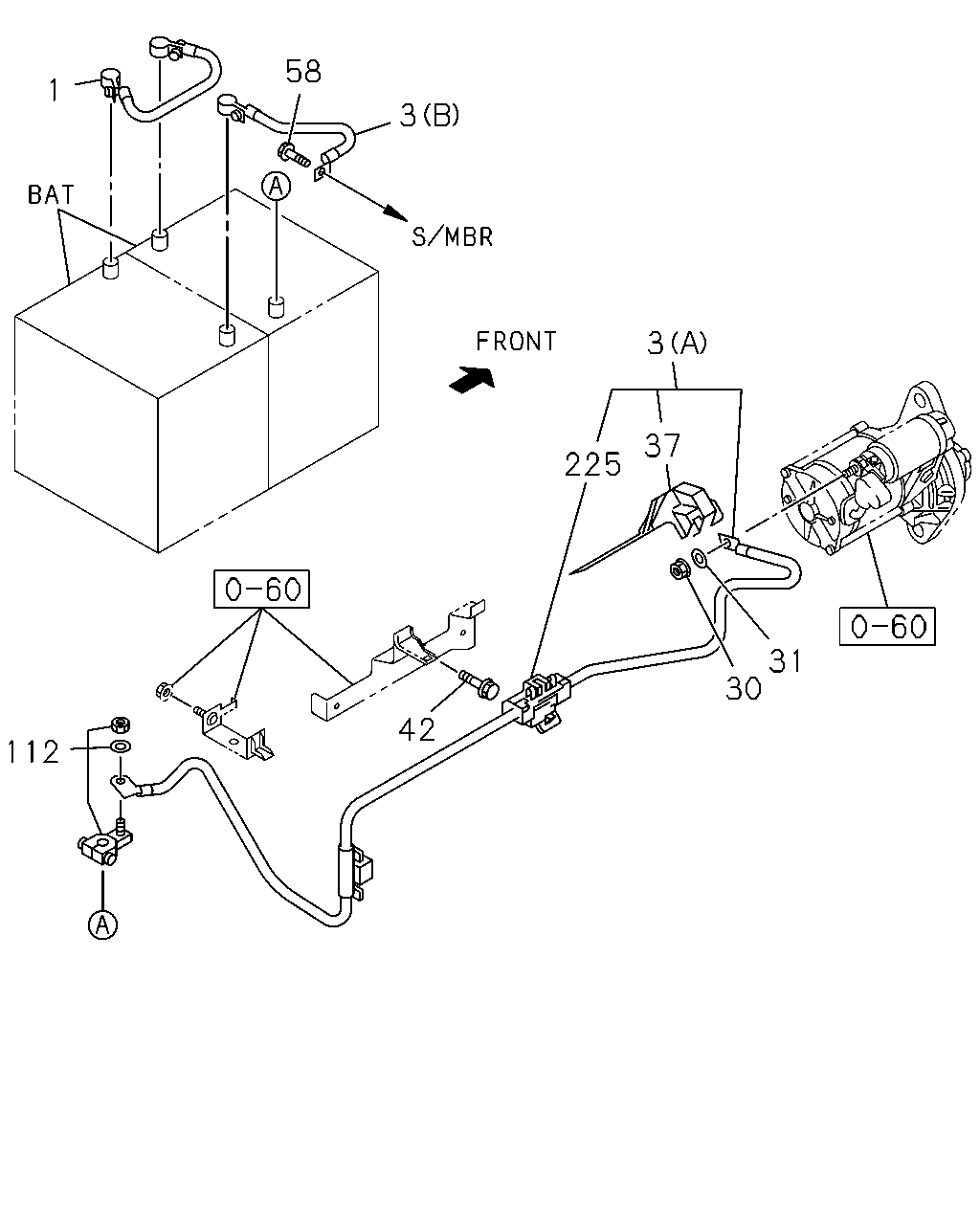

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#124981) — 12 parça
1
58
3
3
225
37
31
30
42
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; BATTERY
L=280 MAL
8-98025-412-3
01
1
1306-
3
HARNESS; CABLE,BATTERY TO STARTER
(B) L=200 MAL
8-98056-337-1
01
1
1306-
3
HARNESS; CABLE,BATTERY TO STARTER
(A)
8-98137-178-1
01
1
1306-1409
3
HARNESS; CABLE,BATTERY TO STARTER
(A) MAL
8-98294-695-0
01
1
1410-
30
NUT; CABLE,STARTER TO BATTERY
M8
0-91110-508-0
01
1
1306-
31
WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2
0-91510-808-0
01
1
1306-
37
CAP; TERMINAL,BATTERY CABLE
MAL
8-98042-507-0
01
1
1306-
42
BOLT; BRKT,BATTERY CABLE
M6X16 FLANGE
8-97329-599-0
01
1
1306-
58
BOLT; CABLE,BATTERY
M8X24 W/PL WASHER
8-98141-256-1
01
1
1306-
112
TERMINAL; BATTERY
<+> MAL
8-97365-771-0
01
1
1306-
225
BLOCK; TERMINAL
MAL
8-98029-689-0
01
1
1306-1409
225
BLOCK; TERMINAL
MAL
8-98294-524-0
01
1
1410-
