0-57 — EMISSION PIPING (#124979) — 57 parça

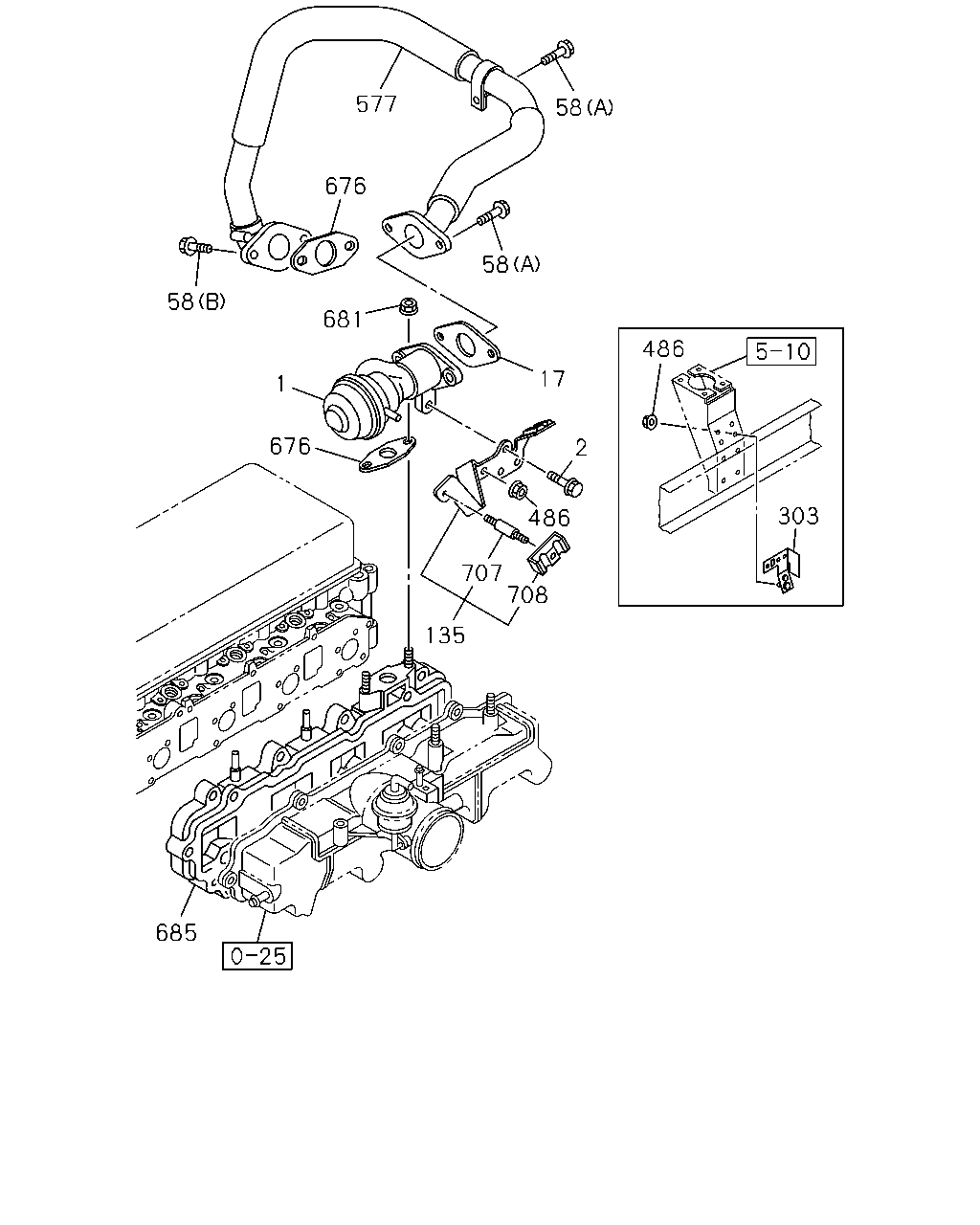

çizim 362498
58 676 577 58 58 681 1 676 17 2 486 707 708 135 486 303 685
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; EGR 8-97115-533-3 01 1 1306-1406
1 VALVE; EGR
EXC. VIN MODEL YEAR 2015<VZF> 		8-97115-533-3 01 1 1407-
2 BOLT; EGR VLV
M8X20 FLANGE MAL 		0-28650-820-0 01 1 1306-1406
2 BOLT; EGR VLV
EXC. VIN MODEL YEAR 2015<VZF> M8X20 FLANGE MAL 		0-28650-820-0 01 1 1407-
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97113-023-0 01 1 1306-1406
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF> 		8-97113-023-0 01 1 1407-
58 BOLT; PIPE
(A) M8X20 FLANGE MAL 		0-28650-820-0 03 1 1306-1406
58 BOLT; PIPE
EXC. VIN MODEL YEAR 2015<VZF> (A) M8X20 FLANGE MAL 		0-28650-820-0 03 1 1407-
58 BOLT; PIPE
(B) M8X23 FLANGE 		8-97378-077-0 02 1 1306-1406
58 BOLT; PIPE
EXC. VIN MODEL YEAR 2015<VZF> (B) M8X23 FLANGE 		8-97378-077-0 02 1 1407-
135 BRACKET; EGR 8-97221-358-1 01 1 1306-
303 BRACKET; VAC SW 8-98122-539-0 01 1 1306-
486 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 1306-
486 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 01 1 1306-
577 PIPE; AIR,EGR 8-97200-643-2 01 1 1306-1406
577 PIPE; AIR,EGR
EXC. VIN MODEL YEAR 2015<VZF> 		8-97200-643-2 01 1 1407-
676 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97146-683-0 02 1 1306-1406
676 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF> 		8-97146-683-0 02 1 1407-
681 NUT; EGR PIPE
M8 FLANGE MAL 		0-91180-108-0 02 1 1306-1406
681 NUT; EGR PIPE
EXC. VIN MODEL YEAR 2015<VZF> M8 FLANGE MAL 		0-91180-108-0 02 1 1407-
685 CASE; INLET,EGR
VIN MODEL YEAR 2015<VZF> 		8-97146-873-1 01 1 1407-
685 CASE; INLET,EGR 8-97146-872-1 01 1 1306-1406
685 CASE; INLET,EGR
EXC. VIN MODEL YEAR 2015<VZF> 		8-97146-872-1 01 1 1407-
707 STUD; CLIP,INJ PIPE
M6X25 L=36 		8-97214-234-1 01 1 1306-
708 CLIP; PIPE,INJ 8-97213-481-0 01 1 1306-

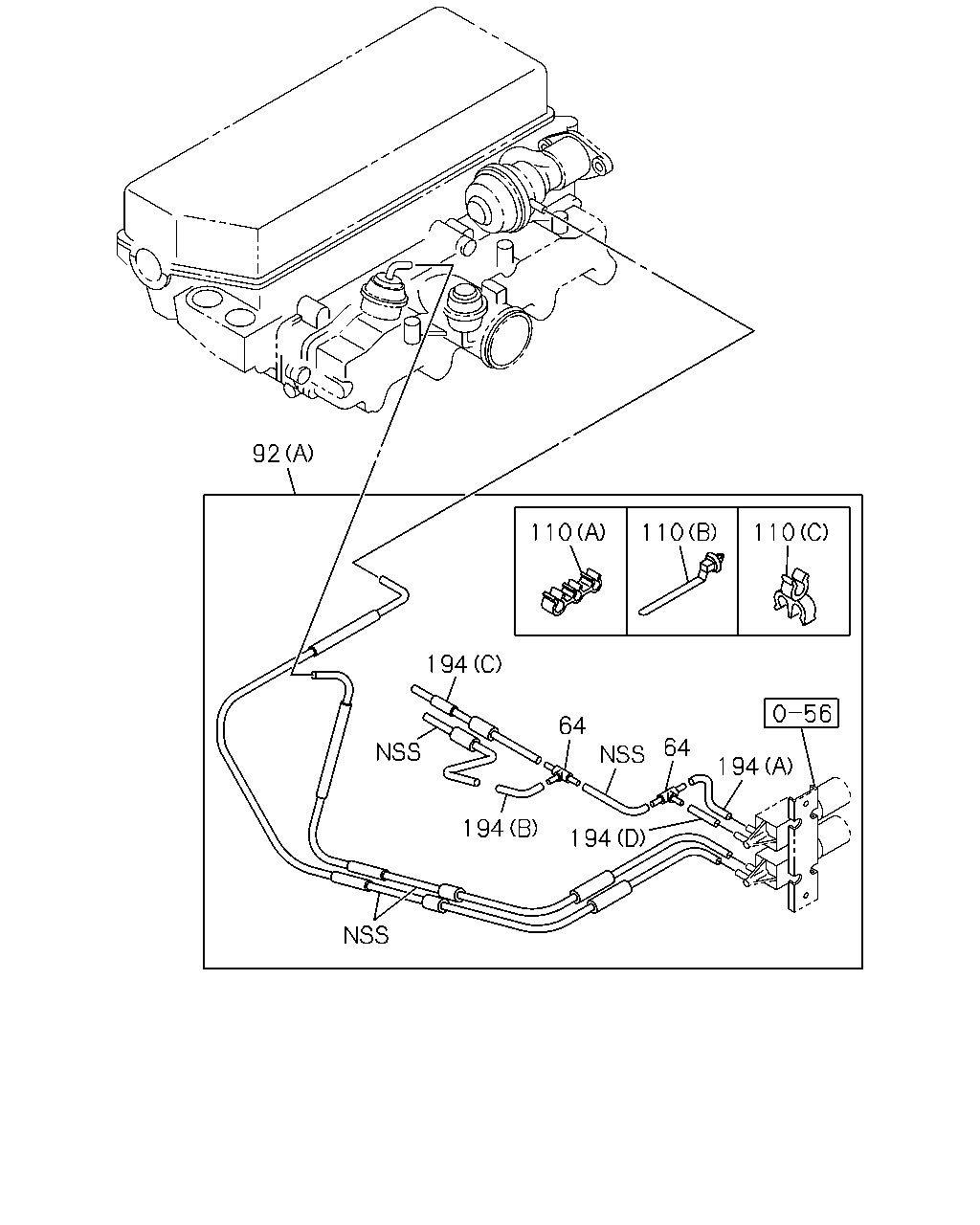

çizim 379269
92 110 110 110 64 64 194 194 194 194
BalonParca AdiParca NoAdetTipApplied Date
64 JOINT; 3 WAY,VAC
VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 3WAY 		8-94208-695-0 01 1 1506-
64 JOINT; 3 WAY,VAC
3WAY 		8-94208-695-0 02 1 1306-1406
64 JOINT; 3 WAY,VAC
EXC. VIN MODEL YEAR 2015<VZF> 3WAY 		8-94208-695-0 02 1 1407-
92 HOSE; VAC,THROTTLE BODY
AIR CONDITIONER MANUAL CONT(C60) VIN MODEL YEAR 2015<VZF> (B) 		8-98269-803-0 01 1 1407-
92 HOSE; VAC,THROTTLE BODY
VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98269-804-0 01 1 1407-
92 HOSE; VAC,THROTTLE BODY
(A) 		8-98169-777-1 01 1 1306-1406
92 HOSE; VAC,THROTTLE BODY
EXC. VIN MODEL YEAR 2015<VZF> (A) 		8-98169-777-1 01 1 1407-
110 CLIP; VAC HOSE
VIN MODEL YEAR 2015<VZF> (A) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 1506-
110 CLIP; VAC HOSE
(C) ID=6.8 & 6.8 		8-94208-733-0 01 1 1306-1406
110 CLIP; VAC HOSE
EXC. VIN MODEL YEAR 2015<VZF> (C) ID=6.8 & 6.8 		8-94208-733-0 01 1 1407-1505
110 CLIP; VAC HOSE
(C) ID=6.8 & 6.8 		8-94208-733-0 01 1 1506-
110 CLIP; VAC HOSE
(A) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 03 1 1306-1406
110 CLIP; VAC HOSE
EXC. VIN MODEL YEAR 2015<VZF> (A) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 03 1 1407-
110 CLIP; VAC HOSE
(B) L=109.5 		8-97807-385-0 03 1 1306-1406
110 CLIP; VAC HOSE
EXC. VIN MODEL YEAR 2015<VZF> (B) L=109.5 		8-97807-385-0 03 1 1407-1505
110 CLIP; VAC HOSE
(B) L=109.5 		8-97807-385-0 03 1 1506-
194 HOSE; VAC
(D) L=30 SERVICED BY L=3000 		0-04730-300-0 01 1 1306-1406
194 HOSE; VAC
EXC. VIN MODEL YEAR 2015<VZF> (D) L=30 SERVICED BY L=3000 		0-04730-300-0 01 1 1407-
194 HOSE; VAC
(A) L=50 SERVICED BY L=3000 		0-04730-300-0 01 1 1306-1406
194 HOSE; VAC
EXC. VIN MODEL YEAR 2015<VZF> (A) L=50 SERVICED BY L=3000 		0-04730-300-0 01 1 1407-
194 HOSE; VAC
(B) L=90 SERVICED BY L=3000 		0-04730-300-0 01 1 1306-1406
194 HOSE; VAC
EXC. VIN MODEL YEAR 2015<VZF> (B) L=90 SERVICED BY L=3000 		0-04730-300-0 01 1 1407-1505
194 HOSE; VAC
EXC. VIN MODEL YEAR 2015<VZF> (B) L=90 SERVICED BY L=3000 		0-04730-300-0 01 1 1506-
194 HOSE; VAC
AIR CONDITIONER MANUAL CONT(C60) VIN MODEL YEAR 2015<VZF> (B) L=90 SERVICED BY L=3000 		0-04730-300-0 01 1 1506-
194 HOSE; VAC
(C) L=290 SERVICED BY L=3000 		0-04730-300-0 01 1 1306-1406
194 HOSE; VAC
EXC. VIN MODEL YEAR 2015<VZF> (C) L=290 SERVICED BY L=3000 		0-04730-300-0 01 1 1407-1505
194 HOSE; VAC
EXC. VIN MODEL YEAR 2015<VZF> (C) L=290 SERVICED BY L=3000 		0-04730-300-0 01 1 1506-
194 HOSE; VAC
AIR CONDITIONER MANUAL CONT(C60) VIN MODEL YEAR 2015<VZF> (C) L=290 SERVICED BY L=3000 		0-04730-300-0 01 1 1506-
çizim 464490
92
BalonParca AdiParca NoAdetTipApplied Date
92 HOSE; VAC,THROTTLE BODY
AIR CONDITIONER MANUAL CONT(C60) VIN MODEL YEAR 2015<VZF> (B) 		8-98269-803-0 01 1 1407-
92 HOSE; VAC,THROTTLE BODY
VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98269-804-0 01 1 1407-
92 HOSE; VAC,THROTTLE BODY
(A) 		8-98169-777-1 01 1 1306-1406
92 HOSE; VAC,THROTTLE BODY
EXC. VIN MODEL YEAR 2015<VZF> (A) 		8-98169-777-1 01 1 1407-
