Isuzu WW
▶
TRUCKS
▶
NPS
▶
51500 - NPS(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-51 - OIL PUMP AND OIL STRAINER
▶

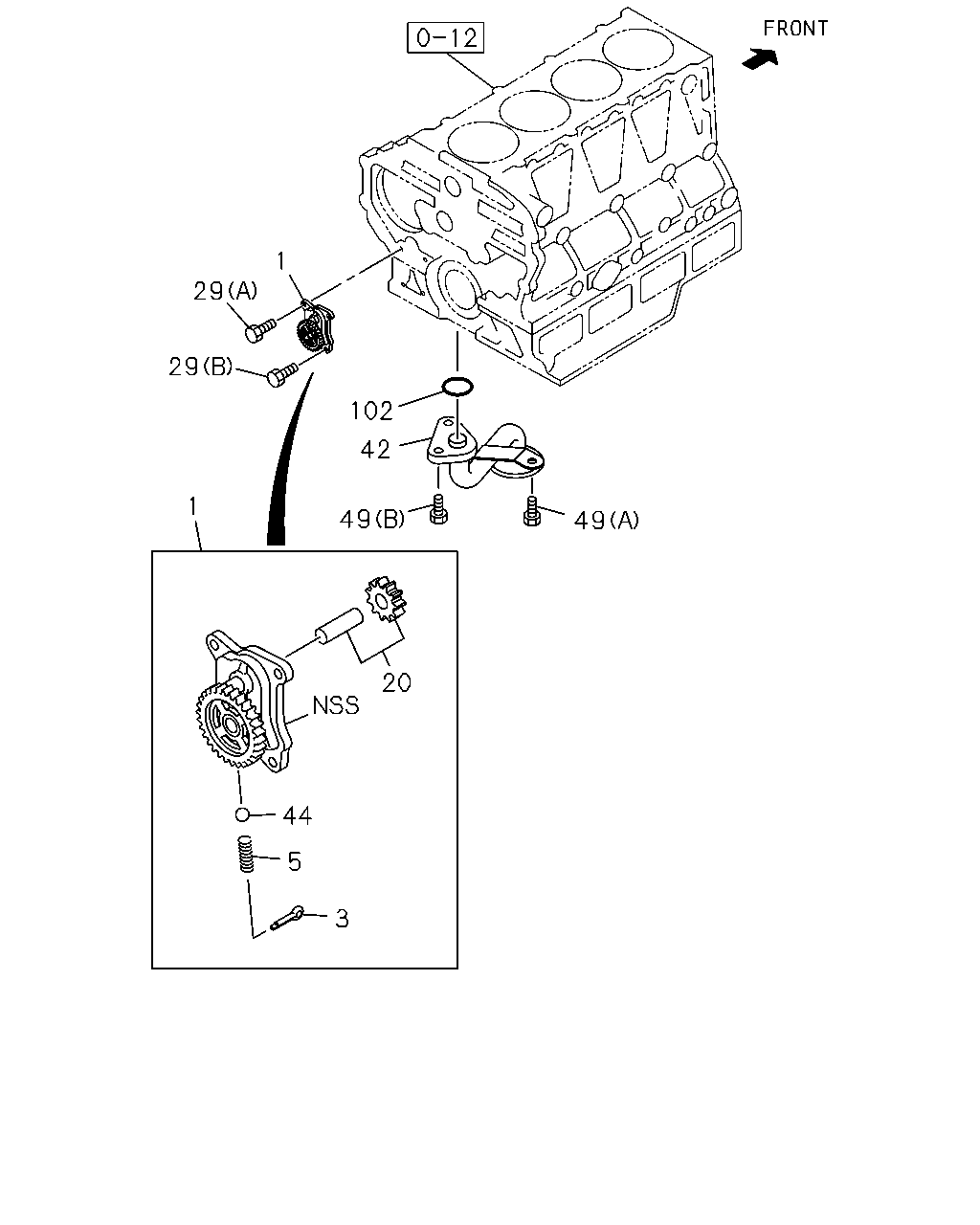

0-51 — OIL PUMP AND OIL STRAINER
(#124976) — 11 parça
3
5
44
20
49
49
42
102
29
29
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; OIL
8-98017-585-1
01
1
1306-
3
PIN; SPLIT
L=30
9-08104-030-0
01
1
1306-
5
SPRING; COIL
5-09580-098-0
01
1
1306-
20
GEAR; DRIVE,OIL PUMP
8-98059-192-0
01
1
1306-
29
BOLT; OIL PUMP
(A) M8X25 FLANGE
0-28060-825-0
02
1
1306-
29
BOLT; OIL PUMP
(B) M8X30 FLANGE
0-28060-830-0
02
1
1306-
42
STRAINER; OIL,OIL PUMP
8-98036-655-1
01
1
1306-
44
BALL; RELIEF VLV
5-09843-003-0
01
1
1306-
49
BOLT; STRAINER,OIL PUMP
(B) M8X16 FLANGE
0-28060-816-0
02
1
1306-
49
BOLT; STRAINER,OIL PUMP
(A) M10X80
8-97071-956-0
01
1
1306-
102
GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
1306-
