0 - Engine, Emission, Engine Electrical
▶
0-50 - OIL COOLER AND OIL FILTER
▶

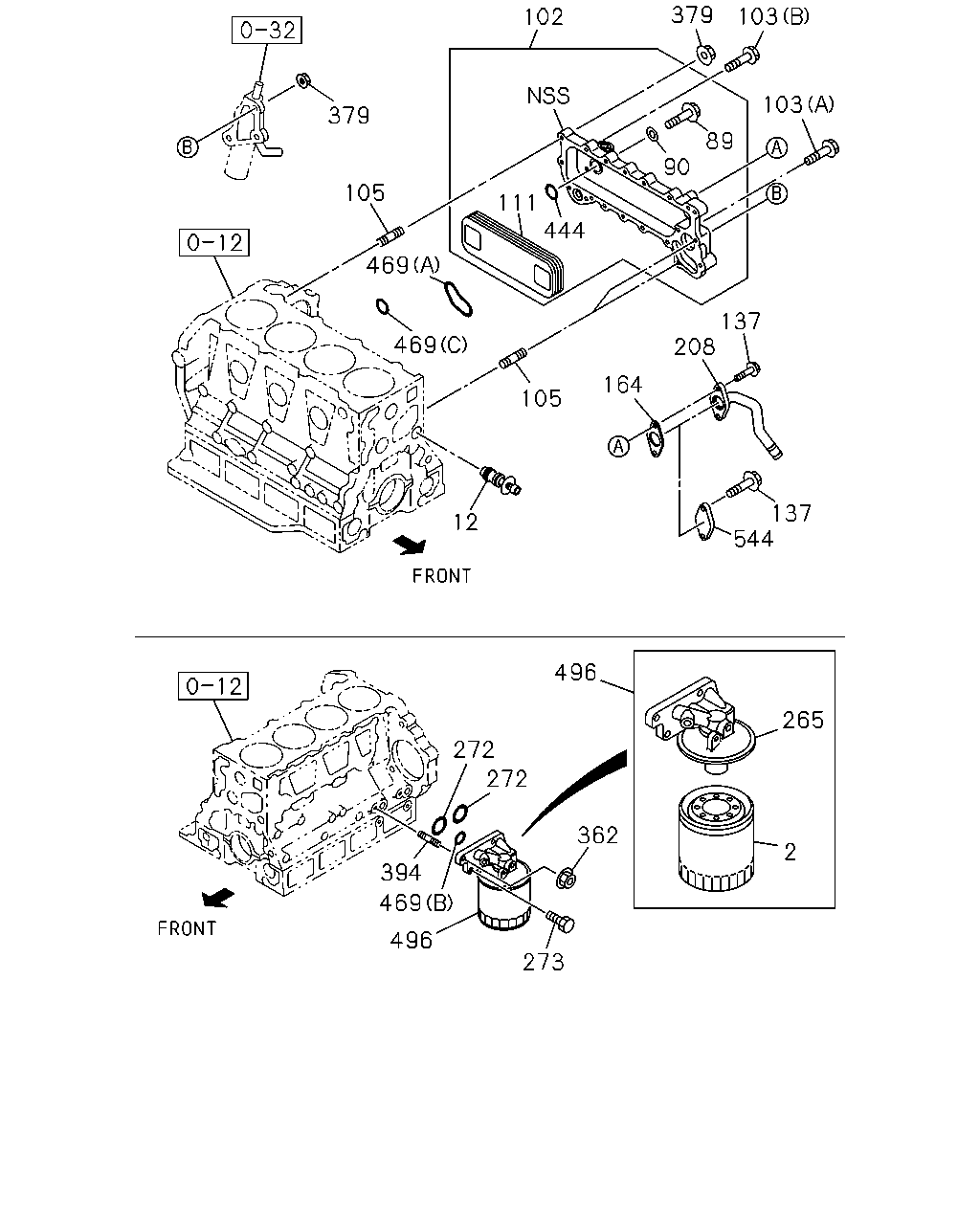

0-50 — OIL COOLER AND OIL FILTER
(#124975) — 30 parça
379
102
379
103
103
89
90
137
208
164
105
12
544
469
137
469
105
496
265
2
272
272
362
394
469
496
444
111
273
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
ELEMENT; OIL FILTER
8-97148-270-1
01
1
1306-1509
2
ELEMENT; OIL FILTER
BEST VALUE PARTS
5-87610-117-0
02
1
1306-1509
2
ELEMENT; OIL FILTER
8-98328-207-0
01
1
1510-
12
VALVE ASM; BYPASS
8-97013-566-2
01
1
1306-
89
BOLT; ELEMENT TO CASE
M8X16 FLANGE MAL
0-28050-816-0
04
1
1306-
90
GASKET; BOLT,OIL COOLER
MAL
1-21729-043-0
04
1
1306-
102
COOLER ASM; OIL
8-97385-200-6
01
1
1306-
103
BOLT; OIL COOLER
(A) M8X20 FLANGE MAL
0-28050-820-0
07
1
1306-
103
BOLT; OIL COOLER
(B) M8X35 FLANGE
0-28050-835-0
07
1
1306-
105
STUD; OIL COOLER
M8X52 L=63
8-97016-314-0
03
1
1306-
111
CORE; OIL COOLER
8-97334-101-1
01
1
1306-
137
BOLT
M8X20 FLANGE MAL
0-28650-820-0
02
1
1306-
164
GASKET; HTR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6
8-97146-684-0
01
1
1306-
208
PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VIN MODEL YEAR 2015<VZF>
8-97146-519-0
01
1
1407-
208
PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) VIN MODEL YEAR 2015<VZF> EXC. HIGH ALTITUDE COMPENSATOR(EE2)
8-97146-519-0
01
1
1407-
208
PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)
8-97146-519-0
01
1
1306-1406
208
PIPE; WATER,HTR
HEATER & DEFROSTER(C41) HIGH ALTITUDE COMPENSATOR(EE2) FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF>
8-97211-322-1
01
1
1407-
265
BODY; OIL FILTER
8-97096-677-4
01
1
1306-
272
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1
8-94399-399-0
02
1
1306-
273
BOLT; OIL FILTER
M10X30 FLANGE
0-28751-030-0
02
1
1306-
362
NUT; OIL FILTER
M10 FLANGE MAL
0-91180-110-0
02
1
1306-
379
NUT; OIL COOLER
M8 FLANGE MAL
0-91180-108-0
03
1
1306-
394
STUD; OIL FILTER
M10X25 L=48.5
0-49241-025-0
02
1
1306-
444
GASKET; ELEMENT TO BODY
8-97384-130-0
02
1
1306-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-94338-878-1
01
1
1306-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8
8-94399-339-0
01
1
1306-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE
8-98045-447-0
01
1
1306-
496
FILTER ASM; OIL
8-97148-268-4
01
1
1306-1509
496
FILTER ASM; OIL
8-98328-202-0
01
1
1510-
544
COVER; HEATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),COOLER WO/HEATER(C65)
8-97147-028-0
01
1
1306-
