Isuzu WW
▶
TRUCKS
▶
NPS
▶
51500 - NPS(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

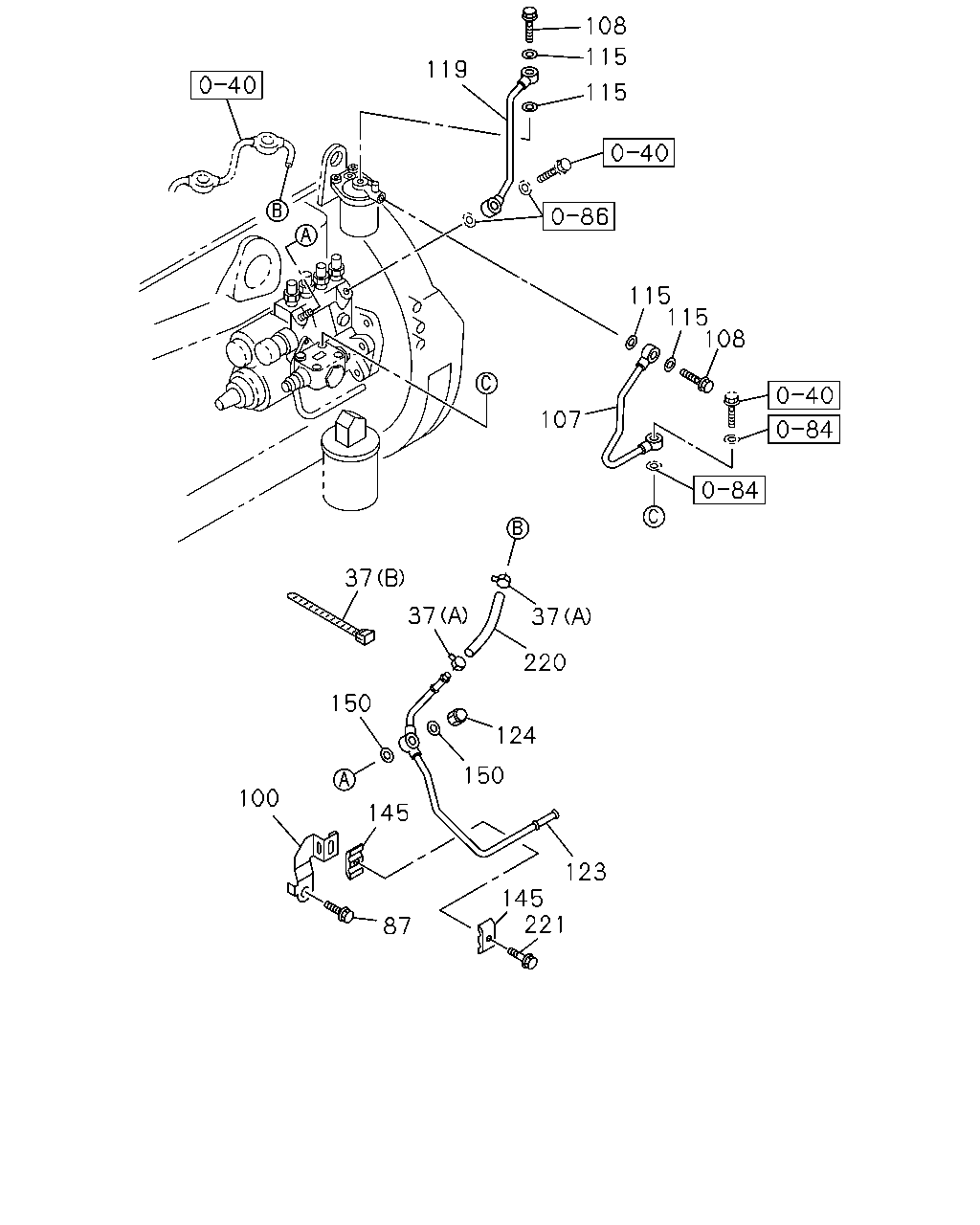

0-42 — FUEL PUMP AND PIPE
(#124974) — 15 parça
119
108
115
115
115
115
108
107
37
37
37
150
100
145
87
221
145
123
150
220
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
CLIP; FUEL HOSE
(B) L=140 MAL
5-09707-031-1
01
1
1306-
37
CLIP; FUEL HOSE
(A) ID=12
8-94238-610-0
02
1
1306-
87
BOLT; STAY,FUEL PIPE
M8X12 FLANGE
0-28050-812-0
01
1
1306-
100
CLIP; "B",FUEL PIPE
8-97108-315-0
01
1
1306-
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
8-97210-721-1
01
1
1306-
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
02
1
1306-
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0
9-09572-014-0
04
1
1306-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
8-97211-323-1
01
1
1306-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
8-97223-179-0
01
1
1306-
124
NUT; CAP,FUEL PIPE
M14
1-09468-002-1
01
1
1306-
145
CLIP; FUEL PIPE
ID=6.1 & 9.6
8-97016-323-1
02
1
1306-
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=23.0
9-09572-014-0
02
1
1306-
220
HOSE; FUEL
BIO DIESEL FUEL B10<8NV>
8-98293-110-0
01
1
1512-
220
HOSE; FUEL
8-97208-874-0
01
1
1306-
221
BOLT; FUEL PIPE
M6X40 FLANGE
0-28650-640-0
01
1
1306-
