0-40 — FUEL INJECTION SYSTEM (#124972) — 74 parça

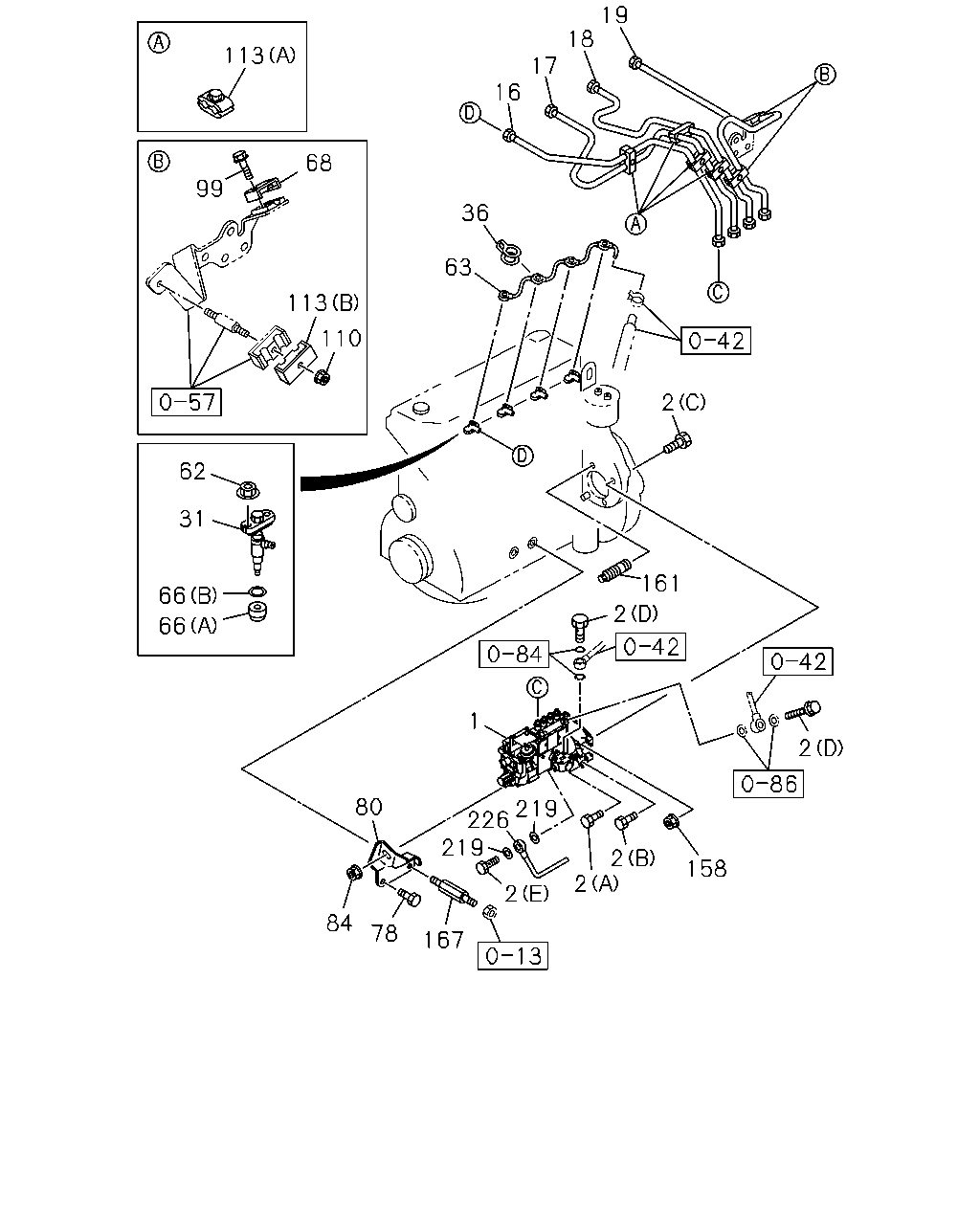

çizim 362364
113 68 99 113 110 62 31 66 66 19 18 17 16 36 63 2 161 2 2 1 158 2 2 219 226 219 80 84 78 167 2
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) VIN MODEL YEAR 2015<VZF> 		8-98285-612-0 01 1 1407-
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) VIN MODEL YEAR 2015<VZF> 		8-98285-613-0 01 1 1407-1506
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98317-243-0 01 1 1507-
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C41) VIN MODEL YEAR 2015<VZF> 		8-98268-832-0 01 1 1407-1506
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. VIN MODEL YEAR 2015<VZF> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),COOLER WO/HEATER(C65),HIGH ALTITUDE COMPENSATOR(EE2) 		8-98268-832-0 01 1 1407-1506
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97178-485-5 01 1 1306-1406
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> 		8-97178-485-5 01 1 1407-
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97215-704-2 01 1 1306-1406
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) EXC. VIN MODEL YEAR 2015<VZF> 		8-97215-704-2 01 1 1407-
2 BOLT; INJ PUMP
(A) M10X70 FLANGE 		0-28151-070-0 01 1 1306-
2 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28151-270-0 01 1 1306-
2 BOLT; INJ PUMP
(C) M12X90 FLANGE 		0-28151-290-0 01 1 1306-
2 BOLT; INJ PUMP
(D) M14X27 FLANGE 		1-09675-086-0 02 1 1306-
2 BOLT; INJ PUMP
(E) M14X30 		8-97203-957-0 01 1 1306-
16 PIPE; INJ NO.1 8-97209-493-1 01 1 1306-
17 PIPE; INJ NO.2 8-97209-494-1 01 1 1306-
18 PIPE; INJ NO.3 8-97209-495-1 01 1 1306-
19 PIPE; INJ NO.4 8-97209-496-1 01 1 1306-
31 NOZZLE ASM; INJ 8-97200-570-3 04 1 1306-
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-94395-214-0 04 1 1306-1312
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-98246-930-0 04 1 1401-
62 NUT; NOZZLE HOLDER
M8 FLANGE MAL 		0-91180-108-0 08 1 1306-
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97148-969-2 01 1 1306-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-94326-439-0 04 1 1306-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97171-332-0 04 1 1306-
68 CLIP; INJ PIPE 1-09701-091-0 01 1 1306-
78 BOLT; BRKT TO C/BL
M10X20 FLANGE 		0-28751-020-0 01 1 1306-
80 BRACKET; PUMP 8-97136-677-0 01 1 1306-
84 NUT; BRKT TO BRKT
M10 FLANGE MAL 		0-91180-210-0 01 1 1306-
99 BOLT; CLIP,INJ,PIPE
M6X25 FLANGE MAL 		0-28650-625-0 01 1 1306-
110 NUT; CLIP
M6 FLANGE MAL 		0-91180-106-0 01 1 1306-
113 CLIP; INJ PIPE
(A) 		8-97213-050-0 04 1 1306-
113 CLIP; INJ PIPE
(B) 		8-97213-481-0 01 1 1306-
158 NUT; INJ PUMP
M10 FLANGE MAL 		0-91180-110-0 02 1 1306-
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1306-
167 SPACER; GUIDE TUBE 8-97065-515-2 01 1 1306-
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 1306-1312
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
226 PIPE; FUEL 8-97203-567-0 01 1 1306-
çizim 362372
31 32 34 58 140 44 45 138 140 43 272 35 47 43
BalonParca AdiParca NoAdetTipApplied Date
31 NOZZLE ASM; INJ 8-97200-570-3 04 1 1306-
32 HOLDER ASM; NOZZLE 8-97078-783-1 04 1 1306-
34 BOLT; EYE,NOZZLE HOLDER
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1306-
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-041-0 04 1 1306-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(A) 		8-97223-339-0 04 1 1306-
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER
(B) 		8-97349-452-0 04 1 1306-
44 SPRING; NOZZLE,NOZZLE HOLDER 1-15343-003-0 04 1 1306-
45 ROD; PUSH,NOZZLE HOLDER 1-15341-008-0 04 1 1306-
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 8-97223-340-0 04 1 1306-
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 04 1 1306-
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-004-0 04 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=1.20 		1-15349-004-0 04 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.40 		1-15349-042-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.50 		1-15349-043-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.52 		1-15349-044-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.54 		1-15349-045-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.56 		1-15349-046-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.58 		1-15349-047-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.60 		1-15349-048-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(B) T=0.70 		1-15349-049-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.10 		8-97116-029-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.20 		8-97116-032-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.30 		8-97116-033-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.40 		8-97116-034-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.50 		8-97116-035-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.51 		8-97116-036-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.52 		8-97116-037-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.53 		8-97116-038-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.54 		8-97116-039-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.55 		8-97116-040-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.56 		8-97116-041-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.57 		8-97116-042-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.58 		8-97116-043-0 AR 1 1306-
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
(A) T=0.59 		8-97116-044-0 AR 1 1306-
272 NOZZLE KIT; INJ 8-97352-267-0 04 1 1306-
