Isuzu WW
▶
TRUCKS
▶
NPS
▶
51500 - NPS(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶

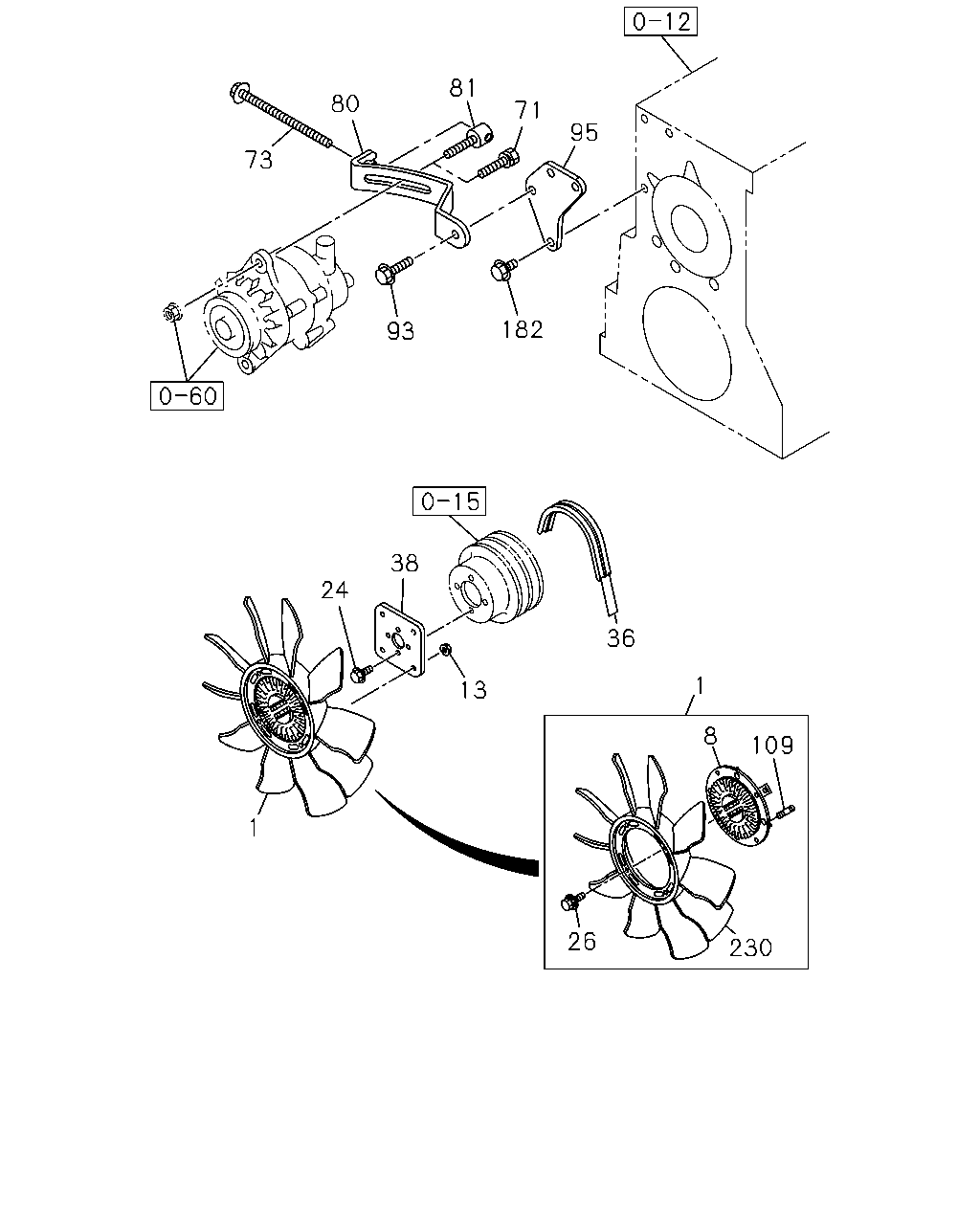

0-33 — FAN AND FAN BELT
(#124969) — 20 parça
80
81
73
93
182
95
71
38
24
13
1
36
1
8
109
230
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FAN; COOLING
OD=430
8-97141-195-2
01
1
1306-
8
CLUTCH; COOLING FAN
8-97139-299-0
01
1
1306-
13
NUT; COOLING FAN
M8 FLANGE MAL
0-91180-108-0
04
1
1306-
24
BOLT; FAN
M8X18 FLANGE
0-28080-818-0
04
1
1306-
26
BOLT; FAN TO CLU
M6X12 FLANGE
0-28080-612-0
04
1
1306-
36
BELT; COOLING FAN
1 SET=2 PIECE(8971801810) MAL
8-97180-199-1
01
1
1306-
36
BELT; COOLING FAN
BEST VALUE PARTS MAL
5-87610-098-0
01
1
1306-
38
SPACER; FAN
8-97108-643-0
01
1
1306-
71
BOLT; ADJ PLATE,GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) M8X40 W/WASHER
8-97011-792-4
01
1
1306-1307
71
BOLT; ADJ PLATE,GEN
EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8X40 W/WASHER
8-97011-792-4
01
1
1308-
73
BOLT; GEN TO ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE
8-97172-720-1
01
1
1306-1307
73
BOLT; GEN TO ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8X130 FLANGE
8-97172-720-1
01
1
1308-
80
PLATE; ADJ
8-97172-415-0
01
1
1306-
81
PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60)
8-97257-223-0
01
1
1306-1307
81
PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)
8-97257-223-0
01
1
1308-
93
BOLT; ADJ PLATE BRKT
M10X25 FLANGE MAL
0-28651-025-0
01
1
1306-
95
BRACKET; ADJ PLATE
8-97037-510-0
01
1
1306-
109
STUD; FAN CLU
M8X13.5 L=22
8-97049-577-1
04
1
1306-
182
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
03
1
1306-
230
FAN; COOLING
8-97140-854-1
01
1
1306-
