◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51500 - NPS(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#124967) — 18 parça

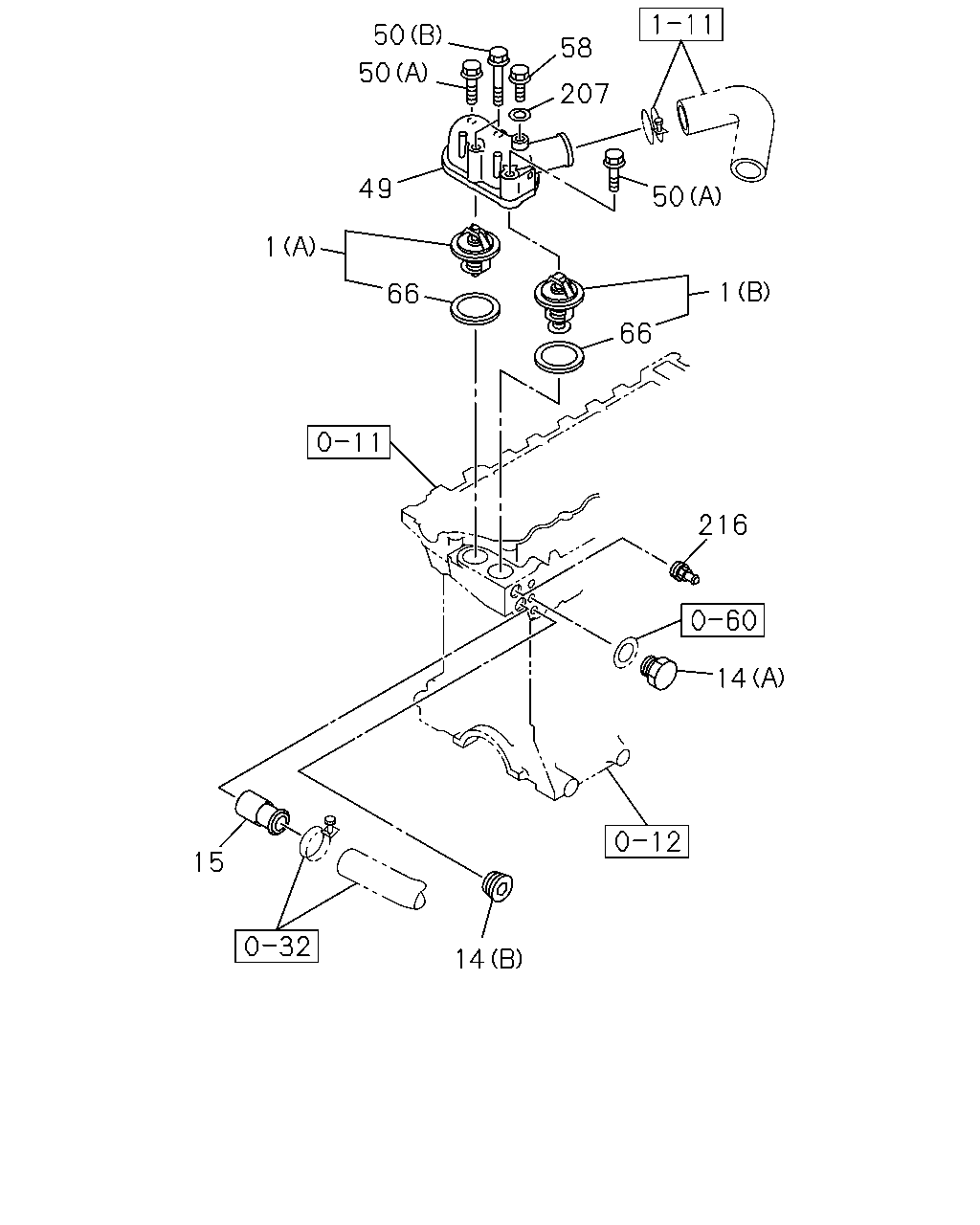

çizim 362233
50 50 49 1 66 15 14 14 216 66 1 50 207 58
BalonParca AdiParca NoAdetTipApplied Date
1 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 85 CELSIUS 		8-97300-787-3 01 1 1306-
1 THERMOSTAT
(B) 82 CELSIUS 		8-97300-789-3 01 1 1306-
1 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),COOLER WO/HEATER(C65) (A) 85 CELSIUS 		8-97300-792-2 01 1 1306-
14 PLUG; SW
(B) PT3/8 		5-09605-005-0 01 1 1306-1409
14 PLUG; SW
EXC. VIN MODEL YEAR 2015<VZF> (B) PT3/8 		5-09605-005-0 01 1 1410-
14 PLUG; SW
VIN MODEL YEAR 2015<VZF> GLOW SYSTEM DELETE<7RK> (B) PT3/8 		5-09605-005-0 01 1 1410-
14 PLUG; SW
(A) M16X8 PLUG 		9-09661-005-0 01 1 1306-
15 PIPE; BYPASS 8-94342-574-0 01 1 1306-
49 PIPE; WATER OUTLET 8-97372-769-1 01 1 1306-
50 BOLT; OUTLET PIPE
(A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1306-
50 BOLT; OUTLET PIPE
(B) M8X65 FLANGE 		1-09044-072-1 02 1 1306-
58 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 1306-
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1306-1501
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 01 1 1306-1501
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502-
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 01 1 1502-
207 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2 		1-09630-082-0 01 1 1306-
216 PIPE ASM; WATER,TURBOCHARGER RETURN 8-97358-699-0 01 1 1306-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
