3-22 — AIR CONTROL PARTS (#12495) — 132 parça

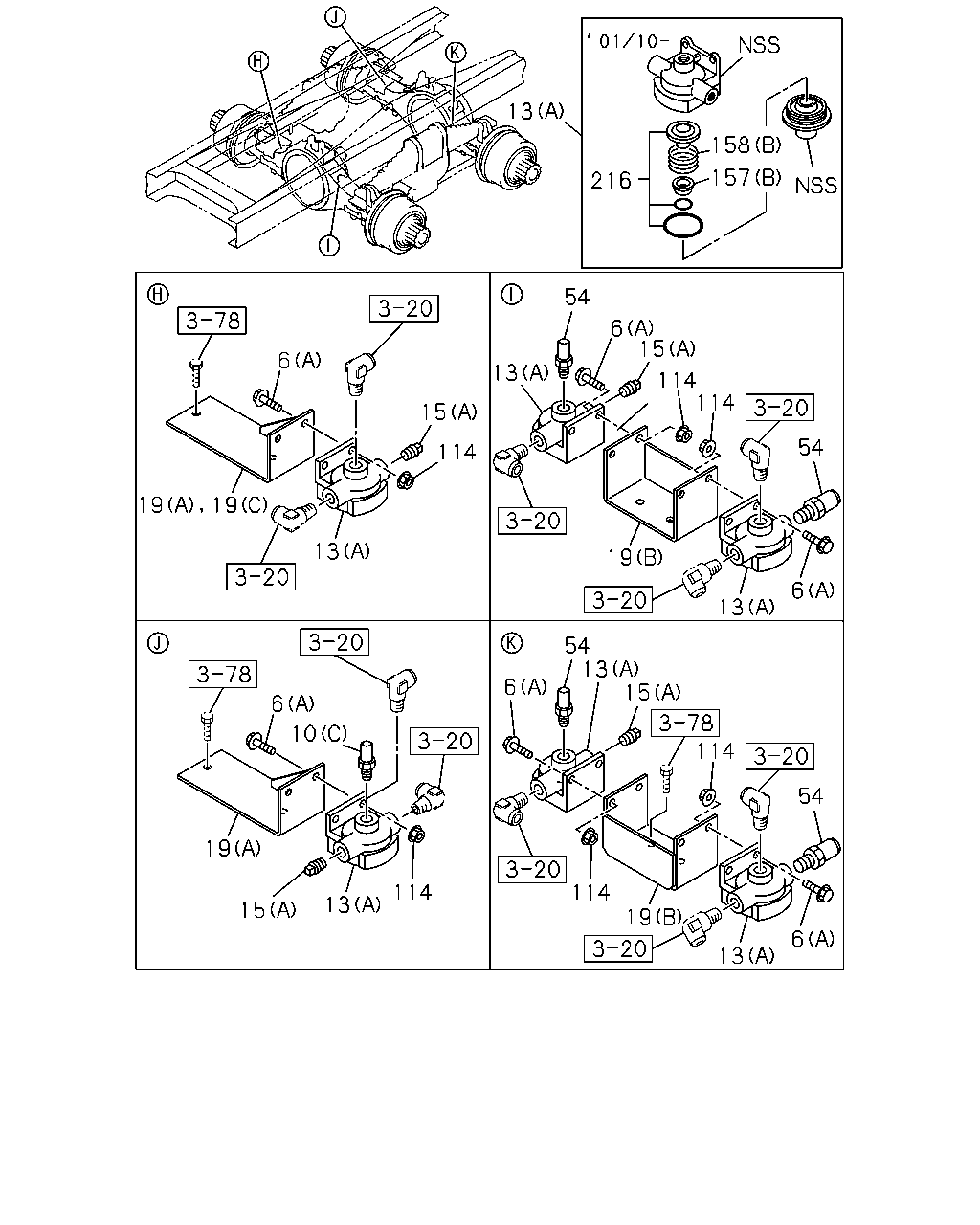

çizim 19602
13 158 157 216 54 6 15 6 13 114 114 15 54 114 19 19 13 19 6 13 54 13 15 6 6 10 114 54 19 114 114 13 15 19 6 13
BalonParca AdiParca NoAdetTipApplied Date
6 BOLT; VLV
(A) M8X25 FLANGE 		0-28680-825-0 12 1 0105-0512
6 BOLT; VLV
(A) M8X25 FLANGE 		0-28650-825-0 12 1 0601-
6 BOLT; VLV
(B) M10X40 FLANGE 		0-28681-040-0 02 1 0105-0512
6 BOLT; VLV
(B) M10X40 FLANGE 		0-28651-040-0 02 1 0601-
10 CONNECTOR
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-
10 CONNECTOR
(B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0105-
10 CONNECTOR
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0111-
13 VALVE ASM; QUICK RELEASE
(B) 		1-48410-234-0 01 1 0105-
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-320-0 06 1 0105-0109
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-659-0 06 1 0110-
15 PLUG; VALVE
(B) NPTF3/8-18 		8-94231-272-1 01 1 0105-
15 PLUG; VALVE
(A) PT3/8 		9-09204-517-0 04 1 0105-
19 BRACKET; QUICK RELEASE VLV
(B) 		1-47479-207-1 02 1 0105-
19 BRACKET; QUICK RELEASE VLV
(A) 		1-47479-208-0 02 1 0105-0110
19 BRACKET; QUICK RELEASE VLV
(A) 		1-47479-208-0 01 1 0111-
19 BRACKET; QUICK RELEASE VLV
(C) 		1-47477-634-0 01 1 0111-
54 CONNECTOR; QUICK RELEASE VLV
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 04 1 0105-
114 NUT; VLV
M8 FLANGE 		0-91150-108-0 12 1 0105-0602
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 12 1 0603-
157 RETAINER; VALVE
(B) 		1-48419-020-0 06 1 0105-0301
157 RETAINER; VALVE
(B) 		1-48419-020-0 06 1 0302-
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0105-
157 RETAINER; VALVE
(A) 		1-48213-002-0 03 1 0105-
158 SPRING; VALVE
(B) 		9-48419-003-0 06 1 0105-0301
158 SPRING; VALVE
(B) 		9-48419-003-0 06 1 0302-
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0105-
158 SPRING; VALVE
(A) 		1-47819-089-0 03 1 0105-
216 REPAIR KIT; QUICK RELEASE VLV 1-85576-235-0 06 1 0105-0301
216 REPAIR KIT; QUICK RELEASE VLV 1-85576-235-0 06 1 0302-

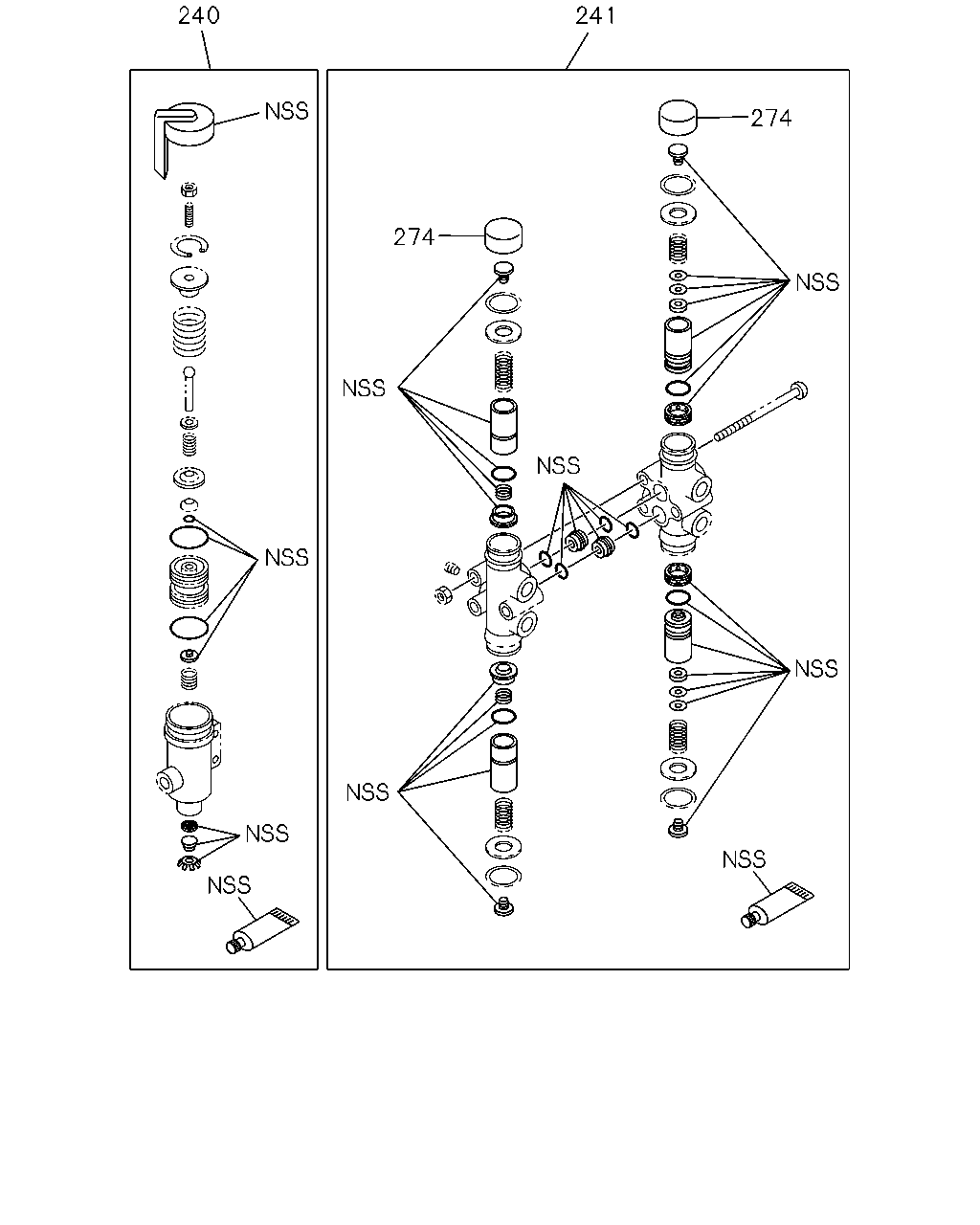

çizim 21856
240 241 274 274
BalonParca AdiParca NoAdetTipApplied Date
240 REPAIR KIT; AIR CONT GOV 1-85576-467-0 01 1 0302-
240 REPAIR KIT; AIR CONT GOV 1-85576-303-0 01 1 0105-0301
241 REPAIR KIT; PROTECTION VALVE 1-85576-224-0 01 1 0105-
274 COVER; DUST 1-48119-450-0 02 1 0105-

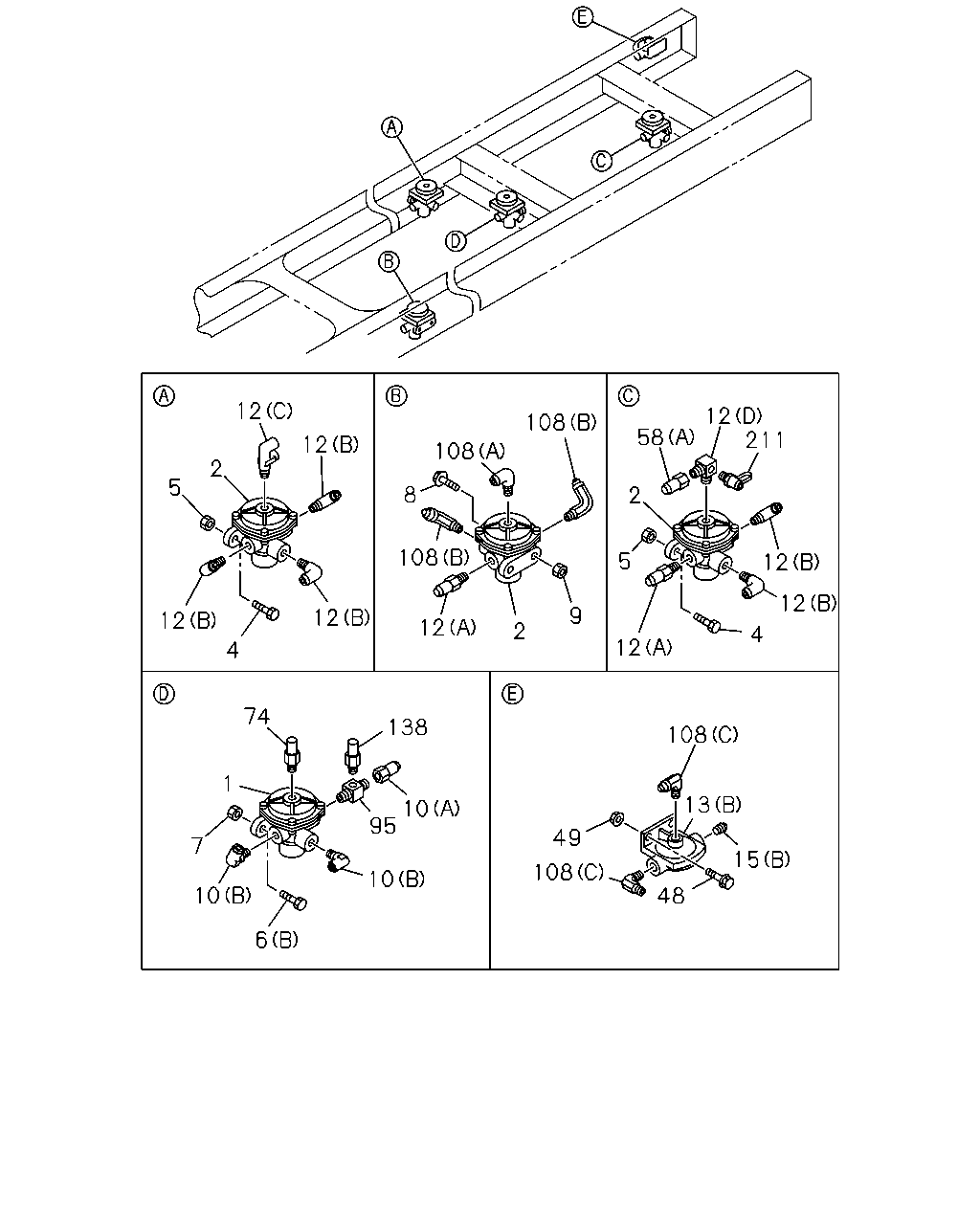

çizim 22123
12 12 211 108 58 12 108 2 5 8 2 108 5 12 12 9 12 12 12 2 4 12 4 74 138 108 1 13 10 95 49 7 15 108 10 10 48 6
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48210-500-0 01 1 0105-
2 VALVE; RELAY 1-48210-500-0 01 1 0105-
2 VALVE; RELAY 1-48210-500-0 02 1 0105-
4 BOLT; RELAY VLV TO BRKT
M10X40 FLANGE 		0-28681-040-0 04 1 0105-0512
4 BOLT; RELAY VLV TO BRKT
M10X40 FLANGE 		0-28651-040-0 04 1 0601-
5 NUT
M10 FLANGE 		0-91150-210-0 04 1 0105-0602
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 0603-
6 BOLT; VLV
(A) M8X25 FLANGE 		0-28680-825-0 12 1 0105-0512
6 BOLT; VLV
(A) M8X25 FLANGE 		0-28650-825-0 12 1 0601-
6 BOLT; VLV
(B) M10X40 FLANGE 		0-28681-040-0 02 1 0105-0512
6 BOLT; VLV
(B) M10X40 FLANGE 		0-28651-040-0 02 1 0601-
7 NUT; RELAY VLV
M10 FLANGE 		0-91150-210-0 02 1 0105-0602
7 NUT; RELAY VLV
M10 FLANGE 		0-91180-210-0 02 1 0603-
8 BOLT; BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 0105-0512
8 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0601-
9 NUT
M10 FLANGE 		0-91150-210-0 02 1 0105-0602
9 NUT
M10 FLANGE 		0-91180-210-0 02 1 0603-
10 CONNECTOR
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-
10 CONNECTOR
(B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0105-
10 CONNECTOR
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0111-
12 CONNECTOR; RELAY VLV
(D) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 0105-
12 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 ELBOW 		1-09660-960-0 05 1 0105-
12 CONNECTOR; RELAY VLV
(A) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0105-
12 CONNECTOR; RELAY VLV
(A) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0105-
12 CONNECTOR; RELAY VLV
(C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0105-
13 VALVE ASM; QUICK RELEASE
(B) 		1-48410-234-0 01 1 0105-
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-320-0 06 1 0105-0109
13 VALVE ASM; QUICK RELEASE
(A) 		1-48410-659-0 06 1 0110-
15 PLUG; VALVE
(B) NPTF3/8-18 		8-94231-272-1 01 1 0105-
15 PLUG; VALVE
(A) PT3/8 		9-09204-517-0 04 1 0105-
48 BOLT; QUICK RELEASE VLV
M8X16 FLANGE 		0-28080-816-0 08 1 0105-0512
48 BOLT; QUICK RELEASE VLV
M8X16 FLANGE 		0-28050-816-0 08 1 0601-
48 BOLT; QUICK RELEASE VLV
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
48 BOLT; QUICK RELEASE VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
49 NUT; QUICK RELEASE VLV
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
49 NUT; QUICK RELEASE VLV
M8 FLANGE 		0-91180-108-0 02 1 0603-
58 ADAPTER
(B) 		1-09660-778-1 01 1 0105-
58 ADAPTER
(A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0105-
74 CONNECTOR; 3WAY
DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0105-
95 UNION; AIR VLV 1-09656-446-0 01 1 0105-
108 CONNECTOR; ELBOW
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-
108 CONNECTOR; ELBOW
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
108 CONNECTOR; ELBOW
(B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0105-
108 CONNECTOR; ELBOW
(C) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 0105-
138 SWITCH; RELAY VALVE 1-48340-057-1 01 1 0105-0312
138 SWITCH; RELAY VALVE 1-48340-068-0 01 1 0401-
211 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0105-
211 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0105-

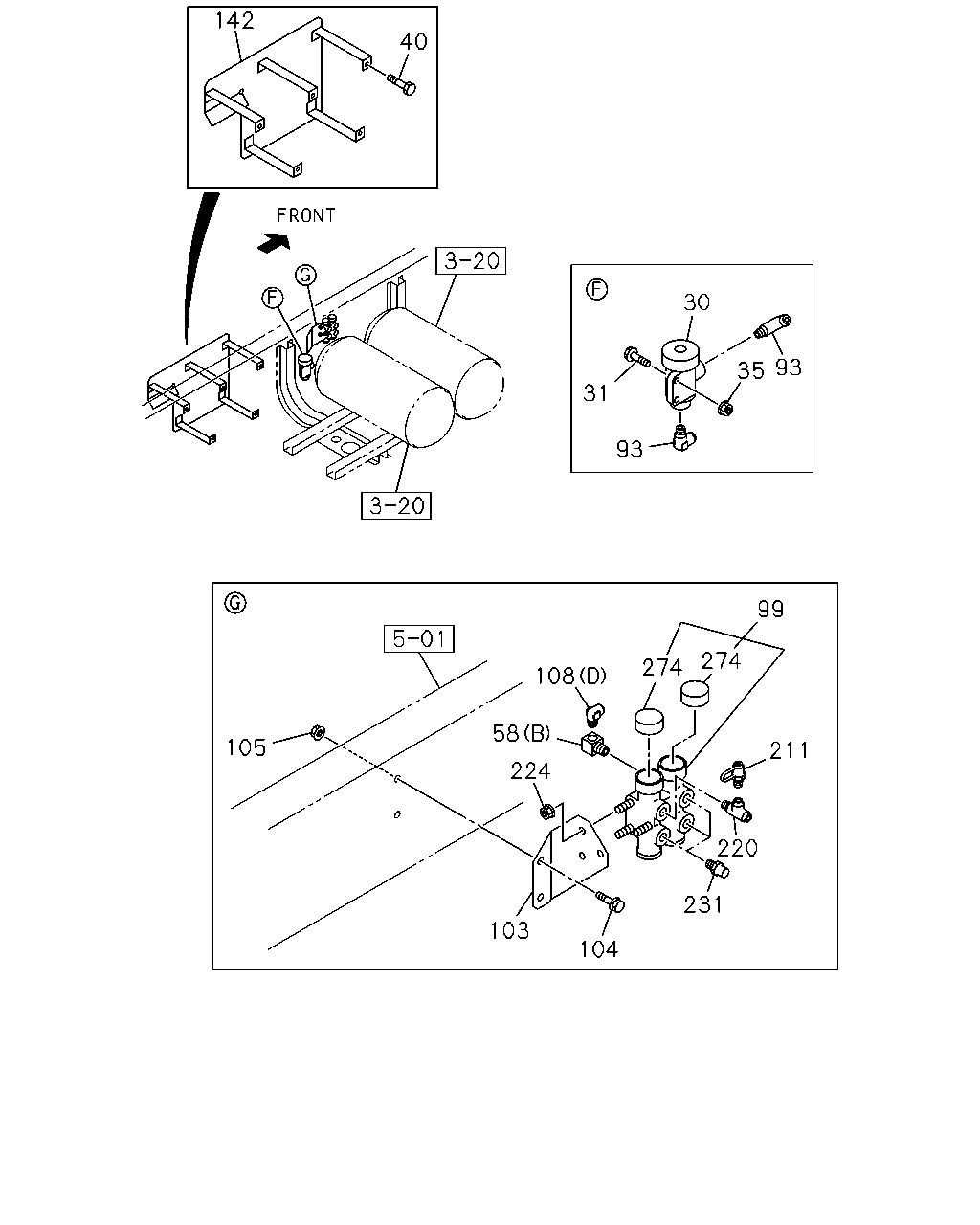

çizim 78855
142 40 30 93 35 31 93 99 274 274 108 58 105 211 224 220 231 103 104
BalonParca AdiParca NoAdetTipApplied Date
30 GOVERNOR; AIR CONT 1-48350-063-2 01 1 0105-
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603-
40 BOLT; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE 		0-28680-830-0 05 1 0105-0512
40 BOLT; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE 		0-28650-830-0 05 1 0601-
58 ADAPTER
(B) 		1-09660-778-1 01 1 0105-
58 ADAPTER
(A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0105-
93 CONNECTOR; GOV
DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0105-
99 VALVE; PROTECTION 1-48110-113-5 01 1 0105-
103 BRACKET; PROTECTION VALVE 1-47478-407-0 01 1 0105-
104 BOLT; BRKT,VALVE
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
104 BOLT; BRKT,VALVE
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
105 NUT; BRKT,VALVE
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
105 NUT; BRKT,VALVE
M8 FLANGE 		0-91180-108-0 02 1 0603-
108 CONNECTOR; ELBOW
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-
108 CONNECTOR; ELBOW
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
108 CONNECTOR; ELBOW
(B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0105-
108 CONNECTOR; ELBOW
(C) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 0105-
142 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48219-143-0 01 1 0105-
211 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0105-
211 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0105-
220 CONNECTOR; 3WAY 1-09661-027-0 01 1 0105-
224 NUT; PROTECTION VALVE
M8 FLANGE 		0-91150-108-0 03 1 0105-0602
224 NUT; PROTECTION VALVE
M8 FLANGE 		0-91180-108-0 03 1 0603-
231 CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 0105-
274 COVER; DUST 1-48119-450-0 02 1 0105-

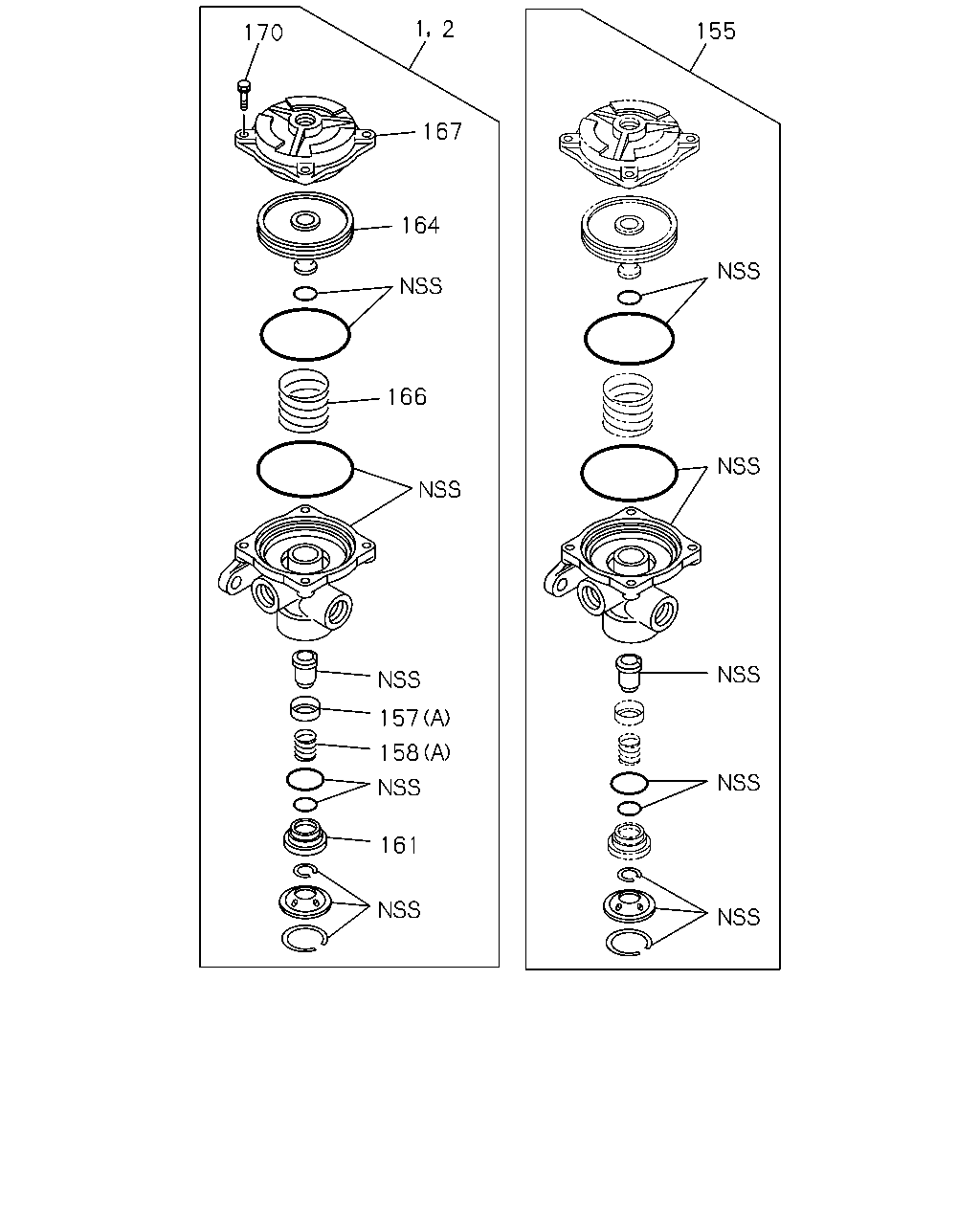

çizim 78896
2 1 155 170 167 164 166 157 158 161
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48210-500-0 01 1 0105-
2 VALVE; RELAY 1-48210-500-0 01 1 0105-
2 VALVE; RELAY 1-48210-500-0 02 1 0105-
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 01 1 0105-
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 03 1 0105-
157 RETAINER; VALVE
(B) 		1-48419-020-0 06 1 0105-0301
157 RETAINER; VALVE
(B) 		1-48419-020-0 06 1 0302-
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0105-
157 RETAINER; VALVE
(A) 		1-48213-002-0 03 1 0105-
158 SPRING; VALVE
(B) 		9-48419-003-0 06 1 0105-0301
158 SPRING; VALVE
(B) 		9-48419-003-0 06 1 0302-
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0105-
158 SPRING; VALVE
(A) 		1-47819-089-0 03 1 0105-
161 GUIDE; VALVE 1-48129-014-0 01 1 0105-
161 GUIDE; VALVE 1-48129-014-0 03 1 0105-
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0105-
164 PISTON; RELAY VALVE 1-48219-071-0 03 1 0105-
166 SPRING; PISTON 1-47819-165-0 01 1 0105-
166 SPRING; PISTON 1-47819-165-0 03 1 0105-
167 COVER; VALVE 1-48219-070-0 01 1 0105-
167 COVER; VALVE 1-48219-070-0 03 1 0105-
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0105-
170 SCREW; COVER TO BODY 1-48219-039-0 12 1 0105-
