◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51390 - NQR A/BRAKE MIDEAST ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#124949) — 15 parça

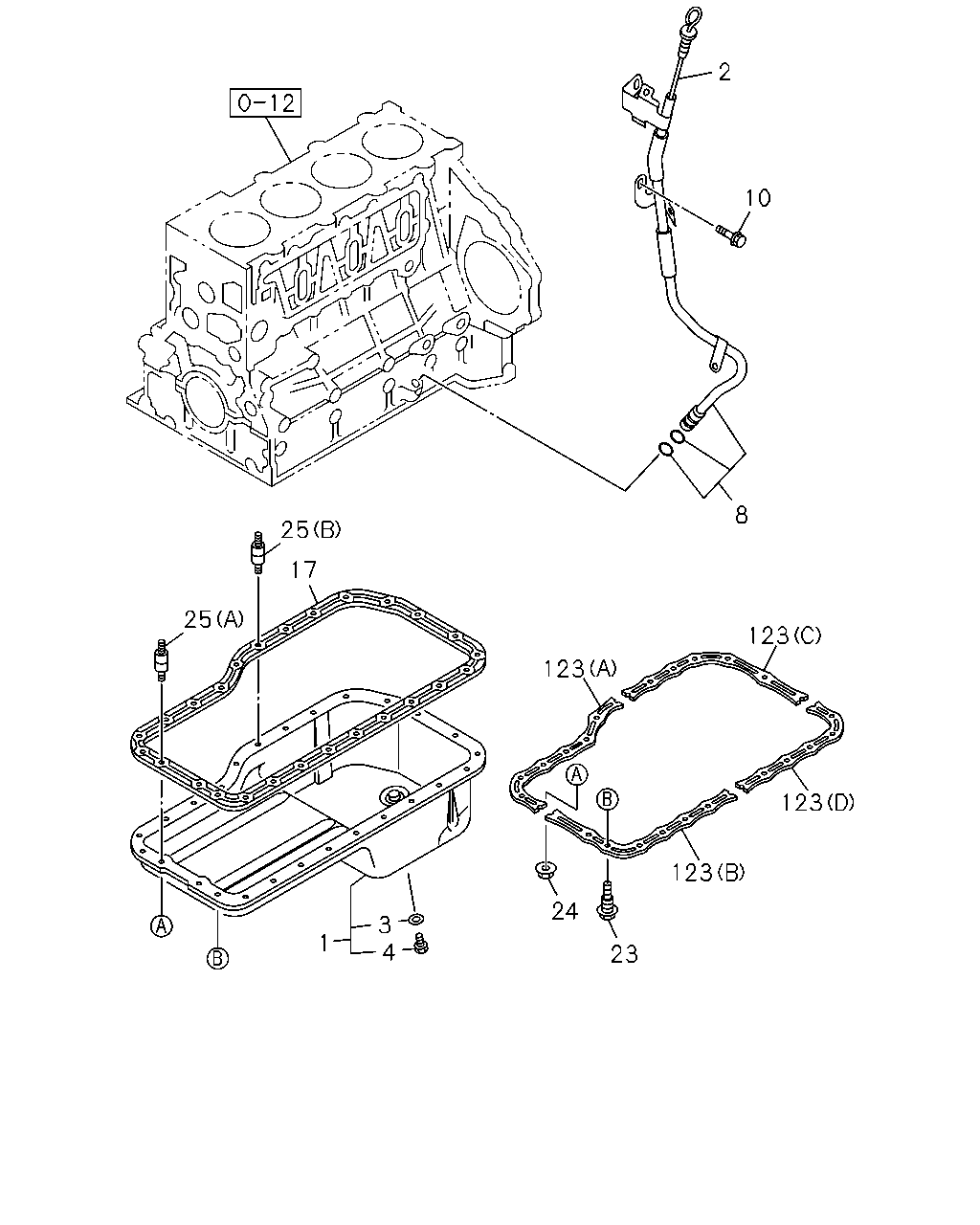

çizim 362087
2 10 8 123 123 123 123 23 24 4 3 1 25 17 25
BalonParca AdiParca NoAdetTipApplied Date
1 01.426 PAN ASM; OIL 8-98124-513-1 01 1 1307-
2 01.516 GAUGE; OIL LEVEL 8-98183-344-0 01 1 1307-
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 1307-
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 1307-
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98172-651-1 01 1 1307-
10 01.516 BOLT; GUIDE TUBE
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1307-
17 01.429 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 1307-
23 01.428 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 1307-
24 01.453 NUT; OIL PAN
01.062 M8 FLANGE 		0-91180-108-0 13 1 1307-
25 01.453 STUD; OIL PAN
(B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 1307-
25 01.453 STUD; OIL PAN
01.428 (A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 1307-
123 01.516 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 1307-
123 01.516 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 1307-
123 01.516 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 1307-
123 01.516 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 1307-
