Isuzu WW
▶
TRUCKS
▶
NQR
▶
51390 - NQR A/BRAKE MIDEAST
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

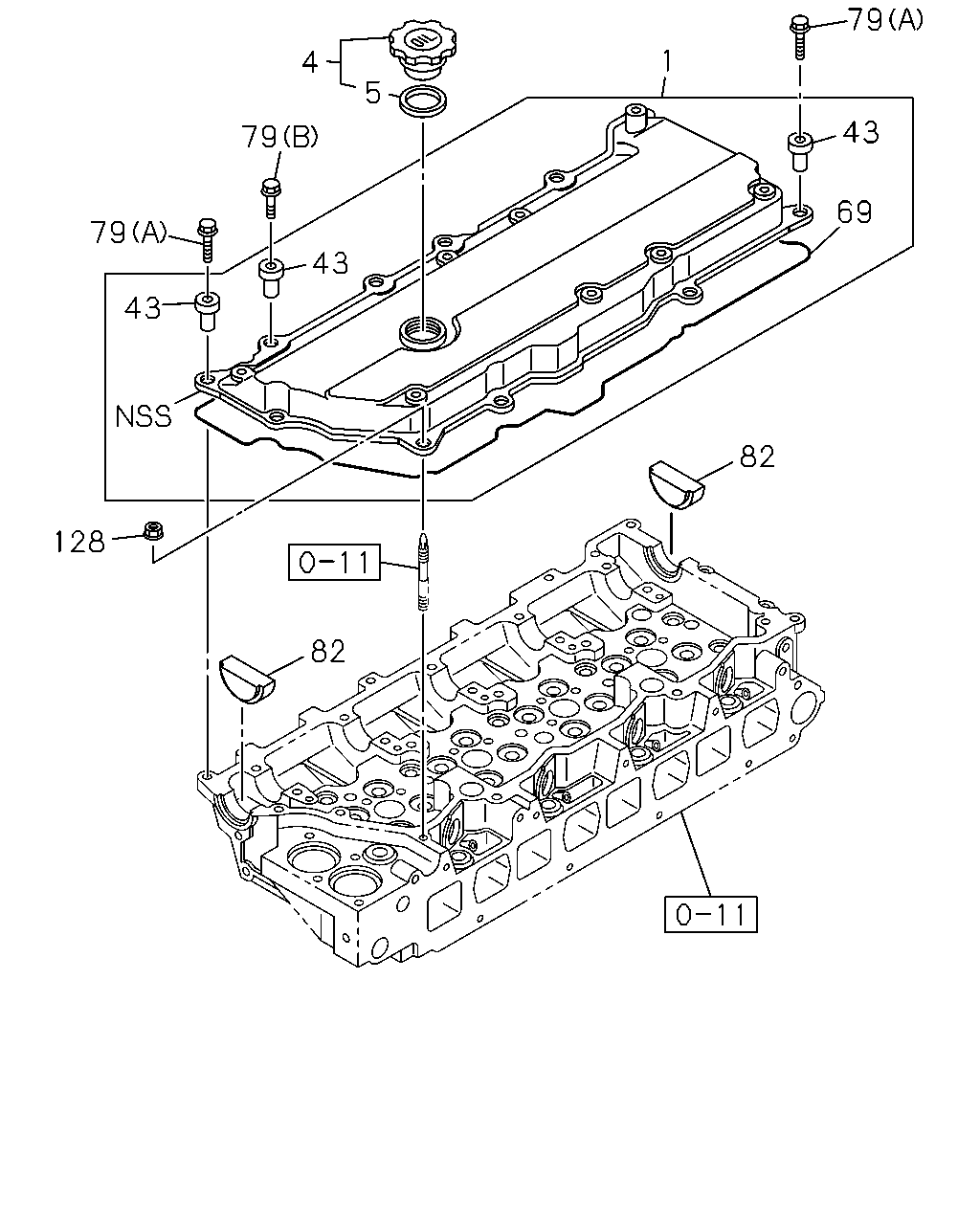

0-10 — CYLINDER HEAD COVER
(#124946) — 9 parça
1
79
43
69
5
4
79
79
43
43
128
82
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.386 COVER; CYL HD
8-97331-361-2
01
1
1307-
4
01.758 CAP; OIL FILLER
8-94133-207-5
01
1
1307-
5
01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40
8-94123-623-1
01
1
1307-
43
00.413 RUBBER; MTG,HD COVER,OUTER
OD=22
8-94395-684-0
11
1
1307-
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97331-359-1
01
1
1307-
79
00.293 BOLT; COVER
01.060 (B) M8X35 FLANGE
0-28650-835-0
02
1
1307-
79
00.293 BOLT; COVER
01.097 (A) M8X65 FLANGE
1-09044-072-1
07
1
1307-
82
00.386 PLUG; CYL HD COVER
8-98163-813-0
02
1
1307-
128
00.413 NUT; COVER,CYL HEAD COVER
01.062 M8 FLANGE
0-91180-108-0
02
1
1307-
