Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#12494) — 78 parça

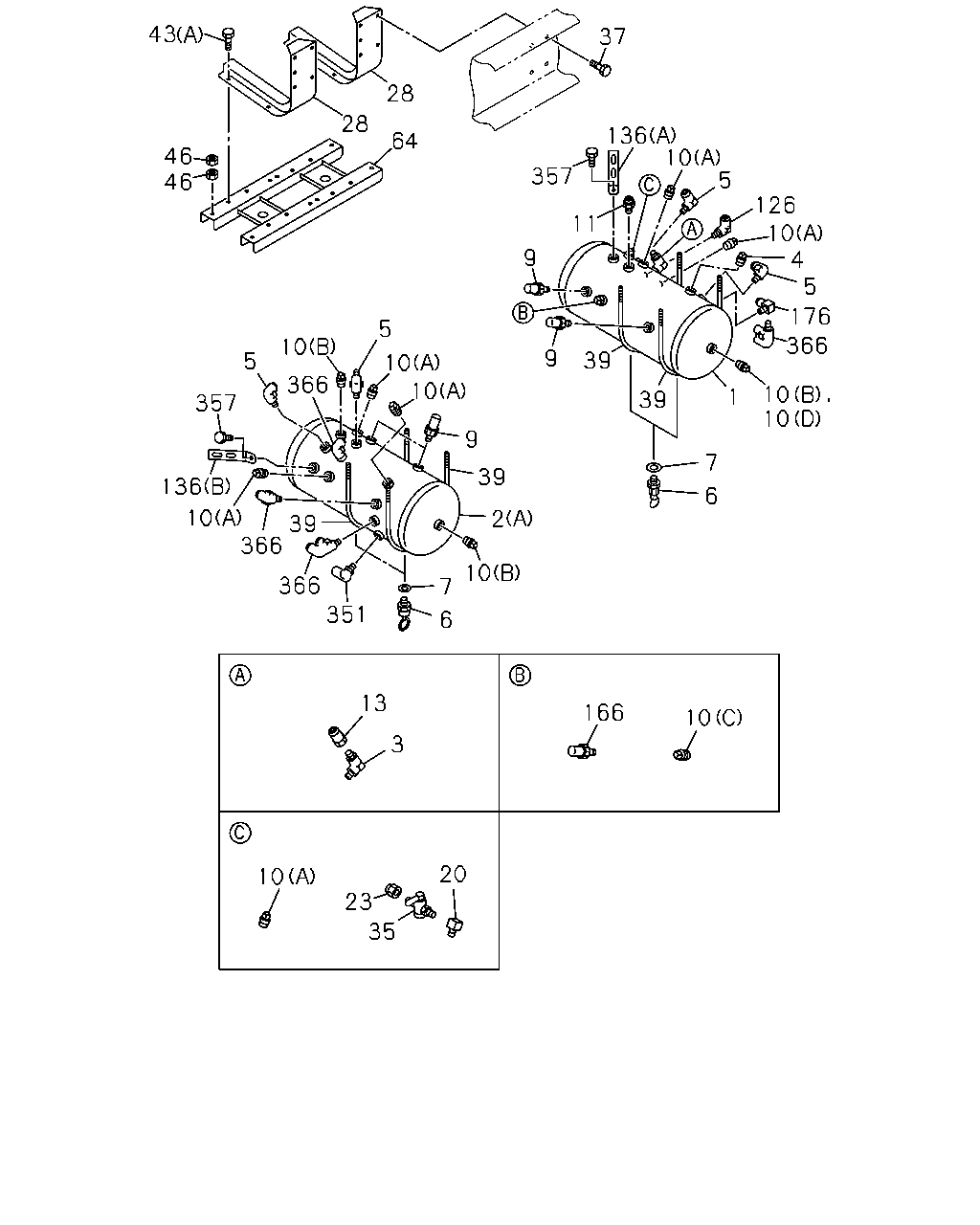

37 28 28 136 10 64 46 46 5 357 126 10 4 5 11 9 176 5 366 10 9 39 5 10 10 366 10 10 1 39 357 9 7 39 136 6 10 39 366 2 10 366 7 351 6 13 166 10 3 20 10 23 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR TRAILER BRAKE HAND CONTROL<NLG>	1-48370-885-0	01	1	0105-
2	TANK; AIR (B)	1-48371-146-0	01	1	0105-
2	TANK; AIR TRAILER BRAKE HAND CONTROL<NLG> (A)	1-48370-884-0	01	1	0105-
3	VALVE; CHECK,AIR TANK TRAILER BRAKE HAND CONTROL<NLG> M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0105-
4	CONNECTOR; FLARE TRAILER BRAKE HAND CONTROL<NLG> DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0105-0301
5	UNION; AIR TANK TRAILER BRAKE HAND CONTROL<NLG> DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0105-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0105-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	0105-
6	COCK; DRAIN,AIR TANK TRAILER BRAKE HAND CONTROL<NLG>	1-48312-015-0	03	1	0105-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0105-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0105-
7	GASKET; DRAIN COCK TRAILER BRAKE HAND CONTROL<NLG> ID=14	1-09630-145-0	03	1	0105-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK TRAILER BRAKE HAND CONTROL<NLG> 530KPA	1-48340-054-1	04	1	0105-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0105-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (A) PT3/8	9-09204-517-0	01	1	0105-
10	PLUG; AIR TANK TRAILER BRAKE HAND CONTROL<NLG> (A) PT3/8	9-09204-517-0	05	1	0105-
10	PLUG; AIR TANK TRAILER BRAKE HAND CONTROL<NLG> (B) PT3/4	9-09204-526-0	03	1	0105-0301
10	PLUG; AIR TANK TRAILER BRAKE HAND CONTROL<NLG> (D) PT3/4	9-09204-526-0	01	1	0302-
11	VALVE; SAFETY,AIR TANK TRAILER BRAKE HAND CONTROL<NLG>	1-48320-012-2	01	1	0105-
13	ADAPTER; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0105-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	0105-
28	BRACKET; AIR TANK TRAILER BRAKE HAND CONTROL<NLG>	1-48317-826-5	02	1	0105-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0105-
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	0105-0512
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	08	1	0601-
39	U-BOLT; AIR TANK	1-48317-675-0	02	1	0105-
39	U-BOLT; AIR TANK TRAILER BRAKE HAND CONTROL<NLG>	1-48317-675-0	04	1	0105-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0105-0512
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0601-
46	NUT; U-BOLT TRAILER BRAKE HAND CONTROL<NLG> M8	9-09110-408-0	16	1	0105-0512
46	NUT; U-BOLT TRAILER BRAKE HAND CONTROL<NLG> M8	0-91110-508-0	16	1	0601-
64	STAY; AIR TANK,MAIN TRAILER BRAKE HAND CONTROL<NLG>	1-48317-801-1	01	1	0105-
126	CONNECTOR; ELBOW TRAILER BRAKE HAND CONTROL<NLG> DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
136	BRACKET; CLIP TRAILER BRAKE HAND CONTROL<NLG> (A) L=150 H=30	1-47477-629-2	01	1	0105-
136	BRACKET; CLIP TRAILER BRAKE HAND CONTROL<NLG> (B) L=100 H=30	1-47477-645-2	01	1	0105-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) 650KPA	1-48340-059-1	01	1	0105-
176	ADAPTER TRAILER BRAKE HAND CONTROL<NLG> PT3/8 ELBOW	1-09660-696-0	01	1	0105-
351	CONNECTOR; TEST TRAILER BRAKE HAND CONTROL<NLG> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	0105-
357	BOLT; BRKT TRAILER BRAKE HAND CONTROL<NLG> M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
357	BOLT; BRKT TRAILER BRAKE HAND CONTROL<NLG> M8X20 FLANGE	0-28650-820-0	02	1	0601-
366	CONNECTOR; NYLON TUBE TRAILER BRAKE HAND CONTROL<NLG> DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	04	1	0105-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	0105-0512
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	0601-

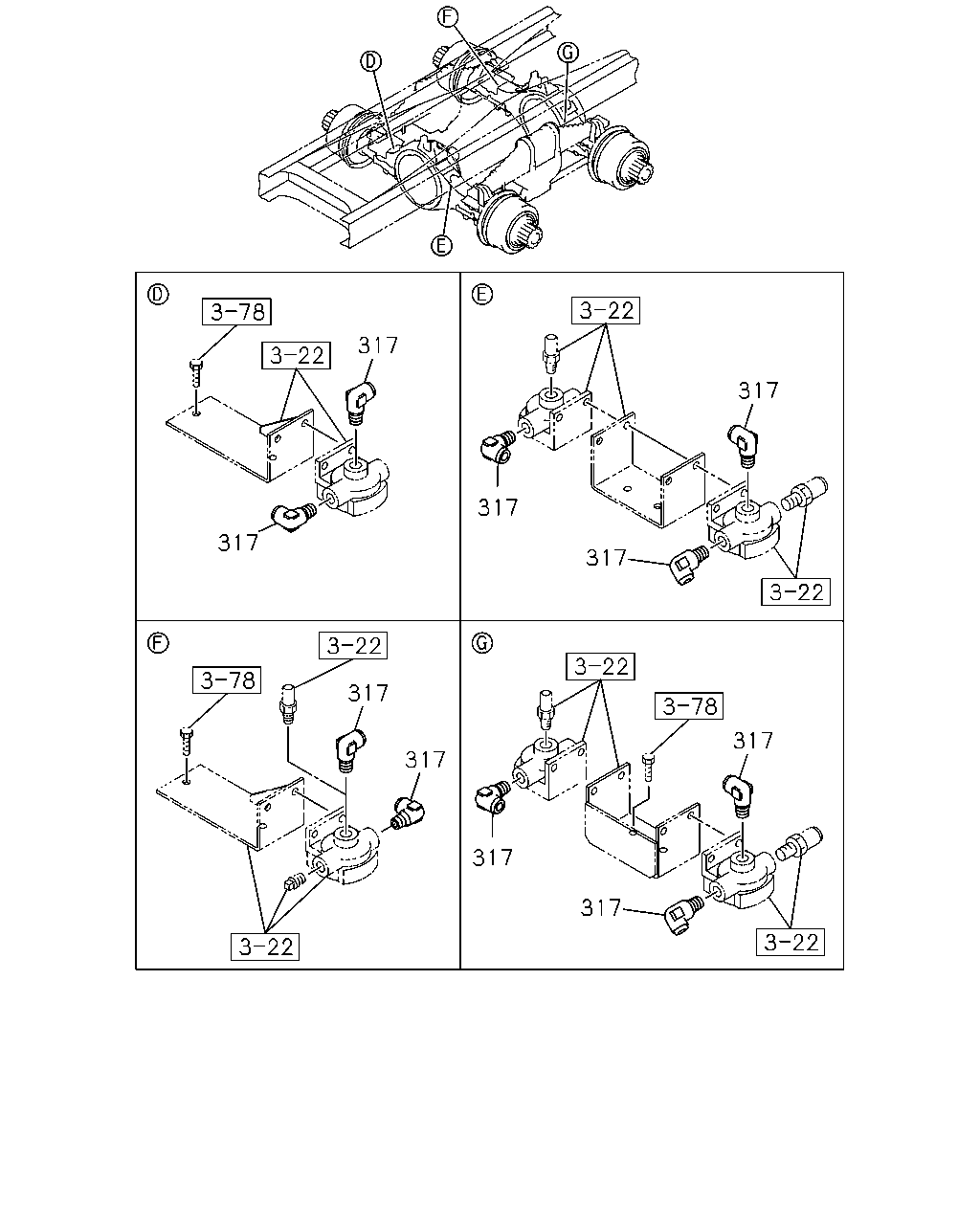

317 317 317 317 317 317 317 317 317 317

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	317	CONNECTOR; MODULATOR DIN12 & R3/8 ELBOW	1-09660-959-0	10	1	0105-0110
	317	CONNECTOR; MODULATOR DIN12 & R3/8 ELBOW	1-09660-959-0	09	1	0111-

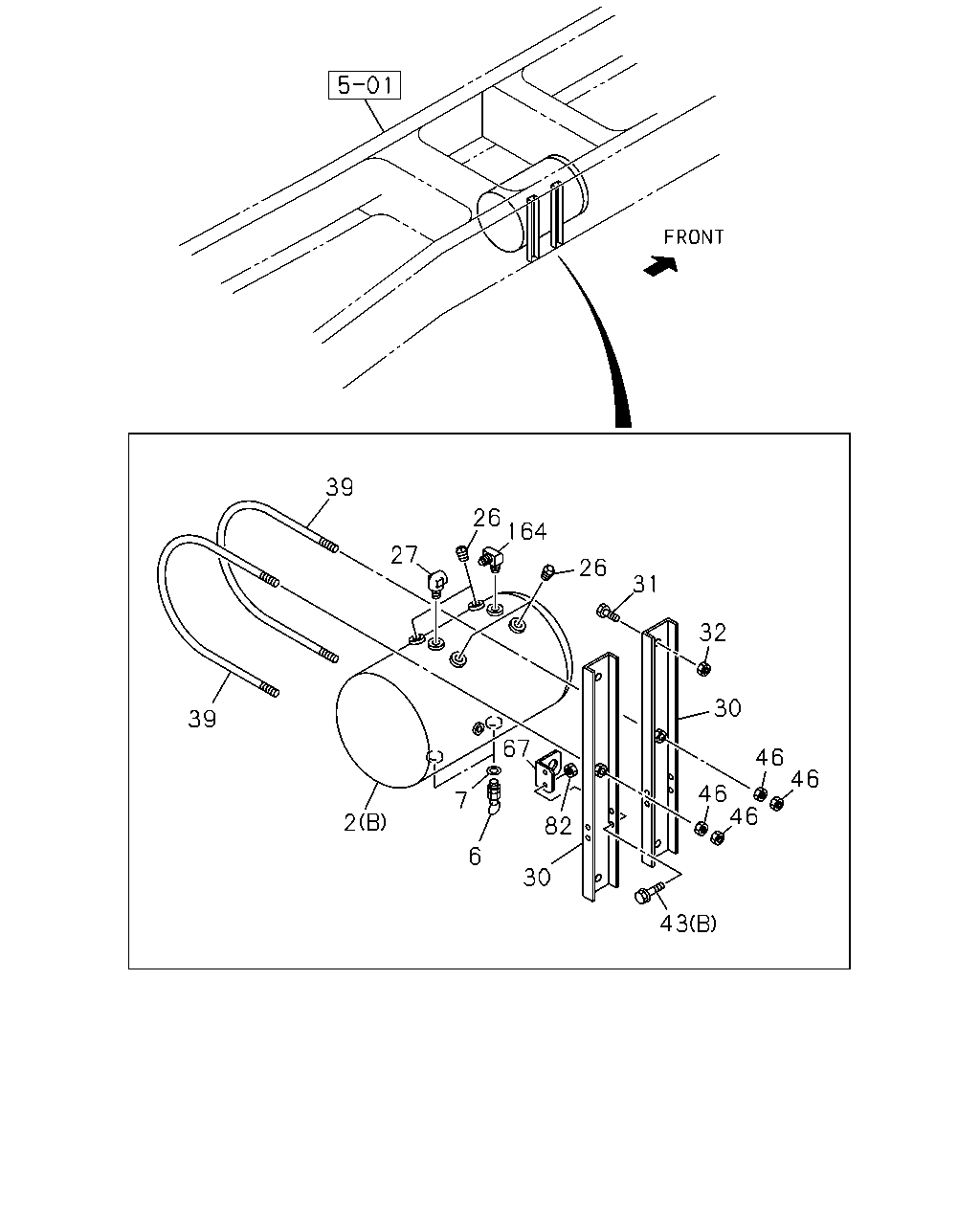

39 26 164 27 26 31 32 30 39 67 46 46 46 46 7 82 6 30 2 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR (B)	1-48371-146-0	01	1	0105-
2	TANK; AIR TRAILER BRAKE HAND CONTROL<NLG> (A)	1-48370-884-0	01	1	0105-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0105-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	0105-
6	COCK; DRAIN,AIR TANK TRAILER BRAKE HAND CONTROL<NLG>	1-48312-015-0	03	1	0105-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0105-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0105-
7	GASKET; DRAIN COCK TRAILER BRAKE HAND CONTROL<NLG> ID=14	1-09630-145-0	03	1	0105-
26	PLUG; SUB AIR TANK PT3/8	9-09204-517-0	04	1	0105-
27	UNION; ELBOW,AIR TANK DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
30	BRACKET; AIR TANK,SUB	1-48317-910-1	02	1	0105-0201
30	BRACKET; AIR TANK,SUB	1-48317-988-0	02	1	0202-
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	04	1	0105-0512
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	04	1	0601-
32	NUT; BRKT TO FRAME M12 FLANGE	0-91150-212-0	02	1	0105-0602
32	NUT; BRKT TO FRAME M12 FLANGE	0-91180-212-0	02	1	0603-
39	U-BOLT; AIR TANK	1-48317-675-0	02	1	0105-
39	U-BOLT; AIR TANK TRAILER BRAKE HAND CONTROL<NLG>	1-48317-675-0	04	1	0105-
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28680-820-0	02	1	0105-0201
43	BOLT; STAY,AIR TANK,MAIN (B) M8X25 FLANGE	0-28680-825-0	02	1	0202-0512
43	BOLT; STAY,AIR TANK,MAIN (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
43	BOLT; STAY,AIR TANK,MAIN TRAILER BRAKE HAND CONTROL<NLG> (A) M12X30 FLANGE	0-28681-230-0	08	1	0105-0512
43	BOLT; STAY,AIR TANK,MAIN TRAILER BRAKE HAND CONTROL<NLG> (A) M12X30 FLANGE	0-28651-230-0	08	1	0601-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0105-0512
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0601-
46	NUT; U-BOLT TRAILER BRAKE HAND CONTROL<NLG> M8	9-09110-408-0	16	1	0105-0512
46	NUT; U-BOLT TRAILER BRAKE HAND CONTROL<NLG> M8	0-91110-508-0	16	1	0601-
67	STAY; SUB TANK	1-48317-911-0	01	1	0105-0201
67	STAY; SUB TANK	1-48317-989-0	01	1	0202-
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602
82	NUT; STAY,AIR MASTER BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
164	CONNECTOR; SUB AIR TANK DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0105-
