2-30 — GEAR SHIFTER AND QUADRANT BOX (#124933) — 217 parça

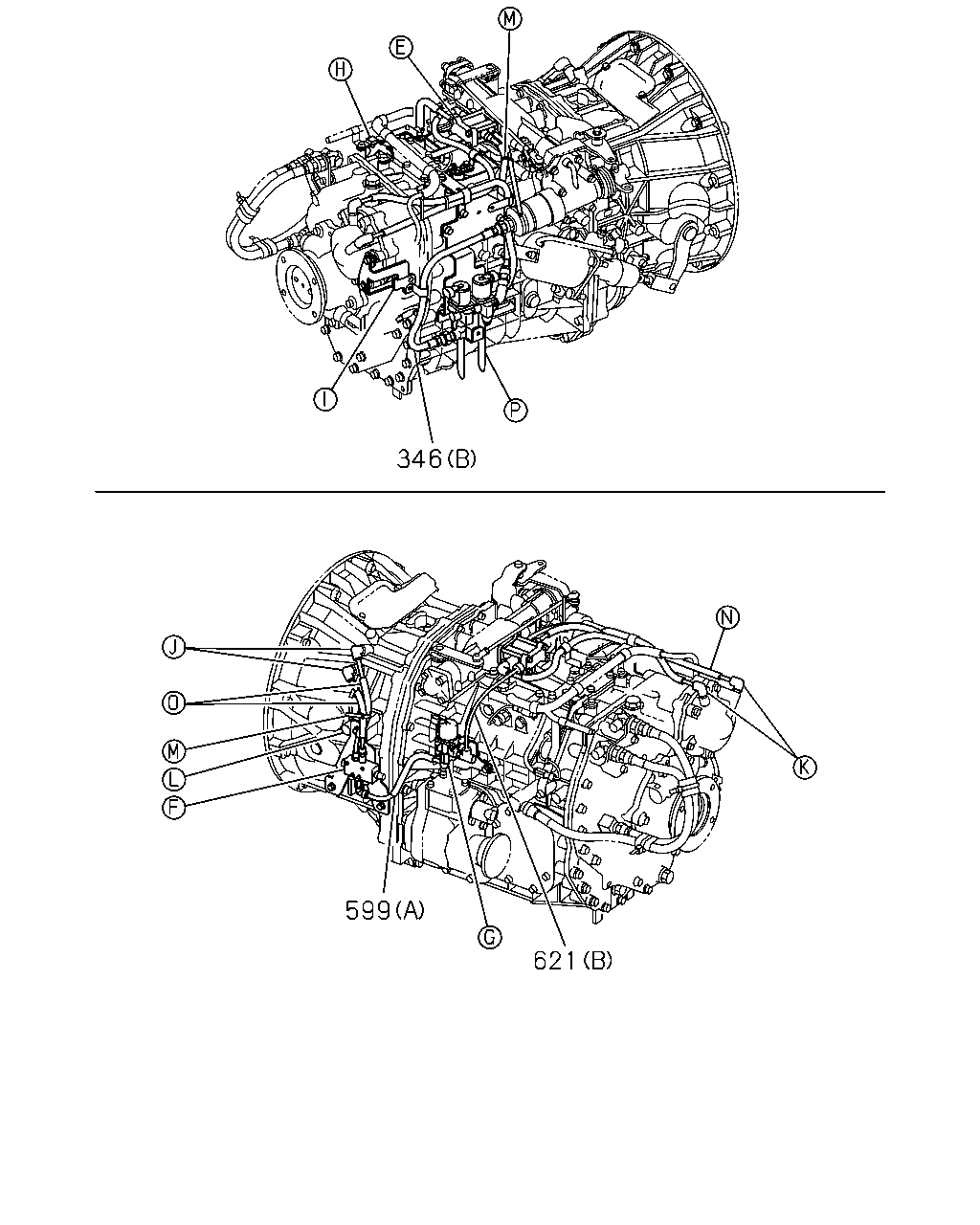

çizim 363040
346 599 621
BalonParca AdiParca NoAdetTipApplied Date
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 02 1 1306-1401
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 03 1 1402-
346 HOSE; AIR
(B) L=450 		1-09363-965-0 01 1 1306-
599 TUBE; NYLON
(A) 		1-09377-036-1 01 1 1306-
599 TUBE; NYLON
(B) 		1-33712-027-0 01 1 1306-
621 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 1306-
621 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 1306-

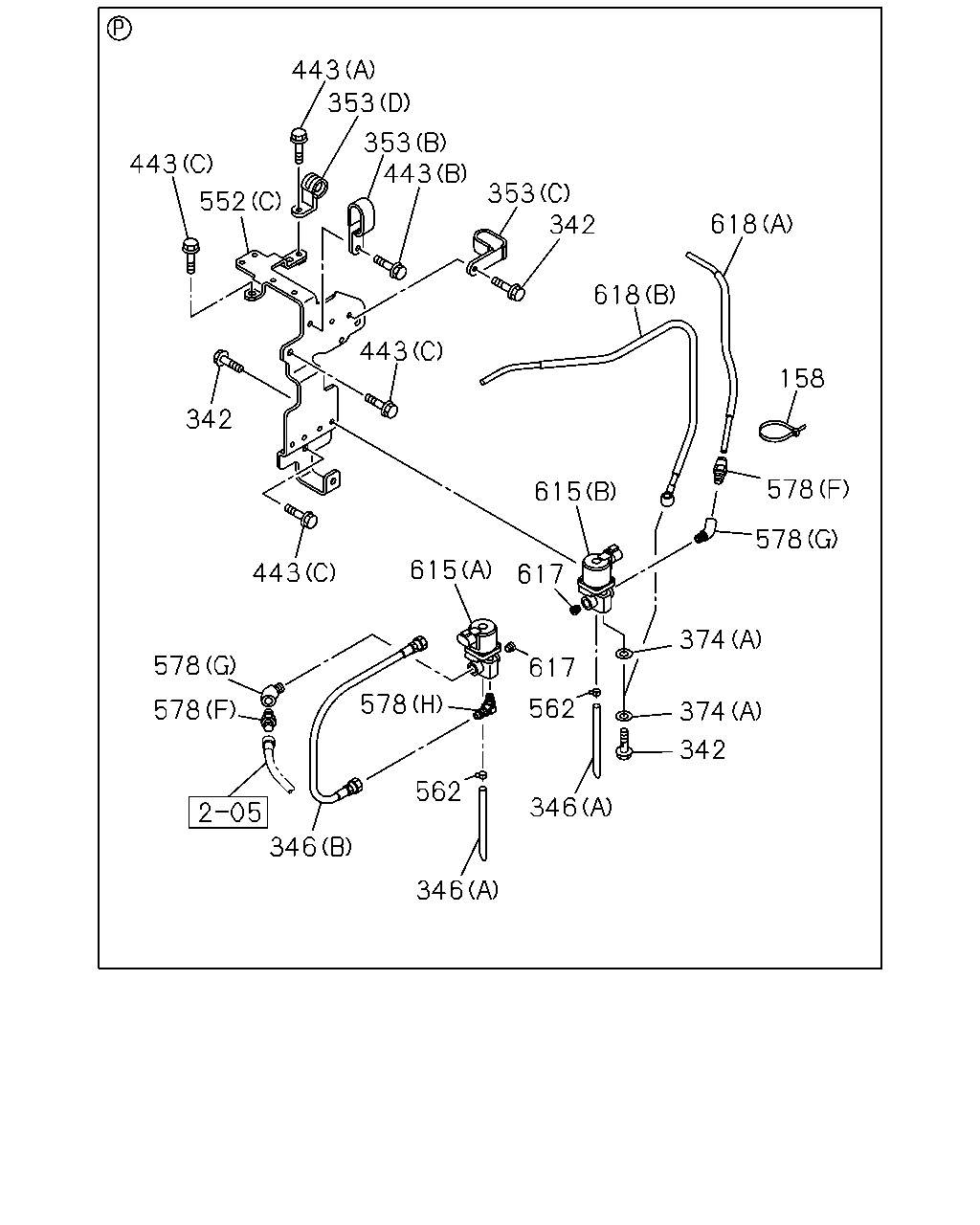

çizim 363148
443 342 443 578 578 346 346 562 578 615 443 353 353 443 353 443 342 618 615 617 617 562 346 618 158 578 578 374 374 342 552
BalonParca AdiParca NoAdetTipApplied Date
158 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1306-
342 BOLT
M8X16 FLANGE 		0-28050-816-0 05 1 1306-
342 BOLT
M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 1306-
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 02 1 1306-1401
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 03 1 1402-
346 HOSE; AIR
(B) L=450 		1-09363-965-0 01 1 1306-
353 CLIP; AIR HOSE
(D) ID=12 H=24 L=20 		1-09700-605-0 01 1 1306-
353 CLIP; AIR HOSE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306-
353 CLIP; AIR HOSE
(C) ID=33X16.5 L=50 		5-09700-341-0 01 1 1306-
353 CLIP; AIR HOSE
(B) ID=16X2 L=40 		9-09535-576-0 01 1 1306-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		1-09630-084-0 02 1 1306-1312
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		8-98251-344-0 02 1 1401-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09661-390-0 01 1 1306-
443 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1306-
443 BOLT; CLIP
(B) M8X90 FLANGE 		0-28050-890-0 04 1 1306-
443 BOLT; CLIP
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
443 BOLT; CLIP
(C) M10X25 FLANGE 		0-28751-025-0 05 1 1306-
552 BRACKET
(A) 		1-33719-082-0 01 1 1306-
552 BRACKET
(B) 		1-33719-083-0 01 1 1306-
552 BRACKET
(C) 		8-98222-117-0 01 1 1306-
562 CLAMP; LOCKING
ID=7.8 		8-94246-958-0 02 1 1306-
578 CONNECTOR
(F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1306-
578 CONNECTOR
(H) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1306-
578 CONNECTOR
(D) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 1306-
578 CONNECTOR
(I) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1306-
578 CONNECTOR
(E) 		1-09661-292-0 02 1 1306-
578 CONNECTOR
(G) R1/4 & RC1/4 		1-09664-211-0 02 1 1306-
578 CONNECTOR
(C) 		1-33712-023-0 02 1 1306-
578 CONNECTOR
(A) 		1-33712-024-0 01 1 1306-
578 CONNECTOR
(B) 		1-33712-026-0 01 1 1306-
615 VALVE; MAGNETIC
(A) 		8-98222-558-0 01 1 1306-
615 VALVE; MAGNETIC
(B) 		8-98222-559-0 01 1 1306-
617 PLUG 8-97320-204-0 02 1 1306-
618 TUBE; NYLON
(B) L=730 		8-98222-118-0 01 1 1306-
618 TUBE; NYLON
(A) L=400 		8-98222-734-0 01 1 1306-

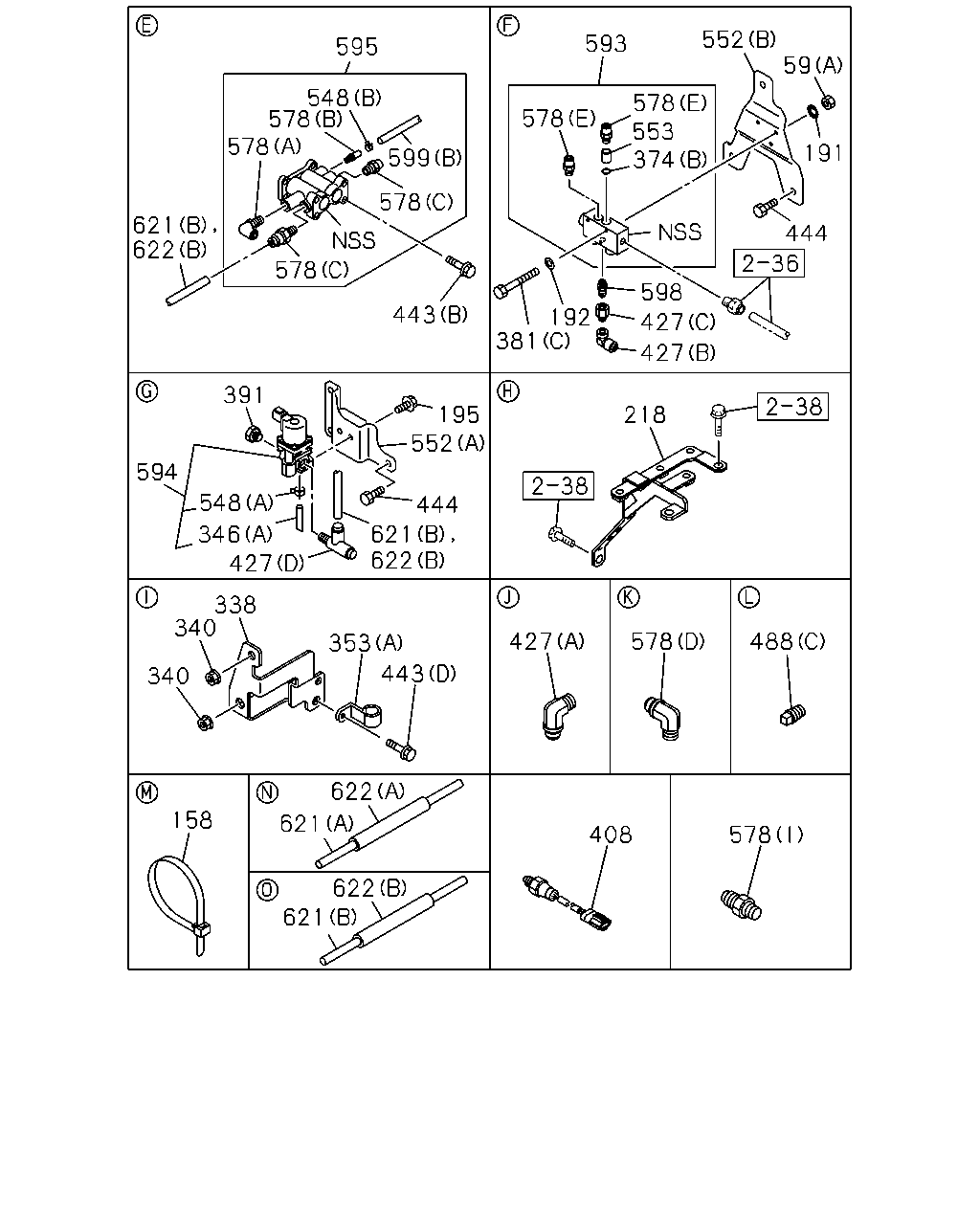

çizim 366032
595 548 578 578 599 578 578 621 622 391 444 552 195 443 594 548 346 427 338 340 340 353 443 427 578 488 218 427 427 598 192 381 444 191 59 552 593 578 578 553 374 621 622 622 621 158 621 622 408 578
BalonParca AdiParca NoAdetTipApplied Date
59 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 1409-
59 NUT
(A) 		1-09440-068-0 04 1 1306-
158 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1306-
191 WASHER; LK 1-09503-311-0 04 1 1306-
192 WASHER; PL 1-09503-310-0 04 1 1306-
195 BOLT
M8X16 FLANGE 		0-28050-816-0 02 1 1306-
218 BRACKET; HARNESS CLIP,QUAD BOX 1-82698-350-0 01 1 1306-
338 BRACKET; FLEX TUBE 8-98222-750-1 01 1 1306-
340 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1306-
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 02 1 1306-1401
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 03 1 1402-
346 HOSE; AIR
(B) L=450 		1-09363-965-0 01 1 1306-
353 CLIP; AIR HOSE
(D) ID=12 H=24 L=20 		1-09700-605-0 01 1 1306-
353 CLIP; AIR HOSE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306-
353 CLIP; AIR HOSE
(C) ID=33X16.5 L=50 		5-09700-341-0 01 1 1306-
353 CLIP; AIR HOSE
(B) ID=16X2 L=40 		9-09535-576-0 01 1 1306-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		1-09630-084-0 02 1 1306-1312
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		8-98251-344-0 02 1 1401-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09661-390-0 01 1 1306-
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 1306-
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 1306-
381 BOLT
(C) 		1-09044-111-0 04 1 1306-
391 PLUG; SW HOLE
M12X9 		0-92002-412-0 01 1 1306-
408 SWITCH; SELECT,4TH 5TH 8-98228-507-0 01 1 1306-
427 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 1306-
427 CONNECTOR; NYLON TUBE
(C) DIN8 ELBOW 		1-09660-924-1 01 1 1306-
427 CONNECTOR; NYLON TUBE
(D) M12 		1-09660-931-1 01 1 1306-
427 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 1306-
443 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1306-
443 BOLT; CLIP
(B) M8X90 FLANGE 		0-28050-890-0 04 1 1306-
443 BOLT; CLIP
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
443 BOLT; CLIP
(C) M10X25 FLANGE 		0-28751-025-0 05 1 1306-
444 BOLT; CLIP
M10X25 FLANGE 		0-28751-025-0 06 1 1306-
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 1306-
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 1306-
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 1306-
548 CLIP; HOSE
(B) ID=7.8 		8-94246-958-0 01 1 1306-
548 CLIP; HOSE
(A) 		1-33712-028-0 01 1 1306-
552 BRACKET
(A) 		1-33719-082-0 01 1 1306-
552 BRACKET
(B) 		1-33719-083-0 01 1 1306-
552 BRACKET
(C) 		8-98222-117-0 01 1 1306-
553 ADAPTER; AIR 1-09661-389-0 01 1 1306-
578 CONNECTOR
(F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1306-
578 CONNECTOR
(H) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1306-
578 CONNECTOR
(D) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 1306-
578 CONNECTOR
(I) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1306-
578 CONNECTOR
(E) 		1-09661-292-0 02 1 1306-
578 CONNECTOR
(G) R1/4 & RC1/4 		1-09664-211-0 02 1 1306-
578 CONNECTOR
(C) 		1-33712-023-0 02 1 1306-
578 CONNECTOR
(A) 		1-33712-024-0 01 1 1306-
578 CONNECTOR
(B) 		1-33712-026-0 01 1 1306-
593 VALVE; SPLITTER 1-33712-009-0 01 1 1306-
594 VALVE; MAGNETIC,AIR 1-82564-069-0 01 1 1306-
595 VALVE; RANGE 1-33712-029-1 01 1 1306-
598 UNION
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 1306-
599 TUBE; NYLON
(A) 		1-09377-036-1 01 1 1306-
599 TUBE; NYLON
(B) 		1-33712-027-0 01 1 1306-
621 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 1306-
621 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 1306-
622 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 1306-
622 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1306-

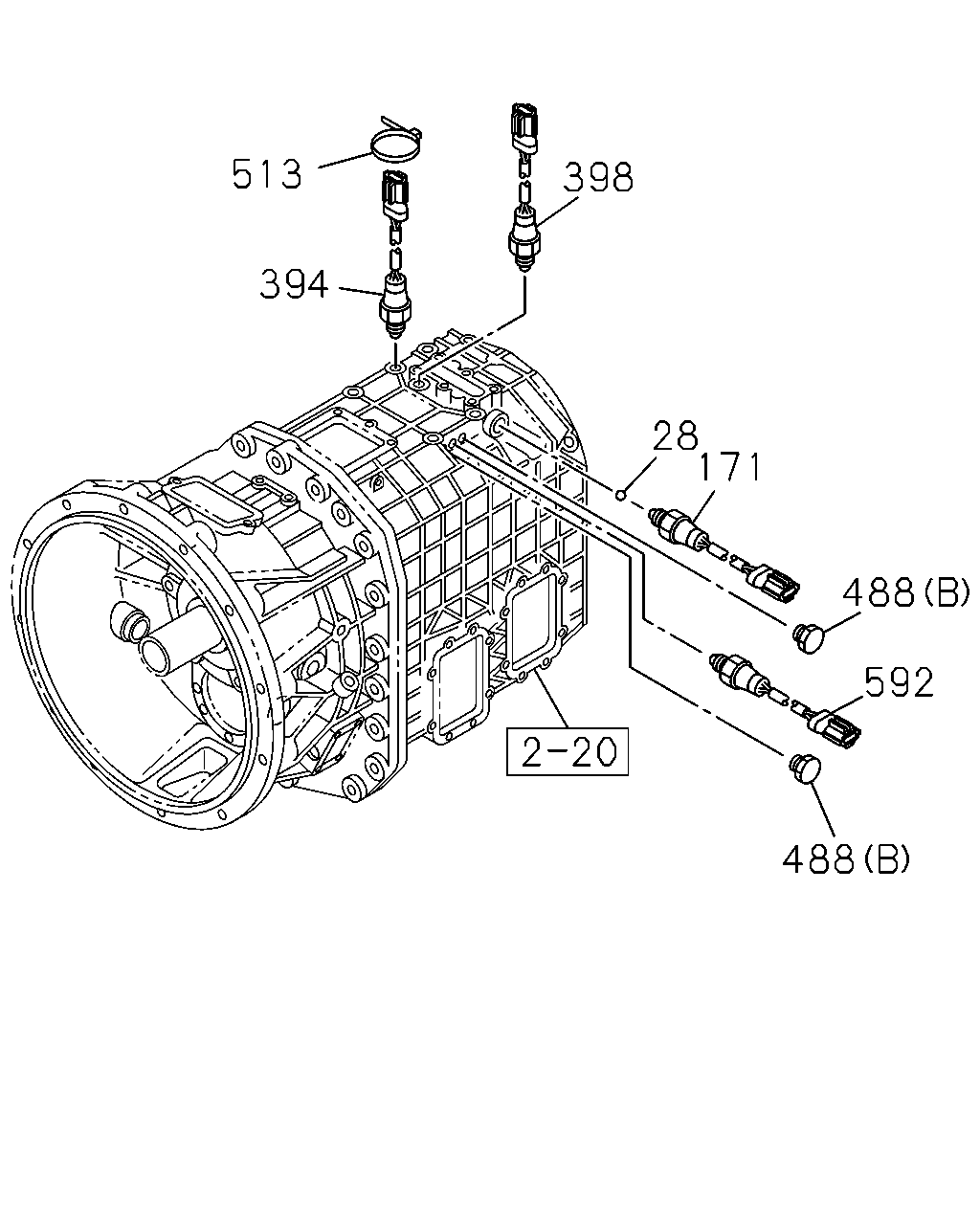

çizim 366153
513 394 398 28 171 488 592 488
BalonParca AdiParca NoAdetTipApplied Date
28 BALL; INTER LK 9-00097-501-0 02 1 1306-
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1306-
394 SWITCH; RANGE CHANGE 8-98228-482-0 02 1 1306-
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1306-
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 1306-
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 1306-
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 1306-
513 CLIP; BAND
L=140 		5-09707-031-1 02 1 1306-
592 SWITCH; POSITION 8-98228-482-0 01 1 1306-

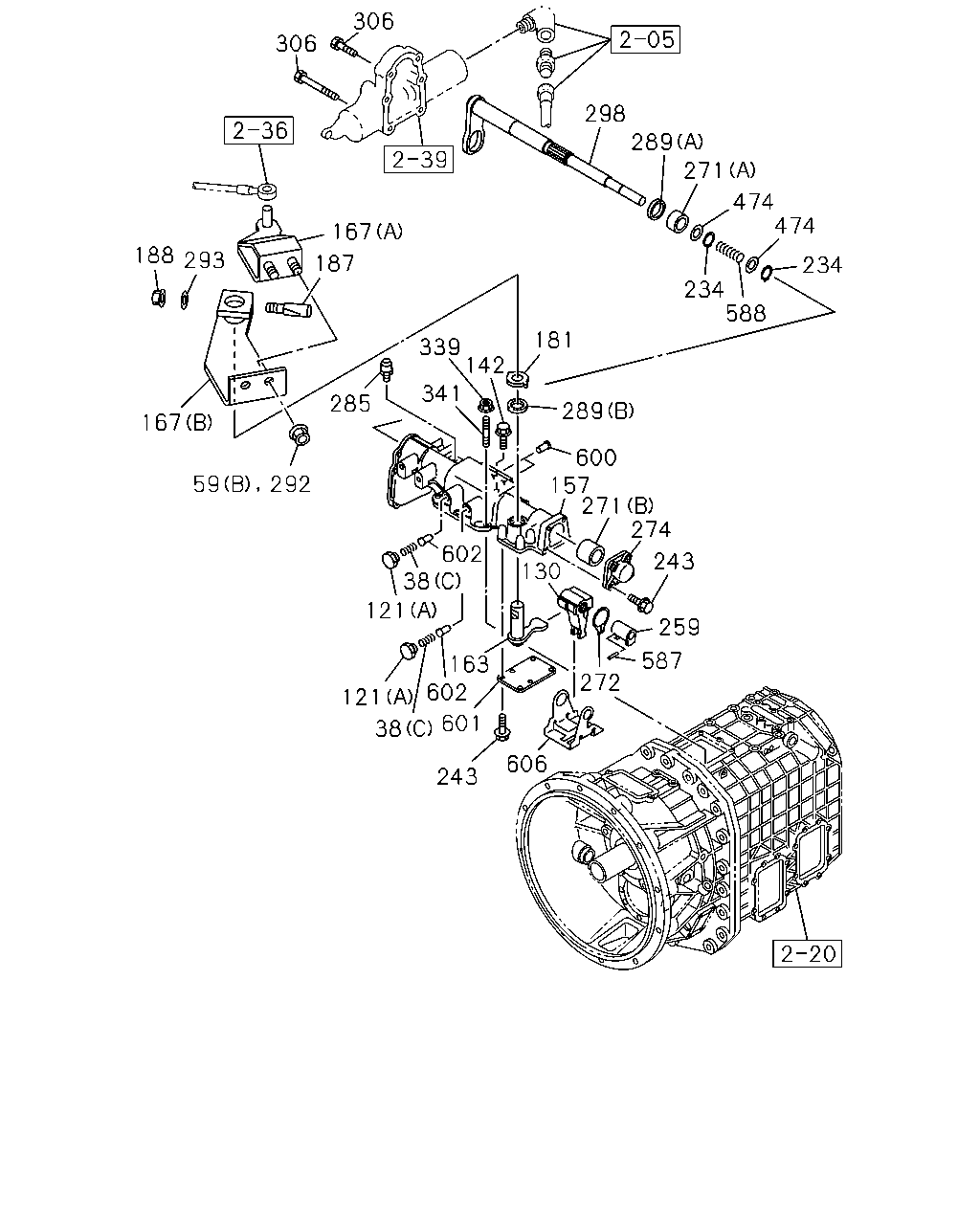

çizim 366782
306 306 188 293 167 187 167 59 292 285 339 341 142 181 289 600 157 271 274 243 259 587 272 606 243 38 601 602 121 163 121 38 602 130 588 234 234 474 474 271 289 298
BalonParca AdiParca NoAdetTipApplied Date
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 1306-
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 1306-
38 SPRING; DETENT
(C) 		1-09580-580-0 02 1 1306-
59 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 1409-
59 NUT
(A) 		1-09440-068-0 04 1 1306-
121 PLUG; DETENT SPR
(B) M16X12 		0-92002-416-0 01 1 1306-
121 PLUG; DETENT SPR
(A) M14X9 		8-98042-944-0 02 1 1306-
130 LEVER; SHIFT,INTERNAL 1-33521-189-0 01 1 1306-
142 BOLT; QUAD BOX
M10X30 FLANGE 		0-28751-030-0 01 1 1306-
157 BOX; QUAD,TRANS 8-98220-885-0 01 1 1306-
163 LEVER; SELECT,INTERNAL 1-33522-202-0 01 1 1306-
167 LEVER; SELECT,EXTERNAL
(B) 		1-33521-194-0 01 1 1306-
167 LEVER; SELECT,EXTERNAL
(A) 		8-98052-192-0 01 1 1306-
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1306-
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1306-
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1306-
234 RING; SNAP
ID=14.7 		0-91800-616-0 02 1 1306-
243 BOLT; COVER
M8X20 FLANGE 		0-28050-820-0 06 1 1306-
243 BOLT; COVER
M8X35 FLANGE 		0-28650-835-0 04 1 1306-
259 GUIDE; SELECT,CONT BOX 8-98222-568-0 01 1 1306-
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1306-
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1306-
272 RING; SNAP,QUAD BOX 1-09588-213-0 01 1 1306-
274 COVER; SHAFT,QUAD BOX 8-98220-886-0 01 1 1306-
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1306-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 1306-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 1306-
292 NUT; LINK ROD
M8 FLANGE 		0-91180-108-0 02 1 1306-1408
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1306-
298 SHAFT; SHIFT LEVER 8-98222-566-0 01 1 1306-
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 1306-
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 1306-
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 05 1 1306-
341 STUD; QUAD BOX
M10X35 L=50 		0-44011-035-0 05 1 1306-
474 WASHER; SPRING STOPPER 8-98222-569-0 02 1 1306-
587 PIN; SHIFT GUIDE 9-08160-420-0 01 1 1306-
588 SPRING; RETURN,QUADRANT BOX 1-09580-576-0 01 1 1306-
600 PLUNGER; VLV 1-33263-037-0 02 1 1306-
601 COVER; SHAFT,SELECT 1-33545-011-0 01 1 1306-
602 PLUNGER; DETENT 1-33263-037-0 02 1 1306-
606 INHIBITOR 1-33529-116-0 01 1 1306-

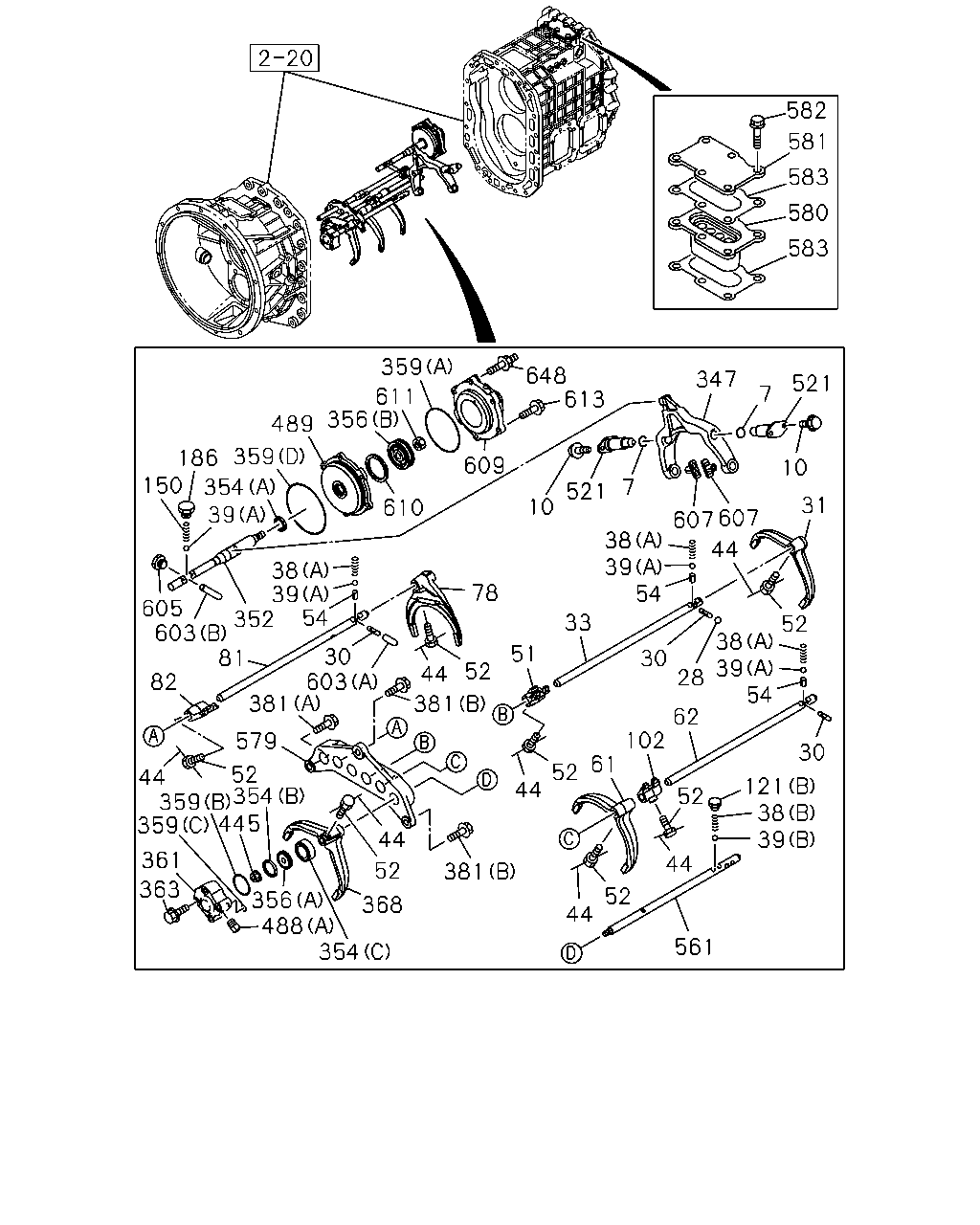

çizim 366822
582 581 583 580 583 150 186 354 39 359 489 356 611 359 648 613 347 7 521 10 31 607 607 38 39 521 10 7 44 54 609 610 33 78 51 52 44 381 603 30 54 39 38 352 81 603 605 381 579 82 52 44 354 445 359 359 361 363 356 488 354 368 52 44 381 44 52 61 102 62 28 30 38 39 54 52 30 121 38 39 52 44 561 52 44
BalonParca AdiParca NoAdetTipApplied Date
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 02 1 1306-
10 BOLT; SPINDLE
M10X30 FLANGE 		0-28751-030-0 04 1 1306-
28 BALL; INTER LK 9-00097-501-0 02 1 1306-
30 PIN; INTER LK 9-33534-003-0 03 1 1306-
31 ARM; SHIFT,LOW & 2ND 1-33511-587-0 01 1 1306-
33 ROD; SHIFT,LOW & 2ND 1-33531-458-0 01 1 1306-
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 1306-
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 1306-
38 SPRING; DETENT
(C) 		1-09580-580-0 02 1 1306-
39 BALL; DETENT
(A) 		1-09843-012-0 04 1 1306-
39 BALL; DETENT
(B) 		9-00097-013-0 01 1 1306-
44 WIRE; LK
L=200 		9-08351-020-0 07 1 1306-
51 BLOCK; SHIFT,1ST & 2ND 1-33511-617-0 01 1 1306-
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 07 1 1306-
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1306-
61 ARM; SHIFT,3RD & 4TH 1-33511-586-0 01 1 1306-
62 ROD; SHIFT,3RD & 4TH 1-33531-459-0 01 1 1306-
78 ARM; SHIFT,REV 1-33511-589-0 01 1 1306-
81 ROD; SHIFT,REV BLOCK 1-33531-457-0 01 1 1306-
82 BLOCK; SHIFT,REV 1-33511-600-0 01 1 1306-
102 BLOCK; SHIFT,3RD & 4TH 1-33511-615-0 01 1 1306-
121 PLUG; DETENT SPR
(B) M16X12 		0-92002-416-0 01 1 1306-
121 PLUG; DETENT SPR
(A) M14X9 		8-98042-944-0 02 1 1306-
150 SPRING; DETENT BALL 1-09580-379-0 01 1 1306-
186 PLUG; SHIFTER ROD
M16X12 		0-92002-416-0 01 1 1306-
347 ARM; SHIFT,RANGE CHANGE 1-33511-585-0 01 1 1306-
352 ROD; SHIFT,RANGE CHANGE 1-33531-482-0 01 1 1306-
354 SEAL; AIR CYL
(A) 		1-19387-056-0 01 1 1306-
354 SEAL; AIR CYL
(B) 		1-33739-978-0 01 1 1306-
354 SEAL; AIR CYL
(C) 		1-33739-981-0 01 1 1306-
356 PISTON; AIR CYL
(A) 		1-33551-017-0 01 1 1306-
356 PISTON; AIR CYL
(B) 		1-33551-025-0 01 1 1306-
359 GASKET; AIR CYL
(A) ID=124.6 		1-09623-468-0 01 1 1306-
359 GASKET; AIR CYL
(B) ID=55.6 		8-98075-598-0 01 1 1306-
359 GASKET; AIR CYL
(C) ID=6.8 		9-09565-107-0 01 1 1306-
359 GASKET; AIR CYL
(D) ID=144.4 		9-09920-735-0 01 1 1306-
361 CYLINDER; AIR,SHIFT 1-33561-019-0 01 1 1306-
363 BOLT; AIR CYL
M10X60 FLANGE 		8-98169-763-0 04 1 1306-
368 ARM; SHIFT,SPLITTER GEAR 1-33511-588-0 01 1 1306-1510
368 ARM; SHIFT,SPLITTER GEAR 8-98318-482-0 01 1 1511-
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 1306-
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 1306-
381 BOLT
(C) 		1-09044-111-0 04 1 1306-
445 NUT; SHIFT CYL
M12 LOCK NUT FLANGE 		0-91380-012-0 01 1 1306-
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 1306-
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 1306-
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 1306-
489 COVER; AIR CYL 1-33569-052-0 01 1 1306-
521 SPINDLE; 6TH 1-33519-131-0 02 1 1306-
561 ROD; SHIFT 1-33531-466-0 01 1 1306-
579 BLOCK; SHIFT,ROD GUIDE 1-33539-066-2 01 1 1306-
580 BLOCK; INTERLOCK 1-33539-064-1 01 1 1306-
581 COVER; BLOCK 1-33141-056-0 01 1 1306-
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28151-035-0 06 1 1306-
583 GASKET; SPRING GUIDE 1-33142-047-0 02 1 1306-
603 ROD; INTER LK
(A) L=49 		1-33534-005-0 01 1 1306-
603 ROD; INTER LK
(B) L=77 		1-33534-010-0 01 1 1306-
605 PLUG; INTER LK
M18X12 		0-92002-418-0 01 1 1306-
607 PIECE; SHIFT 1-33518-010-0 02 1 1306-
609 BODY; AIR,CYL 1-33561-018-0 01 1 1306-
610 SEAL; PISTON 1-33738-054-0 01 1 1306-
611 NUT; SHAFT 8-97324-304-0 01 1 1306-
613 BOLT; AIR CYL
M10X45 FLANGE 		0-28151-045-0 03 1 1306-
648 STUD; AIR CYL
M10X20,M10X45 L=75 		8-98010-335-0 03 1 1306-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
