2-20 — MANUAL TRANSMISSION ASM AND CASE (#124930) — 83 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

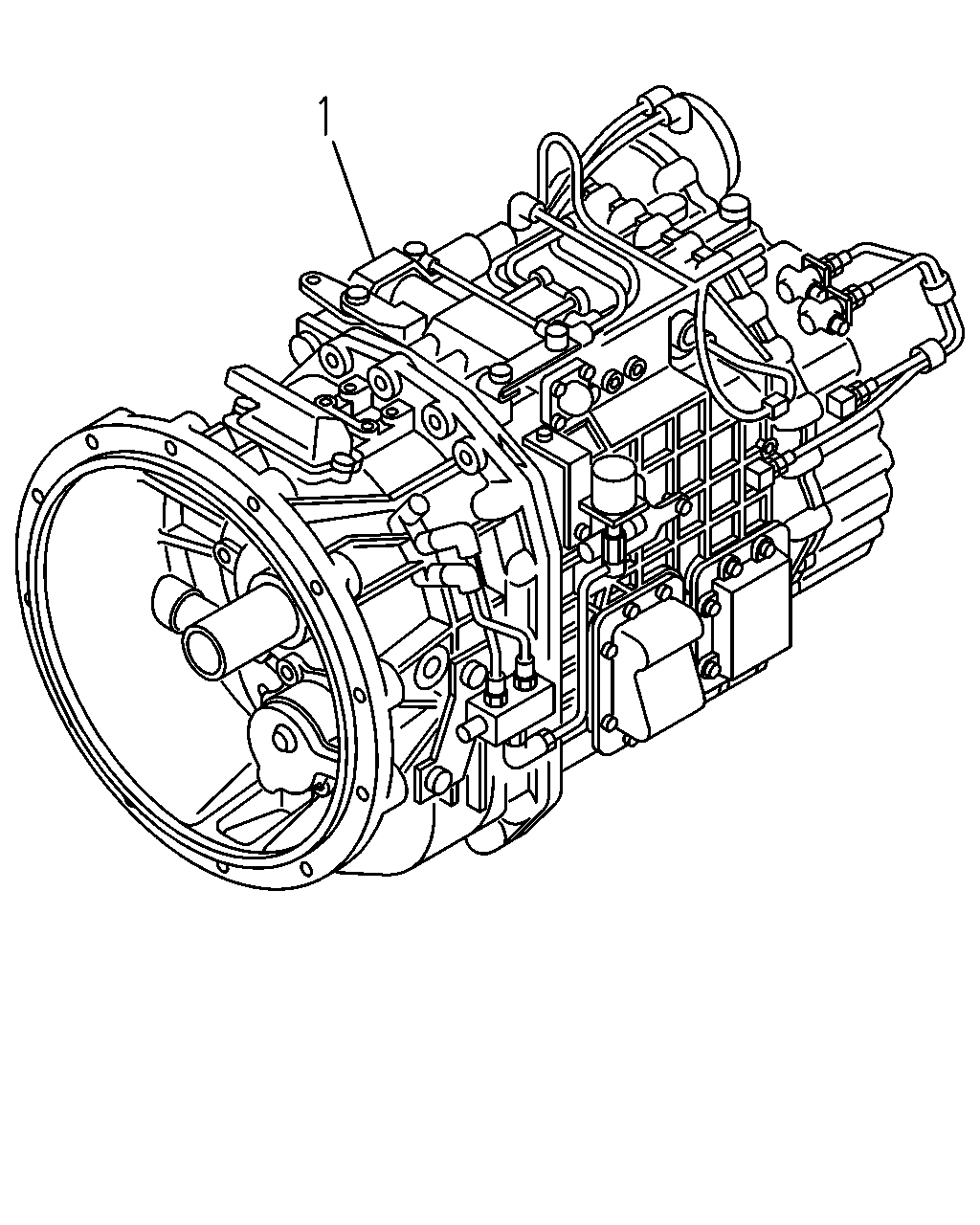

1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-615-0	01	1	1306-
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-33044-615-0	01	1	1306-
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P)	1-33044-615-0	01	1	1306-

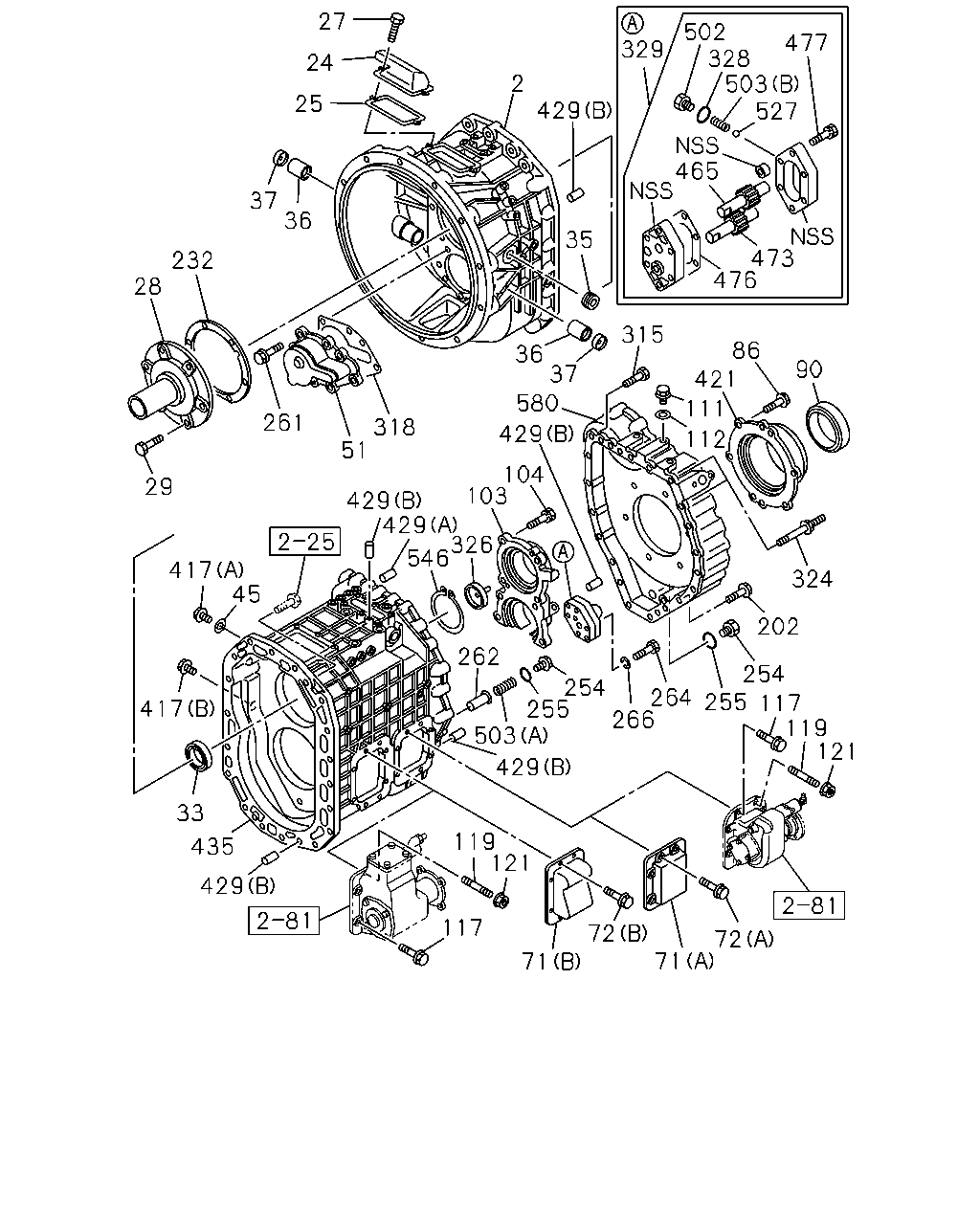

477 527 503 328 502 329 429 2 35 476 473 465 27 25 24 36 232 28 261 318 51 29 417 45 417 33 435 429 117 119 121 72 71 71 72 121 429 266 503 546 326 262 255 254 264 255 117 119 254 202 324 429 103 104 429 429 580 37 36 315 111 112 421 86 90 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	8-98168-737-0	01	1	1306-
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	1306-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	1306-1406
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1306-
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	1306-
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1306-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	1306-
35	GROMMET; CLU HSG OD=31	9-09575-796-0	01	1	1306-
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	1306-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	1306-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1306-
51	COVER; SEAL,COUNTER,FRT	1-33319-200-1	01	1	1306-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A)	1-33141-066-0	01	1	1306-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-33141-057-1	01	1	1306-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) M10X35 FLANGE	0-28751-035-0	08	1	1306-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M12X30 FLANGE	1-09044-086-0	08	1	1306-
86	BOLT; RR COVER M17X35	1-09044-076-0	06	1	1306-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	1306-
103	RETAINER; BRG	1-33151-061-0	01	1	1306-
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	1306-
111	PLUG; DRAIN FILLER M24X17 FLANGE	1-09604-022-0	01	1	1306-
112	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1306-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X28 FLANGE	8-98044-944-0	02	1	1306-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 FLANGE	0-28751-235-0	04	1	1306-
119	STUD; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10X25 L=40	0-44011-025-0	06	1	1306-
119	STUD; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48	8-98059-951-0	04	1	1306-
121	NUT; PTO FIX TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M10 FLANGE	0-91180-210-0	06	1	1306-
121	NUT; PTO FIX TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE	0-91180-212-0	04	1	1306-
202	BOLT; PLATE M12X35 FLANGE	0-28751-235-0	09	1	1306-
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	1306-
254	PLUG; DRAIN,OIL M24X17 FLANGE	1-09604-023-0	02	1	1306-
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	1306-
261	BOLT; COVER M10X30 FLANGE	0-28151-030-0	07	1	1306-
262	STRAINER; OIL PUMP	1-41383-003-0	01	1	1306-
264	BOLT; OIL PUMP M8X65	0-10805-865-0	02	1	1306-
264	BOLT; OIL PUMP M8X50	0-10855-850-0	02	1	1306-
266	WASHER; LK ID=8.2	0-91510-508-0	04	1	1306-
315	BOLT; CASE M12X50 FLANGE	0-28151-250-0	11	1	1306-
315	BOLT; CASE M12X110 FLANGE	0-28156-211-0	05	1	1306-
315	BOLT; CASE M12X35 FLANGE	0-28751-235-0	02	1	1306-
318	GASKET; COVER	1-34142-034-0	01	1	1306-
324	STUD; RR COVER M10X18,M12X110 L=139.5	1-09049-033-1	02	1	1306-
326	NOZZLE; OIL,OUTLET	1-33219-272-0	01	1	1306-
328	GASKET; PLUG	1-34159-100-0	01	1	1306-
329	PUMP ASM; OIL	1-34150-117-0	01	1	1306-1408
329	PUMP ASM; OIL	8-98283-996-0	01	1	1409-
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	1306-
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	1306-
421	COVER; RR,TRANS	1-33131-238-0	01	1	1306-
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	06	1	1306-
429	PIN; STRAIGHT (A) OD=12 L=32	9-08161-232-0	01	1	1306-
435	CASE; TRANS	1-33111-361-1	01	1	1306-
465	GEAR; IDLE,OIL PUMP	1-34151-013-0	01	1	1306-1408
473	GEAR; OUTPUT,OIL PUMP	1-34151-012-0	01	1	1306-1408
476	GASKET; COVER,OIL PUMP	1-34159-099-0	01	1	1306-
477	BOLT; OIL PUMP M8X32 W/LK WASHER	9-01900-832-0	02	1	1306-1408
502	PLUG; OIL PUMP	1-34159-101-0	01	1	1306-
503	SPRING; OIL PUMP (A)	1-09580-504-0	01	1	1306-
503	SPRING; OIL PUMP (B)	1-34159-102-0	01	1	1306-
527	BALL; OIL PUMP	9-00097-531-0	01	1	1306-
546	RING; SNAP,BRG T=2.00	1-09588-150-1	01	1	1306-
580	CASE; RANGE	1-33115-051-2	01	1	1306-

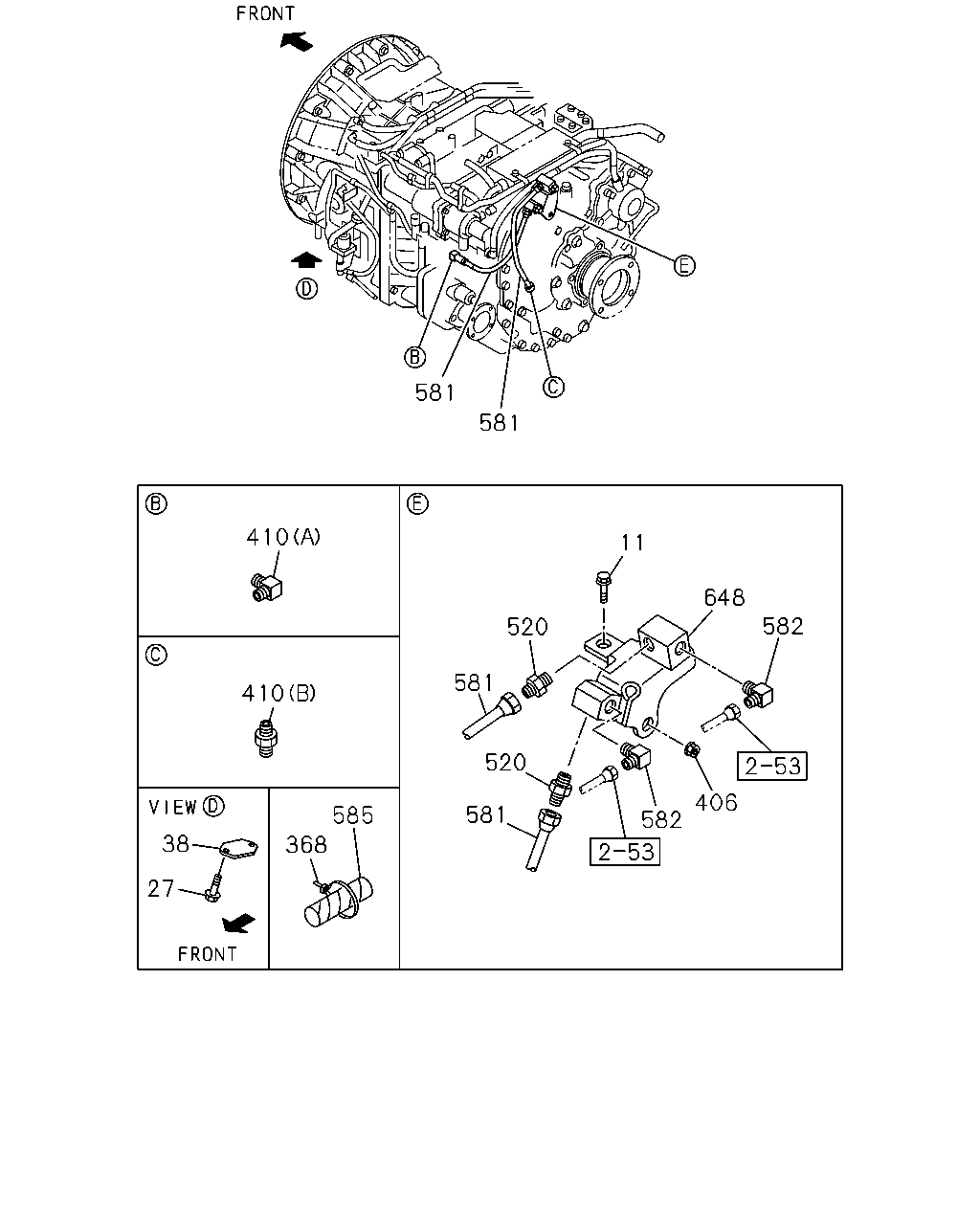

581 581 410 410 38 27 368 585 520 11 581 648 582 520 581 582 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	01	1	1306-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	1306-
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	1306-
368	CLIP; BAND,CABLE L=250	1-09707-126-0	01	1	1306-
406	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1306-
410	UNION; OIL PIPE (B) R1/4 & M16	0-92306-008-0	01	1	1306-
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	01	1	1306-
520	CONNECTOR R1/4 & M16	0-92306-008-0	02	1	1306-
581	HOSE; OIL COOLER L=360	1-09365-234-0	02	1	1306-
582	NIPPLE; ELBOW R3/8 & M22 ELBOW	1-09660-612-1	02	1	1306-
585	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1306-
648	UNION ASM	8-98131-605-2	01	1	1306-

303 511 265 353 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
150	NUT M8 FLANGE	0-91180-108-0	01	1	1306-
265	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1306-
303	TUBE; NYLON FUEL TANK 550L<EDP> SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	1306-
353	CLIP; NYLON TUBE ID=18 H=23 L=28	1-09701-070-0	01	1	1306-
511	TUBE; CORRUGATE FUEL TANK 550L<EDP> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1306-
