Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#124926) — 86 parça

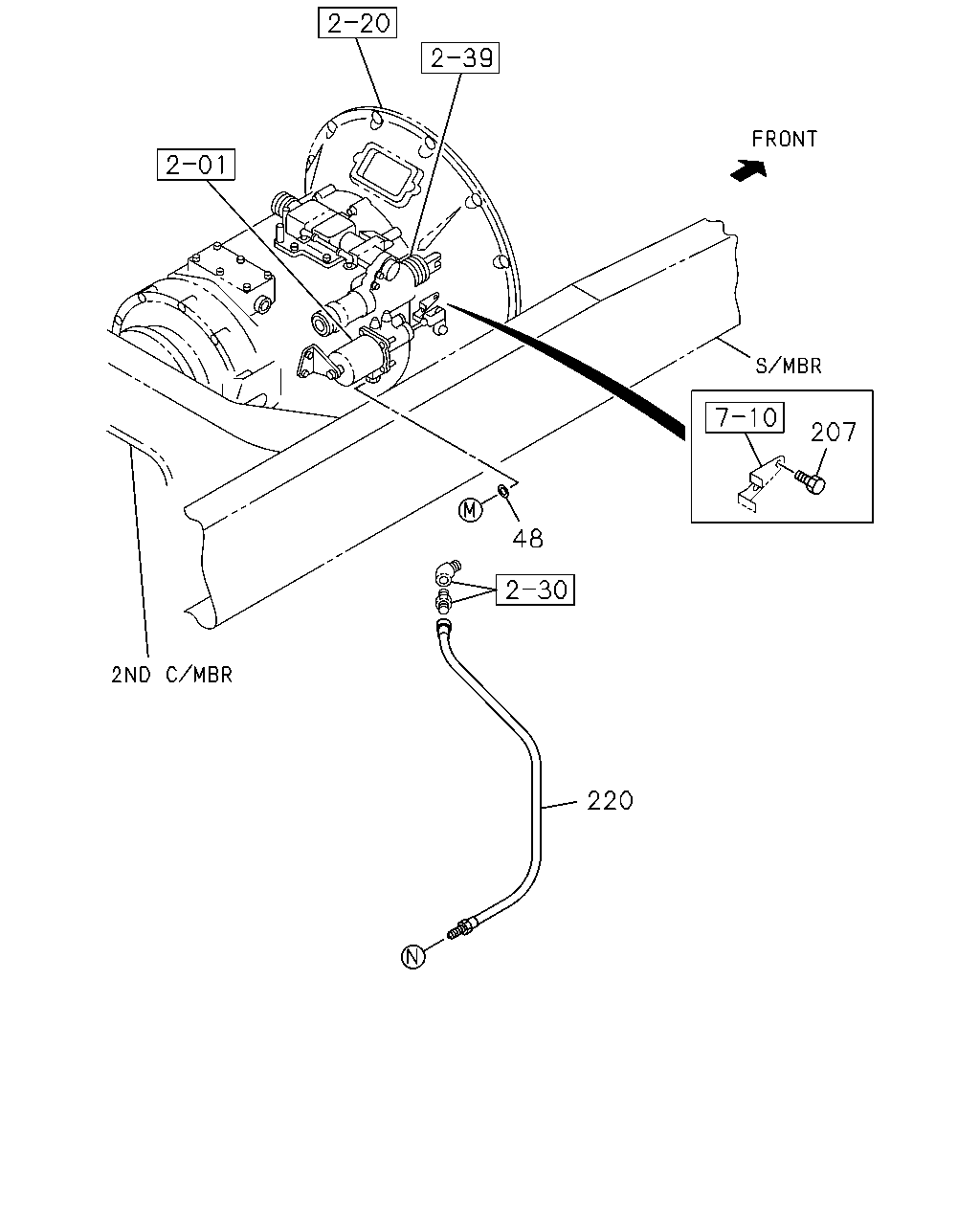

48 220 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	1306-
207	BOLT; CLIP M10X16 FLANGE	0-28151-016-0	02	1	1306-
220	HOSE; FLEX,POWER ASSIST L=320	1-09363-625-0	01	1	1306-

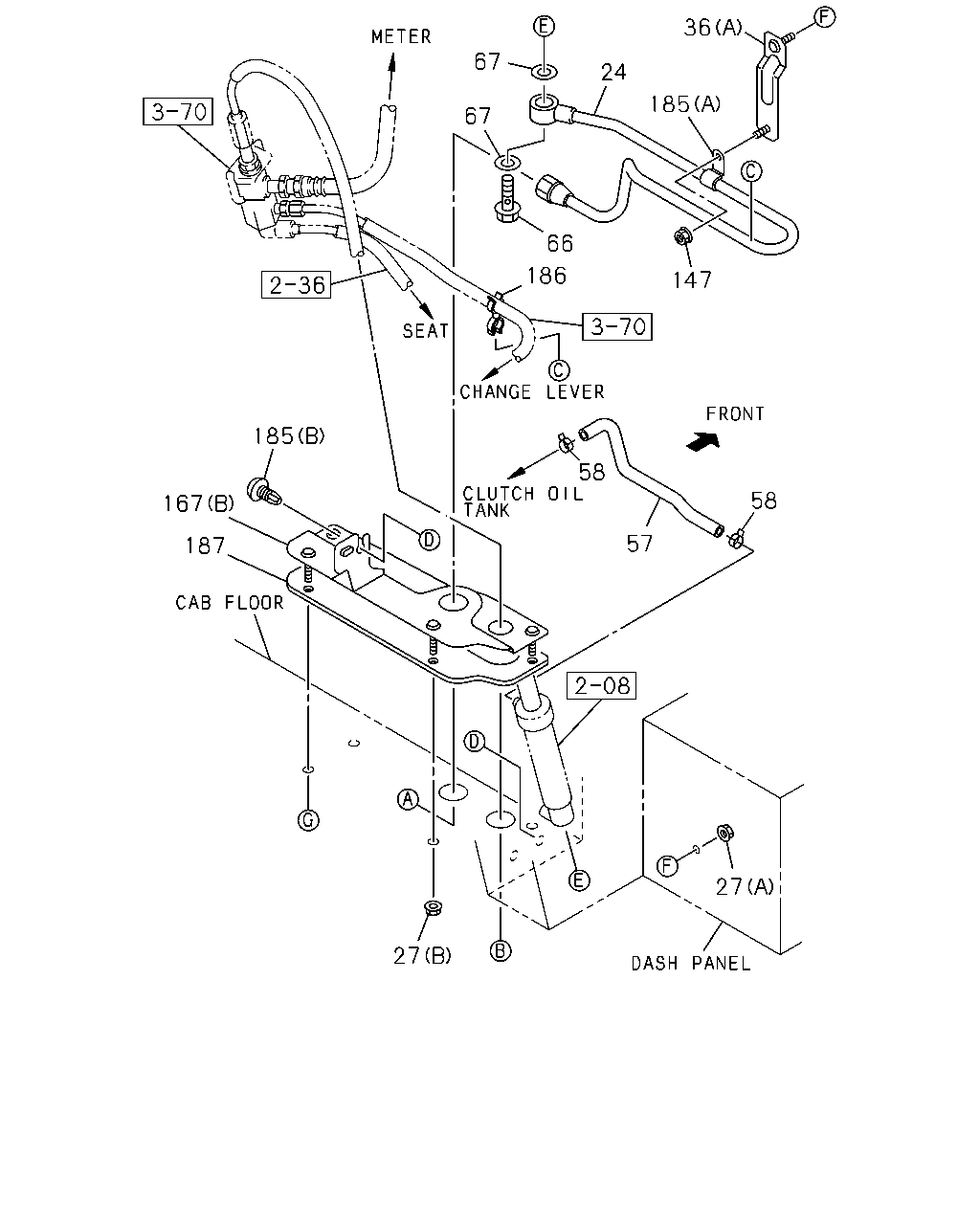

67 24 185 147 58 57 67 185 167 187 58 186 66 36 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	1306-
27	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	1306-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1306-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	1306-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1306-
36	BRACKET; CLIP (B) L=60	8-98162-941-0	01	1	1306-
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	1306-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	1306-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	1306-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	1306-1312
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	1306-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	1306-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	1306-
185	CLIP; BRKT (A) ID=11 L=16	0-95235-025-0	01	1	1306-
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	1306-
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	1306-
187	SEAL; BRKT	1-71117-209-2	01	1	1306-

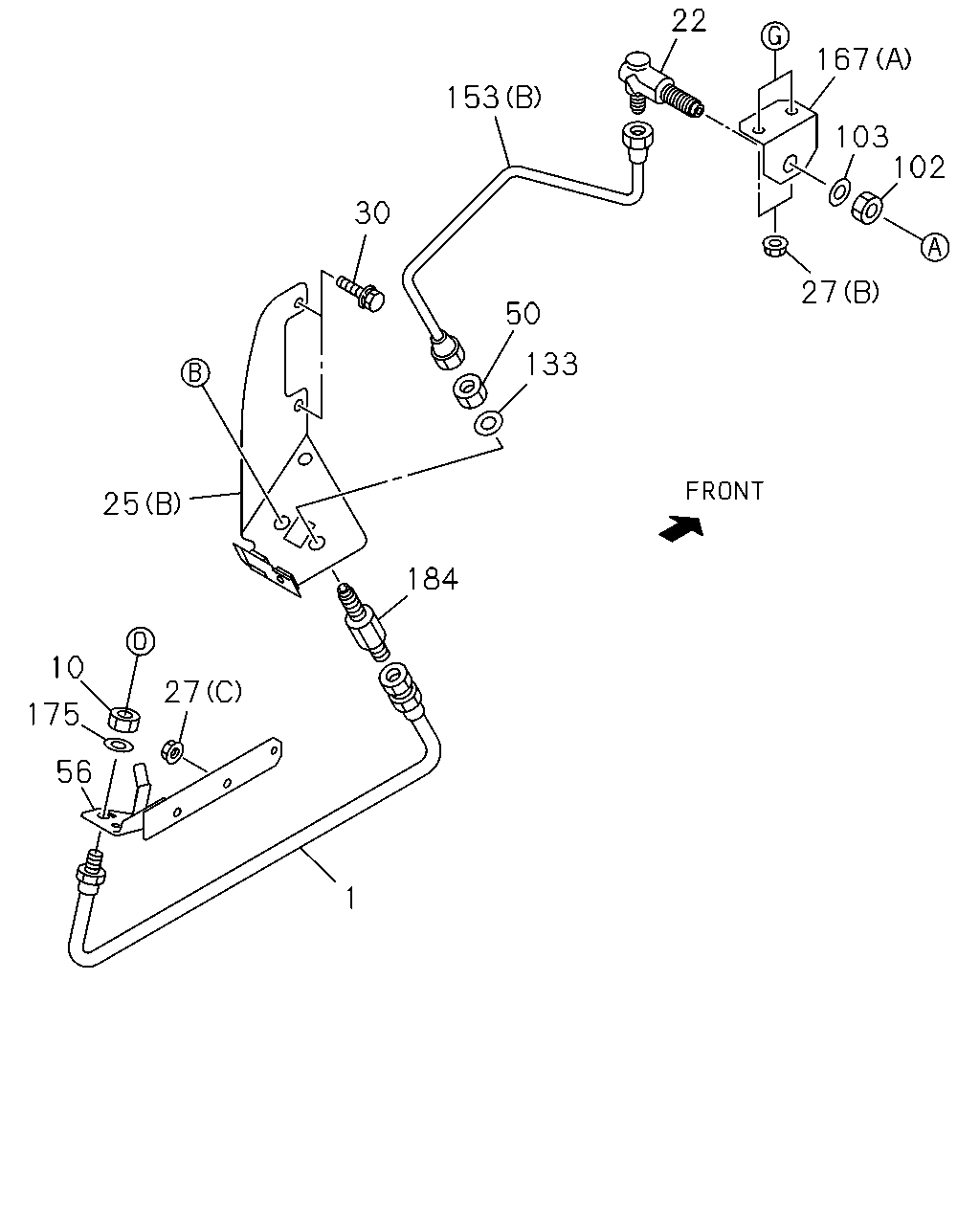

22 167 103 102 27 153 30 50 184 133 25 10 175 56 1 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	1306-
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1306-
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	1306-
25	BRACKET; OIL PIPE (A) L=50	1-47475-299-2	02	1	1306-
25	BRACKET; OIL PIPE (B)	1-71907-726-0	01	1	1306-
27	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	1306-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1306-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	1306-
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1306-
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1306-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1306-
50	NUT; UNION M14	0-91111-514-0	01	1	1306-
56	BRACKET; FLEX HOSE	8-98225-392-0	01	1	1306-
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1306-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1306-
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	1306-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=501 SERVICED BY L=550	1-47426-377-0	01	1	1306-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1964 SERVICED BY L=2150	1-47428-770-0	01	1	1306-1309
153	PIPE ASM; CLU,UNION TO FLEX (A) L=2004 SERVICED BY L=2150	1-47428-770-0	01	1	1310-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	1306-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	1306-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1306-
184	UNION; FLEX HOSE STRAIGHT 2WAY	1-09654-435-0	01	1	1306-

106 34 35 33 29 28 25 44 43 115 116 42 32 30 29 33 32 31 29 28 26 4 36 117 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; FLEX HOSE,CLU CONT ID=16 L=28	1-09700-872-0	01	1	1306-
25	BRACKET; OIL PIPE (A) L=50	1-47475-299-2	02	1	1306-
25	BRACKET; OIL PIPE (B)	1-71907-726-0	01	1	1306-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	1306-
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	02	1	1306-
28	CLIP; OIL PIPE (A) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	1306-
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1306-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1306-
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1306-
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1306-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1306-
31	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-
32	BRACKET; CLIP OIL PIPE (A)	1-47479-482-0	01	1	1306-
32	BRACKET; CLIP OIL PIPE (B)	8-98217-564-0	01	1	1306-
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	02	1	1306-
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1306-
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	04	1	1306-
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1306-
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1306-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	1306-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	04	1	1306-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	1306-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	1306-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1306-
36	BRACKET; CLIP (B) L=60	8-98162-941-0	01	1	1306-
37	BOLT; CLIP BRKT M8X16 FLANGE	0-28050-816-0	01	1	1306-
42	BRACKET; FLEX HOSE,CLU CONT	1-47479-812-0	01	1	1306-1309
42	BRACKET; FLEX HOSE,CLU CONT	8-98251-782-0	01	1	1310-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	1306-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1306-
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	1306-
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	1306-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1306-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1306-
117	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28050-816-0	01	1	1306-

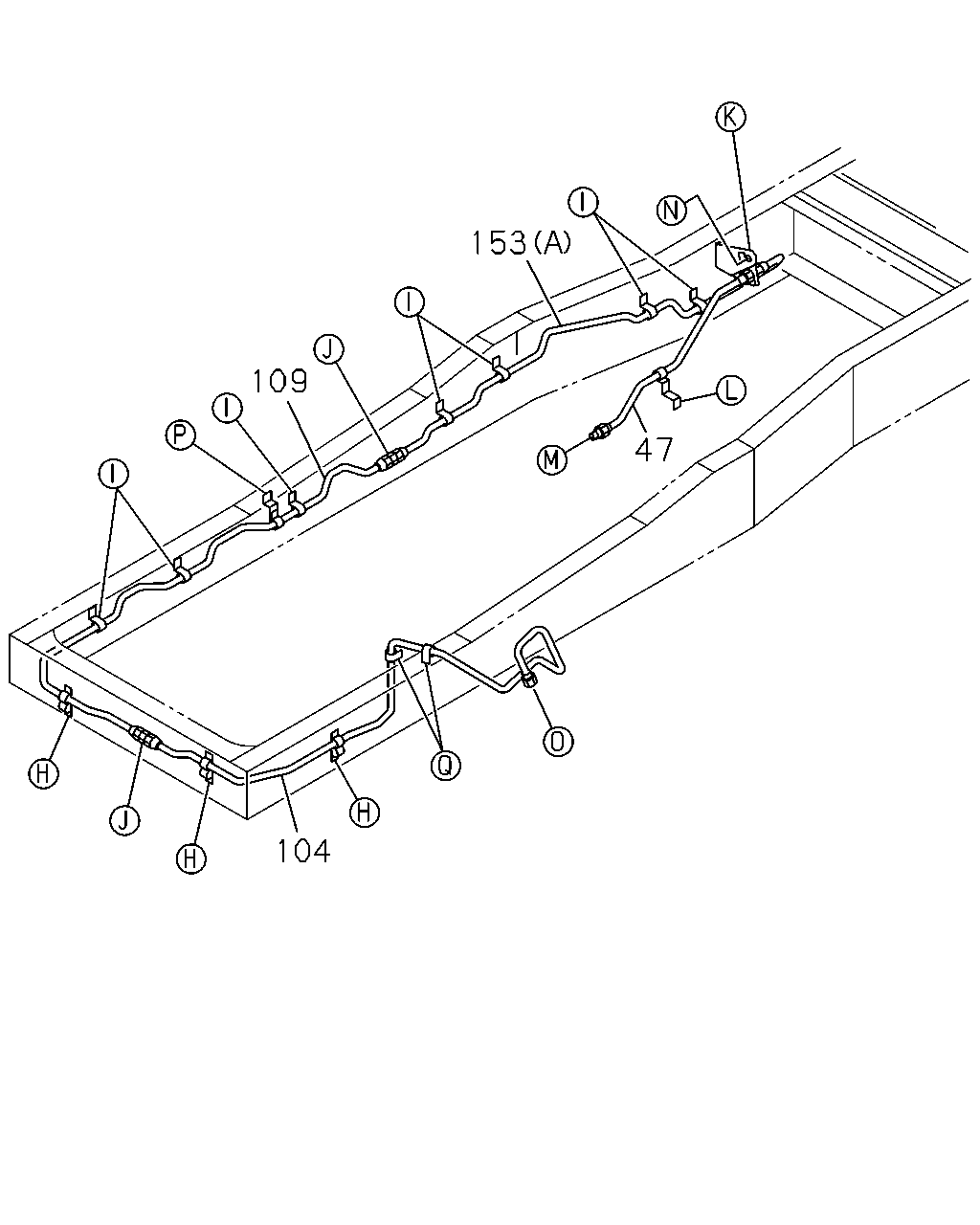

153 109 104 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT L=550	1-09364-434-0	01	1	1306-1309
47	HOSE; FLEX,CLU CONT L=600	1-09364-705-0	01	1	1310-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1223	8-98239-924-0	01	1	1306-
109	PIPE; AIR,UNION TO UNION L=1648 SERVICED BY L=1700	1-47428-767-0	01	1	1306-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=501 SERVICED BY L=550	1-47426-377-0	01	1	1306-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1964 SERVICED BY L=2150	1-47428-770-0	01	1	1306-1309
153	PIPE ASM; CLU,UNION TO FLEX (A) L=2004 SERVICED BY L=2150	1-47428-770-0	01	1	1310-
