Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11536 - EXZ LHD EURO2 WITH REFLECTOR
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

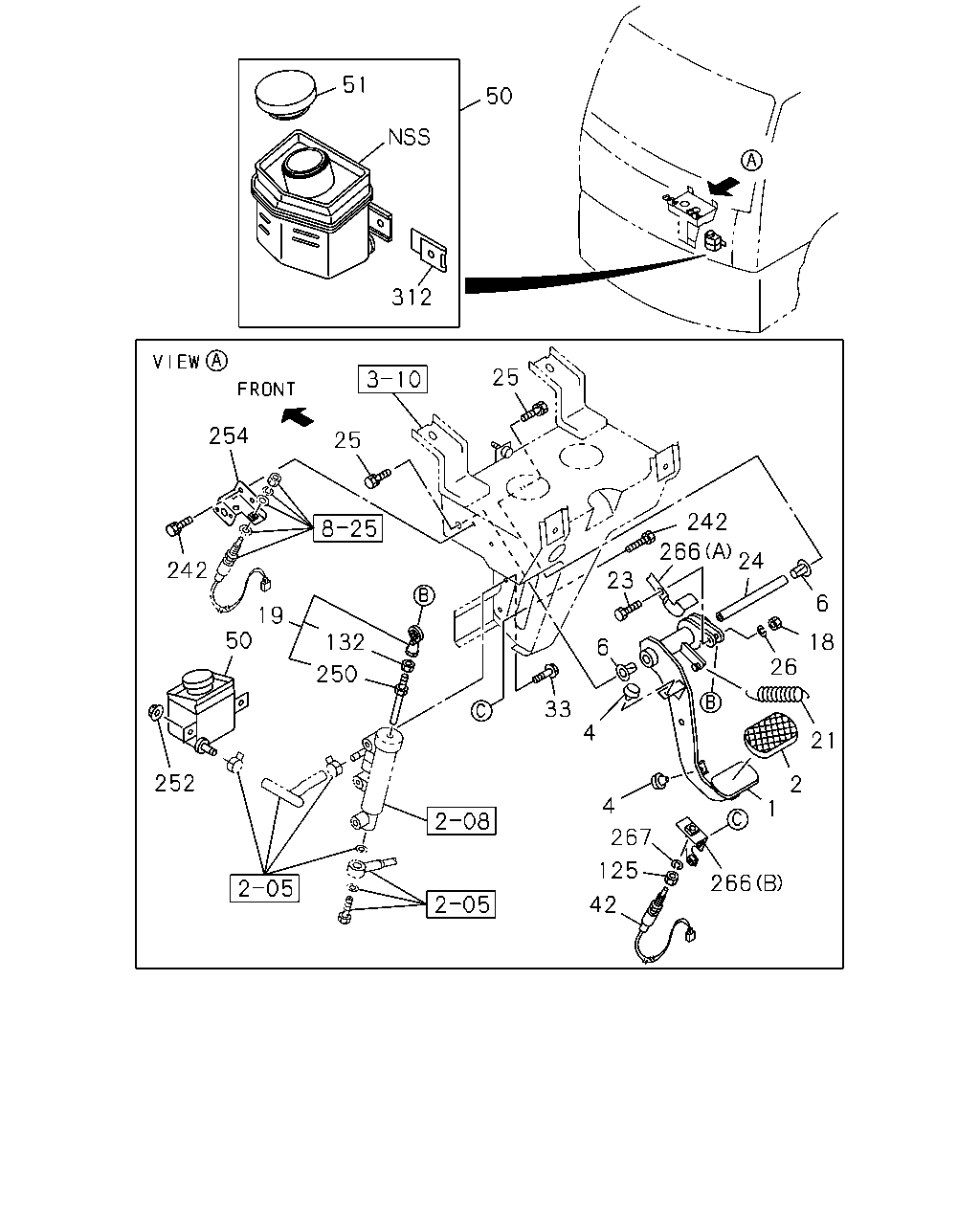

2-03 — CLUTCH PEDAL AND CONTROL
(#124925) — 25 parça
50
51
312
25
25
254
242
19
50
252
132
250
33
4
4
267
125
42
266
1
21
2
26
6
18
24
242
266
23
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
1-73907-472-2
01
1
1306-
2
COVER; CLU PEDAL
8-97893-618-1
01
1
1306-
4
STOPPER; CLU PEDAL
1-47319-014-1
04
1
1306-
6
BUSHING; CLU PEDAL
1-09330-045-0
02
1
1306-
18
NUT; PUSH ROD
M8
0-91110-508-0
01
1
1306-
19
ROD ASM; PUSH,CLU
1-73907-320-1
01
1
1306-
21
SPRING; RETURN,CLU PEDAL
1-73907-445-0
01
1
1306-
23
BOLT; PUSH ROD
M8X39.7
1-09009-150-0
01
1
1306-
24
SHAFT; CLU PEDAL
1-73998-936-1
01
1
1306-
25
BOLT; PEDAL
M10X25 W/LK WASHER
0-50051-025-0
02
1
1306-
26
WASHER; LK,PUSH ROD
ID=8.2
0-91510-608-0
01
1
1306-
33
BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE
0-28051-060-0
02
1
1306-
42
SWITCH; CLU
1-82380-114-3
01
1
1306-
50
TANK; OIL,CLU
1-47530-182-0
01
1
1306-
51
CAP; OIL TANK,CLU
8-94136-483-1
01
1
1306-
125
NUT; CLU SWITCH
M10
0-91110-510-0
01
1
1306-
132
NUT; LK,PUSH ROD
M8
0-91110-508-0
01
1
1306-
242
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
0-50040-616-0
04
1
1306-
250
ROD; PUSH,CLU
1-73996-219-0
01
1
1306-
252
NUT; OIL TANK
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
1306-
254
BRACKET; CLU SENSOR
1-73998-979-5
01
1
1306-
266
BRACKET; CLU SWITCH
(A)
1-73907-395-1
01
1
1306-
266
BRACKET; CLU SWITCH
(B)
1-73908-354-0
01
1
1306-
267
WASHER; LK,CLU SWITCH
ID=10.2
0-91510-510-0
01
1
1306-
312
PLATE; OIL TANK,CLU
1-21249-007-1
01
1
1306-
