◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11536 - EXZ LHD EURO2 WITH REFLECTOR ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶

1-50 — EXHAUST PIPE AND SILENCER (#124922) — 128 parça

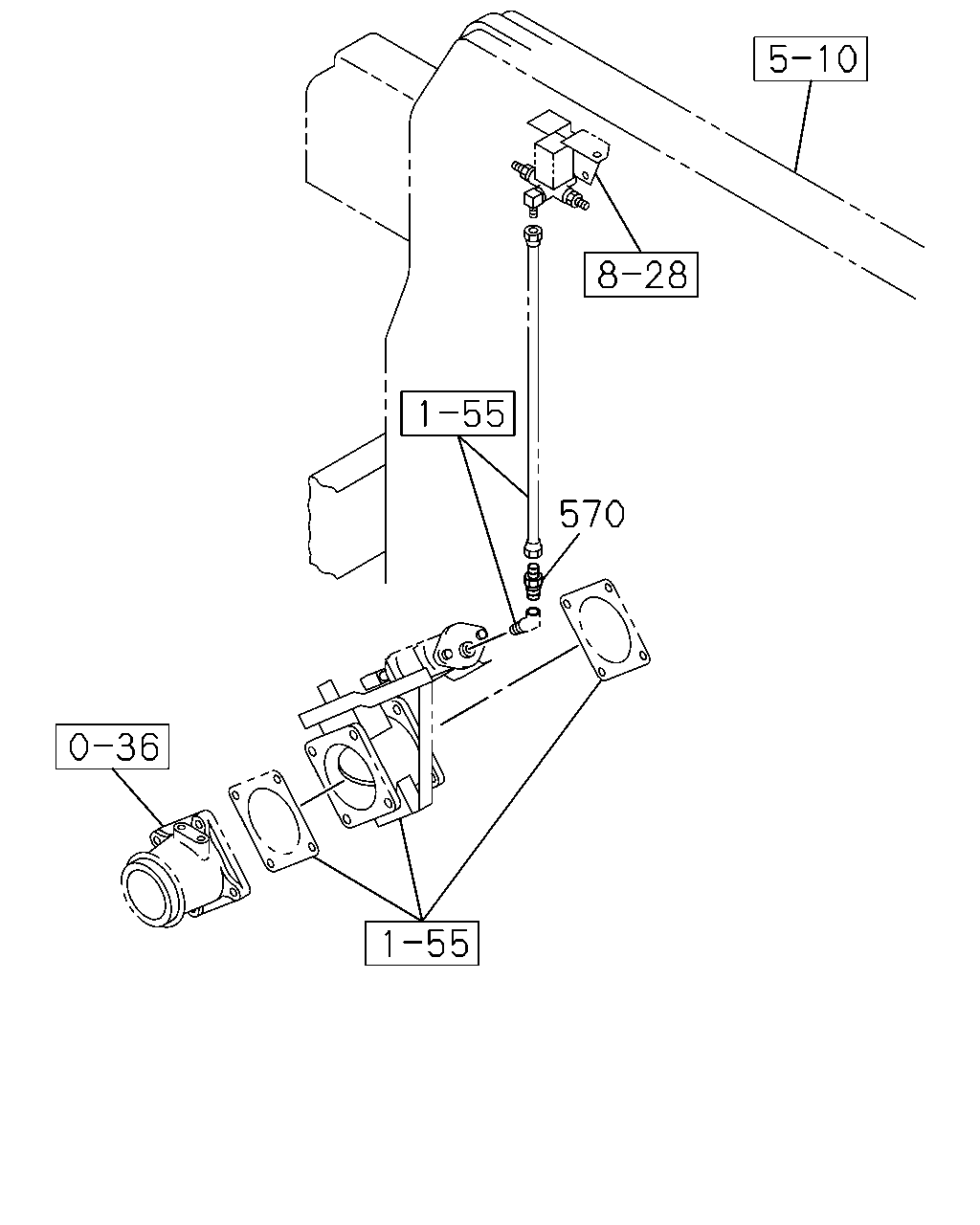

570

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	570	ADAPTER; EXH PIPE M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1306-

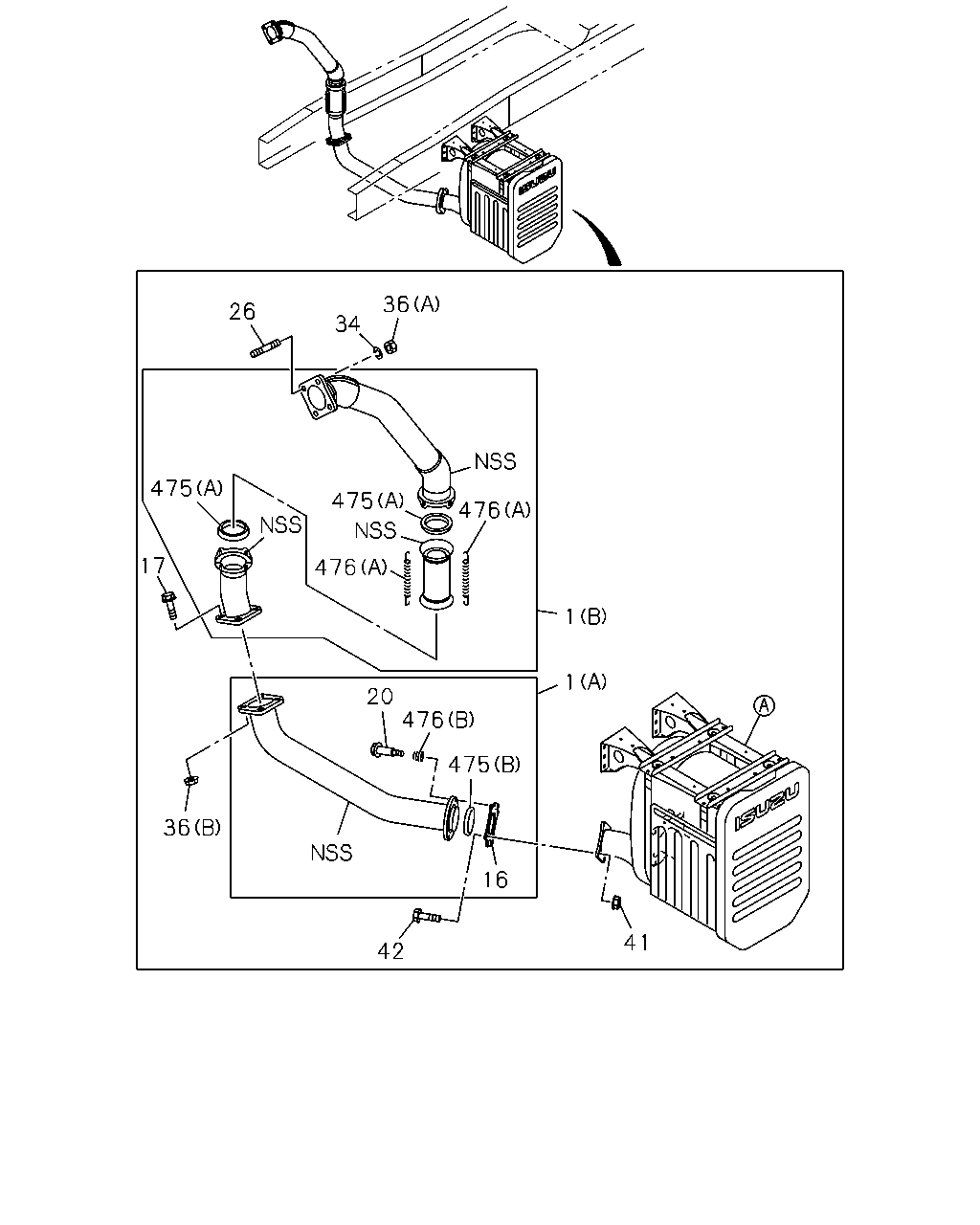

36 34 26 475 475 476 476 17 36 20 476 1 1 475 16 42 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	8-97644-311-0	01	1	1306-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22123-573-1	01	1	1306-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97645-637-0	01	1	1306-
16	FLANGE; EXH PIPE	1-22115-148-1	01	1	1306-
17	BOLT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1306-
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	1306-
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1306-1402
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1306-
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1306-
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1306-
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1306-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1306-
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1306-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1306-
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1306-
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1306-
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	1-09583-298-0	04	1	1306-
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1306-

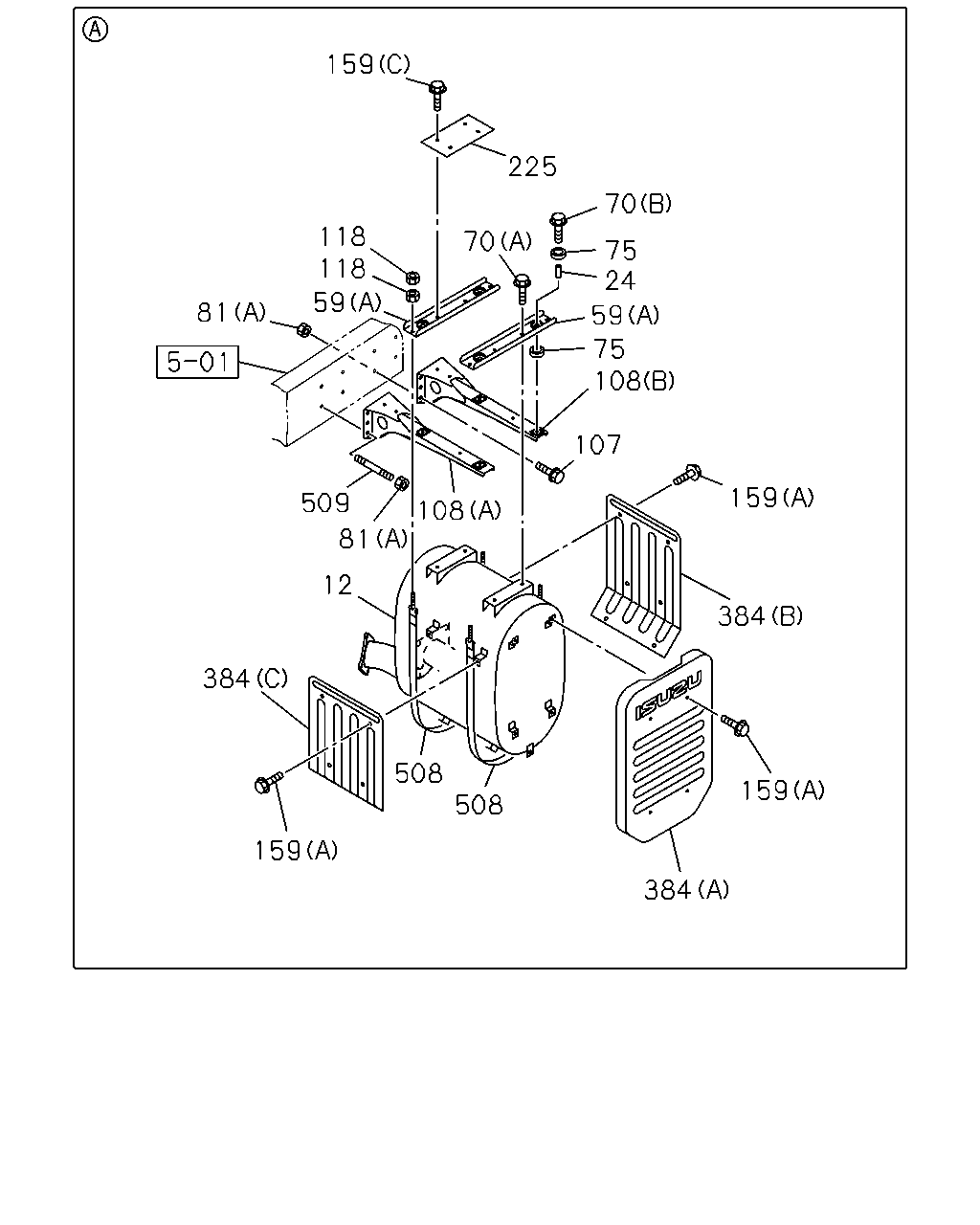

384 159 384 159 508 508 159 384 12 81 509 108 107 108 75 59 24 75 70 225 70 159 81 59 118 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	8-97634-120-1	01	1	1306-
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	8-97635-321-0	01	1	1306-
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	1306-
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	1306-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1306-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-549-0	01	1	1306-
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22151-710-1	02	1	1306-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M10X40 FLANGE	0-28051-040-0	01	1	1306-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	04	1	1306-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X20 FLANGE	0-28051-020-0	04	1	1306-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28051-050-0	04	1	1306-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1306-
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1306-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	04	1	1511-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	05	1	1306-1510
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	01	1	1511-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	04	1	1306-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	08	1	1306-
107	BOLT; BRKT M12X35 FLANGE	0-28051-235-0	04	1	1306-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22131-774-3	01	1	1306-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22131-775-3	01	1	1306-
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	0-91110-510-0	08	1	1306-
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1306-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (C) M8X20 FLANGE	0-28650-820-0	02	1	1306-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	1306-
225	PROTECTOR; HEAT EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-515-0	01	1	1306-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-341-3	01	1	1306-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-378-4	01	1	1306-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-22119-527-0	01	1	1306-
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-382-0	02	1	1306-
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 L=56	1-09300-123-0	04	1	1306-

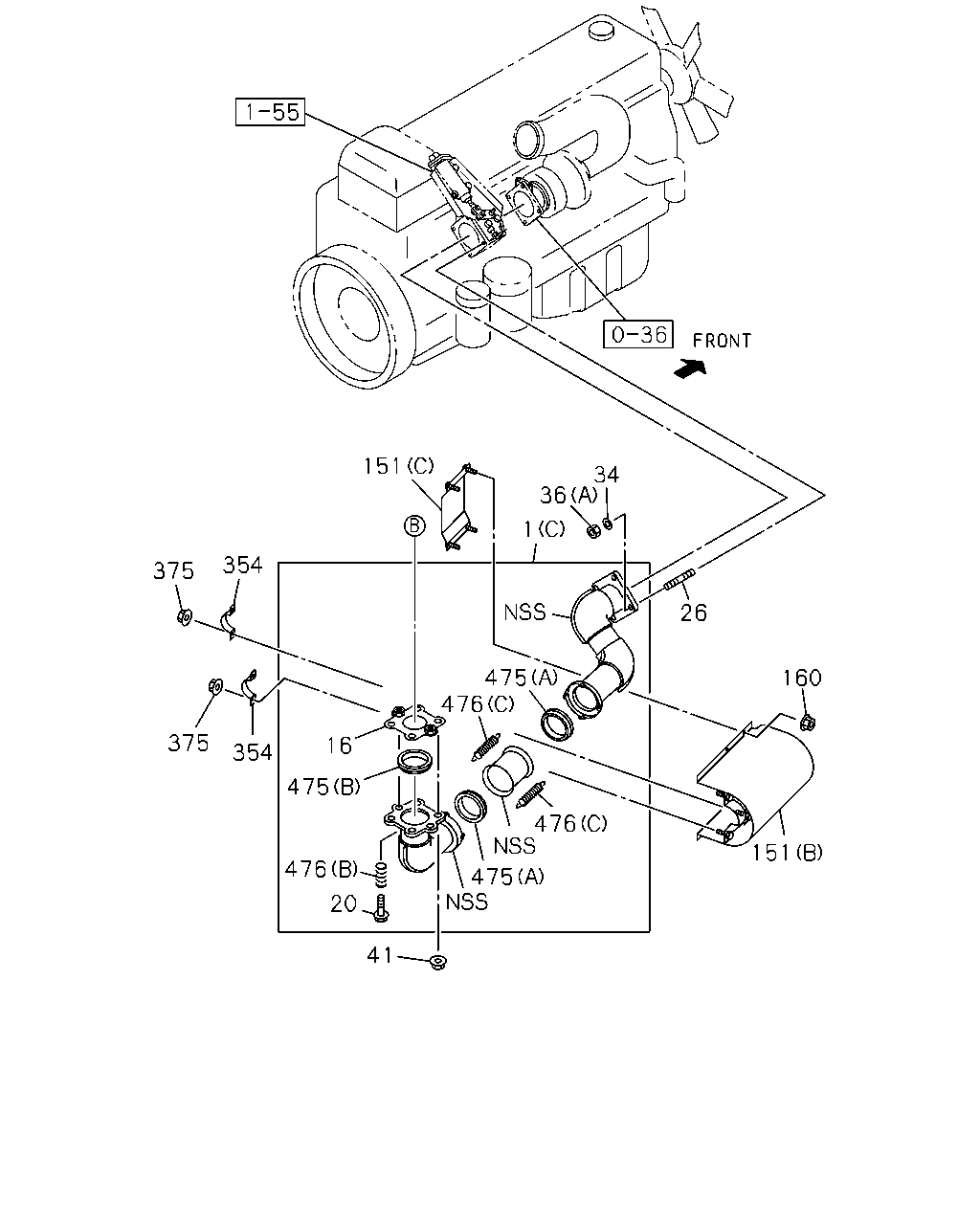

151 354 375 375 354 16 475 476 20 41 34 36 1 26 160 151 475 476 476 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	8-97644-311-0	01	1	1306-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22123-573-1	01	1	1306-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97645-637-0	01	1	1306-
16	FLANGE; EXH PIPE	1-22115-148-1	01	1	1306-
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	1306-
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1306-1402
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1306-
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1306-
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1306-
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1306-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1306-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97644-313-0	01	1	1306-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97644-314-0	01	1	1306-
160	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1306-
354	CLAMP; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28>	8-97632-333-0	02	1	1306-
375	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1306-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1306-
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	02	1	1306-
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1306-
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	1-09583-298-0	04	1	1306-
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-09583-248-0	04	1	1306-

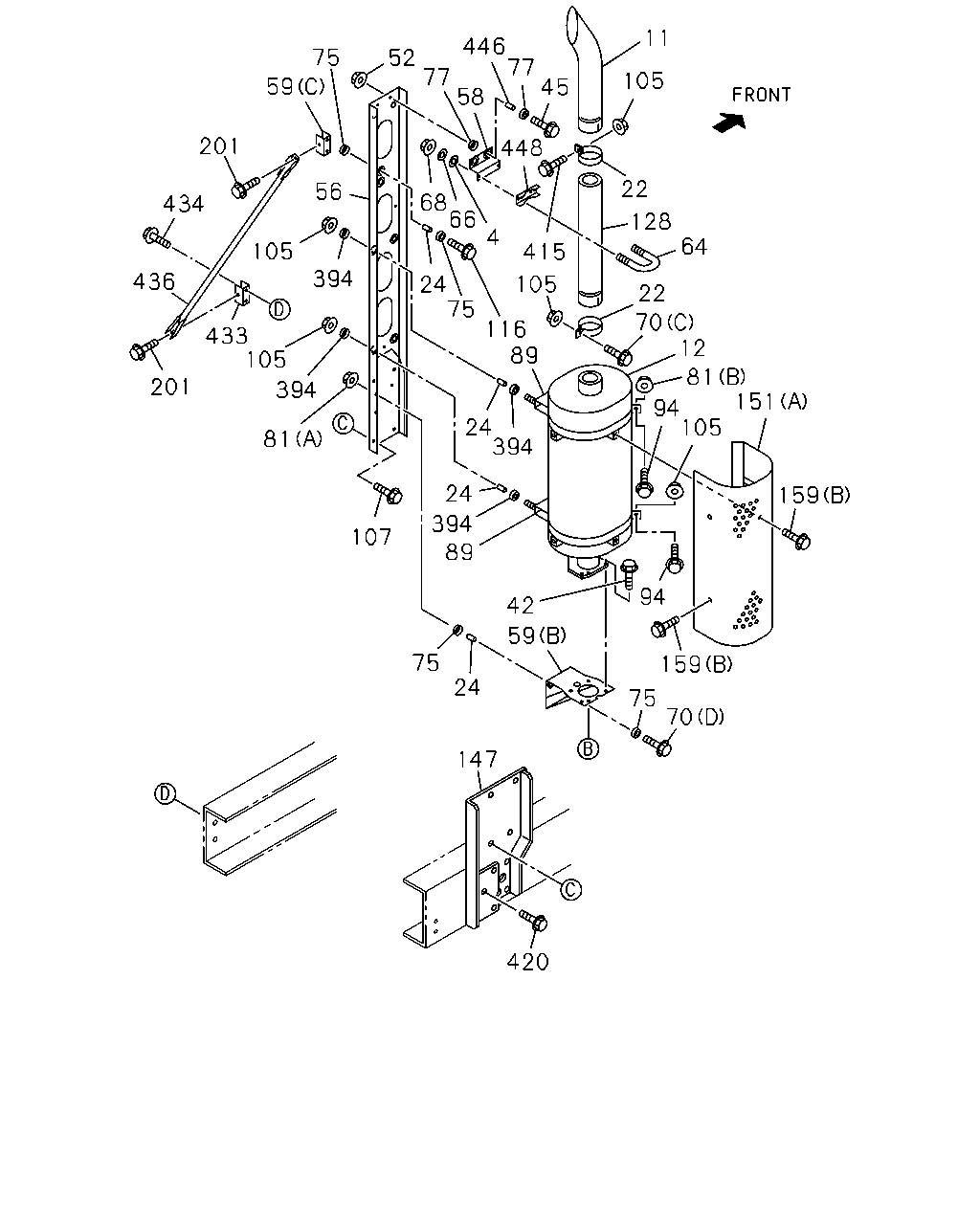

201 434 436 201 433 105 56 59 75 394 105 81 107 75 24 147 420 70 75 59 89 394 24 394 24 89 116 75 24 4 66 68 52 77 58 448 446 77 45 415 105 11 105 22 128 64 22 70 12 81 94 151 105 159 94 159 42 394

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	0-91610-708-0	02	1	1306-
11	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-979-1	01	1	1306-
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	8-97634-120-1	01	1	1306-
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	8-97635-321-0	01	1	1306-
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	02	1	1306-1510
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	1511-
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	1511-
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	1306-
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	1306-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1306-
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1306-
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1306-
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	1306-
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	8-97632-335-0	01	1	1306-
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-799-0	01	1	1306-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1306-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-549-0	01	1	1306-
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22151-710-1	02	1	1306-
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-097-0	01	1	1306-
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	0-91510-508-0	02	1	1306-
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8	0-91110-508-0	02	1	1306-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M10X40 FLANGE	0-28051-040-0	01	1	1306-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	04	1	1306-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X20 FLANGE	0-28051-020-0	04	1	1306-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X50 FLANGE	0-28051-050-0	04	1	1306-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1306-
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1306-
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1306-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	04	1	1511-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	05	1	1306-1510
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	01	1	1511-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	04	1	1306-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	08	1	1306-
89	CLAMP; EXH SILENCER,RR SILENCER SINGLE VERTICAL<N28>	1-22133-270-0	02	1	1306-
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	02	1	1306-
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	07	1	1306-
107	BOLT; BRKT M12X35 FLANGE	0-28051-235-0	04	1	1306-
116	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1306-
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-087-1	01	1	1306-
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28>	8-97632-342-1	01	1	1306-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1306-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97644-313-0	01	1	1306-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97644-314-0	01	1	1306-
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (B) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1306-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (C) M8X20 FLANGE	0-28650-820-0	02	1	1306-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	1306-
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28051-025-0	04	1	1306-
394	RUBBER; SUPPORT,CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	08	1	1306-
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	01	1	1306-
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28061-235-0	02	1	1306-
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	8-97634-890-0	01	1	1306-
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X30 FLANGE	0-28051-230-0	02	1	1306-
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	8-97616-276-0	02	1	1306-
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	1306-
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-095-0	01	1	1306-
