1-41 — FUEL PIPING; CHASSIS (#124920) — 23 parça

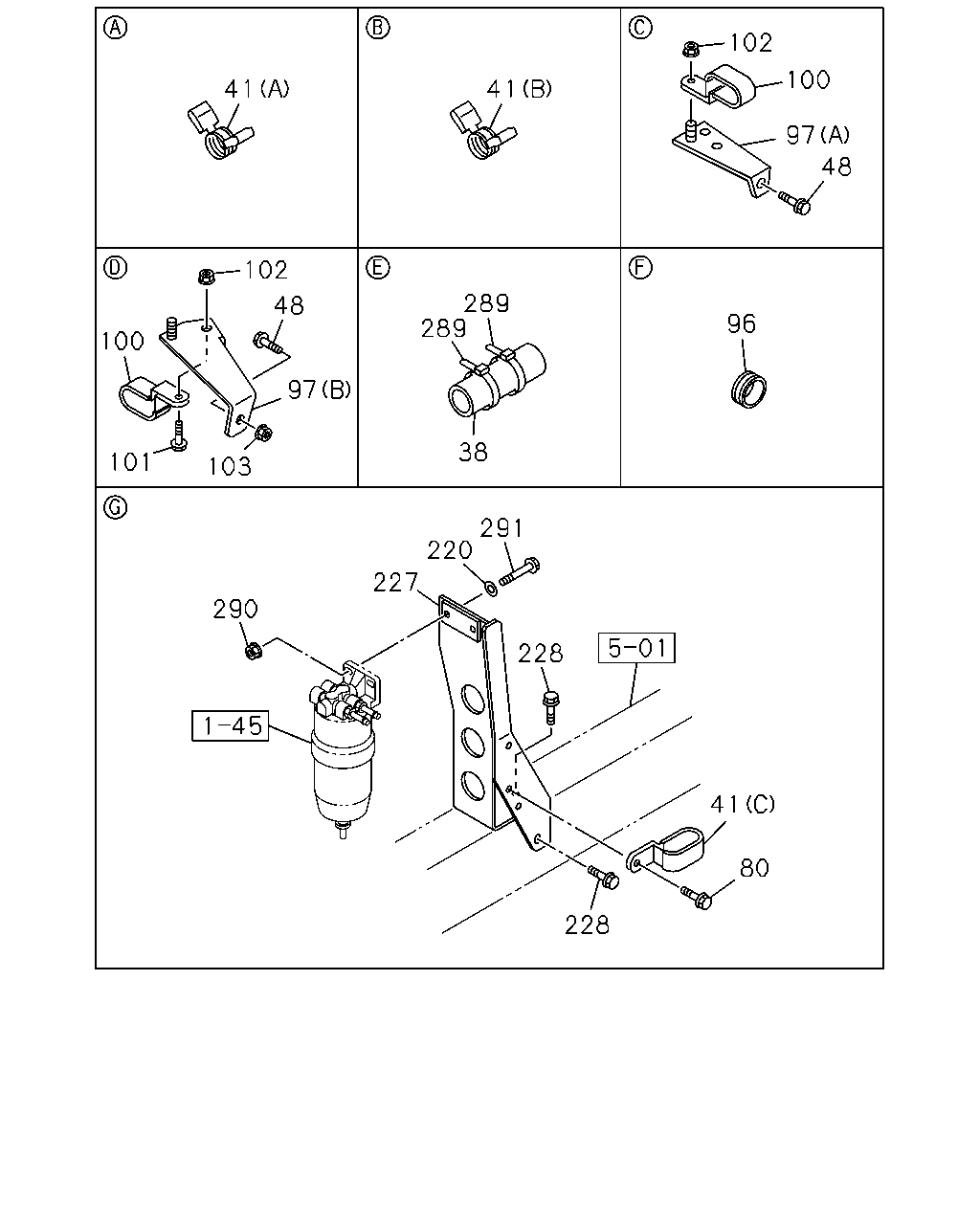

çizim 362759
80 41 228 228 291 220 227 290 101 100 103 97 48 102 41 41 289 289 96 48 97 100 102 38
BalonParca AdiParca NoAdetTipApplied Date
38 SLEEVE; RUBBER,RUBBER HOSE
FUEL TANK 550L<EDP> L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1306-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 04 1 1306-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=19 		8-94238-569-0 02 1 1306-
41 CLIP; FUEL PIPE,FUEL TANK
FUEL TANK 550L<EDP> (C) ID=19X32 H=17.5 L=22.5 		1-09701-315-0 01 1 1306-
48 BOLT; BRKT
FUEL TANK 550L<EDP> M8X30 FLANGE 		0-28650-830-0 02 1 1306-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 1306-1511
80 BOLT; CLIP,FUEL TANK
FUEL TANK 550L<EDP> M8X20 FLANGE 		0-28650-820-0 01 1 1512-
96 GROMMET; PIPE,FUEL TANK
ID=39 OD=45 T=19 		1-09332-077-0 01 1 1306-
97 BRACKET; CLIP
(B) 		1-47471-283-0 01 1 1306-
97 BRACKET; CLIP
FUEL TANK 550L<EDP> (A) 		8-98172-058-0 01 1 1306-
100 CLIP; FUEL PIPE
FUEL TANK 550L<EDP> ID=19X32 H=17.5 L=22.5 		1-09701-315-0 02 1 1306-
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 1306-
102 NUT; CLIP,FUEL PIPE
FUEL TANK 550L<EDP> M8 FLANGE 		0-91180-108-0 02 1 1306-
103 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1306-
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 1306-
227 BRACKET; FUEL SEDIMENTER 8-98144-953-0 01 1 1306-
228 BOLT; BRKT,SEDIMENTER
M10X40 FLANGE 		0-28051-040-0 03 1 1306-
289 CLIP; BAND,HOSE
FUEL TANK 550L<EDP> L=250 		5-09707-030-1 04 1 1306-
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 1306-
291 BOLT; FILER TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 1306-

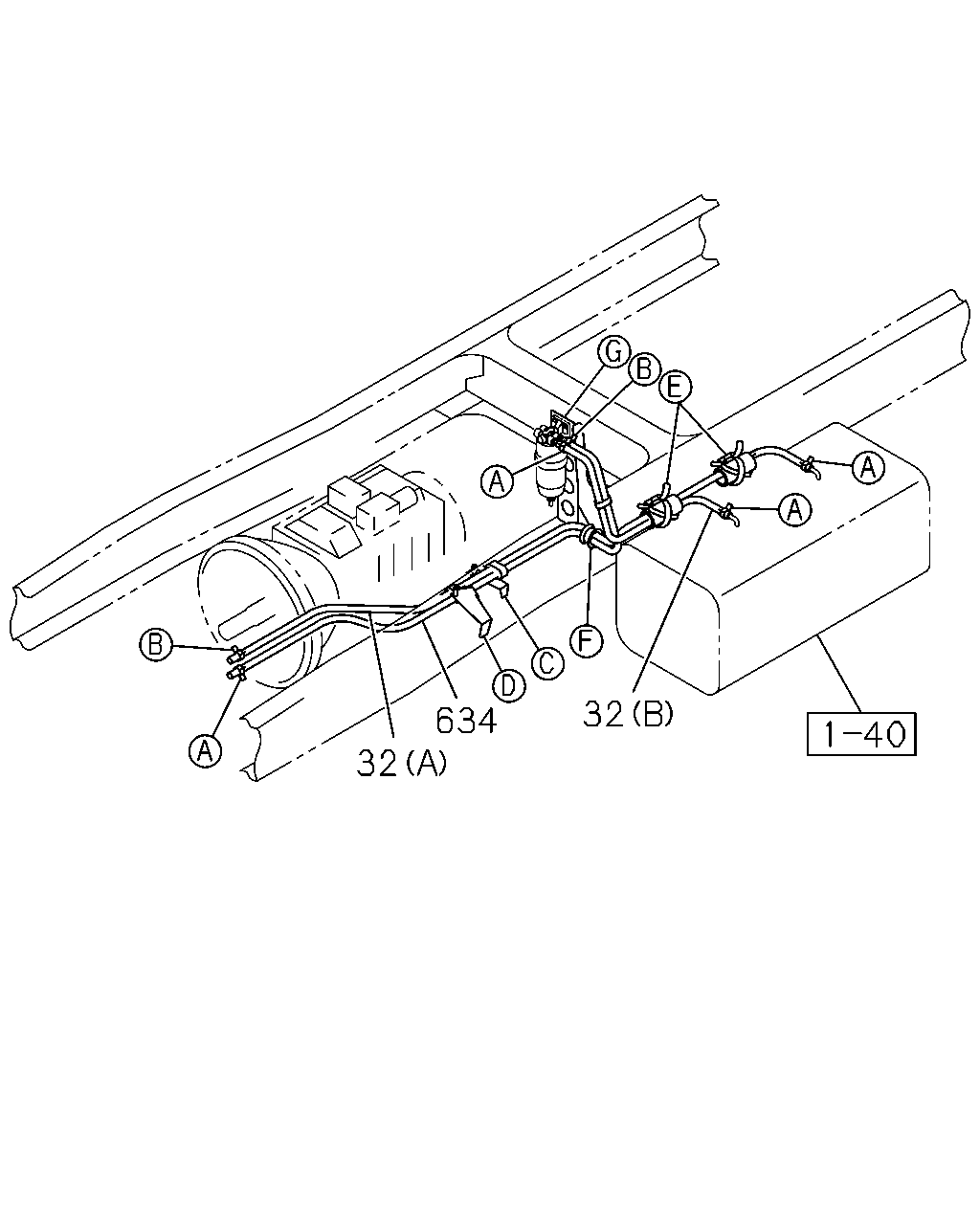

çizim 365582
32 634 32
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 550L<EDP> (B) L=1150 SERVICED BY L=3000 		0-01260-300-0 01 1 1306-
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 550L<EDP> (A) L=1550 SERVICED BY L=3000 		0-01262-300-0 01 1 1306-
634 HOSE; RUBBER RETURN
FUEL TANK 550L<EDP> L=1900 SERVICED BY L=3000 		0-01260-300-0 01 1 1306-
