Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11536 - EXZ LHD EURO2 WITH REFLECTOR
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

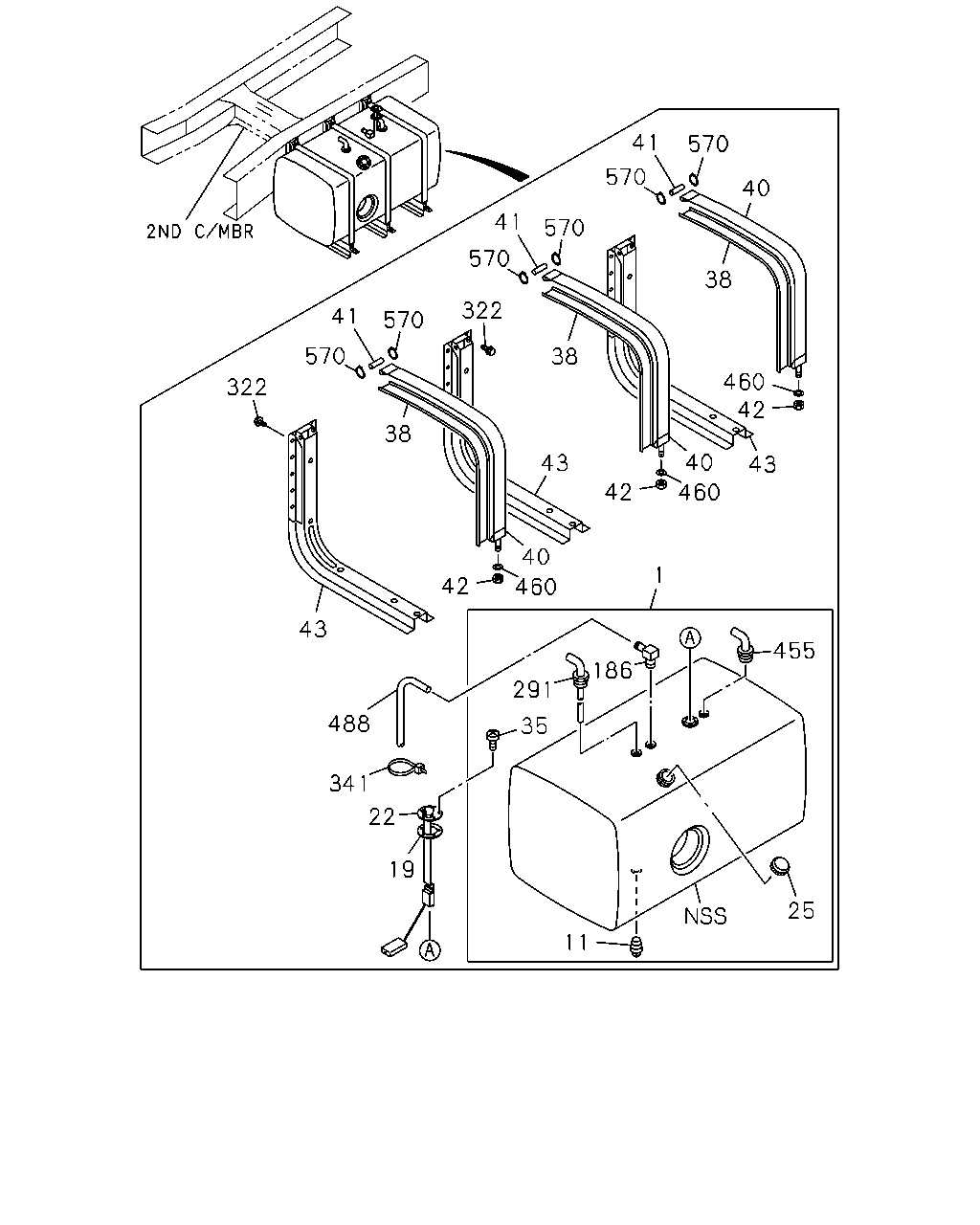

1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#124919) — 19 parça
322
570
41
570
322
570
41
570
570
41
570
40
38
38
38
43
488
341
22
19
11
25
1
455
186
291
35
42
460
40
42
460
43
40
43
460
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
FUEL TANK 550L<EDP> 1280X700X700 550L
8-98140-322-0
01
1
1306-
11
PLUG; DRAIN,FUEL TANK
FUEL TANK 550L<EDP>
8-98154-085-0
02
1
1306-
19
GASKET; FUEL TANK UNIT
FUEL TANK 550L<EDP> ID=45 OD=67
1-83149-003-0
01
1
1306-
22
UNIT; FUEL TANK
FUEL TANK 550L<EDP>
1-83141-150-1
01
1
1306-
25
CAP; FILLER,FUEL TANK
FUEL TANK 550L<EDP>
1-22440-057-2
01
1
1306-
35
SCREW; FUEL TANK UNIT
FUEL TANK 550L<EDP>
8-98168-468-0
05
1
1306-
38
INSULATION; SUPPORT BELT
FUEL TANK 550L<EDP>
8-98048-490-0
03
1
1306-
40
BELT; SUPPORT,FUEL TANK
FUEL TANK 550L<EDP>
8-98048-517-0
03
1
1306-
41
PIN; SUPPORT BELT
FUEL TANK 550L<EDP>
8-98048-491-0
03
1
1306-
42
NUT; SUPPORT BELT
FUEL TANK 550L<EDP>
1-22559-027-0
03
1
1306-
43
BRACKET; FUEL TANK
FUEL TANK 550L<EDP>
8-98110-151-0
03
1
1306-
186
VALVE; GT,FUEL TANK
FUEL TANK 550L<EDP>
8-98154-029-0
01
1
1306-
291
PIPE; FUEL,SUCTION
FUEL TANK 550L<EDP>
8-98154-021-0
01
1
1306-
322
BOLT; BRKT FIX
FUEL TANK 550L<EDP> M12X45 FLANGE
0-28051-245-0
18
1
1306-
341
CLIP; BAND,RUBBER HOSE
FUEL TANK 550L<EDP> L=350
1-09707-183-0
02
1
1306-
455
PIPE; FUEL,RETURN
FUEL TANK 550L<EDP>
8-98154-022-0
01
1
1306-
460
WASHER; PL,BRKT
FUEL TANK 550L<EDP>
0-91610-616-0
03
1
1306-
488
HOSE; RUBBER
FUEL TANK 550L<EDP>
8-98151-246-0
01
1
1306-
570
CLIP; PIN
FUEL TANK 550L<EDP>
1-22559-024-0
06
1
1306-
