Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11536 - EXZ LHD EURO2 WITH REFLECTOR
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶

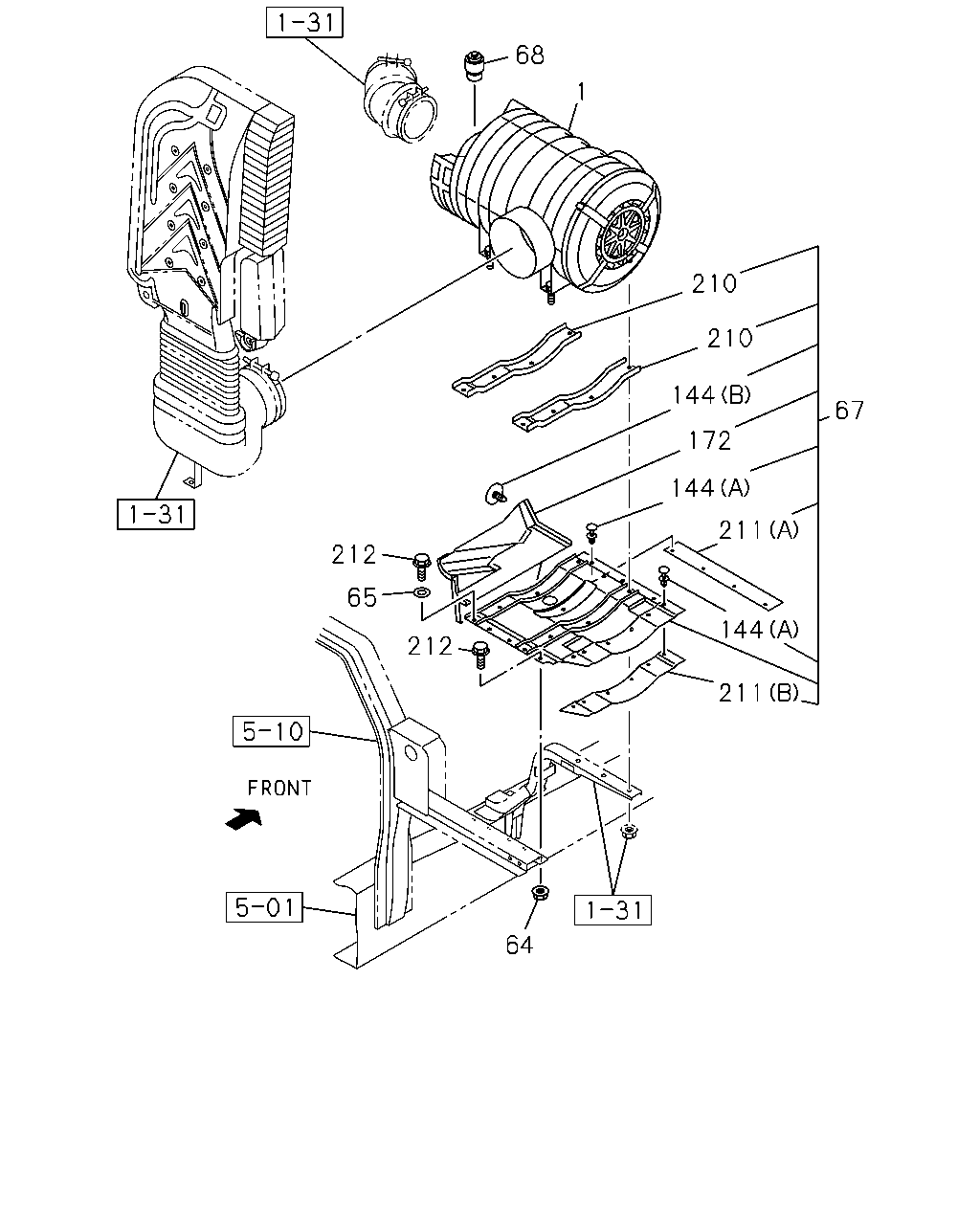

1-30 — AIR CLEANER
(#124916) — 20 parça
◀
[130A] FIXING (12 parça)
[130A] COMPONENT (8 parça)
▶
64
211
144
211
144
172
144
210
210
67
1
68
212
65
212
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLEANER ASM; AIR
1-14210-832-0
01
1
1306-
64
NUT; BAND BRKT
M10 FLANGE
0-91180-210-0
04
1
1306-
65
WASHER; PL
ID=10.5
0-91610-710-0
04
1
1306-
67
COVER; ACL
8-98227-155-0
01
1
1306-
68
INDICATOR; SERVICE
1-14219-212-0
01
1
1306-
144
CLIP; ACL
(A)
5-09987-033-0
08
1
1306-
144
CLIP; ACL
(B)
8-94279-048-0
03
1
1306-
172
INSULATOR; NOISE
8-98227-676-0
01
1
1306-
210
BRACKET; ACL MTG
1-53419-283-0
02
1
1306-
211
RUBBER; SEAL
(B)
1-79931-008-2
01
1
1306-
211
RUBBER; SEAL
(A)
8-98057-648-0
01
1
1306-
212
BOLT; MUD COVER
M10X25 FLANGE
0-28651-025-0
04
1
1306-
1
8
26
27
253
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

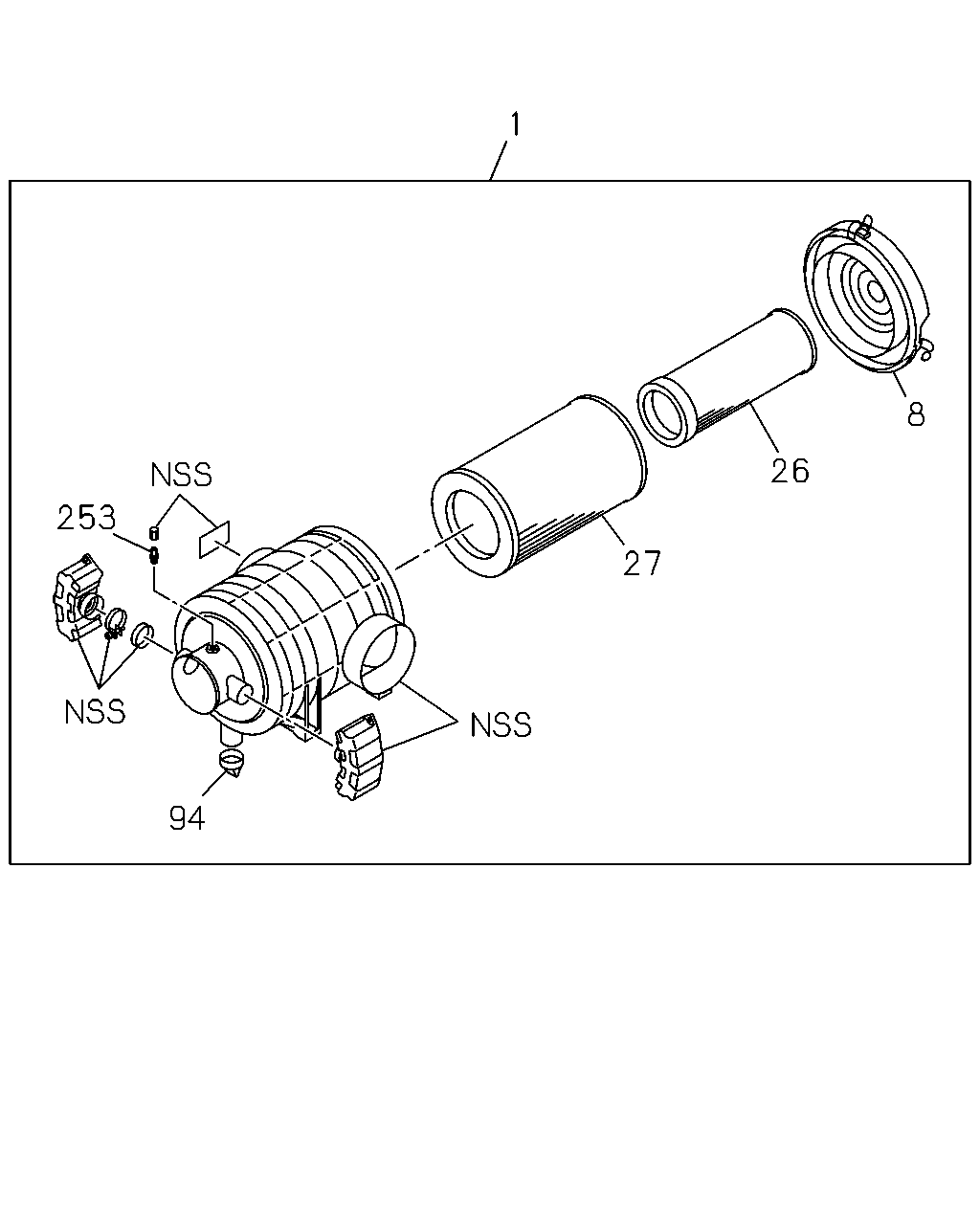

1
CLEANER ASM; AIR
1-14210-832-0
01
1
1306-
8
COVER ASM; ACL
1-14212-129-0
01
1
1306-
26
FILTER; ACL,INNER
1-14215-217-0
01
1
1306-
26
FILTER; ACL,INNER
BEST VALUE PARTS
1-87610-112-1
01
1
1306-
27
FILTER; ACL,OUTER
1-14215-203-0
01
1
1306-
27
FILTER; ACL,OUTER
BEST VALUE PARTS
1-87610-111-1
01
1
1306-
94
VALVE; VACUATOR
1-14219-251-0
01
1
1306-
253
NIPPLE
1-14219-252-0
01
1
1306-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
