Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11536 - EXZ LHD EURO2 WITH REFLECTOR
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#124908) — 56 parça
◀

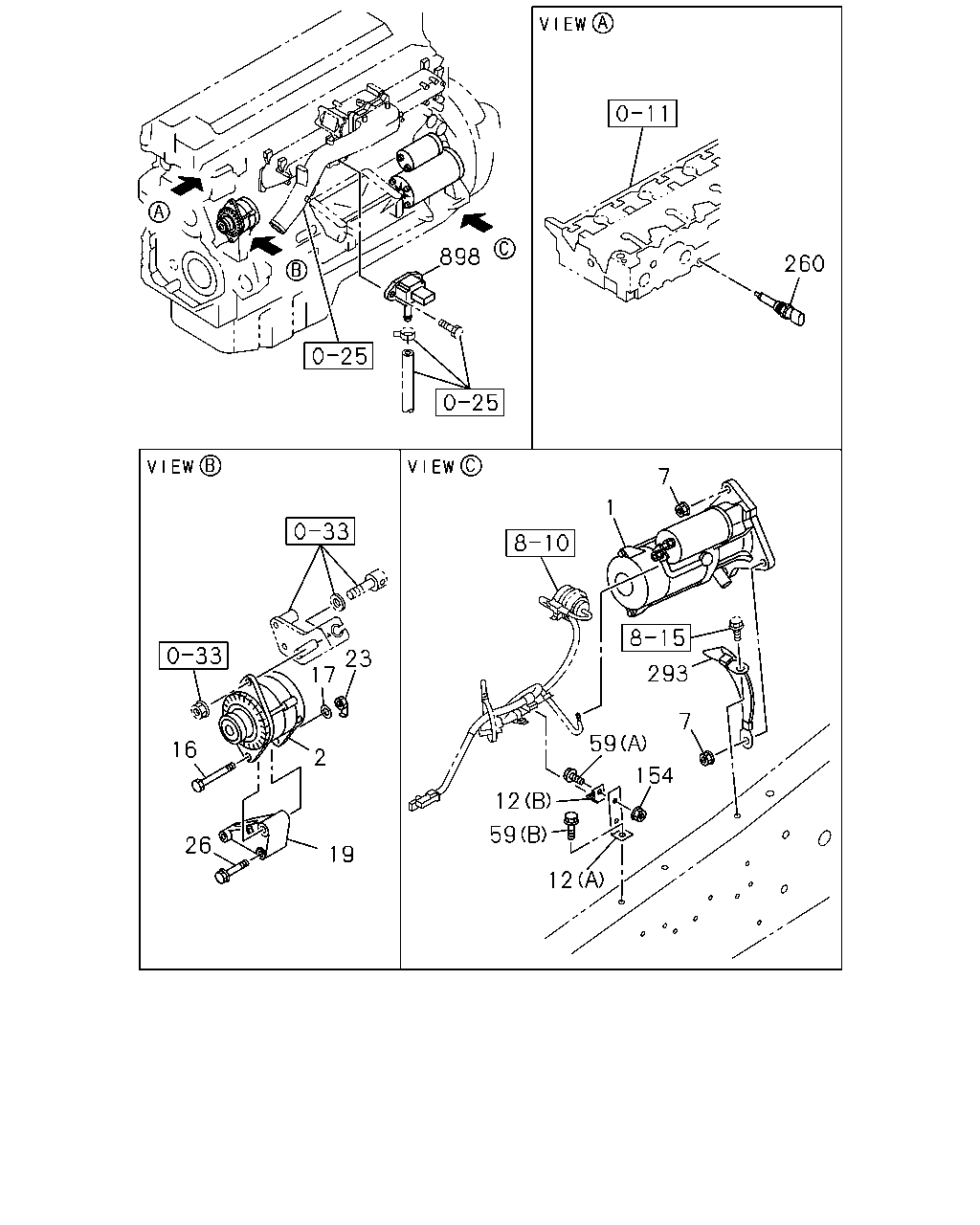

[060A] STARTER AND GENERATOR (16 parça)
[060A] ENG HARNESS FIXING (12 parça)

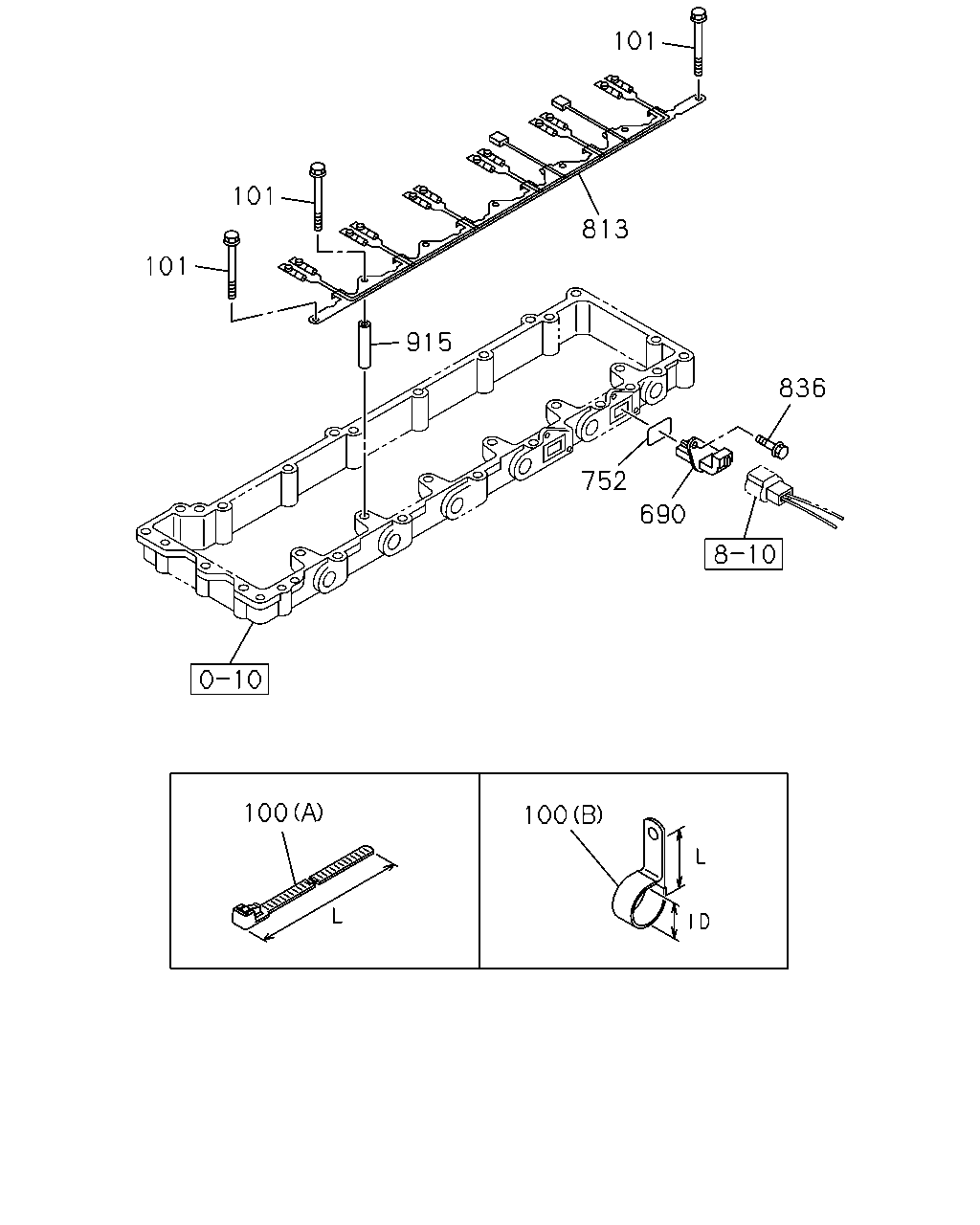

[060A] CYLINDER HEAD SIDE (8 parça)

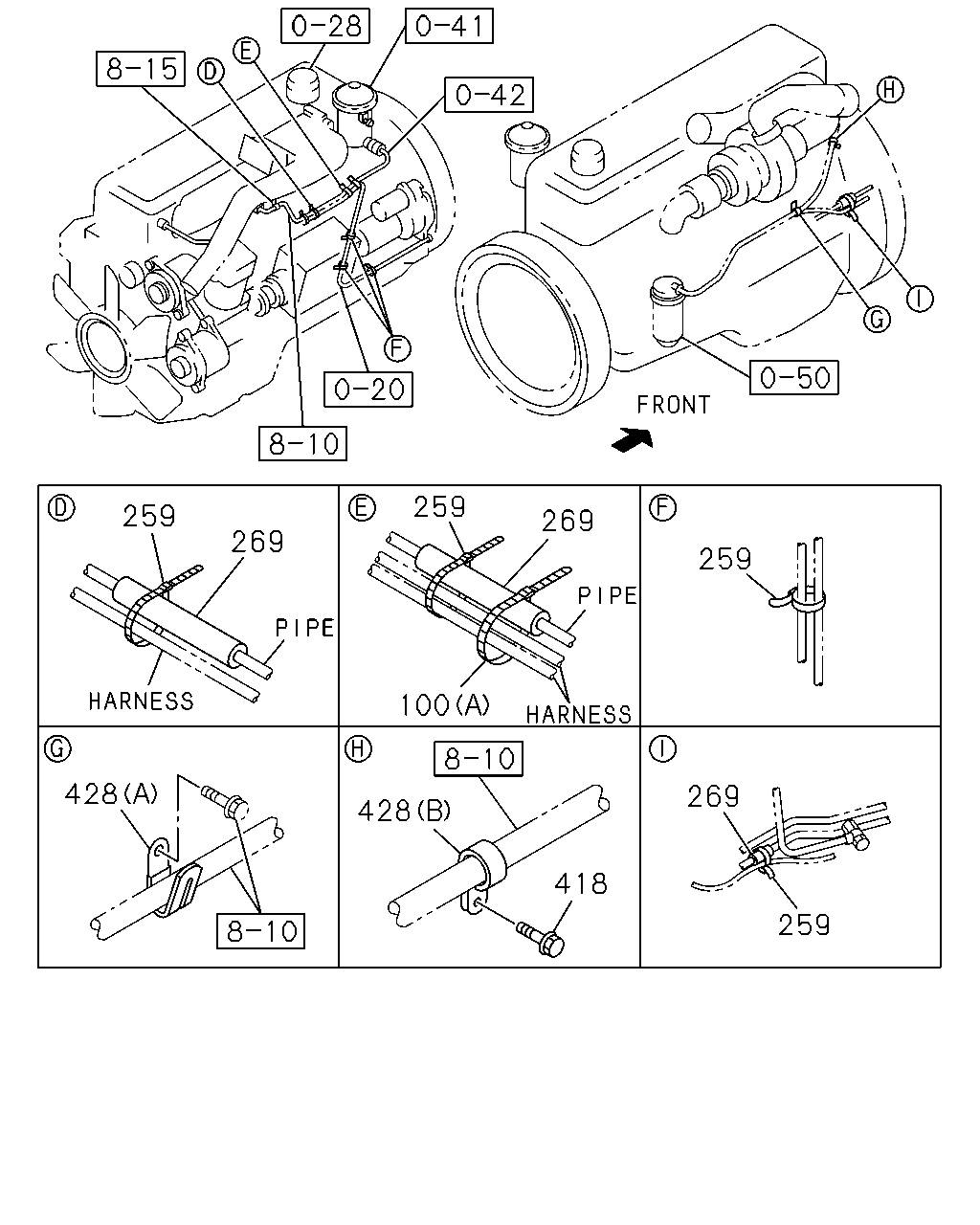

[060A] CLIP AND SENSOR (10 parça)
[060A] STARTER RELAY AND BRACKET (3 parça)

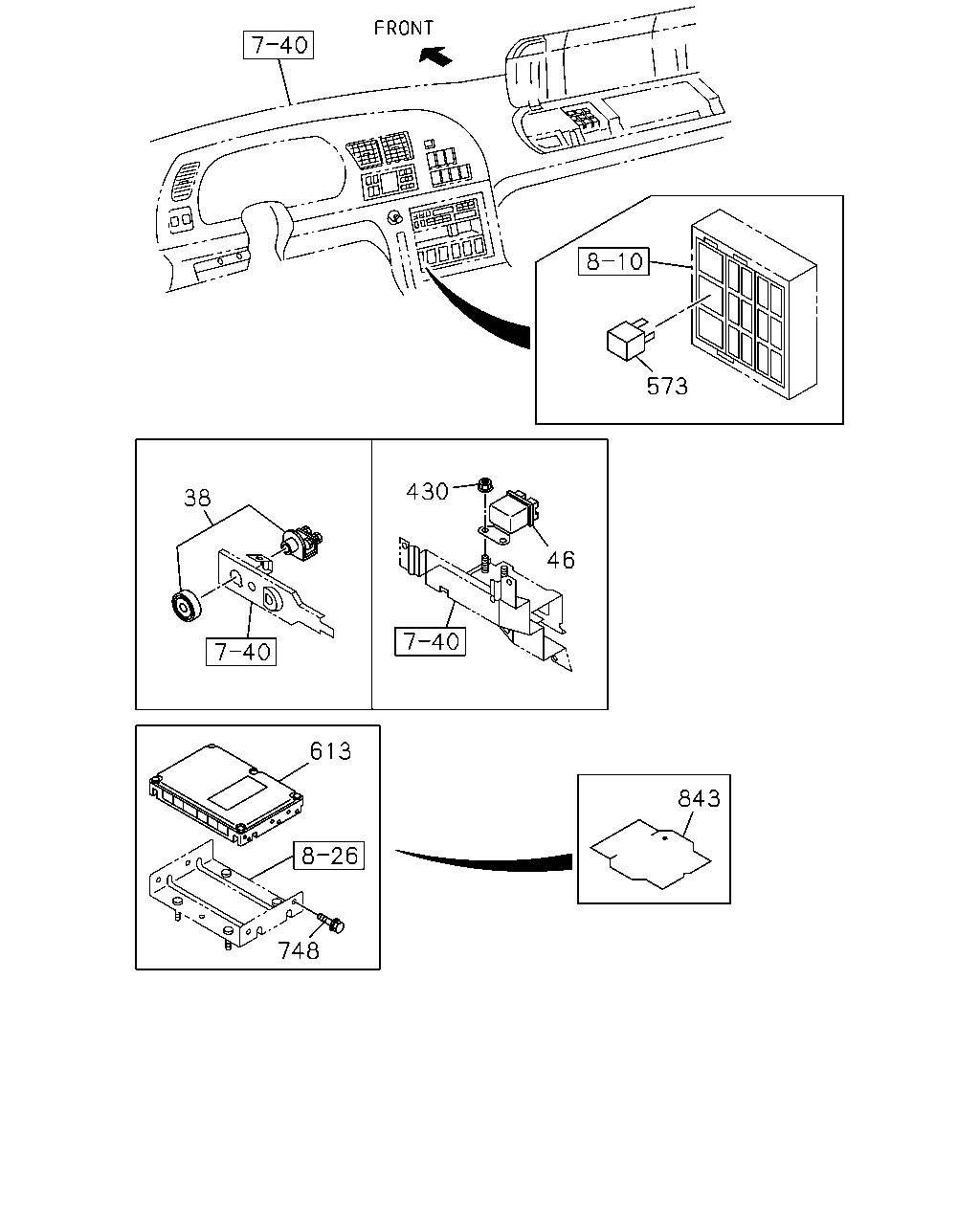

[060A] ENG CONTROL UNIT,SENSOR AND RELAY (7 parça)
▶
260
898
23
17
2
19
16
26
7
1
293
7
59
154
12
59
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI
8-97380-508-4
01
1
1306-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A NIKKO
8-98201-083-3
01
1
1306-
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
03
1
1306-
12
BRACKET; STARTER RELAY
(A) L=90 B=25
1-47476-630-0
01
1
1306-
12
BRACKET; STARTER RELAY
(B)
8-97304-944-0
01
1
1306-
16
BOLT; GEN
M14X123
1-09040-105-0
01
1
1306-
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
1306-
19
BRACKET; GEN
8-97604-177-0
01
1
1306-
23
NUT; GEN
M14 FLANGE
0-91150-114-0
01
1
1306-
26
BOLT; GEN BRKT
M10X60 FLANGE
0-28151-060-0
02
1
1306-
59
BOLT; BRKT,HARNESS CLIP
(A) M8X20 FLANGE
0-28650-820-0
01
1
1306-
59
BOLT; BRKT,HARNESS CLIP
(B) M8X25 FLANGE
0-28650-825-0
01
1
1306-
154
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
01
1
1306-
260
SENSOR; WATER TEMP
1-80210-005-1
01
1
1306-
293
CABLE; STARTER EARTH
L=350
1-82650-235-0
01
1
1306-
898
SENSOR; BOOST
1-80220-014-0
01
1
1306-
259
269
259
269
259
428
428
418
100
269
259
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
100
CLIP; HARNESS
(B) ID=11 L=20
0-95235-035-0
01
1
1306-
100
CLIP; HARNESS
(A) L=140
8-98216-431-0
02
1
1306-
259
CLIP; BAND,HARNESS TO OIL PIPE
L=250
8-98216-430-0
05
1
1306-
269
SLEEVE; RUBBER,CABLE
ID=10 OD=14 L=30
9-09956-682-0
02
1
1306-
418
BOLT; CLIP
M10X16 FLANGE
0-28151-016-0
01
1
1306-
428
CLIP; HARNESS
(F) ID=31 L=35
1-09700-329-1
01
1
1306-
428
CLIP; HARNESS
(C) ID=35 L=35
1-09700-684-0
02
1
1306-
428
CLIP; HARNESS
(D) ID=30X2 L=28
1-09701-266-0
04
1
1306-
428
CLIP; HARNESS
(D) ID=35X2 L=32
1-09701-314-0
02
1
1306-
428
CLIP; HARNESS
(E) L=350
1-09707-183-0
02
1
1306-
428
CLIP; HARNESS
(A) L=36
8-94224-891-1
01
1
1306-
428
CLIP; HARNESS
(B) ID=11 L=28
9-09917-544-0
01
1
1306-
836
690
752
813
101
915
101
101
100
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
100
CLIP; HARNESS
(B) ID=11 L=20
0-95235-035-0
01
1
1306-
100
CLIP; HARNESS
(A) L=140
8-98216-431-0
02
1
1306-
101
BOLT; HARNESS
M8X70 FLANGE
0-28050-870-0
07
1
1306-
690
CONNECTOR
8-94390-858-1
02
1
1306-
752
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94391-310-0
02
1
1306-
813
HARNESS; INJECTOR
1-82641-338-1
01
1
1306-
836
BOLT; CONNECTOR
M8X12 FLANGE
0-28050-812-0
04
1
1306-
915
SPACER; HARNESS
L=51
1-11369-157-0
05
1
1306-
441
428
428
441
428
608
441
428
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
428
CLIP; HARNESS
(F) ID=31 L=35
1-09700-329-1
01
1
1306-
428
CLIP; HARNESS
(C) ID=35 L=35
1-09700-684-0
02
1
1306-
428
CLIP; HARNESS
(D) ID=30X2 L=28
1-09701-266-0
04
1
1306-
428
CLIP; HARNESS
(D) ID=35X2 L=32
1-09701-314-0
02
1
1306-
428
CLIP; HARNESS
(E) L=350
1-09707-183-0
02
1
1306-
428
CLIP; HARNESS
(A) L=36
8-94224-891-1
01
1
1306-
428
CLIP; HARNESS
(B) ID=11 L=28
9-09917-544-0
01
1
1306-
441
BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE
0-28650-820-0
05
1
1306-
441
BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER
8-98059-720-0
03
1
1306-
608
SENSOR; AIR TEMP
8-98214-375-0
01
1
1306-
296
296
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
1-81171-097-1
01
1
1306-
296
NUT; RELAY,STARTER
(A) M8 FLANGE
0-91180-108-0
02
1
1306-
296
NUT; RELAY,STARTER
(B) M6 FLANGE
0-91180-206-0
02
1
1306-
573
430
46
38
843
613
748
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
38
RESISTOR; CONT,GLOW PLUG
1-81402-008-0
01
1
1306-
46
RELAY; GLOW PLUG
8-94258-014-0
01
1
1306-
430
NUT; RELAY FIX
M6 FLANGE
0-91180-106-0
01
1
1306-
573
RELAY; ELEC GOV
24V 12.5A PANASONIC
8-97262-933-0
01
1
1306-
613
CONTROL UNIT; ENG
1-80111-424-1
01
1
1306-
748
BOLT; CONT UNIT
M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
1306-
843
SEAL; BRKT
8-98119-974-0
01
1
1306-
