Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11536 - EXZ LHD EURO2 WITH REFLECTOR
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

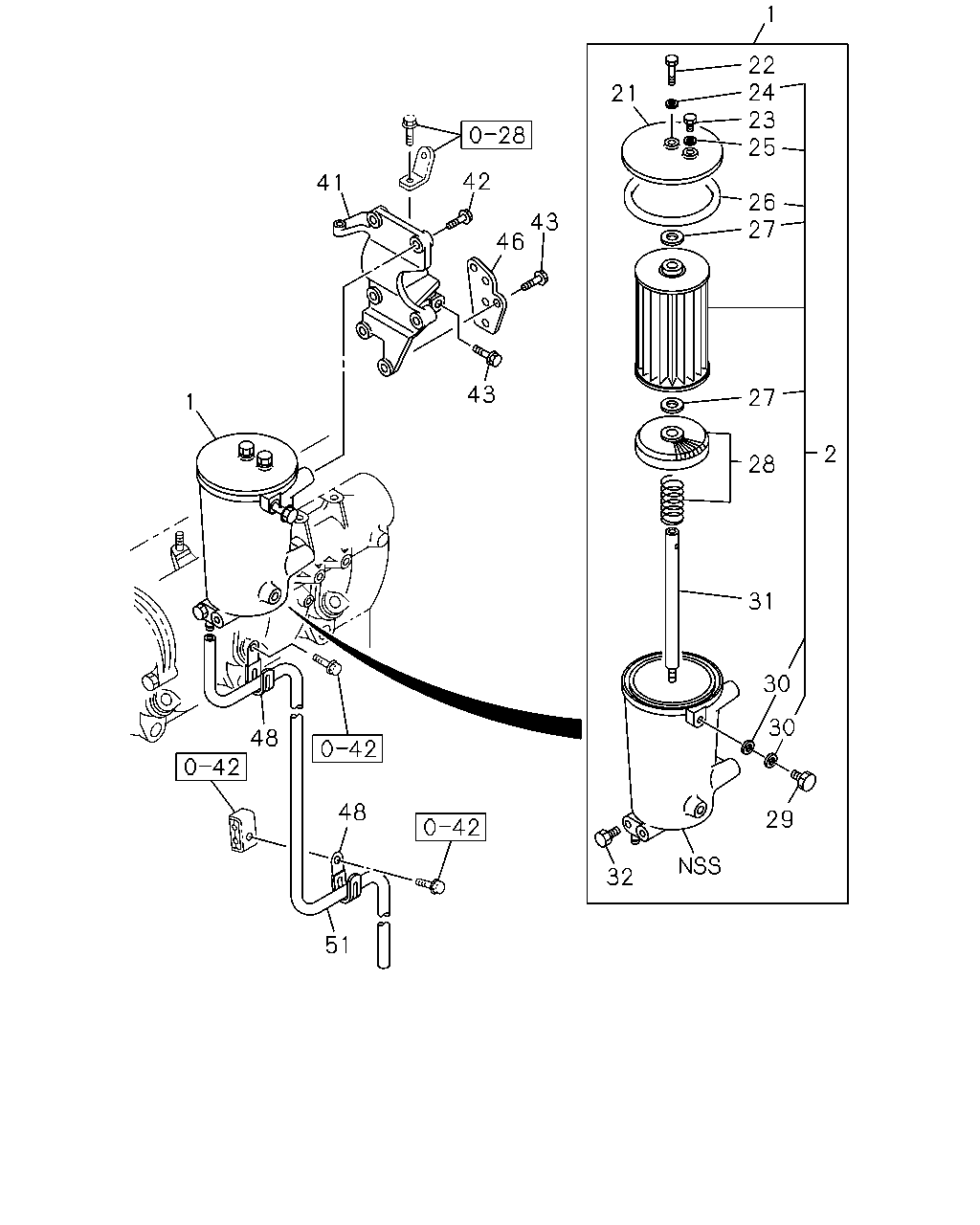

0-41 — FUEL FILTER AND BRACKET
(#124902) — 22 parça
1
22
21
24
23
25
26
27
27
28
2
30
30
31
29
32
48
51
48
1
41
42
43
46
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER ASM; FUEL
8-98175-164-0
01
1
1306-
2
ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS
1-87610-152-0
02
1
1306-
2
ELEMENT KIT; FUEL FILTER
8-98174-903-0
01
1
1306-
21
COVER; UPR,FUEL FILTER
1-13212-049-1
01
1
1306-
22
BOLT; CENTER TUBE,COVER
1-13219-045-0
01
1
1306-
23
PLUG; COVER
1-13219-074-0
01
1
1306-
24
GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2
1-09630-083-0
01
1
1306-
25
GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2
1-09630-083-0
01
1
1306-
26
GASKET; COVER TO BODY
9-09720-797-0
01
1
1306-
27
GASKET; ELEMENT
1-09630-007-0
02
1
1306-
28
STRAINER; WATER,FUEL FILTER
1-13251-001-0
01
1
1306-
29
VALVE; OVERFLOW
1-13260-116-0
01
1
1306-
30
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
1306-
31
TUBE; CENTER BOLT
1-13231-026-0
01
1
1306-
32
BOLT; DRAIN,FUEL FILTER
1-13219-030-0
01
1
1306-
41
BRACKET; FUEL FILTER
8-97628-937-0
01
1
1306-
42
BOLT; FUEL FILTER
M10X40 FLANGE
0-28051-040-0
04
1
1306-
43
BOLT; BRKT
M10X30 FLANGE
0-28151-030-0
02
1
1306-
43
BOLT; BRKT
M10X60 FLANGE
0-28151-060-0
02
1
1306-
46
BRACKET
8-97629-738-1
01
1
1306-
48
CLIP; VINYL PIPE
ID=21 L=47.5
8-94178-108-0
02
1
1306-
51
PIPE; VINYL
L=800 SERVICED BY L=10000
9-09914-909-0
01
1
1306-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
