Sayfa 3-20 - Isuzu EPC

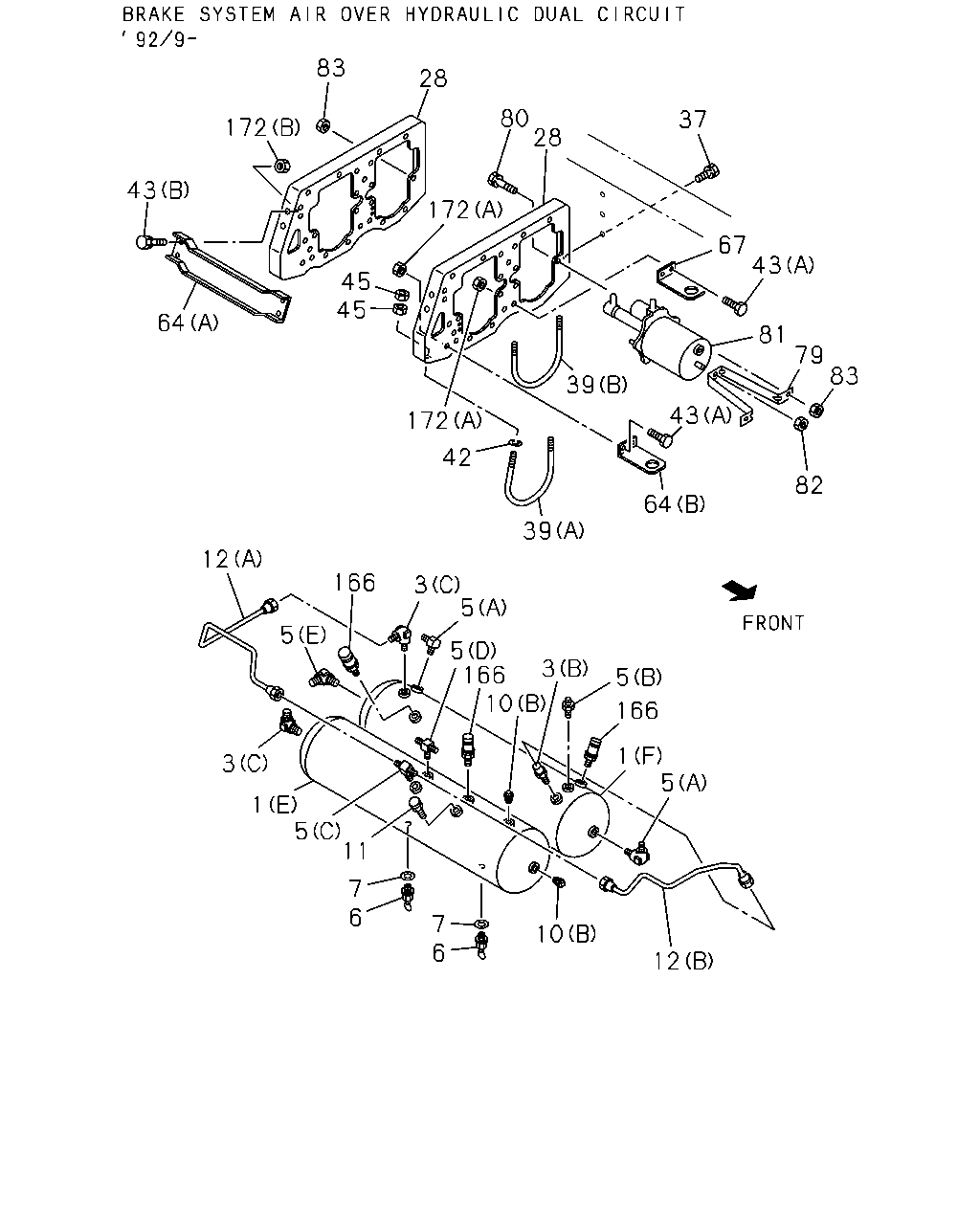

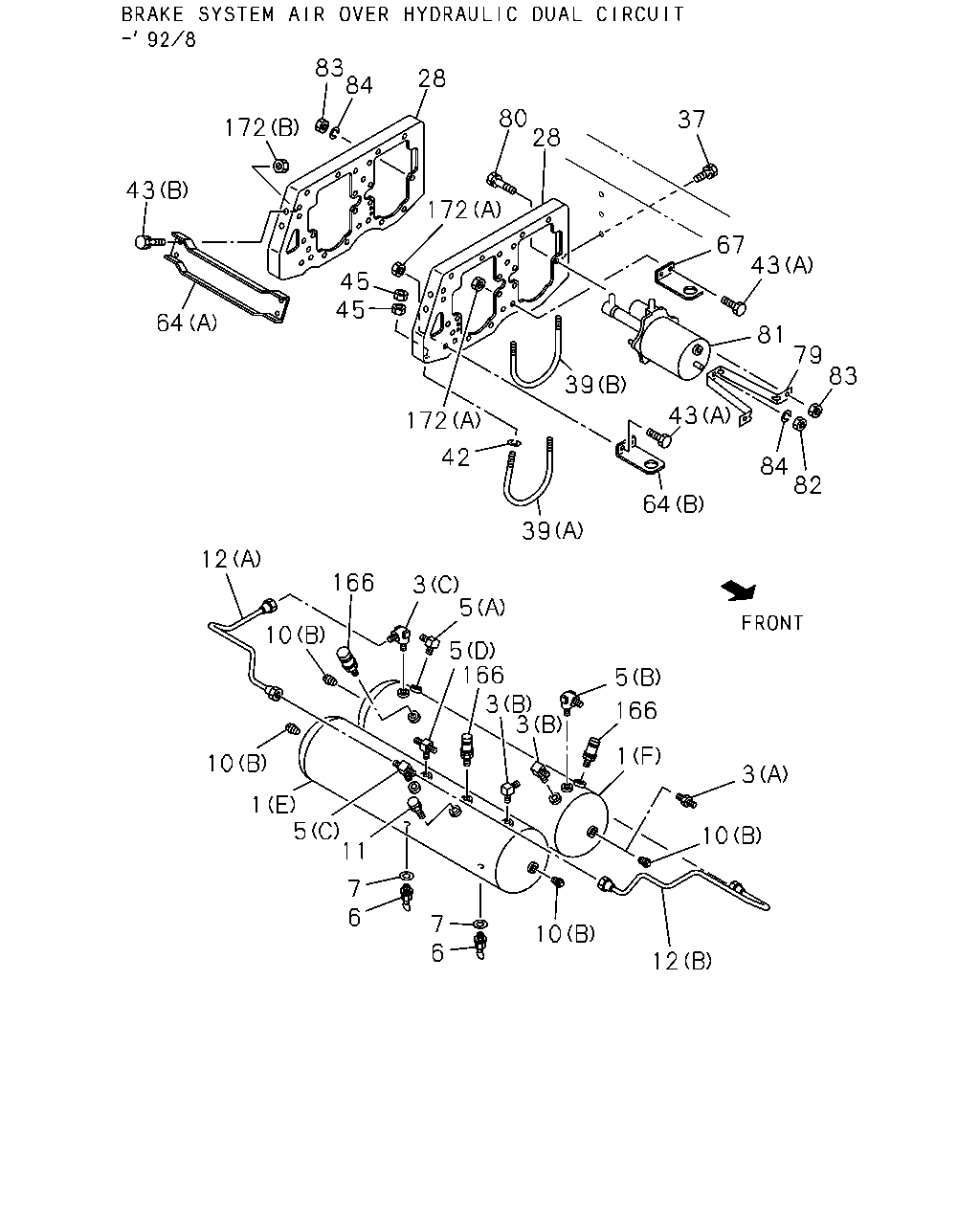

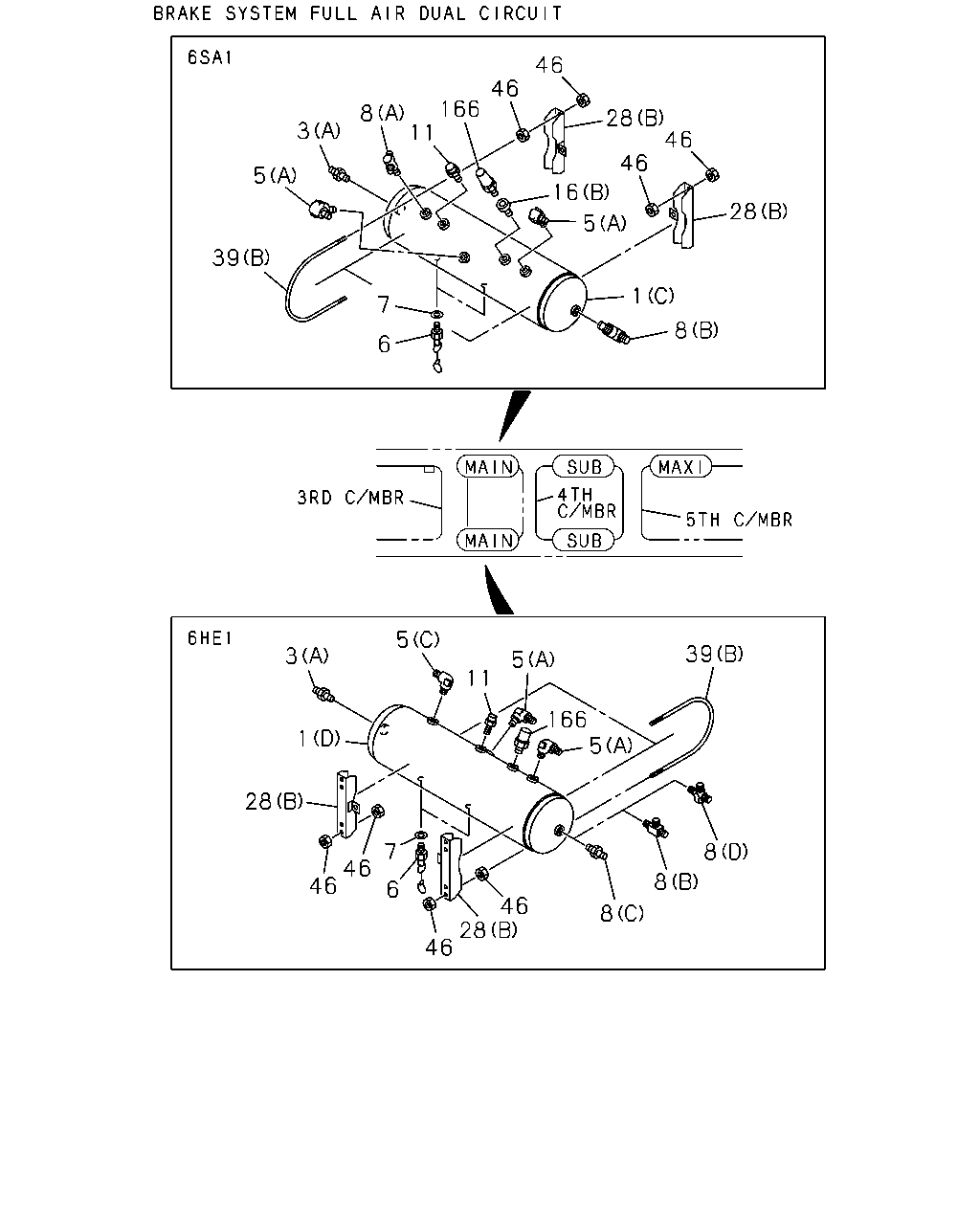

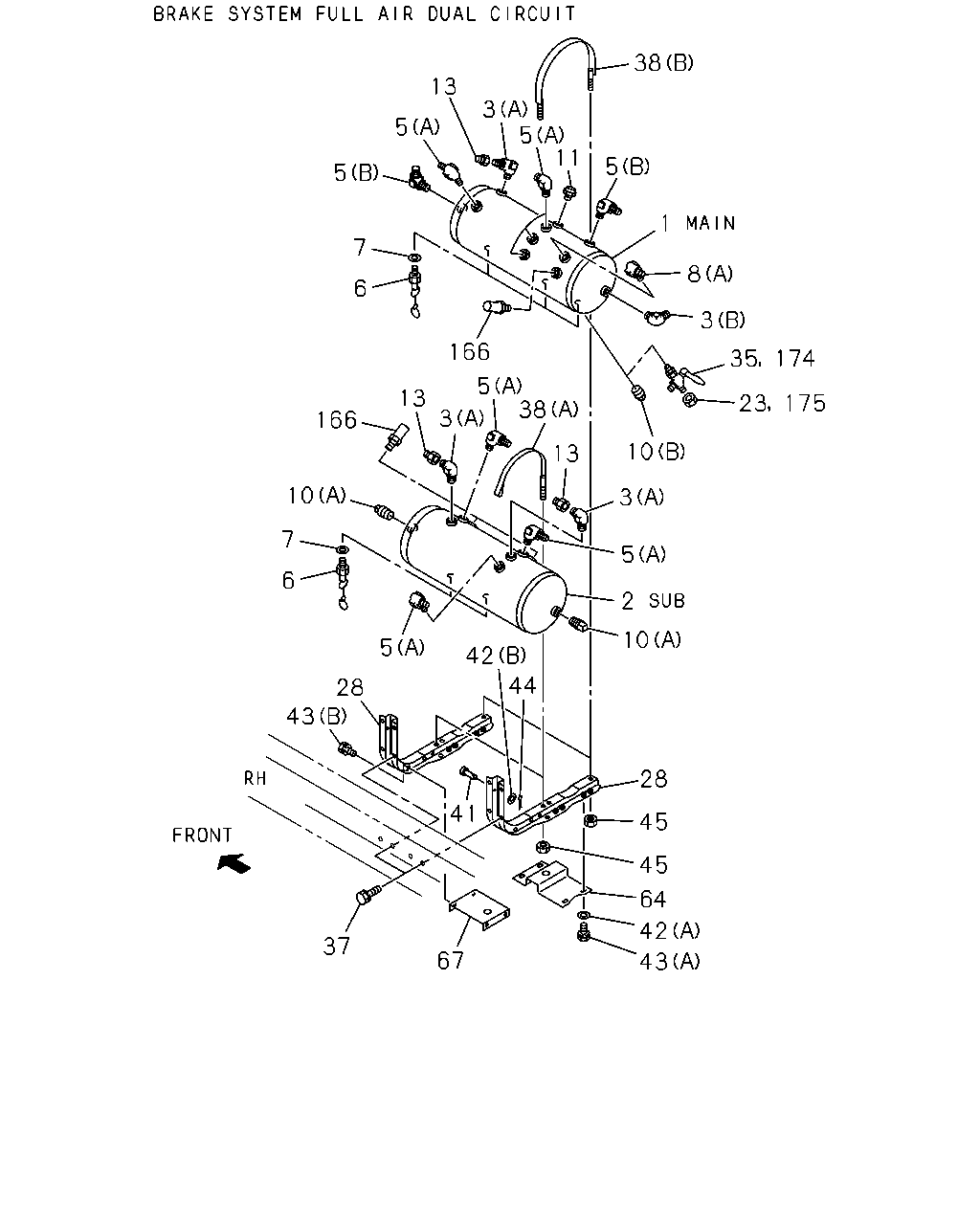

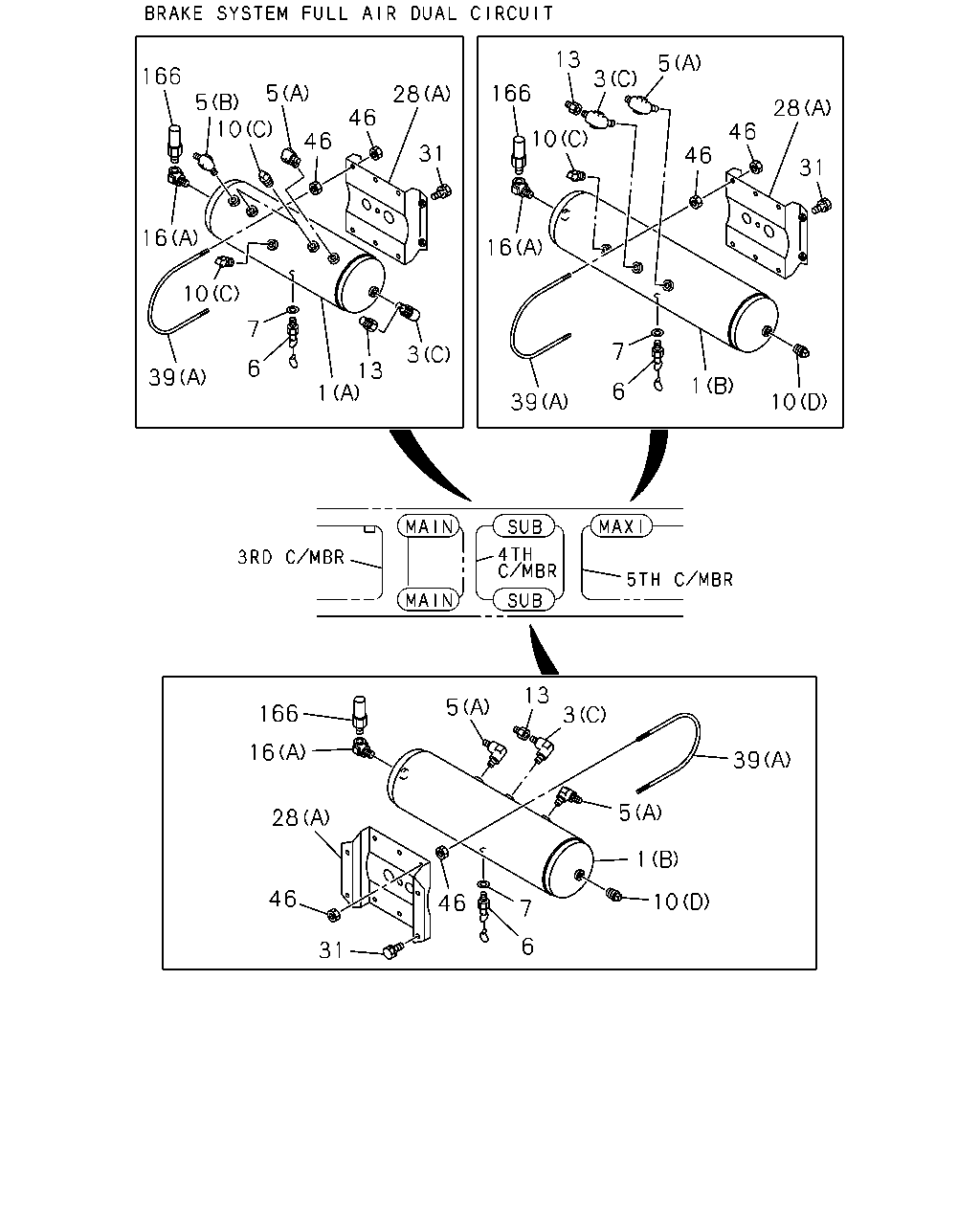

3-20 — AIR TANK (#1249) — 671 parça

38 13 3 5 5 11 5 5 1 7 8 6 3 166 35 174 5 38 13 175 23 3 166 10 13 10 3 7 5 6 2 10 5 42 44 28 43 28 41 45 45 64 42 37 67 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR MAIN	1-48330-801-4	01	1	9202-	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) SUB	1-48330-206-1	01	1	9202-9208		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) MAIN	1-48330-987-0	01	1	9209-		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) MAIN	1-48330-598-0	01	1	9202-9208		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) SUB	1-48330-988-0	01	1	9209-		●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) MAXI,SUB	1-48330-765-3	02	1	9202-		●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB	1-48330-764-3	01	1	9202-		●
1	TANK ASM; AIR 6HE1 STD ENG(46L) (D) MAIN	1-48330-948-3	01	1	9202-		●
1	TANK ASM; AIR 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) MAIN	1-48330-768-5	01	1	9202-		●
2	TANK; AIR SUB	1-48330-882-2	01	1	9202-	●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	03	1	9202-	●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9202-	●
3	VALVE; CHECK,AIR TANK (C)	1-48410-133-1	01	1	9202-9208		●
3	VALVE; CHECK,AIR TANK (C)	1-48410-133-2	02	1	9209-		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48410-182-2	02	1	9202-9208		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48410-182-3	01	1	9209-		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (B)	1-48410-182-2	01	1	9202-9208		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48410-133-1	02	1	9202-9208		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48410-133-2	01	1	9209-		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M22 & PT3/4	1-48410-136-3	01	1	9202-		●
5	UNION; AIR TANK (A)	1-09660-534-0	07	1	9202-	●
5	UNION; AIR TANK (B)	1-09660-535-0	02	1	9202-	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09650-221-1	01	1	9202-9208		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09650-221-1	02	1	9209-9302		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 & PT1/2 ELBOW	1-09650-442-0	02	1	9303-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16	1-09650-245-1	01	1	9202-9208		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) FLARE M22 PT1/2	9-09231-815-1	01	1	9209-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9202-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M12 & M14 & PT1/4 3WAY	1-09656-368-1	01	1	9202-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9401-		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-534-0	03	1	9202-		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-534-0	02	1	9202-		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-534-0	01	1	9202-		●
5	UNION; AIR TANK 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> (C) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9202-9302		●
5	UNION; AIR TANK 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-		●
5	UNION; AIR TANK 6SA1 STD ENG(06L) (B)	1-09660-535-0	01	1	9202-9209		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-535-0	01	1	9210-		●
6	COCK; DRAIN,AIR TANK	1-48312-013-1	02	1	9202-9207	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-013-1	02	1	9202-9207		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-013-1	02	1	9202-9207		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-013-1	04	1	9208-		●
6	COCK; DRAIN,AIR TANK W/COVER	1-48312-004-1	03	1	9202-9207	●
6	COCK; DRAIN,AIR TANK W/COVER	1-48312-004-1	05	1	9208-9509	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	9510-	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W/COVER	1-48312-004-1	04	1	9202-9509		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	9510-		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-013-1	01	1	9202-		●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	05	1	9206-	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=23.0	9-09572-014-0	04	1	9206-		●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=23.0	9-09572-014-0	05	1	9206-		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (A)	1-09660-539-0	01	1	9202-9207		●
8	CONNECTOR; AIR TANK 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-539-0	01	1	9208-9504	●	●
8	CONNECTOR; AIR TANK (A)	1-09660-539-0	01	1	9505-	●
8	CONNECTOR; AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-539-0	01	1	9505-		●
8	CONNECTOR; AIR TANK 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (D) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9202-		●
8	CONNECTOR; AIR TANK 6HE1 STD ENG(46L) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (C)	1-09660-532-0	01	1	9202-		●
8	CONNECTOR; AIR TANK 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-593-0	01	1	9202-9504		●
8	CONNECTOR; AIR TANK 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> (B)	1-09660-593-0	01	1	9202-9504		●
8	CONNECTOR; AIR TANK 6HE1 STD ENG(46L) PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. EXHAUST BRAKE<NF8> (B)	1-09660-593-0	01	1	9202-9504		●
8	CONNECTOR; AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-593-0	01	1	9505-		●
8	CONNECTOR; AIR TANK 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> (B)	1-09660-593-0	01	1	9505-		●
8	CONNECTOR; AIR TANK 6HE1 STD ENG(46L) PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. EXHAUST BRAKE<NF8> (B)	1-09660-593-0	01	1	9505-		●
8	CONNECTOR; AIR TANK 6HE1 STD ENG(46L) EXC. DUAL AIR GAUGE<UG2> (B)	1-09660-593-0	01	1	9505-		●
10	PLUG; AIR TANK (A)	1-09605-111-0	02	1	9202-	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (B) PT1/4	9-99204-513-0	01	1	9202-9207	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4	9-99204-513-0	01	1	9202-9207		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (B) PT1/4	9-99204-513-0	01	1	9208-	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4	9-99204-513-0	03	1	9202-9207		●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4	9-99204-513-0	04	1	9208-9208		●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4	9-99204-513-0	02	1	9209-9406		●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4	9-99204-513-0	03	1	9407-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09605-103-0	02	1	9202-9202		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09605-112-0	02	1	9203-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09605-102-0	04	1	9202-9202		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09605-111-0	01	1	9203-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09605-111-0	03	1	9203-		●
11	VALVE; SAFETY,AIR TANK	1-48320-007-0	01	1	9202-9202	●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48320-007-0	01	1	9202-9202		●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48320-003-0	01	1	9202-9202		●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9203-9208	●	●
11	VALVE; SAFETY,AIR TANK 6SA1 STD ENG(06L),6HE1 STD ENG(46L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48320-003-0	01	1	9209-9504	●	●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48320-003-0	01	1	9209-9504		●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48320-003-0	01	1	9505-	●	●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48320-003-0	01	1	9505-		●
13	ADAPTER; NYLON TUBE 6SA1 STD ENG(06L) M20X36	1-09660-576-0	03	1	9202-	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SUB M20X36	1-09660-576-0	02	1	9202-		●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MAXI M20X36	1-09660-576-0	01	1	9202-		●
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE(SG4)	9-48319-102-0	01	1	9202-9207	●
28	BRACKET; AIR TANK 6SA1 STD ENG(06L)	1-48317-240-4	02	1	9202-	●
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-232-9	02	1	9202-		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB	1-48317-441-0	02	1	9202-		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) MAIN	1-48317-494-0	02	1	9202-		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAXI	1-48317-441-0	01	1	9202-		●
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE(SG4)	1-09680-036-0	01	1	9202-9207	●
37	BOLT; AIR TANK M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9202-9202	●
37	BOLT; AIR TANK M12X45	1-09030-052-1	08	1	9203-	●
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X45	1-09030-052-1	06	1	9202-		●
38	BAND; AIR TANK 6SA1 STD ENG(06L) (A)	1-48317-108-2	02	1	9202-	●
38	BAND; AIR TANK 6SA1 STD ENG(06L) (B)	1-48317-109-2	02	1	9202-	●
41	PIN; BAND FIX	9-08221-060-0	02	1	9202-	●
42	WASHER; PL (A) ID=8.4 OD=22	9-09160-708-0	04	1	9202-	●
42	WASHER; PL (B) ID=10.5	9-09164-510-0	02	1	9202-	●
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	9-09160-608-0	04	1	9202-		●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	9-01900-825-0	04	1	9202-9202	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	9203-	●
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	9-01960-620-0	04	1	9202-9202	●
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	9203-	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X18 W/LK WASHER	0-50040-818-0	04	1	9202-9205		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28080-820-0	04	1	9206-		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X22 W/LK&PL WASHER	0-50141-022-0	04	1	9202-9205		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9206-		●
44	PIN; SPLIT OD=2.8 L=18	9-08113-018-0	02	1	9202-	●
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	12	1	9202-	●
45	NUT; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	16	1	9202-		●
64	STAY; AIR TANK,MAIN	1-48317-220-1	01	1	9202-	●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-224-2	01	1	9202-9207		●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-293-1	01	1	9208-		●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-94301-490-0	01	1	9202-9208		●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48317-349-0	01	1	9209-		●
67	STAY; SUB TANK	1-48317-246-0	01	1	9202-	●
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-349-0	01	1	9202-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-040-0	03	1	9202-9208	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-040-0	03	1	9202-9208		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 6SA1 STD ENG(06L)	1-48340-040-0	03	1	9209-9411	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48340-040-0	03	1	9209-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 6SA1 STD ENG(06L) 530KPA	1-48340-054-0	03	1	9412-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 530KPA	1-48340-054-0	03	1	9412-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-040-0	02	1	9202-9406		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-040-0	01	1	9407-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-0	01	1	9412-9504		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	02	1	9505-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48340-040-0	02	1	9202-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	02	1	9412-		●
174	COCK; AIR,INFLATOR 6SA1 STD ENG(06L) TIRE INFLATOR DEVICE(SG4)	1-09680-036-0	01	1	9208-	●
175	CAP; AIR COCK 6SA1 STD ENG(06L) TIRE INFLATOR DEVICE(SG4)	9-48319-102-0	01	1	9208-	●

13 5 16 3 5 166 28 5 10 28 46 46 10 46 31 46 31 16 16 10 7 7 3 6 13 39 1 6 1 39 10 13 5 166 3 16 39 5 28 1 46 10 46 7 6 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR MAIN	1-48330-801-4	01	1	9202-	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) SUB	1-48330-206-1	01	1	9202-9208		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) MAIN	1-48330-987-0	01	1	9209-		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) MAIN	1-48330-598-0	01	1	9202-9208		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) SUB	1-48330-988-0	01	1	9209-		●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) MAXI,SUB	1-48330-765-3	02	1	9202-		●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB	1-48330-764-3	01	1	9202-		●
1	TANK ASM; AIR 6HE1 STD ENG(46L) (D) MAIN	1-48330-948-3	01	1	9202-		●
1	TANK ASM; AIR 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) MAIN	1-48330-768-5	01	1	9202-		●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	03	1	9202-	●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9202-	●
3	VALVE; CHECK,AIR TANK (C)	1-48410-133-1	01	1	9202-9208		●
3	VALVE; CHECK,AIR TANK (C)	1-48410-133-2	02	1	9209-		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48410-182-2	02	1	9202-9208		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48410-182-3	01	1	9209-		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (B)	1-48410-182-2	01	1	9202-9208		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48410-133-1	02	1	9202-9208		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48410-133-2	01	1	9209-		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M22 & PT3/4	1-48410-136-3	01	1	9202-		●
5	UNION; AIR TANK (A)	1-09660-534-0	07	1	9202-	●
5	UNION; AIR TANK (B)	1-09660-535-0	02	1	9202-	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09650-221-1	01	1	9202-9208		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09650-221-1	02	1	9209-9302		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 & PT1/2 ELBOW	1-09650-442-0	02	1	9303-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16	1-09650-245-1	01	1	9202-9208		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) FLARE M22 PT1/2	9-09231-815-1	01	1	9209-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9202-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M12 & M14 & PT1/4 3WAY	1-09656-368-1	01	1	9202-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9401-		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-534-0	03	1	9202-		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-534-0	02	1	9202-		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-534-0	01	1	9202-		●
5	UNION; AIR TANK 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> (C) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9202-9302		●
5	UNION; AIR TANK 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-		●
5	UNION; AIR TANK 6SA1 STD ENG(06L) (B)	1-09660-535-0	01	1	9202-9209		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-535-0	01	1	9210-		●
6	COCK; DRAIN,AIR TANK	1-48312-013-1	02	1	9202-9207	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-013-1	02	1	9202-9207		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-013-1	02	1	9202-9207		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-013-1	04	1	9208-		●
6	COCK; DRAIN,AIR TANK W/COVER	1-48312-004-1	03	1	9202-9207	●
6	COCK; DRAIN,AIR TANK W/COVER	1-48312-004-1	05	1	9208-9509	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	9510-	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W/COVER	1-48312-004-1	04	1	9202-9509		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	9510-		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-013-1	01	1	9202-		●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	05	1	9206-	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=23.0	9-09572-014-0	04	1	9206-		●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=23.0	9-09572-014-0	05	1	9206-		●
10	PLUG; AIR TANK (A)	1-09605-111-0	02	1	9202-	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (B) PT1/4	9-99204-513-0	01	1	9202-9207	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4	9-99204-513-0	01	1	9202-9207		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (B) PT1/4	9-99204-513-0	01	1	9208-	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4	9-99204-513-0	03	1	9202-9207		●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4	9-99204-513-0	04	1	9208-9208		●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4	9-99204-513-0	02	1	9209-9406		●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4	9-99204-513-0	03	1	9407-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09605-103-0	02	1	9202-9202		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09605-112-0	02	1	9203-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09605-102-0	04	1	9202-9202		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09605-111-0	01	1	9203-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09605-111-0	03	1	9203-		●
13	ADAPTER; NYLON TUBE 6SA1 STD ENG(06L) M20X36	1-09660-576-0	03	1	9202-	●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SUB M20X36	1-09660-576-0	02	1	9202-		●
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MAXI M20X36	1-09660-576-0	01	1	9202-		●
16	CONNECTOR; SWITCH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) MAIN	1-09660-547-0	01	1	9202-9202		●
16	CONNECTOR; SWITCH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB	1-09660-549-0	02	1	9202-9202		●
16	CONNECTOR; SWITCH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB	1-09660-640-1	02	1	9203-9302		●
16	CONNECTOR; SWITCH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB PT1/2 & NPTF1/2 2WAY	1-09660-695-0	02	1	9303-		●
16	CONNECTOR; SWITCH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAXI	1-09660-549-0	01	1	9202-9202		●
16	CONNECTOR; SWITCH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAXI	1-09660-640-1	01	1	9203-9302		●
16	CONNECTOR; SWITCH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAXI PT1/2 & NPTF1/2 2WAY	1-09660-695-0	01	1	9303-		●
28	BRACKET; AIR TANK 6SA1 STD ENG(06L)	1-48317-240-4	02	1	9202-	●
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-232-9	02	1	9202-		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB	1-48317-441-0	02	1	9202-		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) MAIN	1-48317-494-0	02	1	9202-		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAXI	1-48317-441-0	01	1	9202-		●
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 W/LK WASHER	0-50041-035-0	12	1	9202-		●
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=97.5	1-48317-323-1	02	1	9202-		●
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=195	1-48317-367-2	02	1	9202-		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB L=205	1-48317-003-0	04	1	9202-9406		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=205	1-48317-003-0	02	1	9407-9501		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAXI L=210	1-48317-458-0	02	1	9502-		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-48317-308-0	02	1	9202-		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAXI L=205	1-48317-003-0	02	1	9202-9406		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=205	1-48317-003-0	04	1	9407-9501		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB L=210	1-48317-458-0	04	1	9502-		●
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MAIN M8	9-09110-408-0	08	1	9202-		●
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SUB M8	9-09111-408-0	16	1	9202-		●
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MAXI M8	9-09111-408-0	08	1	9202-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-040-0	03	1	9202-9208	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-040-0	03	1	9202-9208		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 6SA1 STD ENG(06L)	1-48340-040-0	03	1	9209-9411	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48340-040-0	03	1	9209-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 6SA1 STD ENG(06L) 530KPA	1-48340-054-0	03	1	9412-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 530KPA	1-48340-054-0	03	1	9412-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-040-0	02	1	9202-9406		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-040-0	01	1	9407-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-0	01	1	9412-9504		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	02	1	9505-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48340-040-0	02	1	9202-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	02	1	9412-		●

83 84 28 80 28 37 172 43 172 67 43 45 45 64 81 79 83 39 43 172 42 84 82 64 39 12 166 3 5 10 5 166 3 3 5 166 1 10 3 1 5 11 10 7 6 7 6 10 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR MAIN	1-48330-801-4	01	1	9202-	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) SUB	1-48330-206-1	01	1	9202-9208		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) MAIN	1-48330-987-0	01	1	9209-		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) MAIN	1-48330-598-0	01	1	9202-9208		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) SUB	1-48330-988-0	01	1	9209-		●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) MAXI,SUB	1-48330-765-3	02	1	9202-		●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB	1-48330-764-3	01	1	9202-		●
1	TANK ASM; AIR 6HE1 STD ENG(46L) (D) MAIN	1-48330-948-3	01	1	9202-		●
1	TANK ASM; AIR 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) MAIN	1-48330-768-5	01	1	9202-		●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	03	1	9202-	●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9202-	●
3	VALVE; CHECK,AIR TANK (C)	1-48410-133-1	01	1	9202-9208		●
3	VALVE; CHECK,AIR TANK (C)	1-48410-133-2	02	1	9209-		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48410-182-2	02	1	9202-9208		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48410-182-3	01	1	9209-		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (B)	1-48410-182-2	01	1	9202-9208		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48410-133-1	02	1	9202-9208		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48410-133-2	01	1	9209-		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M22 & PT3/4	1-48410-136-3	01	1	9202-		●
5	UNION; AIR TANK (A)	1-09660-534-0	07	1	9202-	●
5	UNION; AIR TANK (B)	1-09660-535-0	02	1	9202-	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09650-221-1	01	1	9202-9208		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09650-221-1	02	1	9209-9302		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 & PT1/2 ELBOW	1-09650-442-0	02	1	9303-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16	1-09650-245-1	01	1	9202-9208		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) FLARE M22 PT1/2	9-09231-815-1	01	1	9209-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9202-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M12 & M14 & PT1/4 3WAY	1-09656-368-1	01	1	9202-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9401-		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-534-0	03	1	9202-		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-534-0	02	1	9202-		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-534-0	01	1	9202-		●
5	UNION; AIR TANK 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> (C) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9202-9302		●
5	UNION; AIR TANK 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-		●
5	UNION; AIR TANK 6SA1 STD ENG(06L) (B)	1-09660-535-0	01	1	9202-9209		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-535-0	01	1	9210-		●
6	COCK; DRAIN,AIR TANK	1-48312-013-1	02	1	9202-9207	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-013-1	02	1	9202-9207		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-013-1	02	1	9202-9207		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-013-1	04	1	9208-		●
6	COCK; DRAIN,AIR TANK W/COVER	1-48312-004-1	03	1	9202-9207	●
6	COCK; DRAIN,AIR TANK W/COVER	1-48312-004-1	05	1	9208-9509	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	9510-	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W/COVER	1-48312-004-1	04	1	9202-9509		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	9510-		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-013-1	01	1	9202-		●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	05	1	9206-	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=23.0	9-09572-014-0	04	1	9206-		●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=23.0	9-09572-014-0	05	1	9206-		●
10	PLUG; AIR TANK (A)	1-09605-111-0	02	1	9202-	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (B) PT1/4	9-99204-513-0	01	1	9202-9207	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4	9-99204-513-0	01	1	9202-9207		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (B) PT1/4	9-99204-513-0	01	1	9208-	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4	9-99204-513-0	03	1	9202-9207		●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4	9-99204-513-0	04	1	9208-9208		●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4	9-99204-513-0	02	1	9209-9406		●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4	9-99204-513-0	03	1	9407-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09605-103-0	02	1	9202-9202		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09605-112-0	02	1	9203-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09605-102-0	04	1	9202-9202		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09605-111-0	01	1	9203-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09605-111-0	03	1	9203-		●
11	VALVE; SAFETY,AIR TANK	1-48320-007-0	01	1	9202-9202	●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48320-007-0	01	1	9202-9202		●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48320-003-0	01	1	9202-9202		●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9203-9208	●	●
11	VALVE; SAFETY,AIR TANK 6SA1 STD ENG(06L),6HE1 STD ENG(46L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48320-003-0	01	1	9209-9504	●	●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48320-003-0	01	1	9209-9504		●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48320-003-0	01	1	9505-	●	●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48320-003-0	01	1	9505-		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47481-349-0	01	1	9202-9208		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47482-864-0	01	1	9202-9208		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47497-011-0	01	1	9209-		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47497-012-0	01	1	9209-		●
28	BRACKET; AIR TANK 6SA1 STD ENG(06L)	1-48317-240-4	02	1	9202-	●
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-232-9	02	1	9202-		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB	1-48317-441-0	02	1	9202-		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) MAIN	1-48317-494-0	02	1	9202-		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAXI	1-48317-441-0	01	1	9202-		●
37	BOLT; AIR TANK M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9202-9202	●
37	BOLT; AIR TANK M12X45	1-09030-052-1	08	1	9203-	●
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X45	1-09030-052-1	06	1	9202-		●
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=97.5	1-48317-323-1	02	1	9202-		●
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=195	1-48317-367-2	02	1	9202-		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB L=205	1-48317-003-0	04	1	9202-9406		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=205	1-48317-003-0	02	1	9407-9501		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAXI L=210	1-48317-458-0	02	1	9502-		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-48317-308-0	02	1	9202-		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAXI L=205	1-48317-003-0	02	1	9202-9406		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=205	1-48317-003-0	04	1	9407-9501		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB L=210	1-48317-458-0	04	1	9502-		●
42	WASHER; PL (A) ID=8.4 OD=22	9-09160-708-0	04	1	9202-	●
42	WASHER; PL (B) ID=10.5	9-09164-510-0	02	1	9202-	●
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	9-09160-608-0	04	1	9202-		●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	9-01900-825-0	04	1	9202-9202	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	9203-	●
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	9-01960-620-0	04	1	9202-9202	●
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	9203-	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X18 W/LK WASHER	0-50040-818-0	04	1	9202-9205		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28080-820-0	04	1	9206-		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X22 W/LK&PL WASHER	0-50141-022-0	04	1	9202-9205		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9206-		●
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	12	1	9202-	●
45	NUT; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	16	1	9202-		●
64	STAY; AIR TANK,MAIN	1-48317-220-1	01	1	9202-	●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-224-2	01	1	9202-9207		●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-293-1	01	1	9208-		●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-94301-490-0	01	1	9202-9208		●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48317-349-0	01	1	9209-		●
67	STAY; SUB TANK	1-48317-246-0	01	1	9202-	●
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-349-0	01	1	9202-		●
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H=203	1-53318-217-0	02	1	9202-		●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	04	1	9202-		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SECONDARY	1-47800-382-1	01	1	9202-9208		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SECONDARY	1-47800-412-1	01	1	9209-		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PRIMARY	1-47800-397-1	01	1	9202-9208		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PRIMARY	1-47800-510-1	01	1	9209-		●
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-410-0	04	1	9202-9205		●
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-110-0	04	1	9206-		●
83	NUT; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-410-0	10	1	9202-9205		●
83	NUT; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-110-0	10	1	9206-		●
84	WASHER; LK,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.2	9-09150-510-0	10	1	9202-9205		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-040-0	03	1	9202-9208	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-040-0	03	1	9202-9208		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 6SA1 STD ENG(06L)	1-48340-040-0	03	1	9209-9411	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48340-040-0	03	1	9209-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 6SA1 STD ENG(06L) 530KPA	1-48340-054-0	03	1	9412-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 530KPA	1-48340-054-0	03	1	9412-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-040-0	02	1	9202-9406		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-040-0	01	1	9407-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-0	01	1	9412-9504		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	02	1	9505-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48340-040-0	02	1	9202-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	02	1	9412-		●
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8	9-09110-408-0	04	1	9202-		●
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10	9-09110-510-0	04	1	9202-		●

83 28 80 28 37 172 43 172 67 43 45 45 64 81 79 83 39 43 172 42 82 64 39 12 166 3 5 5 5 166 10 3 5 166 1 5 3 1 5 11 7 6 7 6 10 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR MAIN	1-48330-801-4	01	1	9202-	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) SUB	1-48330-206-1	01	1	9202-9208		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) MAIN	1-48330-987-0	01	1	9209-		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) MAIN	1-48330-598-0	01	1	9202-9208		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) SUB	1-48330-988-0	01	1	9209-		●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) MAXI,SUB	1-48330-765-3	02	1	9202-		●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB	1-48330-764-3	01	1	9202-		●
1	TANK ASM; AIR 6HE1 STD ENG(46L) (D) MAIN	1-48330-948-3	01	1	9202-		●
1	TANK ASM; AIR 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) MAIN	1-48330-768-5	01	1	9202-		●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	03	1	9202-	●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9202-	●
3	VALVE; CHECK,AIR TANK (C)	1-48410-133-1	01	1	9202-9208		●
3	VALVE; CHECK,AIR TANK (C)	1-48410-133-2	02	1	9209-		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48410-182-2	02	1	9202-9208		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48410-182-3	01	1	9209-		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (B)	1-48410-182-2	01	1	9202-9208		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48410-133-1	02	1	9202-9208		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48410-133-2	01	1	9209-		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M22 & PT3/4	1-48410-136-3	01	1	9202-		●
5	UNION; AIR TANK (A)	1-09660-534-0	07	1	9202-	●
5	UNION; AIR TANK (B)	1-09660-535-0	02	1	9202-	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09650-221-1	01	1	9202-9208		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09650-221-1	02	1	9209-9302		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 & PT1/2 ELBOW	1-09650-442-0	02	1	9303-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16	1-09650-245-1	01	1	9202-9208		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) FLARE M22 PT1/2	9-09231-815-1	01	1	9209-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9202-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M12 & M14 & PT1/4 3WAY	1-09656-368-1	01	1	9202-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9401-		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-534-0	03	1	9202-		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-534-0	02	1	9202-		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-534-0	01	1	9202-		●
5	UNION; AIR TANK 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> (C) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9202-9302		●
5	UNION; AIR TANK 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-		●
5	UNION; AIR TANK 6SA1 STD ENG(06L) (B)	1-09660-535-0	01	1	9202-9209		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-535-0	01	1	9210-		●
6	COCK; DRAIN,AIR TANK	1-48312-013-1	02	1	9202-9207	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-013-1	02	1	9202-9207		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-013-1	02	1	9202-9207		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-013-1	04	1	9208-		●
6	COCK; DRAIN,AIR TANK W/COVER	1-48312-004-1	03	1	9202-9207	●
6	COCK; DRAIN,AIR TANK W/COVER	1-48312-004-1	05	1	9208-9509	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	9510-	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W/COVER	1-48312-004-1	04	1	9202-9509		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	9510-		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-013-1	01	1	9202-		●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	05	1	9206-	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=23.0	9-09572-014-0	04	1	9206-		●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=23.0	9-09572-014-0	05	1	9206-		●
10	PLUG; AIR TANK (A)	1-09605-111-0	02	1	9202-	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (B) PT1/4	9-99204-513-0	01	1	9202-9207	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4	9-99204-513-0	01	1	9202-9207		●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) (B) PT1/4	9-99204-513-0	01	1	9208-	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4	9-99204-513-0	03	1	9202-9207		●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4	9-99204-513-0	04	1	9208-9208		●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4	9-99204-513-0	02	1	9209-9406		●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4	9-99204-513-0	03	1	9407-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09605-103-0	02	1	9202-9202		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09605-112-0	02	1	9203-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09605-102-0	04	1	9202-9202		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09605-111-0	01	1	9203-		●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09605-111-0	03	1	9203-		●
11	VALVE; SAFETY,AIR TANK	1-48320-007-0	01	1	9202-9202	●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48320-007-0	01	1	9202-9202		●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48320-003-0	01	1	9202-9202		●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9203-9208	●	●
11	VALVE; SAFETY,AIR TANK 6SA1 STD ENG(06L),6HE1 STD ENG(46L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48320-003-0	01	1	9209-9504	●	●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48320-003-0	01	1	9209-9504		●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48320-003-0	01	1	9505-	●	●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48320-003-0	01	1	9505-		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47481-349-0	01	1	9202-9208		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47482-864-0	01	1	9202-9208		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47497-011-0	01	1	9209-		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47497-012-0	01	1	9209-		●
28	BRACKET; AIR TANK 6SA1 STD ENG(06L)	1-48317-240-4	02	1	9202-	●
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-232-9	02	1	9202-		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB	1-48317-441-0	02	1	9202-		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) MAIN	1-48317-494-0	02	1	9202-		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAXI	1-48317-441-0	01	1	9202-		●
37	BOLT; AIR TANK M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9202-9202	●
37	BOLT; AIR TANK M12X45	1-09030-052-1	08	1	9203-	●
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X45	1-09030-052-1	06	1	9202-		●
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=97.5	1-48317-323-1	02	1	9202-		●
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=195	1-48317-367-2	02	1	9202-		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB L=205	1-48317-003-0	04	1	9202-9406		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=205	1-48317-003-0	02	1	9407-9501		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAXI L=210	1-48317-458-0	02	1	9502-		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-48317-308-0	02	1	9202-		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAXI L=205	1-48317-003-0	02	1	9202-9406		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=205	1-48317-003-0	04	1	9407-9501		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB L=210	1-48317-458-0	04	1	9502-		●
42	WASHER; PL (A) ID=8.4 OD=22	9-09160-708-0	04	1	9202-	●
42	WASHER; PL (B) ID=10.5	9-09164-510-0	02	1	9202-	●
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	9-09160-608-0	04	1	9202-		●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	9-01900-825-0	04	1	9202-9202	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	9203-	●
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	9-01960-620-0	04	1	9202-9202	●
43	BOLT; STAY,AIR TANK,MAIN (B) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	9203-	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X18 W/LK WASHER	0-50040-818-0	04	1	9202-9205		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28080-820-0	04	1	9206-		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X22 W/LK&PL WASHER	0-50141-022-0	04	1	9202-9205		●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9206-		●
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	12	1	9202-	●
45	NUT; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	16	1	9202-		●
64	STAY; AIR TANK,MAIN	1-48317-220-1	01	1	9202-	●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-224-2	01	1	9202-9207		●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-293-1	01	1	9208-		●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-94301-490-0	01	1	9202-9208		●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48317-349-0	01	1	9209-		●
67	STAY; SUB TANK	1-48317-246-0	01	1	9202-	●
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-349-0	01	1	9202-		●
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H=203	1-53318-217-0	02	1	9202-		●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	04	1	9202-		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SECONDARY	1-47800-382-1	01	1	9202-9208		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SECONDARY	1-47800-412-1	01	1	9209-		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PRIMARY	1-47800-397-1	01	1	9202-9208		●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PRIMARY	1-47800-510-1	01	1	9209-		●
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-410-0	04	1	9202-9205		●
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-110-0	04	1	9206-		●
83	NUT; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-410-0	10	1	9202-9205		●
83	NUT; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-110-0	10	1	9206-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-040-0	03	1	9202-9208	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-040-0	03	1	9202-9208		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 6SA1 STD ENG(06L)	1-48340-040-0	03	1	9209-9411	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48340-040-0	03	1	9209-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 6SA1 STD ENG(06L) 530KPA	1-48340-054-0	03	1	9412-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 530KPA	1-48340-054-0	03	1	9412-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-040-0	02	1	9202-9406		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-040-0	01	1	9407-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-0	01	1	9412-9504		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	02	1	9505-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48340-040-0	02	1	9202-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	02	1	9412-		●
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8	9-09110-408-0	04	1	9202-		●
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10	9-09110-510-0	04	1	9202-		●

46 46 166 8 11 28 46 3 46 5 16 28 5 39 1 7 8 6 5 39 3 5 11 166 5 1 28 8 7 46 46 8 6 46 28 46 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR MAIN	1-48330-801-4	01	1	9202-	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) SUB	1-48330-206-1	01	1	9202-9208		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) MAIN	1-48330-987-0	01	1	9209-		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) MAIN	1-48330-598-0	01	1	9202-9208		●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) SUB	1-48330-988-0	01	1	9209-		●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) MAXI,SUB	1-48330-765-3	02	1	9202-		●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB	1-48330-764-3	01	1	9202-		●
1	TANK ASM; AIR 6HE1 STD ENG(46L) (D) MAIN	1-48330-948-3	01	1	9202-		●
1	TANK ASM; AIR 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) MAIN	1-48330-768-5	01	1	9202-		●
3	VALVE; CHECK,AIR TANK (A)	1-48410-133-2	03	1	9202-	●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9202-	●
3	VALVE; CHECK,AIR TANK (C)	1-48410-133-1	01	1	9202-9208		●
3	VALVE; CHECK,AIR TANK (C)	1-48410-133-2	02	1	9209-		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48410-182-2	02	1	9202-9208		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48410-182-3	01	1	9209-		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (B)	1-48410-182-2	01	1	9202-9208		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48410-133-1	02	1	9202-9208		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48410-133-2	01	1	9209-		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M22 & PT3/4	1-48410-136-3	01	1	9202-		●
5	UNION; AIR TANK (A)	1-09660-534-0	07	1	9202-	●
5	UNION; AIR TANK (B)	1-09660-535-0	02	1	9202-	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09650-221-1	01	1	9202-9208		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09650-221-1	02	1	9209-9302		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 & PT1/2 ELBOW	1-09650-442-0	02	1	9303-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16	1-09650-245-1	01	1	9202-9208		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) FLARE M22 PT1/2	9-09231-815-1	01	1	9209-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9202-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M12 & M14 & PT1/4 3WAY	1-09656-368-1	01	1	9202-		●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9401-		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-534-0	03	1	9202-		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-534-0	02	1	9202-		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-534-0	01	1	9202-		●
5	UNION; AIR TANK 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> (C) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9202-9302		●
5	UNION; AIR TANK 6HE1 STD ENG(46L) EXC. ASSISTER SHIFT CONTROL<WX8> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-		●
5	UNION; AIR TANK 6SA1 STD ENG(06L) (B)	1-09660-535-0	01	1	9202-9209		●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-535-0	01	1	9210-		●
6	COCK; DRAIN,AIR TANK	1-48312-013-1	02	1	9202-9207	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-013-1	02	1	9202-9207		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-013-1	02	1	9202-9207		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-013-1	04	1	9208-		●
6	COCK; DRAIN,AIR TANK W/COVER	1-48312-004-1	03	1	9202-9207	●
6	COCK; DRAIN,AIR TANK W/COVER	1-48312-004-1	05	1	9208-9509	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	9510-	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W/COVER	1-48312-004-1	04	1	9202-9509		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	9510-		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-013-1	01	1	9202-		●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	05	1	9206-	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 OD=23.0	9-09572-014-0	04	1	9206-		●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=23.0	9-09572-014-0	05	1	9206-		●
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (A)	1-09660-539-0	01	1	9202-9207		●
8	CONNECTOR; AIR TANK 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-539-0	01	1	9208-9504	●	●
8	CONNECTOR; AIR TANK (A)	1-09660-539-0	01	1	9505-	●
8	CONNECTOR; AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-539-0	01	1	9505-		●
8	CONNECTOR; AIR TANK 6HE1 STD ENG(46L) ASSISTER SHIFT CONTROL<WX8> (D) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9202-		●
8	CONNECTOR; AIR TANK 6HE1 STD ENG(46L) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (C)	1-09660-532-0	01	1	9202-		●
8	CONNECTOR; AIR TANK 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-593-0	01	1	9202-9504		●
8	CONNECTOR; AIR TANK 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> (B)	1-09660-593-0	01	1	9202-9504		●
8	CONNECTOR; AIR TANK 6HE1 STD ENG(46L) PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. EXHAUST BRAKE<NF8> (B)	1-09660-593-0	01	1	9202-9504		●
8	CONNECTOR; AIR TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-593-0	01	1	9505-		●
8	CONNECTOR; AIR TANK 6HE1 STD ENG(46L) EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> (B)	1-09660-593-0	01	1	9505-		●
8	CONNECTOR; AIR TANK 6HE1 STD ENG(46L) PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. EXHAUST BRAKE<NF8> (B)	1-09660-593-0	01	1	9505-		●
8	CONNECTOR; AIR TANK 6HE1 STD ENG(46L) EXC. DUAL AIR GAUGE<UG2> (B)	1-09660-593-0	01	1	9505-		●
11	VALVE; SAFETY,AIR TANK	1-48320-007-0	01	1	9202-9202	●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48320-007-0	01	1	9202-9202		●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48320-003-0	01	1	9202-9202		●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9203-9208	●	●
11	VALVE; SAFETY,AIR TANK 6SA1 STD ENG(06L),6HE1 STD ENG(46L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48320-003-0	01	1	9209-9504	●	●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48320-003-0	01	1	9209-9504		●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48320-003-0	01	1	9505-	●	●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48320-003-0	01	1	9505-		●
16	CONNECTOR; SWITCH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) MAIN	1-09660-547-0	01	1	9202-9202		●
16	CONNECTOR; SWITCH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB	1-09660-549-0	02	1	9202-9202		●
16	CONNECTOR; SWITCH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB	1-09660-640-1	02	1	9203-9302		●
16	CONNECTOR; SWITCH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB PT1/2 & NPTF1/2 2WAY	1-09660-695-0	02	1	9303-		●
16	CONNECTOR; SWITCH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAXI	1-09660-549-0	01	1	9202-9202		●
16	CONNECTOR; SWITCH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAXI	1-09660-640-1	01	1	9203-9302		●
16	CONNECTOR; SWITCH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAXI PT1/2 & NPTF1/2 2WAY	1-09660-695-0	01	1	9303-		●
28	BRACKET; AIR TANK 6SA1 STD ENG(06L)	1-48317-240-4	02	1	9202-	●
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-232-9	02	1	9202-		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB	1-48317-441-0	02	1	9202-		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) MAIN	1-48317-494-0	02	1	9202-		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAXI	1-48317-441-0	01	1	9202-		●
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=97.5	1-48317-323-1	02	1	9202-		●
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=195	1-48317-367-2	02	1	9202-		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB L=205	1-48317-003-0	04	1	9202-9406		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=205	1-48317-003-0	02	1	9407-9501		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAXI L=210	1-48317-458-0	02	1	9502-		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-48317-308-0	02	1	9202-		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAXI L=205	1-48317-003-0	02	1	9202-9406		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=205	1-48317-003-0	04	1	9407-9501		●
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB L=210	1-48317-458-0	04	1	9502-		●
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MAIN M8	9-09110-408-0	08	1	9202-		●
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SUB M8	9-09111-408-0	16	1	9202-		●
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MAXI M8	9-09111-408-0	08	1	9202-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	1-48340-040-0	03	1	9202-9208	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-040-0	03	1	9202-9208		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 6SA1 STD ENG(06L)	1-48340-040-0	03	1	9209-9411	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48340-040-0	03	1	9209-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 6SA1 STD ENG(06L) 530KPA	1-48340-054-0	03	1	9412-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 530KPA	1-48340-054-0	03	1	9412-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-040-0	02	1	9202-9406		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-040-0	01	1	9407-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-0	01	1	9412-9504		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	02	1	9505-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48340-040-0	02	1	9202-9411		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	02	1	9412-		●

241 242 246 244 245 309 329 259 261 259 329 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
241	BOLT; SET,CONT VLV M8X65	0-10805-865-0	02	1	9202-	●
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X65	0-10805-865-0	02	1	9202-		●
242	WASHER; LK,CONT VLV ID=8.2	9-09150-508-0	02	1	9202-	●
242	WASHER; LK,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8.2	9-09150-508-0	02	1	9202-		●
244	PIPE; VINYL,EXH L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9202-		●
245	CLIP; VINYL PIPE ID=15	9-09715-098-0	01	1	9202-	●
245	CLIP; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=15	9-09715-098-0	01	1	9202-		●
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	9202-	●
246	GROMMET; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	9202-		●
259	NUT; SLEEVE OD=1/2"	1-09660-558-0	AR	1	9202-	●
259	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=1/2"	1-09660-558-0	AR	1	9202-		●
261	TUBE; NYLON L=30000	1-09368-254-0	AR	1	9202-	●
261	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=30000	1-09368-254-0	AR	1	9202-		●
309	RING; INSERT OD=1/2"	1-09669-107-0	AR	1	9202-	●
309	RING; INSERT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=1/2"	1-09669-107-0	AR	1	9202-		●
329	SLEEVE; NYLON TUBE ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9202-	●
329	SLEEVE; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9202-		●

178 177 237 138 238 239 240 86 125 149 145 152 145 139 150 151 151 154 153 140 141 28 172 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	BRACKET; AIR TANK 6SA1 STD ENG(06L)	1-48317-240-4	02	1	9202-	●
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-232-9	02	1	9202-		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SUB	1-48317-441-0	02	1	9202-		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) MAIN	1-48317-494-0	02	1	9202-		●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) MAXI	1-48317-441-0	01	1	9202-		●
86	SEAL; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-019-0	01	1	9202-		●
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=325 SERVICED BY L=1800	1-09360-320-0	02	1	9202-9205		●
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=295 SERVICED BY L=1800	1-09360-320-0	02	1	9206-9310		●
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=270 SERVICED BY L=1800	1-09360-320-0	02	1	9311-		●
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-154-1	01	1	9202-		●
139	BRACKET; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-112-1	01	1	9202-9205		●
139	BRACKET; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-081-1	01	1	9206-		●
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X20 W/LK WASHER	0-50041-020-0	02	1	9202-9403		●
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X20 FLANGE	0-28081-020-0	02	1	9404-		●
141	NUT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-510-0	02	1	9202-		●
145	CLIP; OIL TANK TO AIR MASTER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=15	1-09704-018-1	04	1	9202-9205		●
145	CLIP; OIL TANK TO AIR MASTER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09704-102-0	04	1	9206-		●
149	SLEEVE; RUBBER,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=15 OD=19 L=50	1-09337-014-0	02	1	9202-9205		●
149	SLEEVE; RUBBER,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=15 OD=19 L=50	1-09337-014-0	01	1	9206-9209		●
149	SLEEVE; RUBBER,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=23 OD=27 L=40	1-09337-015-0	01	1	9210-		●
150	CLIP; BAND,RUBBER SLEEVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=100	5-09707-036-0	02	1	9202-9205		●
150	CLIP; BAND,RUBBER SLEEVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=100	5-09707-036-0	01	1	9206-9209		●
150	CLIP; BAND,RUBBER SLEEVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=140	5-09707-031-0	01	1	9210-		●
151	BAND; OIL TANK,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-056-2	02	1	9202-		●
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28010-820-0	02	1	9202-9204		●
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	04	1	9205-9406		●
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	02	1	9407-		●
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9202-9205		●
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9206-		●
154	WASHER; PL,OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4	9-09160-508-0	02	1	9202-9205		●
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8	9-09110-408-0	04	1	9202-		●
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10	9-09110-510-0	04	1	9202-		●
177	HOSE; RUBBER,DRAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250 SERVICED BY L=3000	0-02165-300-0	01	1	9202-9310		●
177	HOSE; RUBBER,DRAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=220 SERVICED BY L=3000	0-03266-300-0	01	1	9311-		●
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=21	8-94242-034-0	01	1	9202-9406		●
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-026-1	01	1	9202-		●
238	PLATE; BAFFLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-022-0	01	1	9202-		●
239	FILTER; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-017-0	01	1	9202-		●
240	HOLDER; FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-018-0	01	1	9202-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
