Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11535 - CYZ RHD EURO2
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-52 - PIPING; AIR CONDITIONING
▶
8-52 — PIPING; AIR CONDITIONING
(#124870) — 74 parça
Tümü
A - CYZ5MC
B - CYZ5MF
◀
[852A] FRAME SIDE NO.1 (13 parça)
[852A] FRAME SIDE NO.2 (25 parça)
[852A] CAB SIDE NO.2 (20 parça)
[852A] CAB SIDE NO.1 (16 parça)
▶

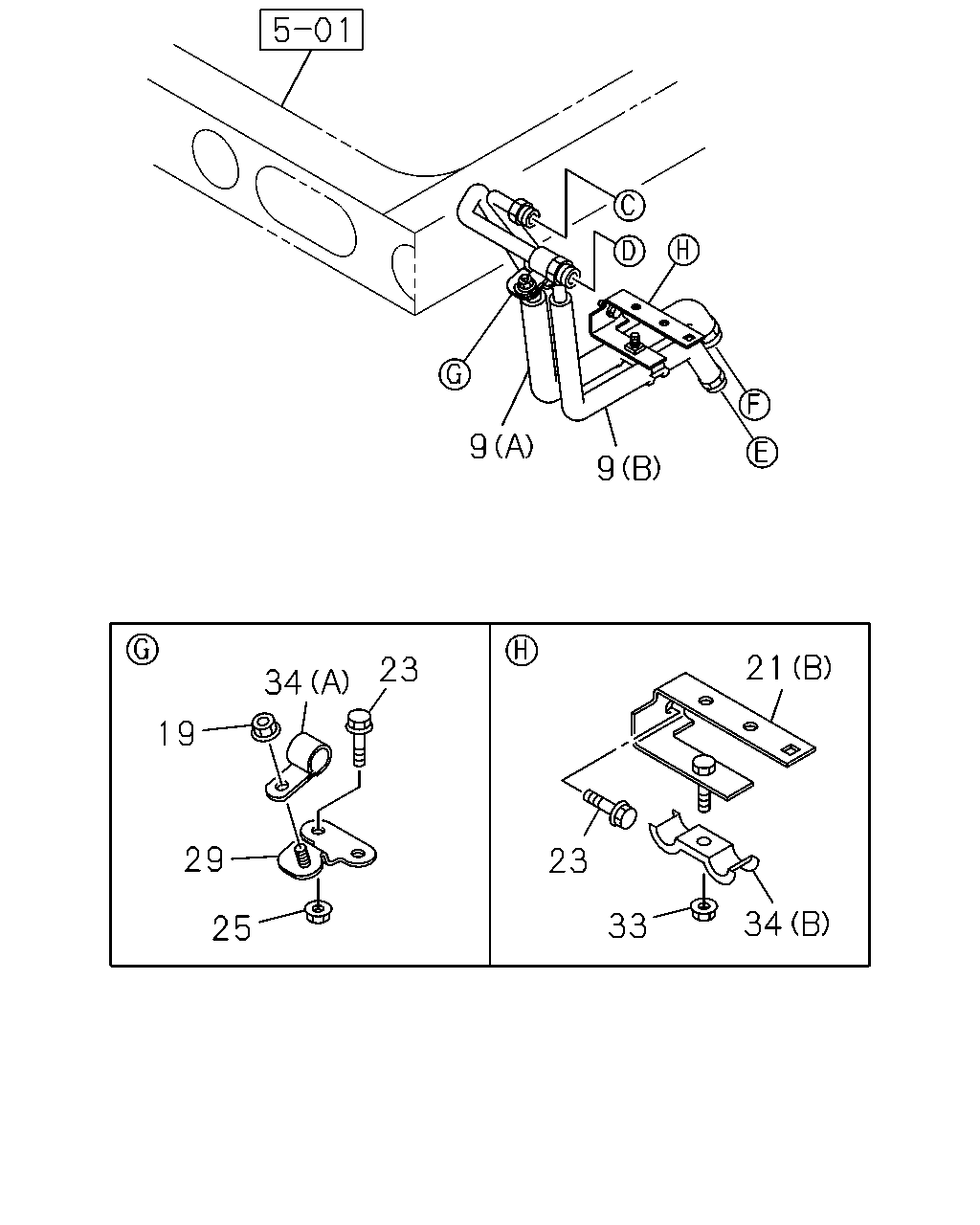

9
9
23
34
19
29
25
21
23
33
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
9
PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98226-522-0
01
1
1306-
●
●
9
PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98226-523-0
01
1
1306-
●
●
19
NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
1306-
●
●
19
NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
02
1
1306-
●
●
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98227-084-0
01
1
1306-
●
●
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98227-085-1
01
1
1306-
●
●
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE
0-28650-820-0
03
1
1306-
●
●
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X25 FLANGE
0-28651-025-0
01
1
1306-
●
●
25
NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
1306-
●
●
29
BRACKET; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-97638-928-0
01
1
1306-
●
●
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1306-
●
●
34
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=20 & 20
1-83574-195-1
01
1
1306-
●
●
34
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=17 L=28
8-94427-862-0
01
1
1306-
●
●

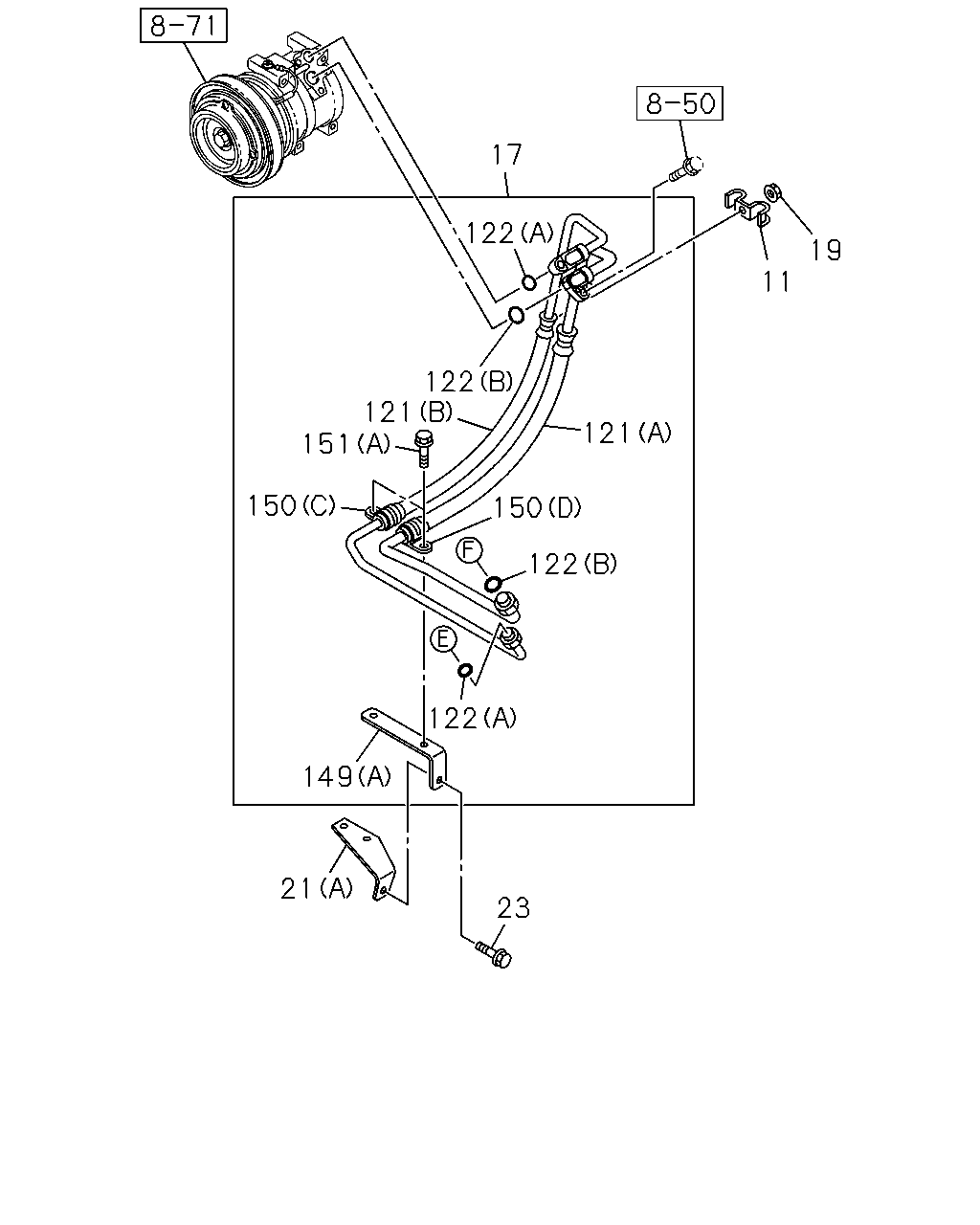

17
122
11
19
122
121
121
151
150
150
122
122
149
21
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
11
CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=12 & 14.5
1-83574-257-0
01
1
1306-
●
●
17
HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-98226-521-1
01
1
1306-
●
●
19
NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
1306-
●
●
19
NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
02
1
1306-
●
●
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98227-084-0
01
1
1306-
●
●
21
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98227-085-1
01
1
1306-
●
●
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE
0-28650-820-0
03
1
1306-
●
●
23
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X25 FLANGE
0-28651-025-0
01
1
1306-
●
●
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C)
1-83577-054-0
01
1
1306-
●
●
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D)
8-98165-880-0
01
1
1306-
●
●
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E)
8-98165-881-0
01
1
1306-
●
●
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98232-122-0
01
1
1306-
●
●
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98232-123-0
01
1
1306-
●
●
122
GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7
1-83539-317-0
02
1
1306-
●
●
122
GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5
1-83539-324-0
02
1
1306-
●
●
122
GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7
8-97095-907-0
02
1
1306-
●
●
122
GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5
8-97095-908-0
02
1
1306-
●
●
149
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98165-879-0
01
1
1306-
●
●
149
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98232-121-0
01
1
1306-
●
●
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C)
1-83574-249-0
01
1
1306-
●
●
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83574-262-0
01
1
1306-
●
●
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83574-263-0
01
1
1306-
●
●
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (D)
1-83574-264-0
01
1
1306-
●
●
151
BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83539-336-0
02
1
1306-
●
●
151
BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83578-098-0
02
1
1306-
●
●

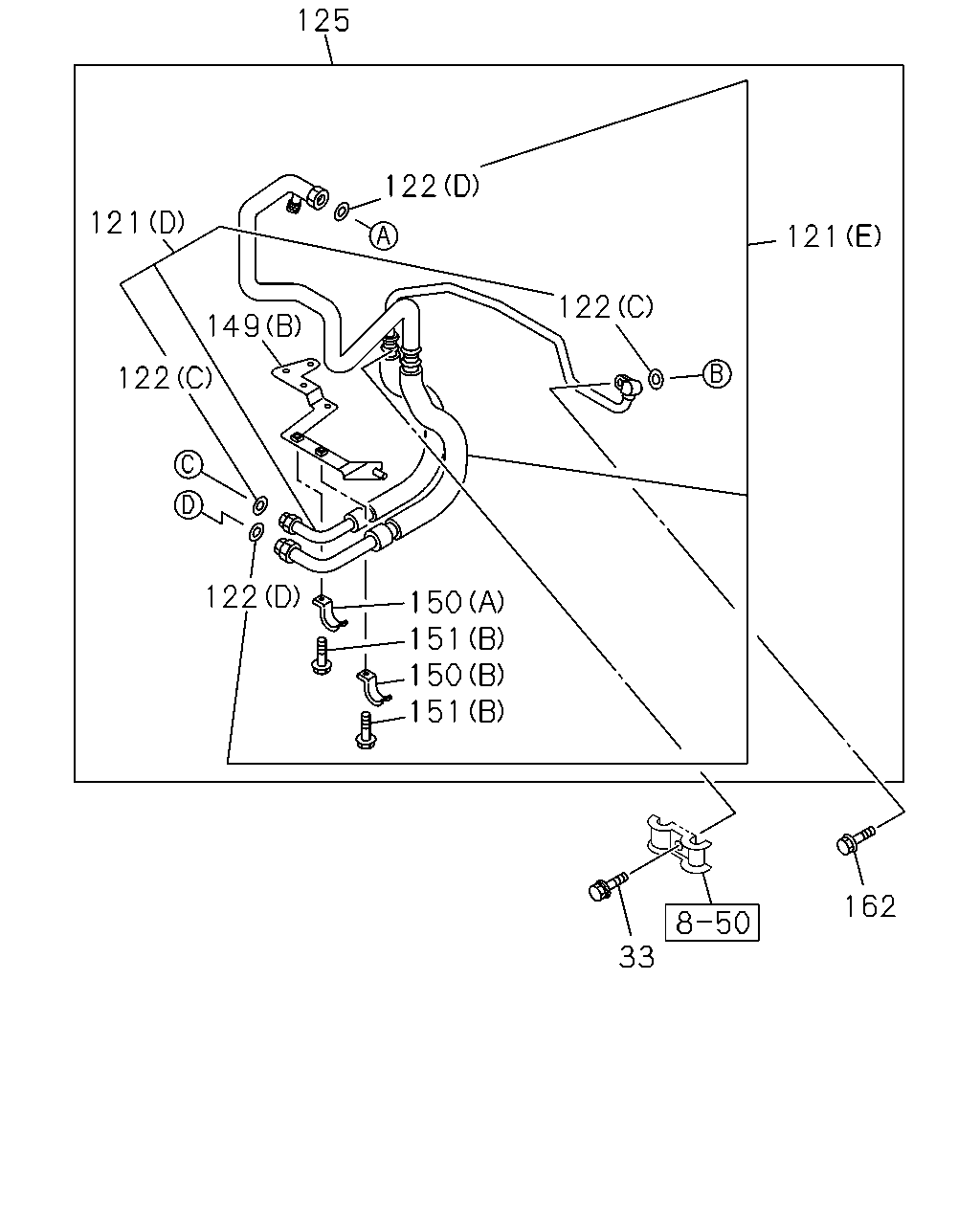

125
121
122
149
122
122
122
150
151
150
151
121
33
162
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1306-
●
●
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C)
1-83577-054-0
01
1
1306-
●
●
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D)
8-98165-880-0
01
1
1306-
●
●
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E)
8-98165-881-0
01
1
1306-
●
●
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98232-122-0
01
1
1306-
●
●
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98232-123-0
01
1
1306-
●
●
122
GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7
1-83539-317-0
02
1
1306-
●
●
122
GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5
1-83539-324-0
02
1
1306-
●
●
122
GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7
8-97095-907-0
02
1
1306-
●
●
122
GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5
8-97095-908-0
02
1
1306-
●
●
125
HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98119-508-1
01
1
1306-
●
●
149
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98165-879-0
01
1
1306-
●
●
149
BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98232-121-0
01
1
1306-
●
●
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C)
1-83574-249-0
01
1
1306-
●
●
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83574-262-0
01
1
1306-
●
●
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83574-263-0
01
1
1306-
●
●
150
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (D)
1-83574-264-0
01
1
1306-
●
●
151
BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83539-336-0
02
1
1306-
●
●
151
BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83578-098-0
02
1
1306-
●
●
162
BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
02
1
1306-
●
●

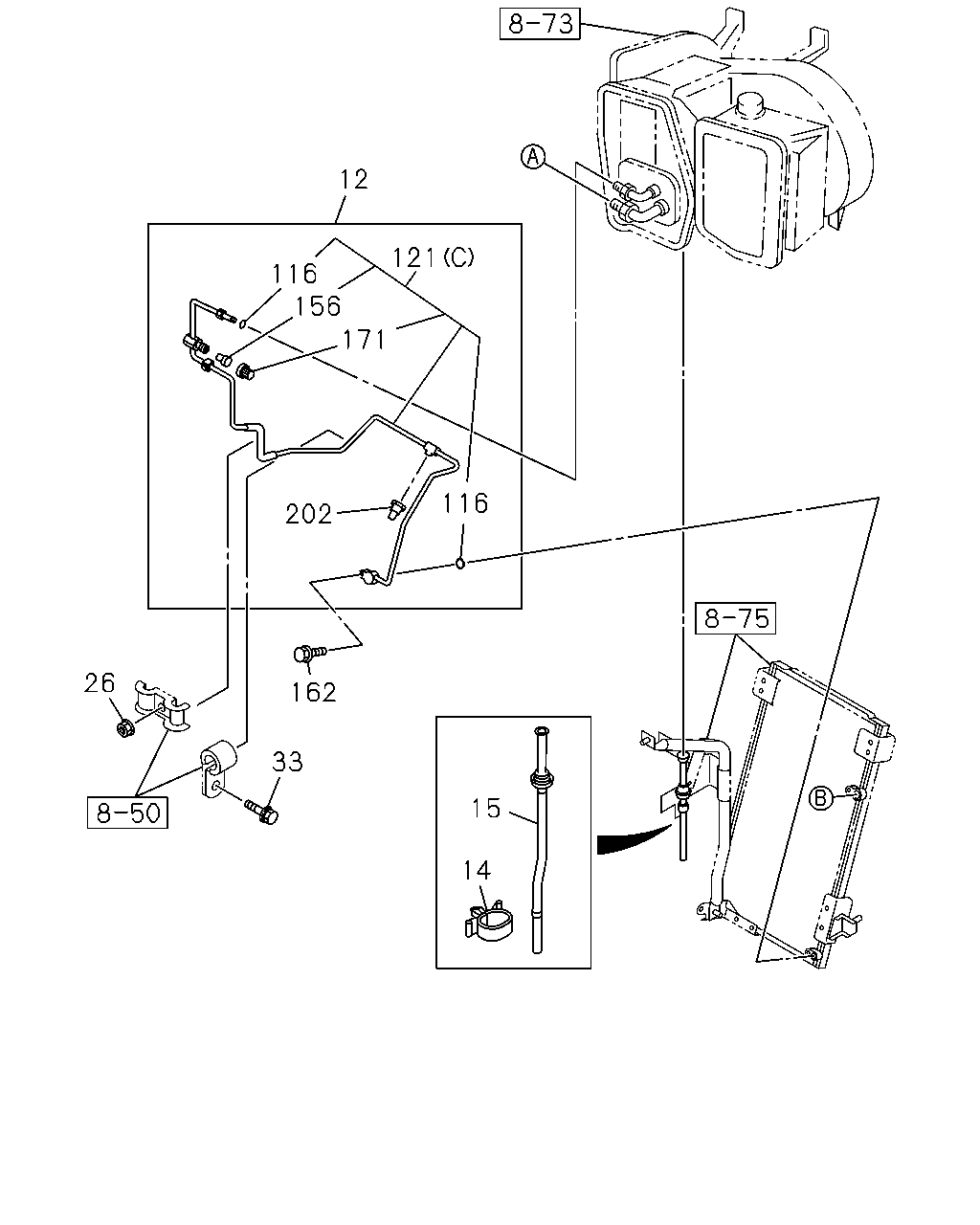

12
121
116
171
156
116
162
33
26
15
14
202
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60)
1-83567-877-1
01
1
1306-
●
●
14
CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20
8-94410-200-0
01
1
1306-
●
●
15
HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60)
1-83572-635-0
01
1
1306-
●
●
15
HOSE; DRAIN
HEATER & DEFROSTER(C41)
1-83572-412-0
01
1
1306-
●
●
26
NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
1306-
●
●
33
BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1306-
●
●
116
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=7.4
8-97095-906-0
02
1
1306-
●
●
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C)
1-83577-054-0
01
1
1306-
●
●
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D)
8-98165-880-0
01
1
1306-
●
●
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E)
8-98165-881-0
01
1
1306-
●
●
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98232-122-0
01
1
1306-
●
●
121
HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98232-123-0
01
1
1306-
●
●
156
VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
8-97095-909-0
01
1
1306-
●
●
162
BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
02
1
1306-
●
●
171
CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H
8-97095-911-0
01
1
1306-
●
●
202
SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83564-392-1
01
1
1306-
●
●
