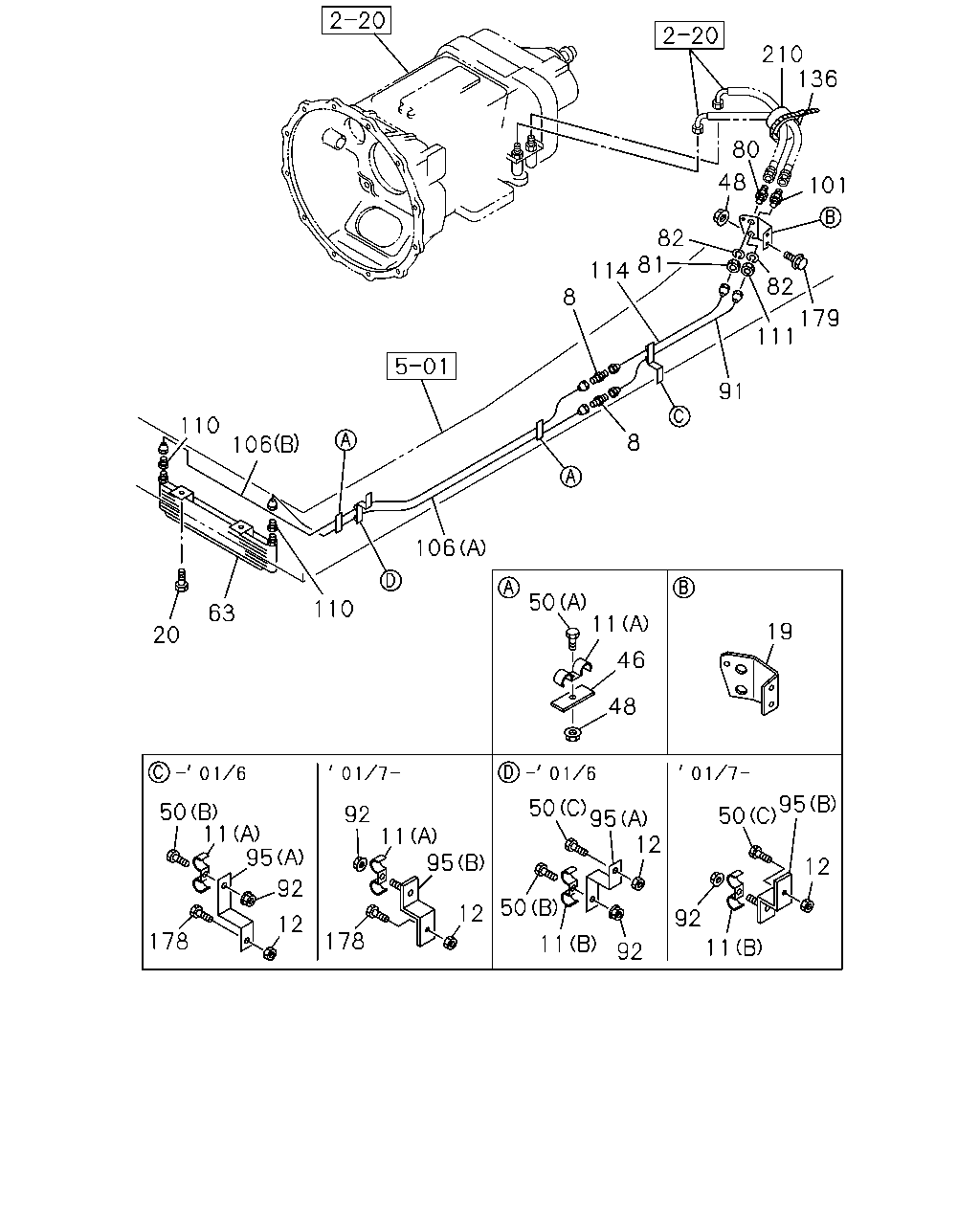

2-53 — TRANSMISSION OIL COOLER SYSTEM (#12487) — 55 parça
çizim 22055
210 136 80 48 101 82 81 114 82 8 179 111 91 110 8 106 106 50 11 110 63 19 20 46 48 95 50 50 95 50 11 95 92 12 11 95 12 92 50 12 92 12 178 178 11 11 92
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 UNION
M22 		9-09233-015-1 02 1 0105- ● ● ● ●
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 0105- ● ● ● ●
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 02 1 0105- ● ● ● ●
11 CLIP; PIPE
(B) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 0105- ● ● ● ●
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ● ● ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●
19 BRACKET; FLEX HOSE 1-47478-566-0 01 1 0105- ● ● ● ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28081-020-0 02 1 0105-0512 ● ● ● ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28051-020-0 02 1 0601- ● ● ● ●
46 BRACKET; OIL PIPE
L=50 		1-47475-299-2 02 1 0105- ● ● ● ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0105-0602 ● ● ● ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ●
50 BOLT; CLIP
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0105-0512 ● ● ● ●
50 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ● ● ●
50 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0106 ● ● ● ●
50 BOLT; CLIP
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0106 ● ● ● ●
50 BOLT; CLIP
(C) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0512 ● ● ● ●
50 BOLT; CLIP
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ● ● ● ●
63 COOLER; OIL 1-21700-290-0 01 1 0105- ● ● ● ●
80 UNION; FLEX HOSE
M22 & M22 STRAIGHT 		1-09654-204-1 01 1 0105- ● ● ● ●
81 NUT; UNION
M22 		9-09111-422-0 01 1 0105-0512 ● ● ● ●
81 NUT; UNION
M22 		0-91111-522-0 01 1 0601- ● ● ● ●
82 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 0105- ● ● ● ●
82 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 0105- ● ● ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=837 		1-49163-182-0 01 1 0105-0106 ● ● ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=832 		1-49166-225-0 01 1 0107- ● ● ● ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0106 ● ● ● ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0106 ● ● ● ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0107-0602 ● ● ● ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0107-0602 ● ● ● ●
92 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
92 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
95 BRACKET; CLIP
(A) 		1-47475-881-0 01 1 0105-0106 ● ● ● ●
95 BRACKET; CLIP
(A) 		1-47475-881-0 01 1 0105-0106 ● ● ● ●
95 BRACKET; CLIP
(B) 		1-47477-669-1 01 1 0107- ● ● ● ●
95 BRACKET; CLIP
(B) 		1-47477-669-1 01 1 0107- ● ● ● ●
101 UNION; FLEX HOSE
M22 & M22 STRAIGHT 		1-09654-204-1 01 1 0105- ● ● ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(B) L=2317 		1-49164-311-0 01 1 0105-0106 ● ● ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(B) L=2324 		1-49166-216-0 01 1 0107-0206 ● ● ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(B) L=2305 		1-49166-669-0 01 1 0207- ● ● ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=1703 		1-49164-312-0 01 1 0105-0106 ● ● ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=1695 		1-49166-217-0 01 1 0107-0301 ● ● ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=1696 		1-49166-830-0 01 1 0302- ● ● ● ●
110 UNION; OIL PIPE 1-09654-398-0 02 1 0105- ● ● ● ●
111 NUT; UNION
M22 		9-09111-422-0 01 1 0105-0512 ● ● ● ●
111 NUT; UNION
M22 		0-91111-522-0 01 1 0601- ● ● ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=998 		1-49163-183-0 01 1 0105-0106 ● ● ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=998 		1-49166-226-0 01 1 0107- ● ● ● ●
136 CLIP; FLEX HOSE
L=250 		1-09707-126-0 01 1 0105-0304 ● ● ● ●
136 CLIP; FLEX HOSE
L=350 		1-09707-183-0 01 1 0305- ● ● ● ●
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512 ● ● ● ●
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512 ● ● ● ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ● ● ●
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0105- ● ● ● ●
