Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#124861) — 383 parça

340 515 294 219 524 423 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	1306-	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
219	NUT M8 FLANGE	0-91180-108-0	06	1	1306-	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
219	NUT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
219	NUT EXC. ENGINE REAR PTO(SV1) M8 FLANGE	0-91180-108-0	01	1	1306-	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1306-		●
294	NUT M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
294	NUT M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
294	NUT M8 FLANGE	0-91180-108-0	03	1	1306-	●	●
294	NUT M8 FLANGE	0-91180-108-0	03	1	1306-	●	●
340	NUT; HARNESS CAB TO FRAME M8 CUTTING NUT W/FLANGE	1-09985-340-0	05	1	1306-	●	●
423	WASHER; HARNESS,EARTH FULL TRACTOR TRUCK<RD6> ID=8.4	1-09503-264-0	03	1	1306-1510	●	●
423	WASHER; HARNESS,EARTH FULL TRAILER PIPING<Z25> ID=8.4	1-09503-264-0	03	1	1511-	●	●
423	WASHER; HARNESS,EARTH EXC. FULL TRACTOR TRUCK<RD6> ID=8.4	1-09503-264-0	02	1	1306-1510	●	●
423	WASHER; HARNESS,EARTH EXC. FULL TRAILER PIPING<Z25> ID=8.4	1-09503-264-0	02	1	1511-	●	●
515	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
515	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	1306-	●	●

38 242 150 150 38 38 242 133 38 242 150 313 242 38 313 139 86 313 139 313 139 38 38 38 516 313 139 239 38 88 386 358

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; CLIP,HARNESS WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> (H) M8X35 FLANGE	0-28650-835-0	01	1	1511-		●
38	BOLT; CLIP,HARNESS (A) M6X10 FLANGE	0-28050-610-0	01	1	1306-	●	●
38	BOLT; CLIP,HARNESS (B) M12X16 FLANGE	0-28051-216-0	01	1	1306-	●	●
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
38	BOLT; CLIP,HARNESS ENGINE REAR PTO(SV1) (D) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	03	1	1306-	●	●
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	1306-	●	●
38	BOLT; CLIP,HARNESS (C) M8X30 FLANGE	0-28650-830-0	01	1	1306-	●	●
38	BOLT; CLIP,HARNESS (C) M8X30 FLANGE	0-28650-830-0	04	1	1306-	●	●
38	BOLT; CLIP,HARNESS (G) M10X20 FLANGE	0-28751-020-0	01	1	1306-	●	●
38	BOLT; CLIP,HARNESS FULL TRACTOR TRUCK<RD6> (F) M8X14 W/PL WASHER	8-98164-837-0	03	1	1306-1510	●	●
38	BOLT; CLIP,HARNESS EXC. FULL TRAILER PIPING<Z25> (F) M8X14 W/PL WASHER	8-98164-837-0	02	1	1511-	●	●
38	BOLT; CLIP,HARNESS EXC. FULL TRACTOR TRUCK<RD6> (F) M8X14 W/PL WASHER	8-98164-837-0	02	1	1306-1510	●	●
38	BOLT; CLIP,HARNESS WHEEL BASE 5500MM(55W) FULL TRAILER PIPING<Z25> (I) M8X50 FLANGE	0-28050-850-0	01	1	1511-		●
38	BOLT; CLIP,HARNESS FULL TRAILER PIPING<Z25> (H) M8X35 FLANGE	0-28650-835-0	01	1	1306-1510	●	●
38	BOLT; CLIP,HARNESS FULL TRAILER PIPING<Z25> (F) M8X14 W/PL WASHER	8-98164-837-0	03	1	1511-	●	●
38	BOLT; CLIP,HARNESS MJT7S M/T(Y3E) (D) M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●
38	BOLT; CLIP,HARNESS MJX16P M/T(Y3Z) (D) M8X20 FLANGE	0-28650-820-0	05	1	1306-	●	●
86	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	1306-	●	●
88	BOLT; DOOR HARNESS EARTH POWER WINDOW<A30> M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1306-	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	1306-	●	●
139	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	01	1	1306-	●
139	BOLT; BRKT WHEEL BASE 5500MM(55W) (C) M8X35 FLANGE	0-28650-835-0	01	1	1306-		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1306-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1306-	●	●
139	BOLT; BRKT (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1306-	●	●
139	BOLT; BRKT WHEEL BASE 5900MM(59W) (D) M8X40 FLANGE	0-28650-840-0	01	1	1306-		●
150	BOLT; CLIP (A) M6X12 FLANGE	0-28050-612-0	02	1	1306-	●	●
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	03	1	1306-	●	●
150	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1306-	●	●
242	BOLT; BRKT,HARNESS EXC. ENGINE REAR PTO(SV1) (D) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●
242	BOLT; BRKT,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	1306-		●
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	1306-	●	●
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28050-820-0	01	1	1306-	●	●
242	BOLT; BRKT,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●
242	BOLT; BRKT,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
313	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E) M8X25 FLANGE	0-28650-825-0	01	1	1311-	●	●
313	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1306-	●	●
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	02	1	1306-	●	●
313	BOLT; BRKT (D) M8X35 FLANGE	0-28650-835-0	01	1	1306-	●	●
313	BOLT; BRKT (B) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	1306-	●	●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1306-	●	●
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1306-	●	●
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1306-	●	●

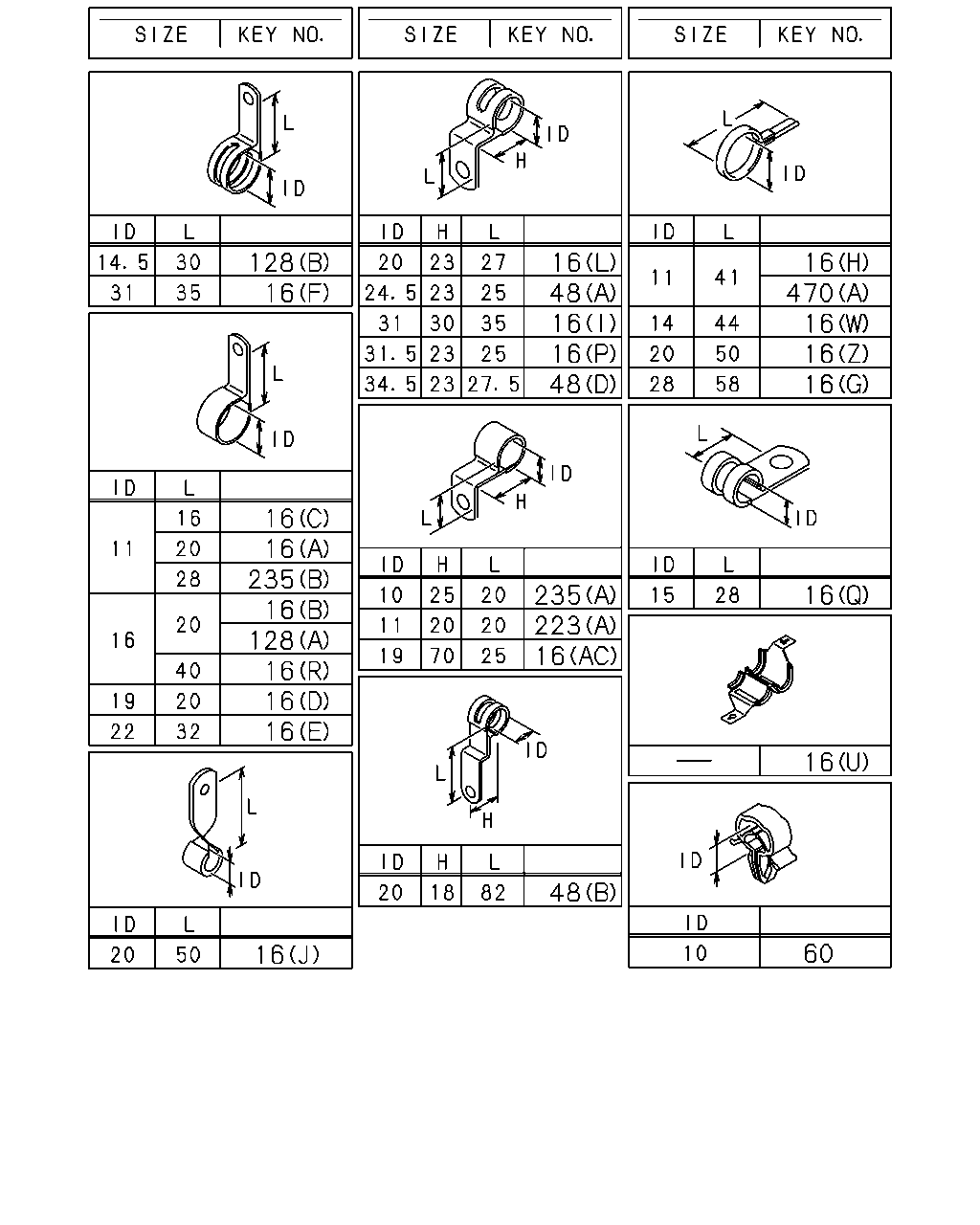

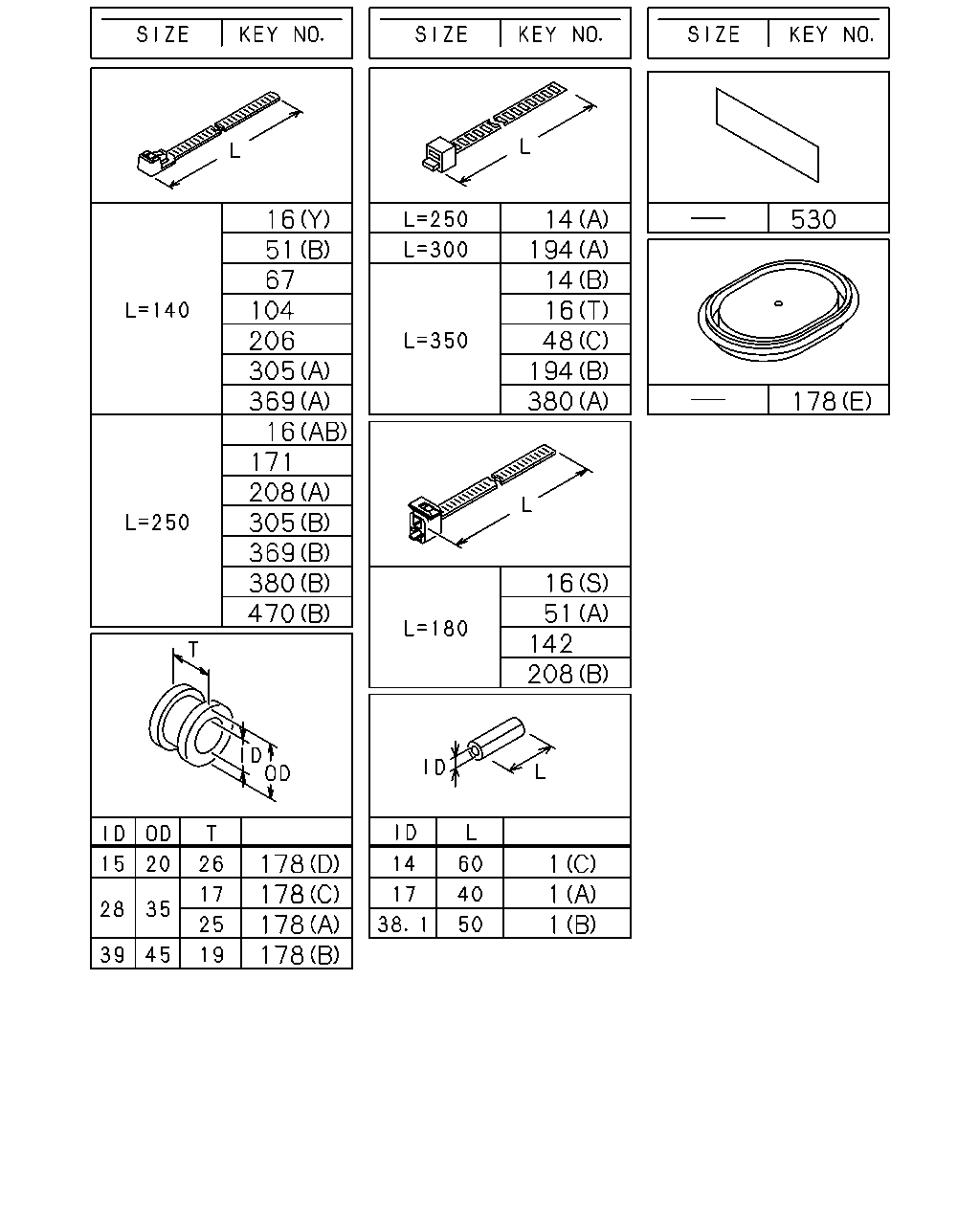

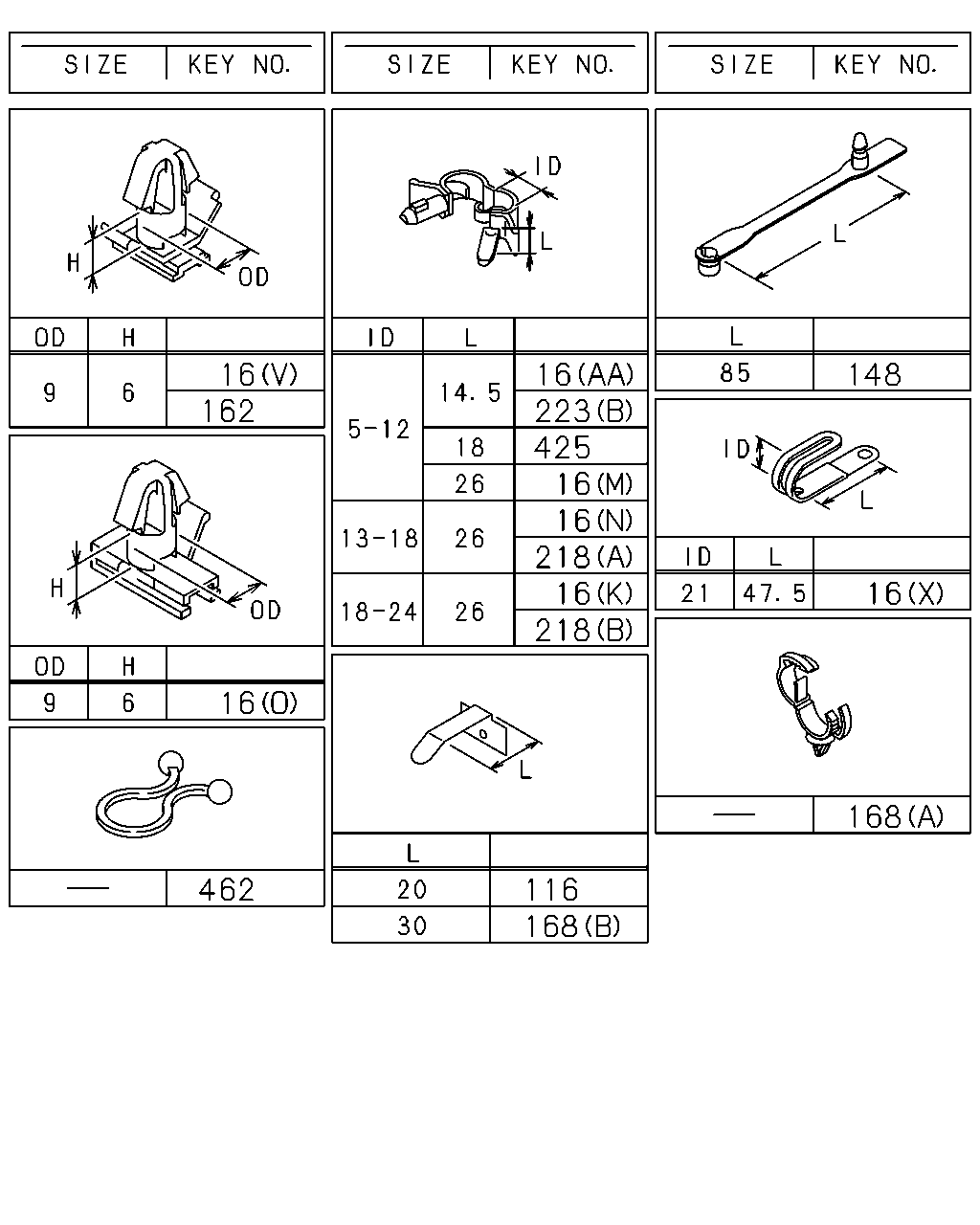

162 16 16 218 16 218 16 16 425 223 16 148 16 168 116 168 462

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (K) ID=18-24 L=26	1-09709-296-0	01	1	1306-1510	●
16	CLIP; HARNESS EXC. BATTERY LAYOUT REAR VAR1<NCT> (K) ID=18-24 L=26	1-09709-296-0	01	1	1306-1510		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> (K) ID=18-24 L=26	1-09709-296-0	01	1	1306-1510		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> (K) ID=18-24 L=26	1-09709-296-0	01	1	1511-		●
16	CLIP; HARNESS (C) ID=11 L=16	0-95235-025-0	02	1	1306-	●	●
16	CLIP; HARNESS (A) B=14 ID=11 L=20	0-95235-032-0	01	1	1306-	●	●
16	CLIP; HARNESS (A) B=18 ID=11 L=20	0-95235-035-0	02	1	1306-	●	●
16	CLIP; HARNESS (B) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1306-	●	●
16	CLIP; HARNESS (D) B=14 ID=19 L=20	0-95235-832-0	01	1	1306-	●	●
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	1306-	●	●
16	CLIP; HARNESS (F) ID=31 L=35	1-09700-329-1	01	1	1306-	●	●
16	CLIP; HARNESS (G) ID=28 L=58	1-09700-400-0	01	1	1306-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	02	1	1306-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	07	1	1306-	●	●
16	CLIP; HARNESS (J) ID=20 L=50	1-09700-679-1	01	1	1306-	●	●
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	1306-	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (L) ID=20 H=23 L=27	1-09700-861-0	01	1	1306-	●
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	1306-		●
16	CLIP; HARNESS (I) ID=31 H=30 L=35	1-09700-994-0	01	1	1306-	●	●
16	CLIP; HARNESS (P) ID=31.5 H=23 L=25	1-09701-017-0	03	1	1306-	●	●
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1306-	●	●
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1306-	●	●
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1306-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1306-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1306-	●	●
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	02	1	1306-	●	●
16	CLIP; HARNESS (M) ID=5-12 L=26	1-09709-289-0	01	1	1306-	●	●
16	CLIP; HARNESS (M) ID=5-12 L=26	1-09709-289-0	01	1	1306-	●	●
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	02	1	1306-	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	01	1	1306-1510	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	01	1	1306-1510	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AB) L=250	5-09707-030-1	01	1	1306-1510	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	01	1	1511-	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	01	1	1511-	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AB) L=250	5-09707-030-1	01	1	1511-	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	02	1	1306-1510	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	02	1	1306-1510	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AB) L=250	5-09707-030-1	02	1	1306-1510	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	02	1	1511-	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AB) L=250	5-09707-030-1	02	1	1511-	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	02	1	1511-	●	●
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	02	1	1306-	●	●
16	CLIP; HARNESS (AC) ID=19 H=70 L=25	8-97360-209-0	01	1	1306-	●	●
16	CLIP; HARNESS (O) OD=9 H=6	8-97368-793-0	02	1	1306-	●	●
16	CLIP; HARNESS (W) ID=14 L=44	9-09917-427-0	02	1	1306-	●	●
16	CLIP; HARNESS (W) ID=14 L=44	9-09917-427-0	02	1	1306-	●	●
16	CLIP; HARNESS (Z) ID=20 L=50	9-09917-430-0	05	1	1306-	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (N) ID=13-18 L=26	1-09709-293-0	02	1	1306-1510	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (N) ID=13-18 L=26	1-09709-293-0	02	1	1511-	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (N) ID=13-18 L=26	1-09709-293-0	01	1	1306-1510	●	●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) EXC. FULL TRACTOR TRUCK<RD6> (N) ID=13-18 L=26	1-09709-293-0	01	1	1306-1510		●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (N) ID=13-18 L=26	1-09709-293-0	01	1	1511-	●	●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) EXC. FULL TRAILER PIPING<Z25> (N) ID=13-18 L=26	1-09709-293-0	01	1	1511-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (Z) ID=20 L=50	9-09917-430-0	03	1	1306-1510	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (Z) ID=20 L=50	9-09917-430-0	03	1	1511-	●	●
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (W) ID=14 L=44	9-09917-427-0	03	1	1306-1510	●	●
16	CLIP; HARNESS EXC. FULL TRAILER PIPING<Z25> (W) ID=14 L=44	9-09917-427-0	03	1	1511-	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (U) W/SPONGE RUBBER	1-09709-150-0	01	1	1306-	●	●
16	CLIP; HARNESS MJT7S M/T(Y3E) (B) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1306-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (A) B=18 ID=11 L=20	0-95235-035-0	01	1	1306-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (B) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1306-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (R) ID=16 L=40	0-95235-576-0	02	1	1306-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (D) B=18 ID=19 L=20	0-95235-836-0	01	1	1306-	●	●
16	CLIP; HARNESS ENGINE REAR PTO(SV1) (D) B=18 ID=19 L=20	0-95235-836-0	01	1	1306-	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (T) L=350	1-09707-183-0	01	1	1306-	●	●
16	CLIP; HARNESS WHEEL BASE 5500MM(55W) (T) L=350	1-09707-183-0	01	1	1306-		●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (V) OD=9 H=6	1-09709-178-0	06	1	1306-1506	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (V) OD=9 H=6	1-09709-178-0	03	1	1507-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (V) OD=9 H=6	1-09709-178-0	03	1	1507-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (Y) L=140	5-09707-031-1	03	1	1306-	●	●
16	CLIP; HARNESS BATTERY LAYOUT REAR VAR1<NCT> (AA) ID=5-12 L=14.5	1-09987-221-0	01	1	1306-		●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	1306-1409	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	07	1	1410-	●	●
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	03	1	1306-	●	●
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1306-	●	●
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	05	1	1306-	●	●
168	CLIP; DASH HARNESS HEATER & DEFROSTER(C41) (B) L=30 SET=10 PIECE	1-09987-265-0	01	1	1306-	●	●
218	CLIP; BAND,RR COMB FULL TRACTOR TRUCK<RD6> (A) ID=13-18 L=26	1-09709-293-0	05	1	1306-1510	●	●
218	CLIP; BAND,RR COMB FULL TRAILER PIPING<Z25> (A) ID=13-18 L=26	1-09709-293-0	05	1	1511-	●	●
218	CLIP; BAND,RR COMB FULL TRACTOR TRUCK<RD6> (B) ID=18-24 L=26	1-09709-296-0	01	1	1306-1510	●	●
218	CLIP; BAND,RR COMB FULL TRAILER PIPING<Z25> (B) ID=18-24 L=26	1-09709-296-0	01	1	1511-	●	●
218	CLIP; BAND,RR COMB EXC. FULL TRACTOR TRUCK<RD6> (A) ID=13-18 L=26	1-09709-293-0	06	1	1306-1510	●	●
218	CLIP; BAND,RR COMB EXC. FULL TRAILER PIPING<Z25> (A) ID=13-18 L=26	1-09709-293-0	06	1	1511-	●	●
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1306-	●	●
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	03	1	1306-	●	●
425	CLIP; MODULATOR ID=5-12 L=18	1-09709-287-0	01	1	1306-	●	●
462	CLIP; HARNESS,HTR HEATER & DEFROSTER(C41) ID=20	1-09709-068-0	02	1	1306-	●	●

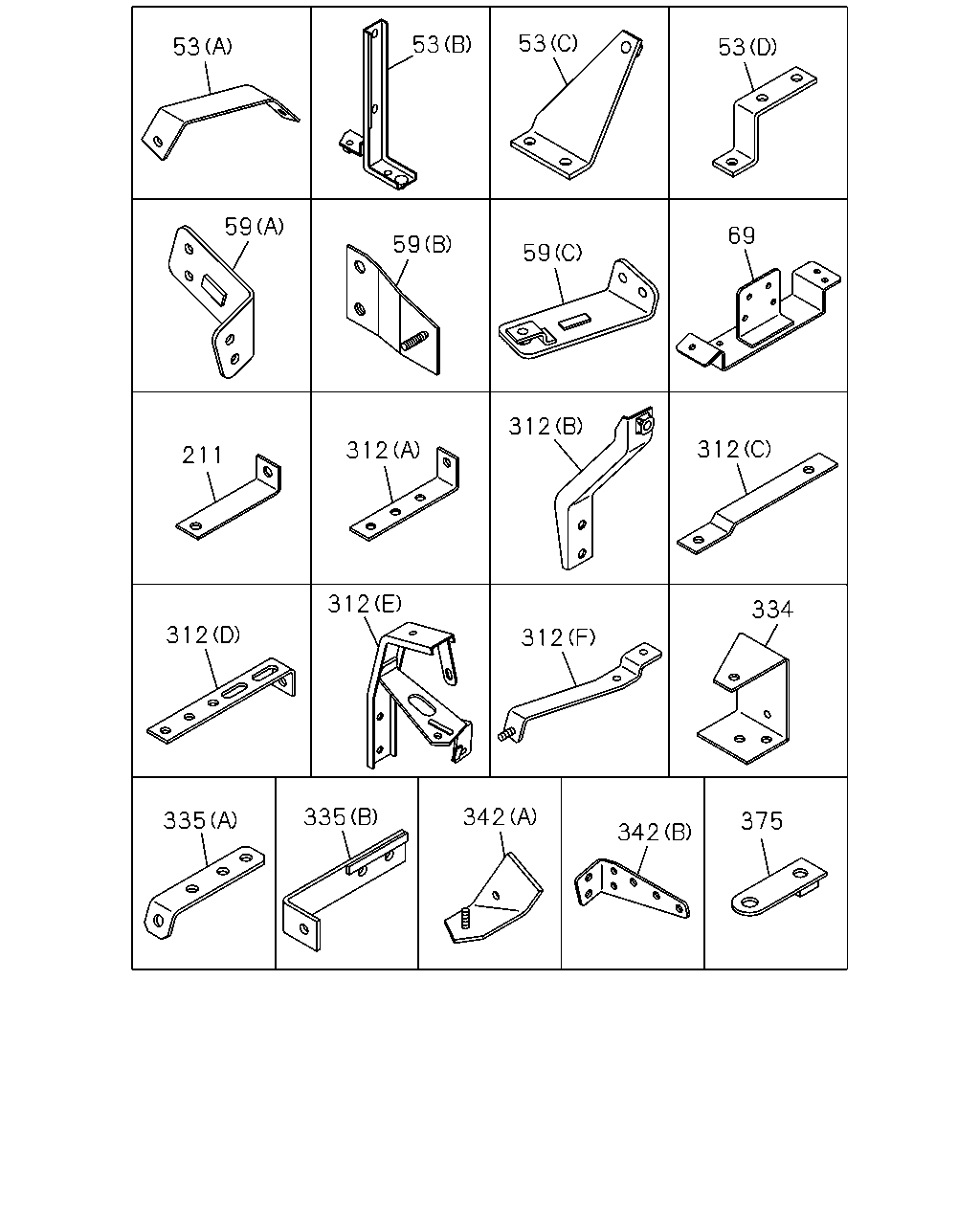

335 335 342 342 375 334 312 312 312 312 312 211 312 59 59 59 69 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	BRACKET; HARNESS (A)	1-47479-537-0	02	1	1306-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	02	1	1306-	●	●
53	BRACKET; HARNESS (D)	8-98124-778-0	01	1	1306-	●	●
53	BRACKET; HARNESS (B)	8-98227-138-0	01	1	1306-	●	●
53	BRACKET; HARNESS (C)	8-98227-141-0	01	1	1306-	●	●
59	BRACKET; FRAME HARNESS (B)	8-98061-135-1	01	1	1306-	●	●
59	BRACKET; FRAME HARNESS FULL TRAILER PIPING<Z25> (C)	8-97639-069-0	01	1	1306-	●	●
59	BRACKET; FRAME HARNESS EXC. FULL TRAILER PIPING<Z25> (A)	8-97633-543-1	01	1	1306-	●	●
69	BRACKET; CLIP	8-98171-829-0	01	1	1306-	●	●
211	BRACKET; AXLE HARNESS L=95	1-82699-085-0	02	1	1306-	●	●
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (F)	8-98254-842-0	01	1	1311-	●	●
312	BRACKET; CLIP HARNESS (D) L=160 H=30	1-47479-759-0	01	1	1306-	●	●
312	BRACKET; CLIP HARNESS (A) L=120 H=35	1-82698-088-0	01	1	1306-	●	●
312	BRACKET; CLIP HARNESS (B)	8-97636-868-1	01	1	1306-	●	●
312	BRACKET; CLIP HARNESS (C)	8-98035-927-1	01	1	1306-	●	●
312	BRACKET; CLIP HARNESS FULL TRAILER PIPING<Z25> (E)	8-97638-177-0	01	1	1306-	●	●
312	BRACKET; CLIP HARNESS EXC. FULL TRAILER PIPING<Z25> (E)	8-97635-477-2	01	1	1306-	●	●
334	BRACKET	1-53457-153-2	01	1	1306-	●	●
335	BRACKET; CONNECTOR WHEEL BASE 5200MM(52W) (A)	1-82698-167-0	01	1	1306-	●
335	BRACKET; CONNECTOR WHEEL BASE 5500MM(55W) (A)	1-82698-167-0	01	1	1306-		●
335	BRACKET; CONNECTOR WHEEL BASE 5900MM(59W) (B)	1-82698-663-0	01	1	1306-		●
342	BRACKET; HARNESS CAB MTG EXC. ENGINE REAR PTO(SV1) (A)	8-98240-938-0	01	1	1306-	●
342	BRACKET; HARNESS CAB MTG (A)	8-98240-938-0	01	1	1306-		●
342	BRACKET; HARNESS CAB MTG (B)	1-82699-625-0	01	1	1306-	●	●
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	1306-	●	●

16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 128 235 128 48 48 235 223 48 470 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (K) ID=18-24 L=26	1-09709-296-0	01	1	1306-1510	●
16	CLIP; HARNESS EXC. BATTERY LAYOUT REAR VAR1<NCT> (K) ID=18-24 L=26	1-09709-296-0	01	1	1306-1510		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> (K) ID=18-24 L=26	1-09709-296-0	01	1	1306-1510		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> (K) ID=18-24 L=26	1-09709-296-0	01	1	1511-		●
16	CLIP; HARNESS (C) ID=11 L=16	0-95235-025-0	02	1	1306-	●	●
16	CLIP; HARNESS (A) B=14 ID=11 L=20	0-95235-032-0	01	1	1306-	●	●
16	CLIP; HARNESS (A) B=18 ID=11 L=20	0-95235-035-0	02	1	1306-	●	●
16	CLIP; HARNESS (B) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1306-	●	●
16	CLIP; HARNESS (D) B=14 ID=19 L=20	0-95235-832-0	01	1	1306-	●	●
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	1306-	●	●
16	CLIP; HARNESS (F) ID=31 L=35	1-09700-329-1	01	1	1306-	●	●
16	CLIP; HARNESS (G) ID=28 L=58	1-09700-400-0	01	1	1306-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	02	1	1306-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	07	1	1306-	●	●
16	CLIP; HARNESS (J) ID=20 L=50	1-09700-679-1	01	1	1306-	●	●
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	1306-	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (L) ID=20 H=23 L=27	1-09700-861-0	01	1	1306-	●
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	1306-		●
16	CLIP; HARNESS (I) ID=31 H=30 L=35	1-09700-994-0	01	1	1306-	●	●
16	CLIP; HARNESS (P) ID=31.5 H=23 L=25	1-09701-017-0	03	1	1306-	●	●
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1306-	●	●
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1306-	●	●
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1306-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1306-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1306-	●	●
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	02	1	1306-	●	●
16	CLIP; HARNESS (M) ID=5-12 L=26	1-09709-289-0	01	1	1306-	●	●
16	CLIP; HARNESS (M) ID=5-12 L=26	1-09709-289-0	01	1	1306-	●	●
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	02	1	1306-	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	01	1	1306-1510	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	01	1	1306-1510	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AB) L=250	5-09707-030-1	01	1	1306-1510	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	01	1	1511-	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	01	1	1511-	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AB) L=250	5-09707-030-1	01	1	1511-	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	02	1	1306-1510	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	02	1	1306-1510	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AB) L=250	5-09707-030-1	02	1	1306-1510	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	02	1	1511-	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AB) L=250	5-09707-030-1	02	1	1511-	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	02	1	1511-	●	●
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	02	1	1306-	●	●
16	CLIP; HARNESS (AC) ID=19 H=70 L=25	8-97360-209-0	01	1	1306-	●	●
16	CLIP; HARNESS (O) OD=9 H=6	8-97368-793-0	02	1	1306-	●	●
16	CLIP; HARNESS (W) ID=14 L=44	9-09917-427-0	02	1	1306-	●	●
16	CLIP; HARNESS (W) ID=14 L=44	9-09917-427-0	02	1	1306-	●	●
16	CLIP; HARNESS (Z) ID=20 L=50	9-09917-430-0	05	1	1306-	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (N) ID=13-18 L=26	1-09709-293-0	02	1	1306-1510	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (N) ID=13-18 L=26	1-09709-293-0	02	1	1511-	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (N) ID=13-18 L=26	1-09709-293-0	01	1	1306-1510	●	●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) EXC. FULL TRACTOR TRUCK<RD6> (N) ID=13-18 L=26	1-09709-293-0	01	1	1306-1510		●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (N) ID=13-18 L=26	1-09709-293-0	01	1	1511-	●	●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) EXC. FULL TRAILER PIPING<Z25> (N) ID=13-18 L=26	1-09709-293-0	01	1	1511-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (Z) ID=20 L=50	9-09917-430-0	03	1	1306-1510	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (Z) ID=20 L=50	9-09917-430-0	03	1	1511-	●	●
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (W) ID=14 L=44	9-09917-427-0	03	1	1306-1510	●	●
16	CLIP; HARNESS EXC. FULL TRAILER PIPING<Z25> (W) ID=14 L=44	9-09917-427-0	03	1	1511-	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (U) W/SPONGE RUBBER	1-09709-150-0	01	1	1306-	●	●
16	CLIP; HARNESS MJT7S M/T(Y3E) (B) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1306-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (A) B=18 ID=11 L=20	0-95235-035-0	01	1	1306-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (B) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1306-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (R) ID=16 L=40	0-95235-576-0	02	1	1306-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (D) B=18 ID=19 L=20	0-95235-836-0	01	1	1306-	●	●
16	CLIP; HARNESS ENGINE REAR PTO(SV1) (D) B=18 ID=19 L=20	0-95235-836-0	01	1	1306-	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (T) L=350	1-09707-183-0	01	1	1306-	●	●
16	CLIP; HARNESS WHEEL BASE 5500MM(55W) (T) L=350	1-09707-183-0	01	1	1306-		●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (V) OD=9 H=6	1-09709-178-0	06	1	1306-1506	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (V) OD=9 H=6	1-09709-178-0	03	1	1507-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (V) OD=9 H=6	1-09709-178-0	03	1	1507-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (Y) L=140	5-09707-031-1	03	1	1306-	●	●
16	CLIP; HARNESS BATTERY LAYOUT REAR VAR1<NCT> (AA) ID=5-12 L=14.5	1-09987-221-0	01	1	1306-		●
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1306-	●	●
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1306-	●	●
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1306-	●	●
60	CLIP; CONSOLE HARNESS,SW PTO DUMP CONTROL LEVER<RC4> ID=10	8-94450-392-0	01	1	1306-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	1306-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	1306-	●	●
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1306-	●	●
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	03	1	1306-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS MJT7S M/T(Y3E) (A) ID=10 H=25 L=20	1-09700-519-0	01	1	1306-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS MJX16P M/T(Y3Z) (B) ID=11 L=28	9-09917-544-0	01	1	1306-	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	1306-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) L=250	5-09707-030-1	04	1	1306-	●	●

178 178 178 178 178 16 51 67 104 206 305 369 16 171 208 305 369 380 470 1 1 1 208 142 51 16 380 194 48 16 14 194 14 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	1306-	●	●
1	SLEEVE; RUBBER (C) ID=14 OD=18 L=60	1-09337-030-0	01	1	1306-	●	●
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=38.1 OD=48.1 L=50	5-09360-835-0	01	1	1306-	●	●
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1306-	●	●
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	1306-	●	●
16	CLIP; HARNESS (K) ID=18-24 L=26	1-09709-296-0	01	1	1306-1510	●
16	CLIP; HARNESS EXC. BATTERY LAYOUT REAR VAR1<NCT> (K) ID=18-24 L=26	1-09709-296-0	01	1	1306-1510		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) FULL TRACTOR TRUCK<RD6> (K) ID=18-24 L=26	1-09709-296-0	01	1	1306-1510		●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> (K) ID=18-24 L=26	1-09709-296-0	01	1	1511-		●
16	CLIP; HARNESS (C) ID=11 L=16	0-95235-025-0	02	1	1306-	●	●
16	CLIP; HARNESS (A) B=14 ID=11 L=20	0-95235-032-0	01	1	1306-	●	●
16	CLIP; HARNESS (A) B=18 ID=11 L=20	0-95235-035-0	02	1	1306-	●	●
16	CLIP; HARNESS (B) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1306-	●	●
16	CLIP; HARNESS (D) B=14 ID=19 L=20	0-95235-832-0	01	1	1306-	●	●
16	CLIP; HARNESS (E) ID=22 L=32	1-09700-126-1	01	1	1306-	●	●
16	CLIP; HARNESS (F) ID=31 L=35	1-09700-329-1	01	1	1306-	●	●
16	CLIP; HARNESS (G) ID=28 L=58	1-09700-400-0	01	1	1306-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	02	1	1306-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	07	1	1306-	●	●
16	CLIP; HARNESS (J) ID=20 L=50	1-09700-679-1	01	1	1306-	●	●
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	1306-	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (L) ID=20 H=23 L=27	1-09700-861-0	01	1	1306-	●
16	CLIP; HARNESS (L) ID=20 H=23 L=27	1-09700-861-0	01	1	1306-		●
16	CLIP; HARNESS (I) ID=31 H=30 L=35	1-09700-994-0	01	1	1306-	●	●
16	CLIP; HARNESS (P) ID=31.5 H=23 L=25	1-09701-017-0	03	1	1306-	●	●
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1306-	●	●
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1306-	●	●
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1306-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	1306-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1306-	●	●
16	CLIP; HARNESS (V) OD=9 H=6	1-09709-178-0	02	1	1306-	●	●
16	CLIP; HARNESS (M) ID=5-12 L=26	1-09709-289-0	01	1	1306-	●	●
16	CLIP; HARNESS (M) ID=5-12 L=26	1-09709-289-0	01	1	1306-	●	●
16	CLIP; HARNESS (AA) ID=5-12 L=14.5	1-09987-221-0	02	1	1306-	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	01	1	1306-1510	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	01	1	1306-1510	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AB) L=250	5-09707-030-1	01	1	1306-1510	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	01	1	1511-	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	01	1	1511-	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AB) L=250	5-09707-030-1	01	1	1511-	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	02	1	1306-1510	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	02	1	1306-1510	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AB) L=250	5-09707-030-1	02	1	1306-1510	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	02	1	1511-	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AB) L=250	5-09707-030-1	02	1	1511-	●	●
16	CLIP; HARNESS (AB) L=250	5-09707-030-1	02	1	1511-	●	●
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	02	1	1306-	●	●
16	CLIP; HARNESS (AC) ID=19 H=70 L=25	8-97360-209-0	01	1	1306-	●	●
16	CLIP; HARNESS (O) OD=9 H=6	8-97368-793-0	02	1	1306-	●	●
16	CLIP; HARNESS (W) ID=14 L=44	9-09917-427-0	02	1	1306-	●	●
16	CLIP; HARNESS (W) ID=14 L=44	9-09917-427-0	02	1	1306-	●	●
16	CLIP; HARNESS (Z) ID=20 L=50	9-09917-430-0	05	1	1306-	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (N) ID=13-18 L=26	1-09709-293-0	02	1	1306-1510	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (N) ID=13-18 L=26	1-09709-293-0	02	1	1511-	●	●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (N) ID=13-18 L=26	1-09709-293-0	01	1	1306-1510	●	●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) EXC. FULL TRACTOR TRUCK<RD6> (N) ID=13-18 L=26	1-09709-293-0	01	1	1306-1510		●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (N) ID=13-18 L=26	1-09709-293-0	01	1	1511-	●	●
16	CLIP; HARNESS WHEEL BASE 5900MM(59W) EXC. FULL TRAILER PIPING<Z25> (N) ID=13-18 L=26	1-09709-293-0	01	1	1511-		●
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (Z) ID=20 L=50	9-09917-430-0	03	1	1306-1510	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (Z) ID=20 L=50	9-09917-430-0	03	1	1511-	●	●
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (W) ID=14 L=44	9-09917-427-0	03	1	1306-1510	●	●
16	CLIP; HARNESS EXC. FULL TRAILER PIPING<Z25> (W) ID=14 L=44	9-09917-427-0	03	1	1511-	●	●
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (U) W/SPONGE RUBBER	1-09709-150-0	01	1	1306-	●	●
16	CLIP; HARNESS MJT7S M/T(Y3E) (B) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1306-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (A) B=18 ID=11 L=20	0-95235-035-0	01	1	1306-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (B) T=1.2 ID=16 L=20	0-95235-536-0	01	1	1306-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (R) ID=16 L=40	0-95235-576-0	02	1	1306-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (D) B=18 ID=19 L=20	0-95235-836-0	01	1	1306-	●	●
16	CLIP; HARNESS ENGINE REAR PTO(SV1) (D) B=18 ID=19 L=20	0-95235-836-0	01	1	1306-	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (T) L=350	1-09707-183-0	01	1	1306-	●	●
16	CLIP; HARNESS WHEEL BASE 5500MM(55W) (T) L=350	1-09707-183-0	01	1	1306-		●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (V) OD=9 H=6	1-09709-178-0	06	1	1306-1506	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (V) OD=9 H=6	1-09709-178-0	03	1	1507-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (V) OD=9 H=6	1-09709-178-0	03	1	1507-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) (Y) L=140	5-09707-031-1	03	1	1306-	●	●
16	CLIP; HARNESS BATTERY LAYOUT REAR VAR1<NCT> (AA) ID=5-12 L=14.5	1-09987-221-0	01	1	1306-		●
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1306-	●	●
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1306-	●	●
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	03	1	1306-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1306-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	1306-	●	●
67	CLIP; BAND,HARNESS,CLU SW MJX M/T<Y9N> L=140	5-09707-031-1	01	1	1306-	●	●
104	CLIP; HEADLAMP HARNESS L=140	5-09707-031-1	02	1	1306-	●	●
142	CLIP; HARNESS,ENG L=180	8-98216-427-0	02	1	1306-	●	●
171	CLIP; STARTER HARNESS L=250	5-09707-030-1	03	1	1306-	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1306-	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1306-	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1306-	●	●
178	GROMMET; HARNESS (B) ID=39 OD=45 T=19	1-09332-077-0	01	1	1306-	●	●
178	GROMMET; HARNESS (D) ID=15 OD=20 T=26	1-09332-132-0	01	1	1306-	●	●
178	GROMMET; HARNESS (E)	1-82698-551-0	01	1	1306-	●	●
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	03	1	1306-	●	●
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	1306-	●	●
194	CLIP; BAND (B) L=350	1-09707-183-0	01	1	1306-	●	●
194	CLIP; BAND (B) L=350	1-09707-183-0	04	1	1306-	●	●
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	1306-	●	●
208	CLIP; HARNESS,MAG VLV (A) L=250	5-09707-030-1	01	1	1306-	●	●
208	CLIP; HARNESS,MAG VLV PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=180	1-09707-162-1	01	1	1306-	●	●
305	CLIP; ENG HARNESS (B) L=250	5-09707-030-1	03	1	1306-	●	●
305	CLIP; ENG HARNESS (A) L=140	5-09707-031-1	01	1	1306-	●	●
369	CLIP; BAND EDS HARNESS (A) L=140	5-09707-031-1	01	1	1306-	●	●
369	CLIP; BAND EDS HARNESS FULL TRACTOR TRUCK<RD6> (B) L=250	5-09707-030-1	02	1	1306-1510		●
369	CLIP; BAND EDS HARNESS FULL TRAILER PIPING<Z25> (B) L=250	5-09707-030-1	02	1	1511-		●
380	CLIP; EARTH HARNESS (A) L=350	1-09707-183-0	01	1	1306-	●	●
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	02	1	1306-	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	1306-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) L=250	5-09707-030-1	04	1	1306-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	13	1	1306-	●	●
530	SEAL; HARNESS 100X40	1-72498-022-1	01	1	1306-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
