◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11535 - CYZ RHD EURO2 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#124857) — 71 parça

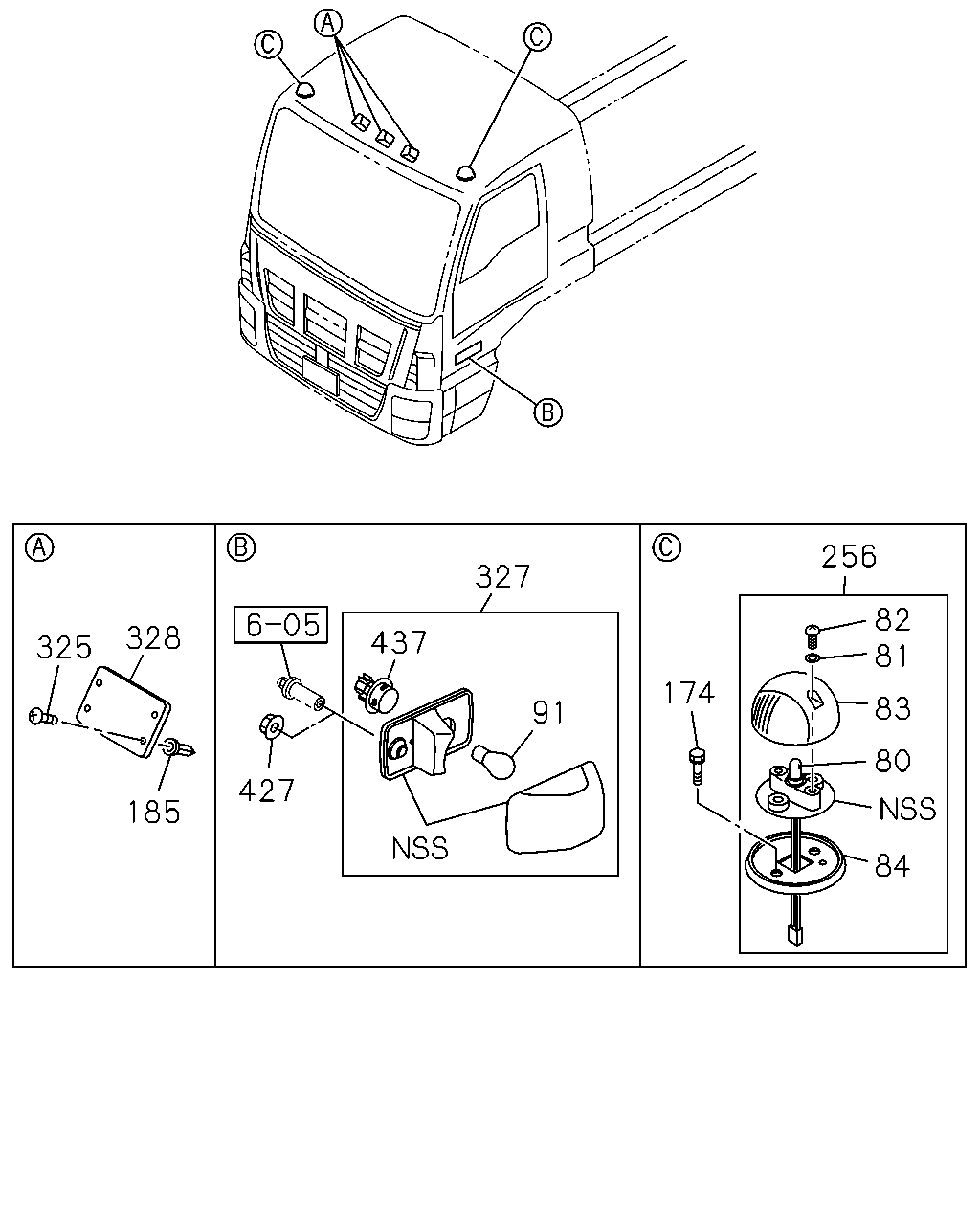

çizim 365132
327 91 437 427 185 328 325 256 174 82 80 84 81 83
BalonParca AdiParca NoAdetTipApplied Date A B
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 24V 5W 		8-94135-397-0 02 1 1306- ● ●
81 SEAT; SCREW
LAMPS TWO ROOF MARKER<TEC> 		1-82219-012-0 04 1 1306- ● ●
82 SCREW; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-011-0 04 1 1306- ● ●
83 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82215-046-0 02 1 1306- ● ●
84 GASKET; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-86830-288-0 02 1 1306- ● ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1306- ● ●
174 BOLT
LAMPS TWO ROOF MARKER<TEC> M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 1306- ● ●
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 1306- ● ●
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		1-86830-242-3 02 1 1306- ● ●
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		0-71040-514-0 12 1 1306- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1306- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1306- ● ●
328 COVER; LAMP 1-76217-122-1 03 1 1306- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1307- ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1306- ● ●

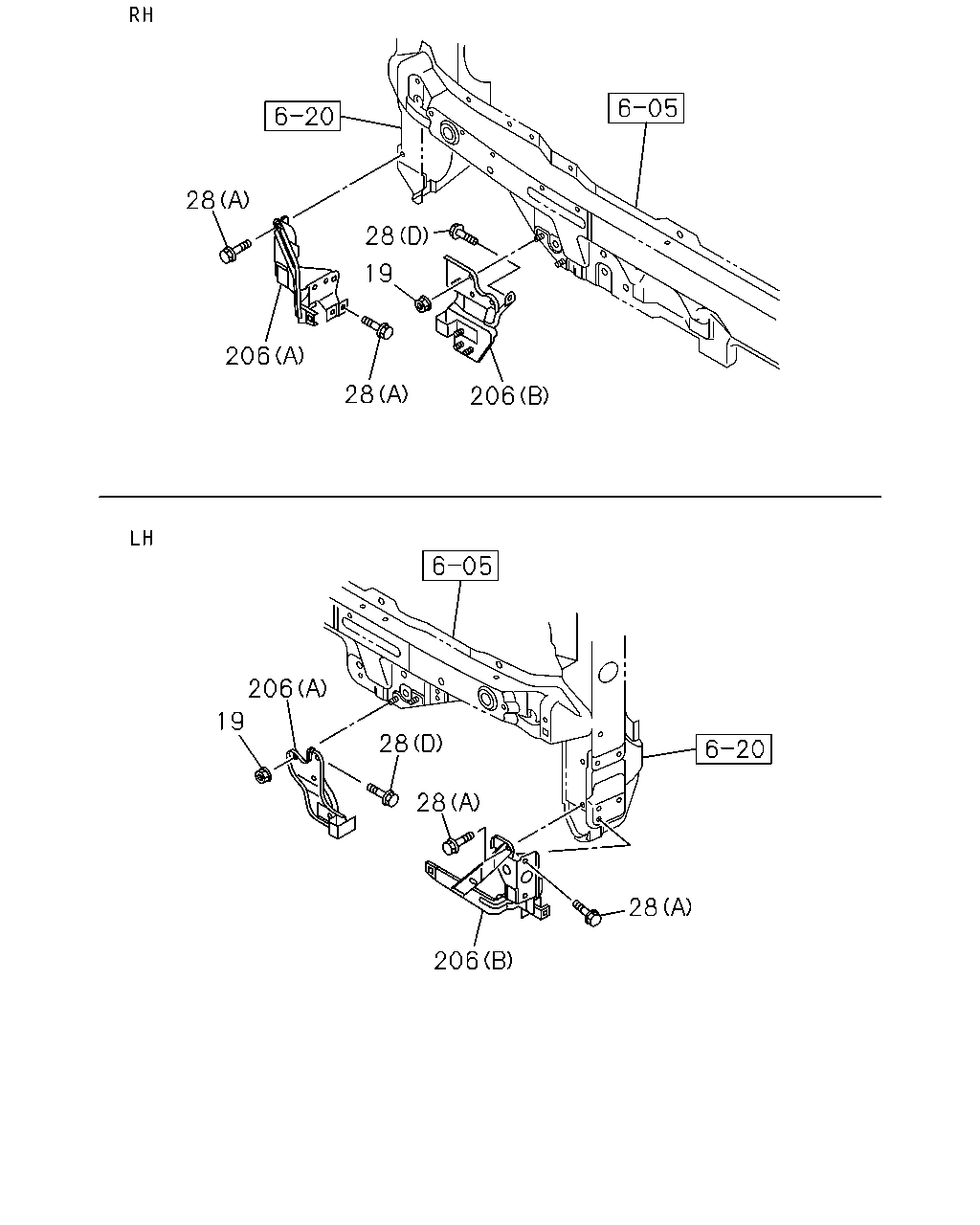

çizim 365210
28 28 206 19 206 28 28 28 28 206 19 206
BalonParca AdiParca NoAdetTipApplied Date A B
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 1306- ● ●
28 BOLT; HEADLAMP
(C) M12X35 FLANGE 		0-28051-235-0 04 1 1306- ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1306- ● ●
28 BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1306- ● ●
28 BOLT; HEADLAMP
(B) M12X30,M12X16 L=56 		8-98144-947-0 04 1 1306- ● ●
206 HOLDER; HEADLAMP
(A) 		8-98121-219-1 01 1 1306- ● ●
206 HOLDER; HEADLAMP
(B) 		8-98121-335-0 01 1 1306- ● ●
206 HOLDER; HEADLAMP
(B) 		8-98121-218-2 01 1 1306- ● ●
206 HOLDER; HEADLAMP
(A) 		8-98121-330-0 01 1 1306- ● ●

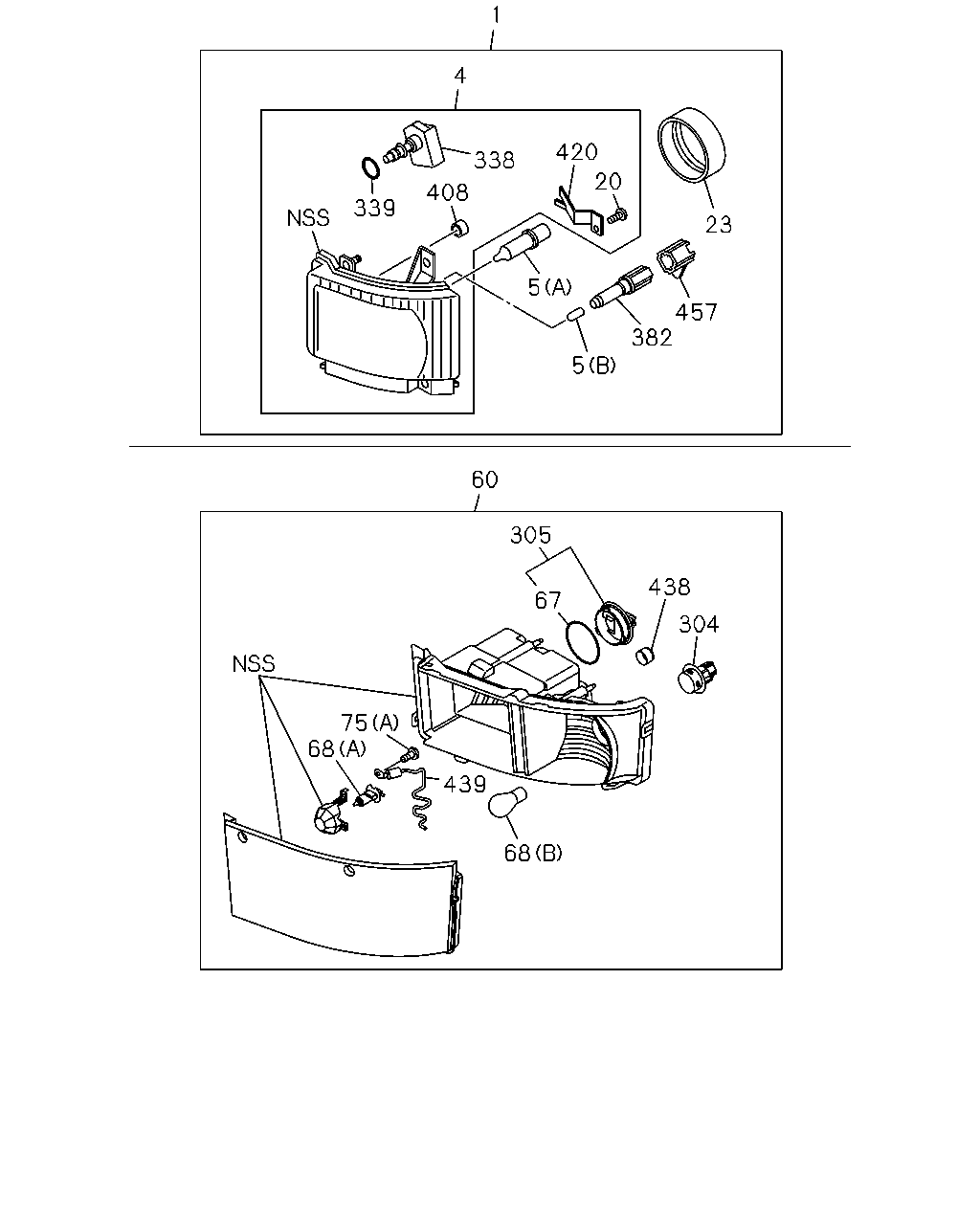

çizim 365331
1 4 420 23 20 457 382 5 5 408 338 339 60 305 438 304 67 68 439 75 68
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 8-98241-313-0 01 1 1306- ● ●
1 LAMP ASM; HEAD 8-98241-312-0 01 1 1306- ● ●
4 HEADLAMP UNIT 8-98199-567-0 01 1 1306- ● ●
4 HEADLAMP UNIT 8-98199-566-0 01 1 1306- ● ●
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1306- ● ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1306- ● ●
20 SCREW; HEADLAMP 8-97378-871-0 06 1 1306- ● ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 1306- ● ●
60 LAMP ASM; FRT COMB 8-98238-626-0 01 1 1306- ● ●
60 LAMP ASM; FRT COMB 8-98238-625-0 01 1 1306- ● ●
67 GASKET; FRT COMB LAMP 8-98238-656-0 02 1 1306- ● ●
68 BULB; FRT COMB LAMP
(A) 24V 70W 		1-82194-106-0 02 1 1306- ● ●
68 BULB; FRT COMB LAMP
(B) 24V 21W 		8-98051-495-0 02 1 1306- ● ●
75 SCREW; FRT COMB LAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 1306- ● ●
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1306- ● ●
75 SCREW; FRT COMB LAMP
(A) 		8-98074-439-0 02 1 1306- ● ●
304 PLUG; SOCKET,FRT COMB LAMP 8-98051-390-0 02 1 1306- ● ●
305 COVER; FRT COMB LAMP 8-98240-559-0 02 1 1306- ● ●
338 LEVELING; HEADLAMP 8-98010-256-0 02 1 1306- ● ●
339 GASKET; LEVELING 1-86830-158-0 02 1 1306- ● ●
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1306- ● ●
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 1306- ● ●
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1306- ● ●
438 CAP; BREATHER,FRT COMB LAMP 8-97378-874-0 02 1 1306- ● ●
439 SPRING SET; COMB LAMP 8-98075-644-0 02 1 1306- ● ●
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1306- ● ●

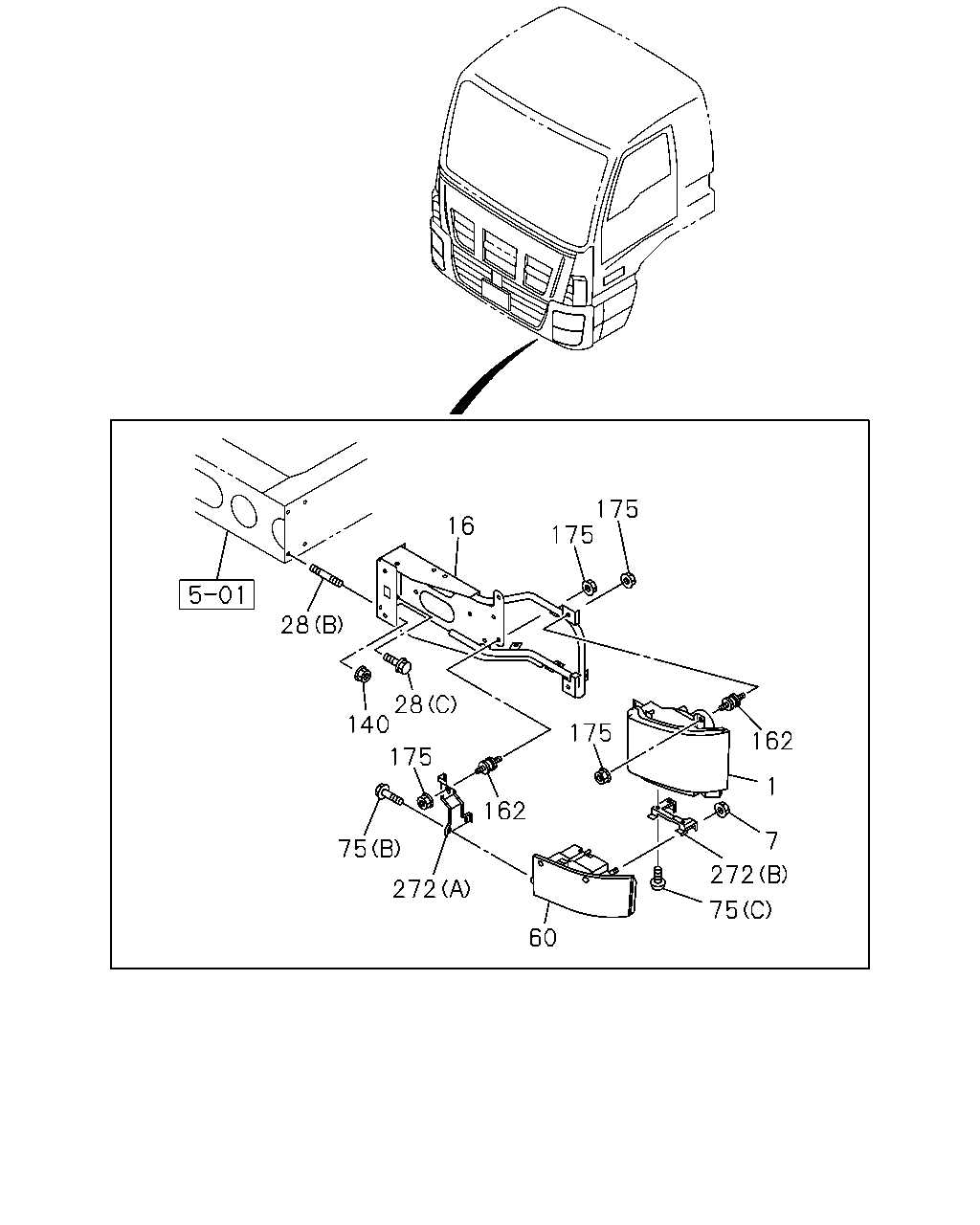

çizim 365383
162 1 7 272 75 60 175 175 175 16 28 28 140 175 162 75 272
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 8-98241-313-0 01 1 1306- ● ●
1 LAMP ASM; HEAD 8-98241-312-0 01 1 1306- ● ●
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 04 1 1306- ● ●
16 BRACKET; HEADLAMP 8-98121-415-3 01 1 1306- ● ●
16 BRACKET; HEADLAMP 8-98121-414-3 01 1 1306- ● ●
28 BOLT; HEADLAMP
(C) M12X35 FLANGE 		0-28051-235-0 04 1 1306- ● ●
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1306- ● ●
28 BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1306- ● ●
28 BOLT; HEADLAMP
(B) M12X30,M12X16 L=56 		8-98144-947-0 04 1 1306- ● ●
60 LAMP ASM; FRT COMB 8-98238-626-0 01 1 1306- ● ●
60 LAMP ASM; FRT COMB 8-98238-625-0 01 1 1306- ● ●
75 SCREW; FRT COMB LAMP
(B) M6X16 FLANGE 		0-28650-616-0 04 1 1306- ● ●
75 SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 1306- ● ●
75 SCREW; FRT COMB LAMP
(A) 		8-98074-439-0 02 1 1306- ● ●
140 NUT
M12 FLANGE 		0-91180-212-0 04 1 1306- ● ●
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 1306- ● ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 1306- ● ●
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-935-0 01 1 1306- ● ●
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-938-0 01 1 1306- ● ●
272 BRACKET; FRT COMB LAMP
(A) 		8-98051-934-0 01 1 1306- ● ●
272 BRACKET; FRT COMB LAMP
(B) 		8-98051-937-0 01 1 1306- ● ●
