◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11535 - CYZ RHD EURO2 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#124856) — 54 parça

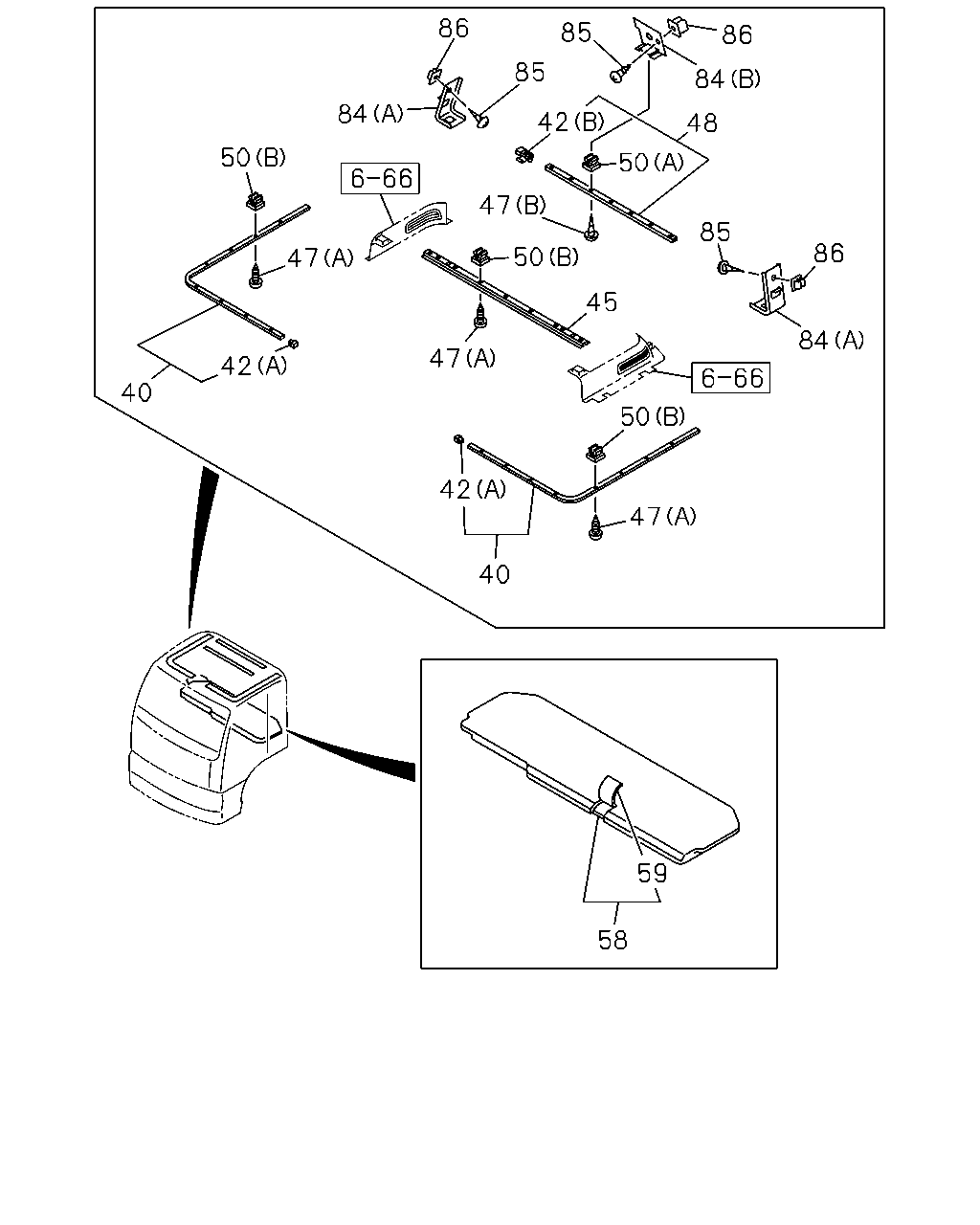

çizim 365127
85 85 86 84 48 50 42 86 84 50 47 47 50 45 85 86 84 50 59 58 47 47 42 40 42 40
BalonParca AdiParca NoAdetTipApplied Date A B
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 1306- ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 1306- ● ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-536-1 01 1 1306- ● ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-535-1 01 1 1306- ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 04 1 1306- ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 1306- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 02 1 1306- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 1306- ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-546-3 01 1 1306- ● ●
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-545-2 01 1 1306- ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 1306- ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 1306- ● ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 1306- ● ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73996-385-1 01 1 1306- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 1306- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 1306- ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-112-2 01 1 1306- ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-130-1 01 1 1306- ● ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 1306- ● ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 1306- ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 1306- ● ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 1306- ● ●

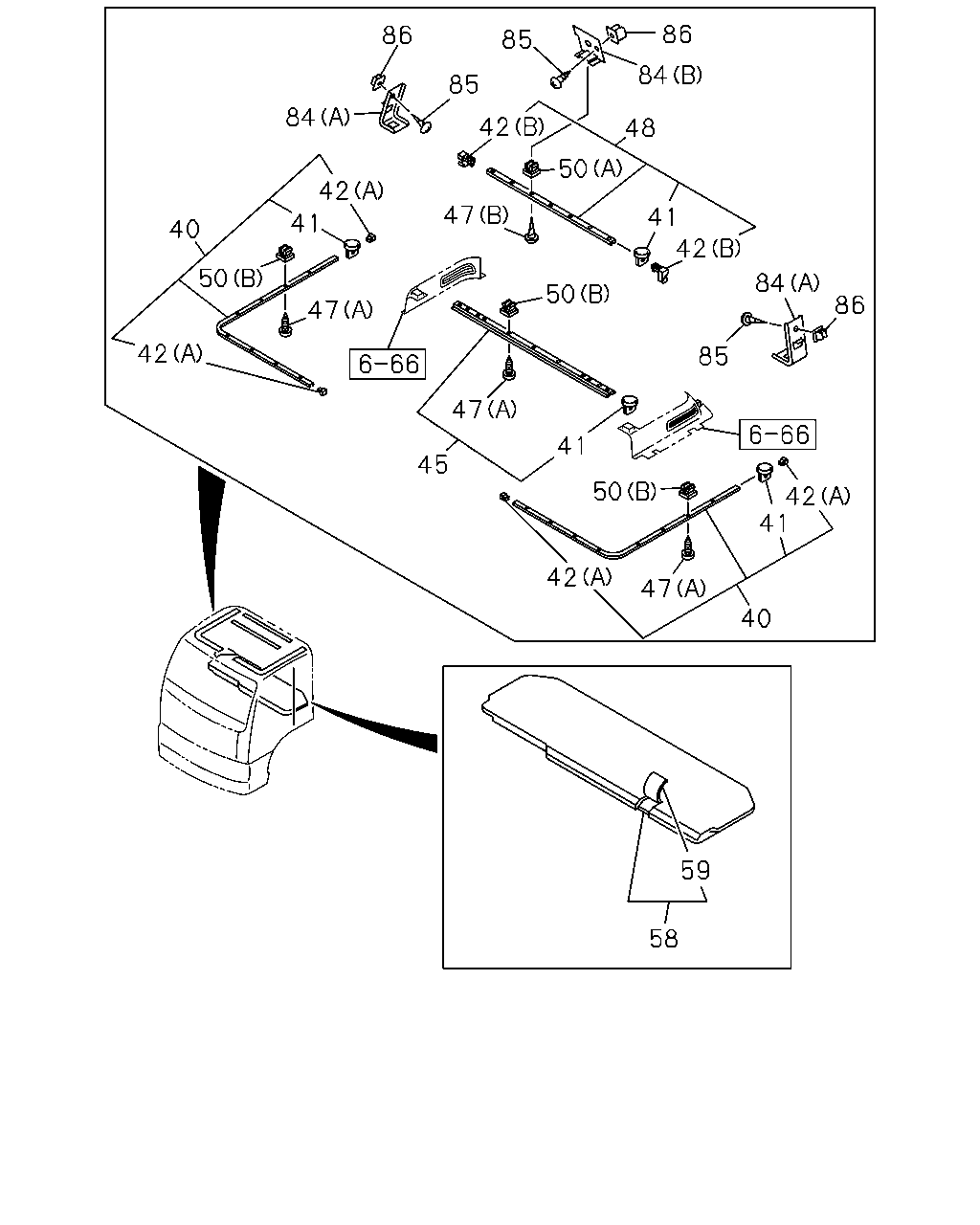

çizim 365412
85 86 84 85 86 84 40 50 41 42 42 47 50 48 41 42 84 86 85 42 41 50 41 50 47 45 42 47 47 42 40 59 58
BalonParca AdiParca NoAdetTipApplied Date A B
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 1306- ● ●
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 1306- ● ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-536-1 01 1 1306- ● ●
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-535-1 01 1 1306- ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 42 1 1306- ● ●
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE 		1-73996-398-0 14 1 1306- ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 04 1 1306- ● ●
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 1306- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 02 1 1306- ● ●
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 1306- ● ●
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-546-3 01 1 1306- ● ●
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-545-2 01 1 1306- ● ●
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 1306- ● ●
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 1306- ● ●
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 1306- ● ●
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73996-385-1 01 1 1306- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 1306- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 1306- ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-112-2 01 1 1306- ● ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-130-1 01 1 1306- ● ●
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 1306- ● ●
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 1306- ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 1306- ● ●
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 1306- ● ●

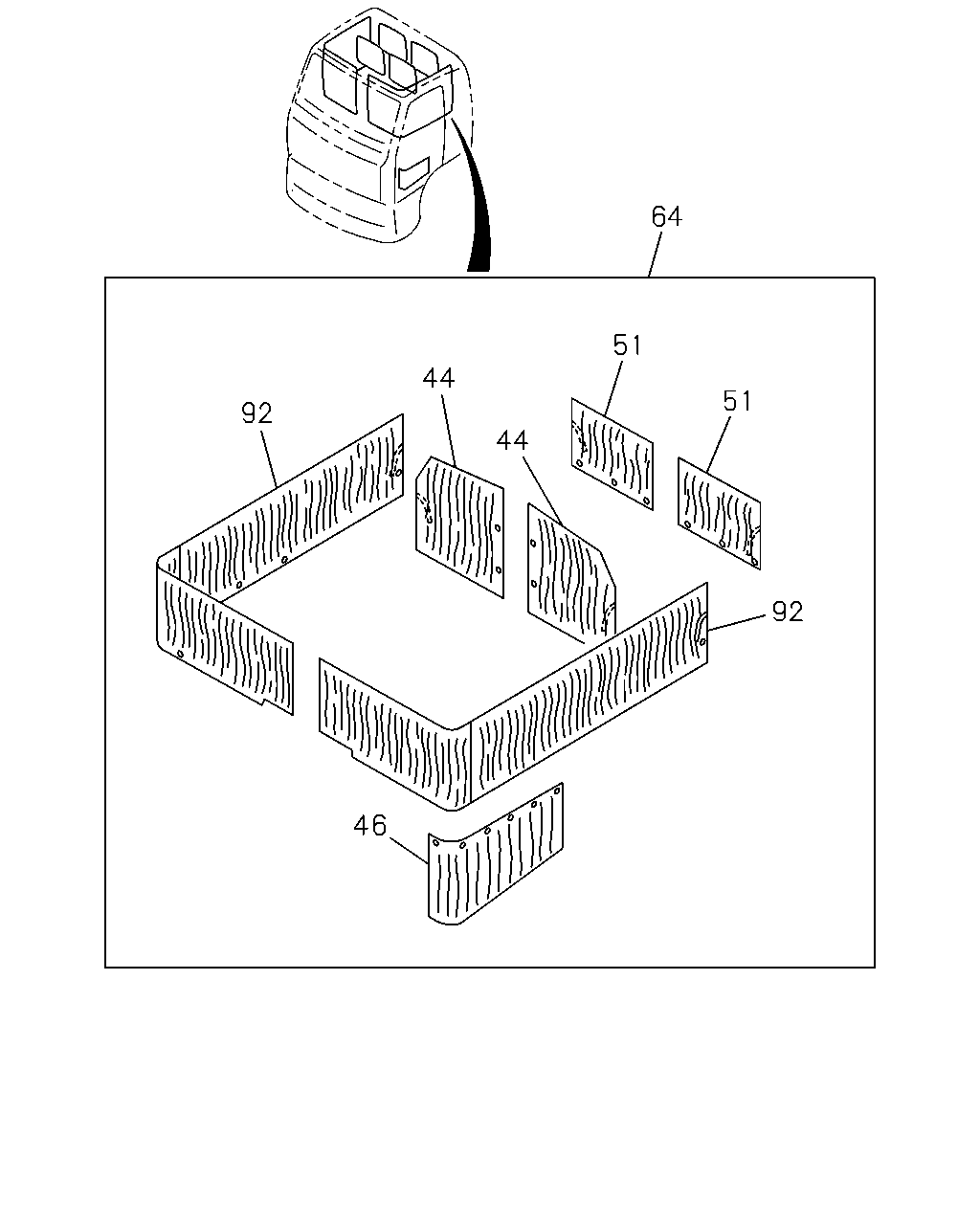

çizim 366160
92 44 44 51 51 64 92 46
BalonParca AdiParca NoAdetTipApplied Date A B
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-481-1 01 1 1306- ● ●
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-480-1 01 1 1306- ● ●
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> 		1-73907-426-0 01 1 1306- ● ●
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> 		1-73907-483-1 01 1 1306- ● ●
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> 		1-73907-482-1 01 1 1306- ● ●
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> 		1-73907-479-1 01 1 1306- ● ●
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> 		1-73907-485-1 01 1 1306- ● ●
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> 		1-73907-484-1 01 1 1306- ● ●
