◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11535 - CYZ RHD EURO2 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#124855) — 10 parça

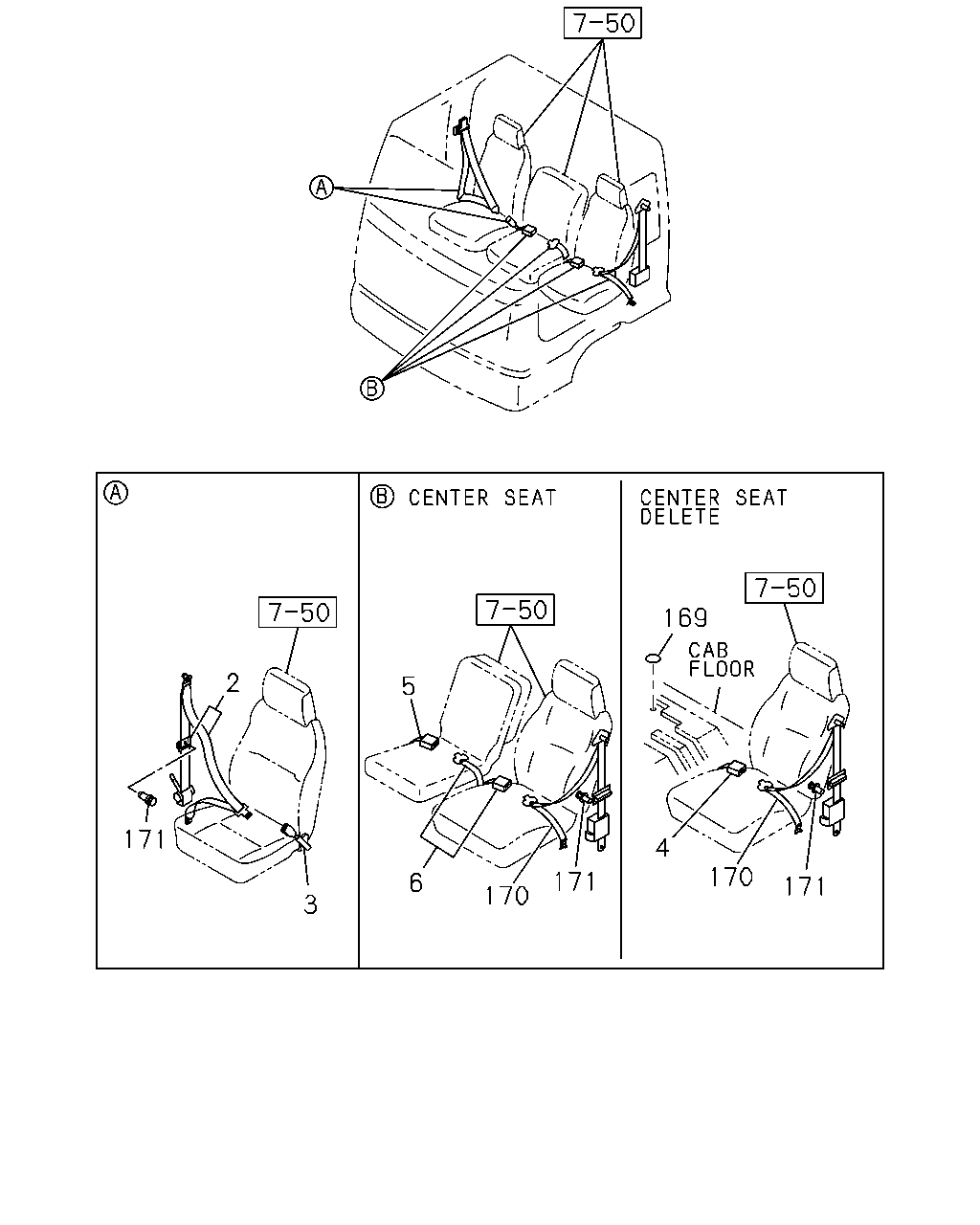

çizim 363880
171 170 4 169 171 170 6 5 3 2 171
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-98223-515-0 01 1 1306-1310 ● ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		8-98223-515-0 01 1 1311- ● ●
3 BELT; SEAT,BUCKLE SIDE 8-97386-846-0 01 1 1306-1401 ● ●
3 BELT; SEAT,BUCKLE SIDE 8-98270-818-0 01 1 1402- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 1306- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
CENTER SEAT(SA1) 		8-98184-487-2 01 1 1306- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
CENTER SEAT(SA1) 		8-98184-488-1 01 1 1306- ● ●
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 1306- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98184-486-1 01 1 1306- ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 1306- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
