◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11535 - CYZ RHD EURO2 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#124853) — 40 parça

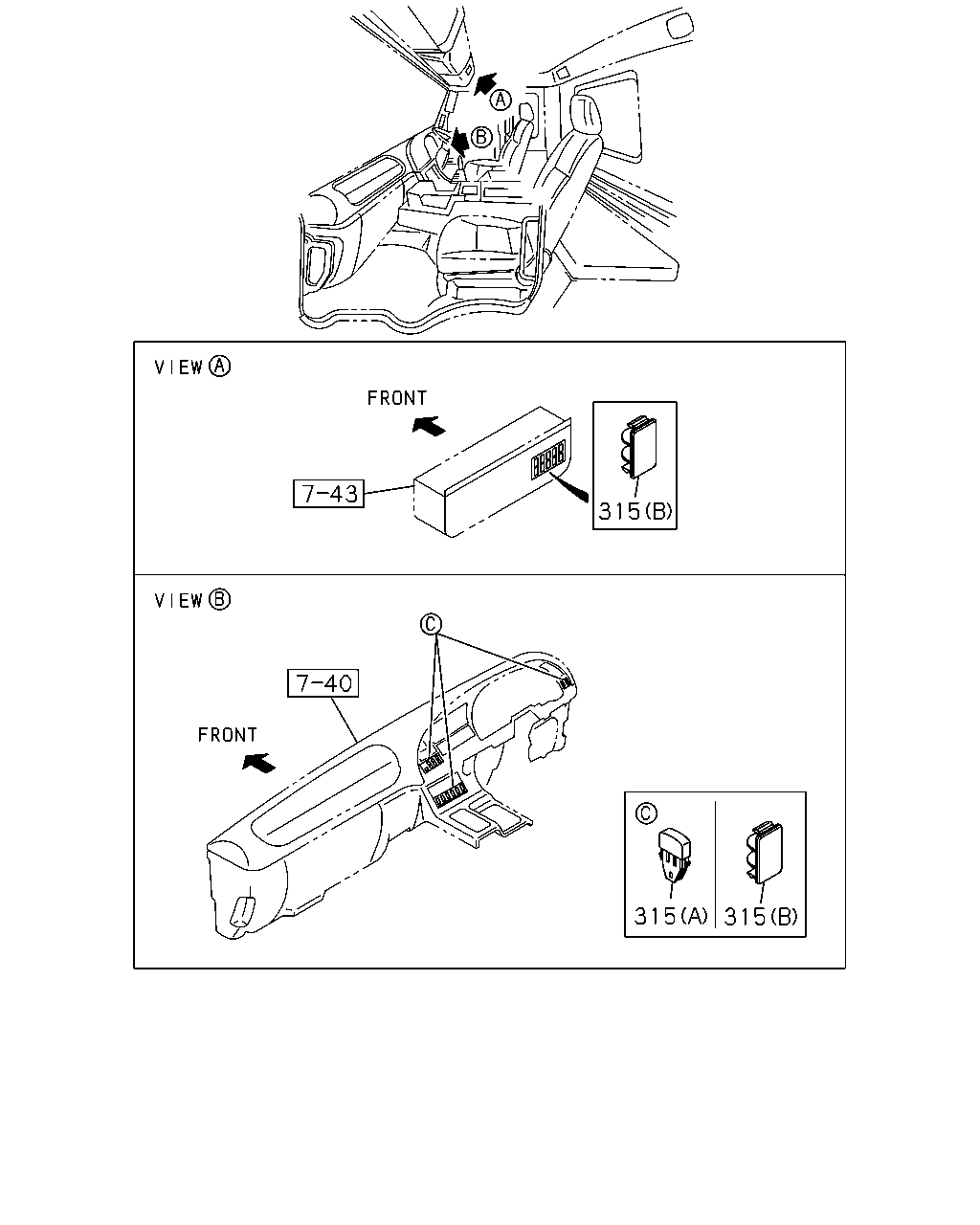

çizim 363901
315 315 315
BalonParca AdiParca NoAdetTipApplied Date A B
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 1306- ● ●
315 COVER; HOLE,SW
(A) 		8-98025-954-1 AR 1 1306- ● ●

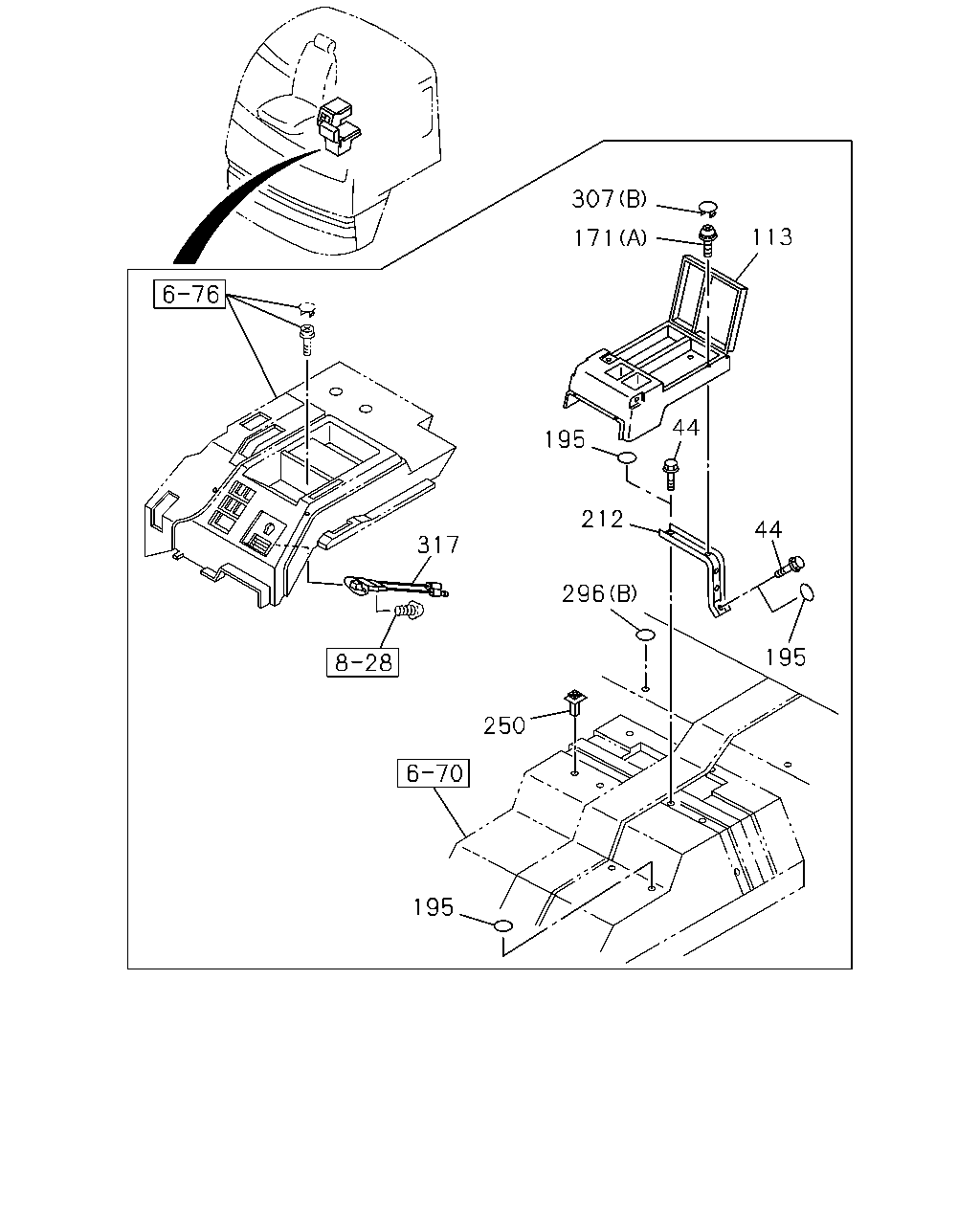

çizim 366328
113 171 307 44 44 195 296 212 195 250 195 317
BalonParca AdiParca NoAdetTipApplied Date A B
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1306- ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-325-1 01 1 1306- ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1306- ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 1306- ● ●
195 SEAL; CENTER CONSOLE
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 05 1 1306- ● ●
212 SUPPORT; CONSOLE TO COMPT
CENTER SEAT DELETE(SP9) 		1-72537-095-1 01 1 1306- ● ●
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 1306- ● ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1306- ● ●
296 SEAL
CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 1306- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 1306- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (C) 		1-72537-270-1 02 1 1306- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 1306- ● ●
317 CONSENT 1-82523-020-2 01 1 1306- ● ●

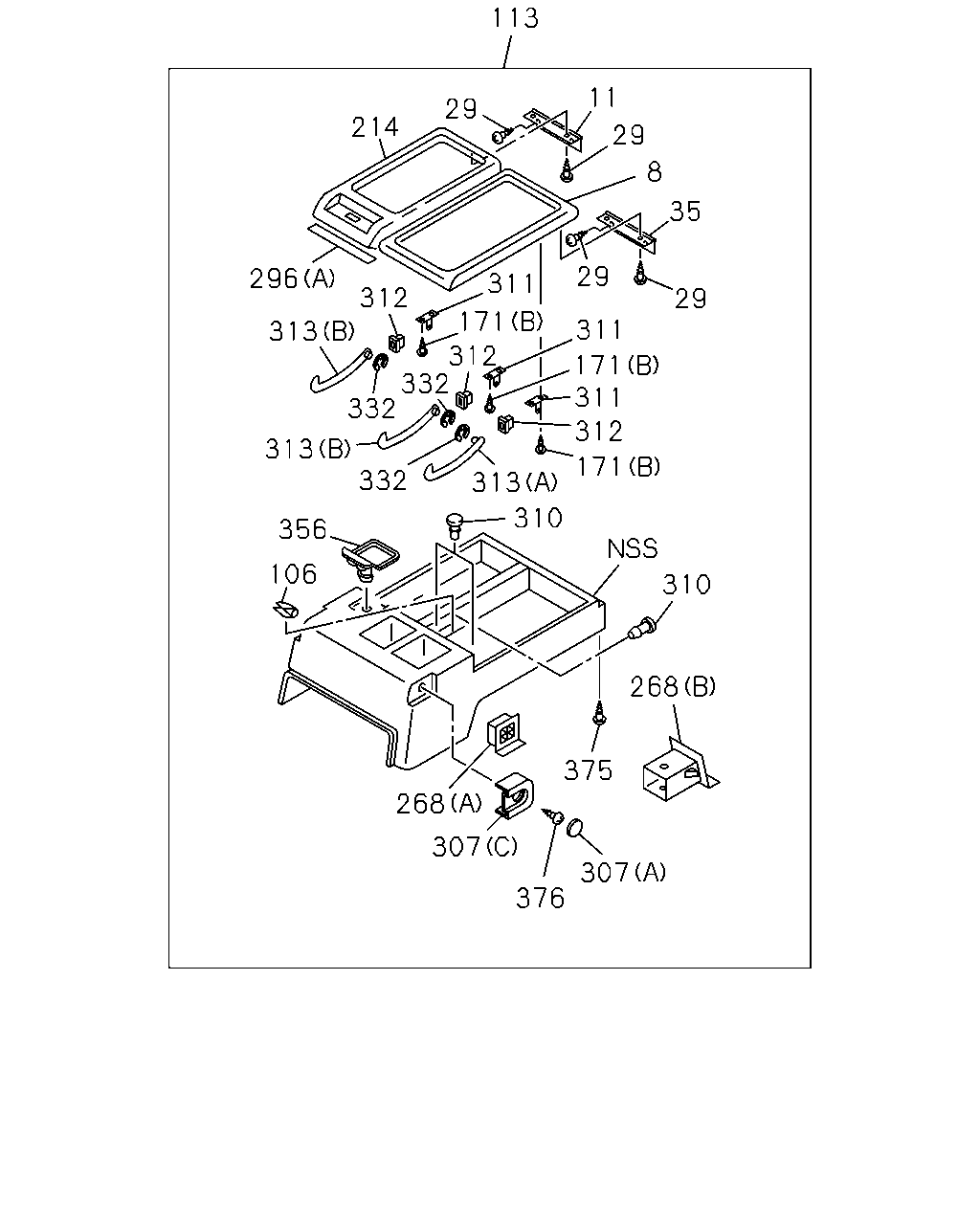

çizim 367205
310 268 375 307 376 307 268 106 356 332 310 171 313 313 332 332 312 171 311 311 312 311 171 29 35 29 8 29 11 113 29 214 312 313 296
BalonParca AdiParca NoAdetTipApplied Date A B
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-332-0 01 1 1306- ● ●
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-070-2 01 1 1306- ● ●
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) M5X14 BINDING HEAD 		1-72537-168-0 08 1 1306- ● ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-182-1 01 1 1306- ● ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-079-0 02 1 1306- ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-325-1 01 1 1306- ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 1306- ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 1306- ● ●
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-339-0 01 1 1306- ● ●
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (B) 		1-72537-268-0 01 1 1306- ● ●
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (A) 		1-72537-269-0 01 1 1306- ● ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 1306- ● ●
296 SEAL
CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 1306- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 1306- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (C) 		1-72537-270-1 02 1 1306- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 1306- ● ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 1306- ● ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-188-2 03 1 1306- ● ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-186-1 03 1 1306- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72538-184-3 01 1 1306- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-72538-185-3 02 1 1306- ● ●
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) 		1-72537-170-0 03 1 1306- ● ●
356 COVER; KNOB
CENTER SEAT DELETE(SP9) 		1-72537-271-1 01 1 1306- ● ●
375 SCREW; TAP BUSHING
CENTER SEAT DELETE(SP9) M6X20 		1-72537-319-0 02 1 1306- ● ●
376 SCREW; TAP DUCT
CENTER SEAT DELETE(SP9) M4X14 		1-72537-320-0 03 1 1306- ● ●
