7-43 — SUN VISOR AND ASSIST GRIP (#124852) — 62 parça

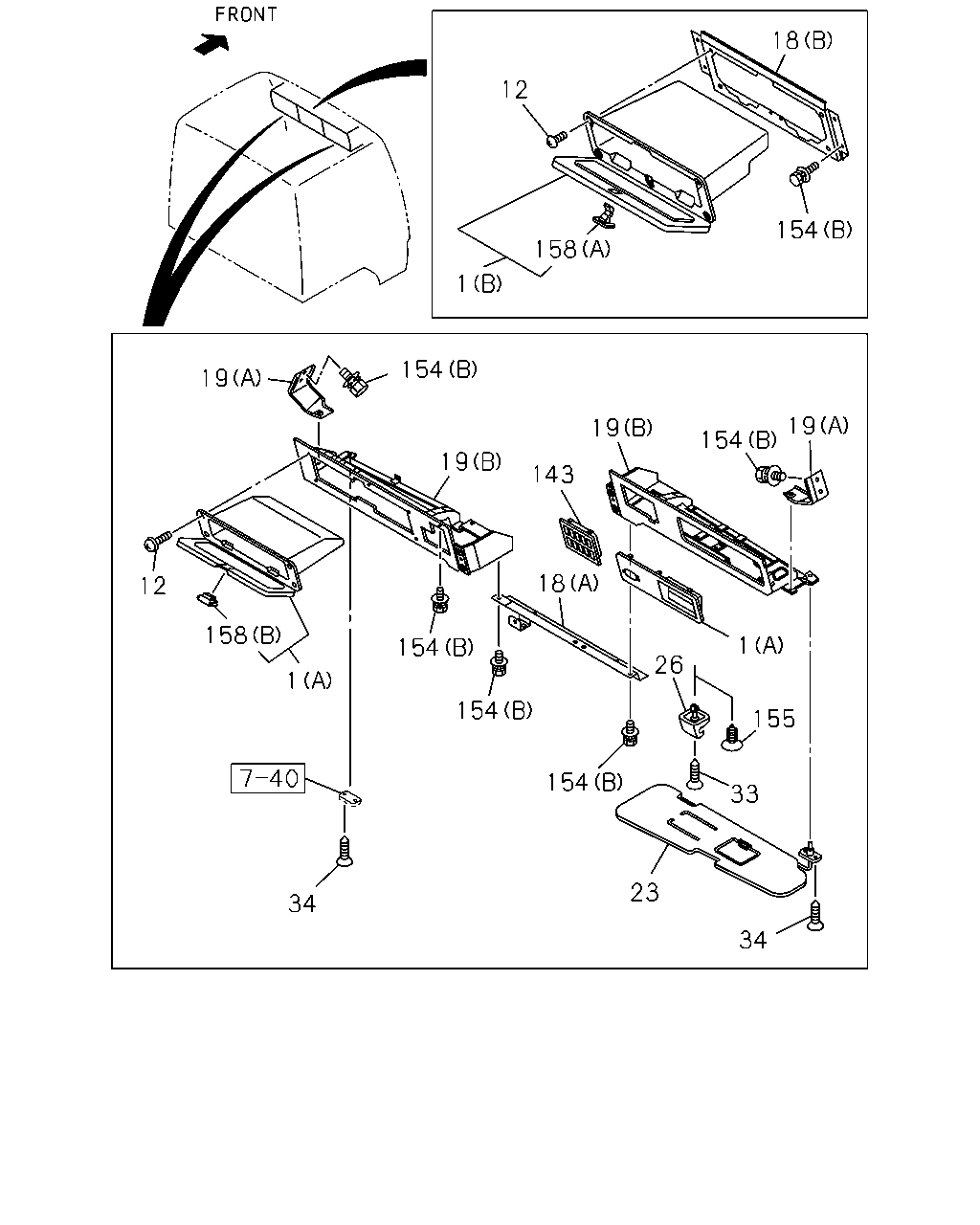

12 18 154 158 1 154 19 19 23 34 33 155 26 154 154 1 19 154 143 18 154 19 12 158 1 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	1306-	●	●
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	1306-	●	●
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	1306-	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	1306-	●	●
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	1306-	●	●
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	1306-	●	●
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	1306-	●	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	1306-	●	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	1306-	●	●
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	1306-	●	●
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	1306-	●	●
23	SUN VISOR	1-73138-156-1	01	1	1306-	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1306-	●	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1306-	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	1306-	●	●
143	BEZEL	1-72447-768-2	01	1	1306-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1403-	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1403-	●	●
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1306-1402	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1403-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1306-	●	●
155	FASTENER; HOLDER	1-09983-181-0	01	1	1306-	●	●
158	LOCK; HEADER SHELF (A)	1-72538-312-0	01	1	1306-	●	●
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	1306-	●	●

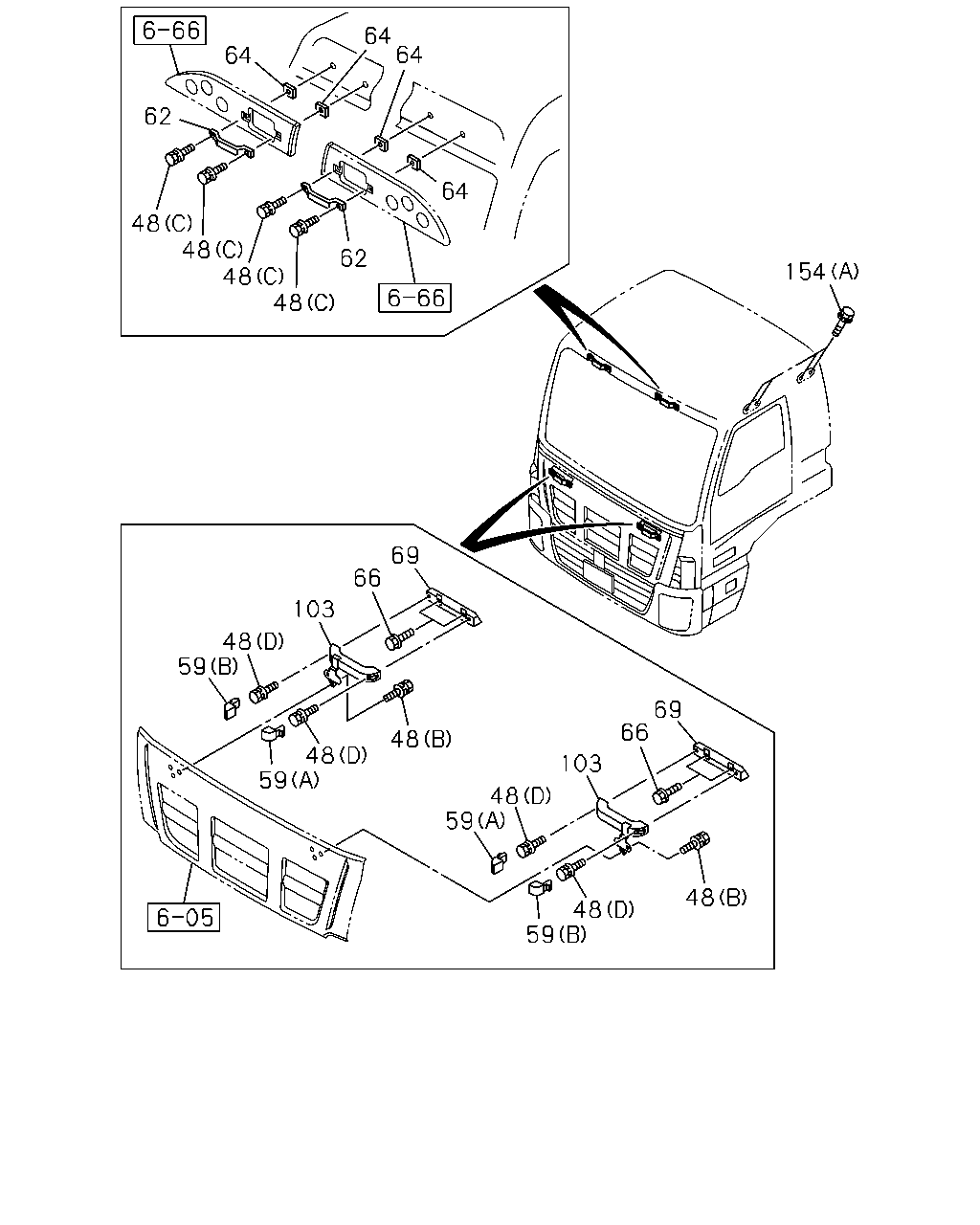

69 66 103 48 59 48 48 59 48 59 48 69 66 103 48 59 62 48 48 48 48 62 64 64 64 64 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1306-	●	●
48	BOLT; ASSIST GRIP (C) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1306-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1306-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1306-	●	●
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	1306-	●	●
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	1306-	●	●
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	1306-	●	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	1306-	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	1306-	●	●
69	BRACKET; ASSIST GRIP	1-65570-243-0	01	1	1306-	●	●
69	BRACKET; ASSIST GRIP	1-65570-242-0	01	1	1306-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	1306-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	1306-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1403-	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1403-	●	●
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1306-1402	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1403-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1306-	●	●

76 71 87 150 71 76 87 106 55 142 71 71 48 56 54 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1306-	●	●
48	BOLT; ASSIST GRIP (C) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1306-	●	●
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1306-	●	●
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1306-	●	●
54	GRIP; ASSIST,QUARTER SIDE	8-98139-071-2	01	1	1306-	●	●
54	GRIP; ASSIST,QUARTER SIDE	8-98153-870-1	01	1	1306-	●	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	01	1	1403-	●	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE,DRIVER & PASSENGER<W63>	1-73618-169-1	02	1	1403-	●	●
56	GRIP; ASSIST,SIDE SILL	8-98139-073-1	01	1	1306-	●	●
56	GRIP; ASSIST,SIDE SILL	8-98139-072-1	01	1	1306-	●	●
71	SCREW (B) M6X30 W/LK WASHER	5-09981-064-0	04	1	1306-	●	●
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	05	1	1306-	●	●
76	SPACER; ASSIST GRIP (B) OD=13 T=4.5	8-94230-464-1	02	1	1306-	●	●
76	SPACER; ASSIST GRIP (A)	1-73618-180-0	02	1	1306-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	02	1	1306-	●	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	02	1	1403-	●	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1403-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> 25X25	8-94272-533-0	02	1	1403-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> 25X25	8-94272-533-0	04	1	1403-	●	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1306-	●	●
