◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11535 - CYZ RHD EURO2 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#124851) — 100 parça

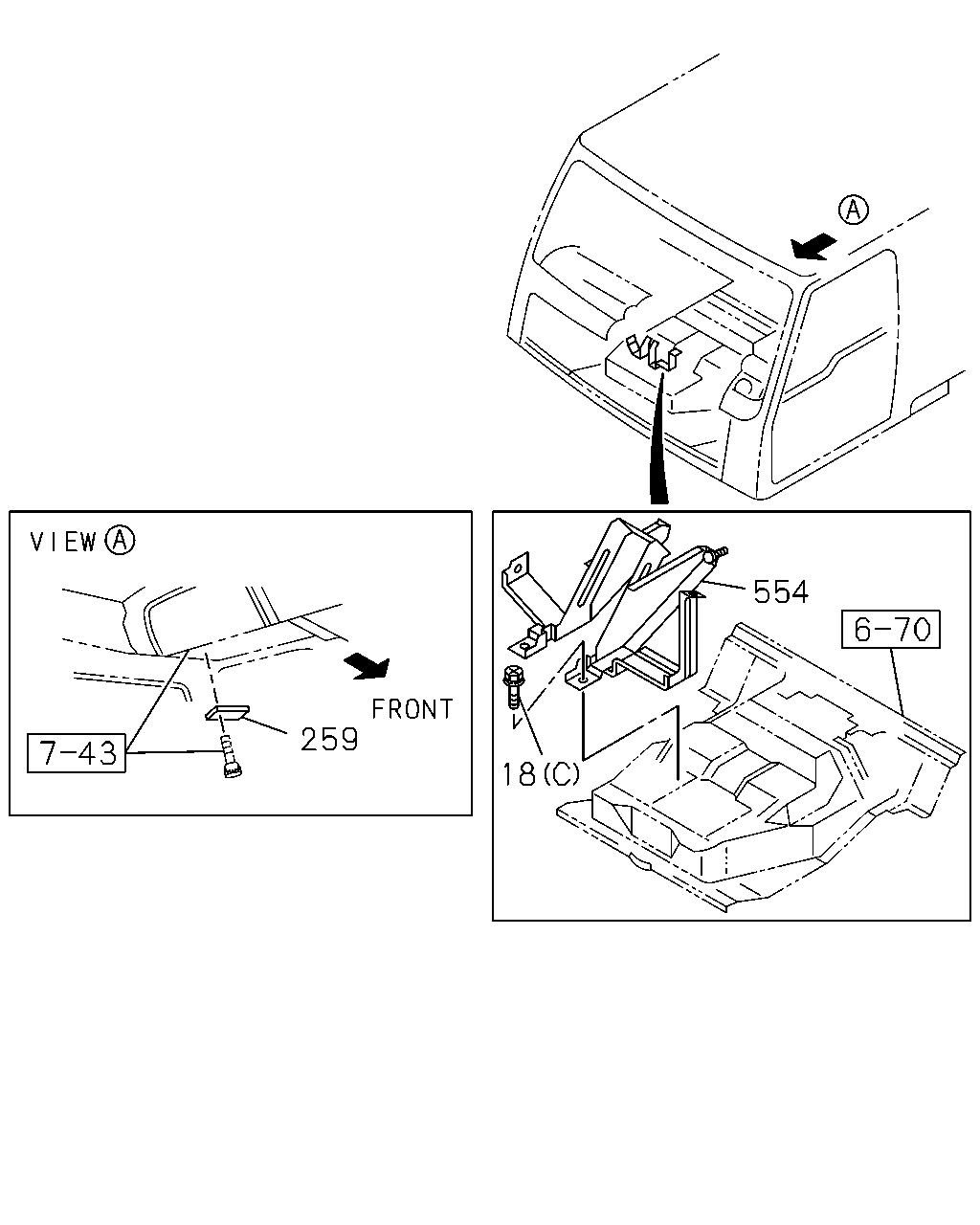

çizim 365834
554 18 259
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 1306- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1306- ● ●
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1306- ● ●
259 PLATE; STUFF,SUN VISOR 1-73317-410-0 01 1 1306- ● ●
554 BRACKET; CENTER BEZEL 1-65671-826-0 01 1 1306- ● ●

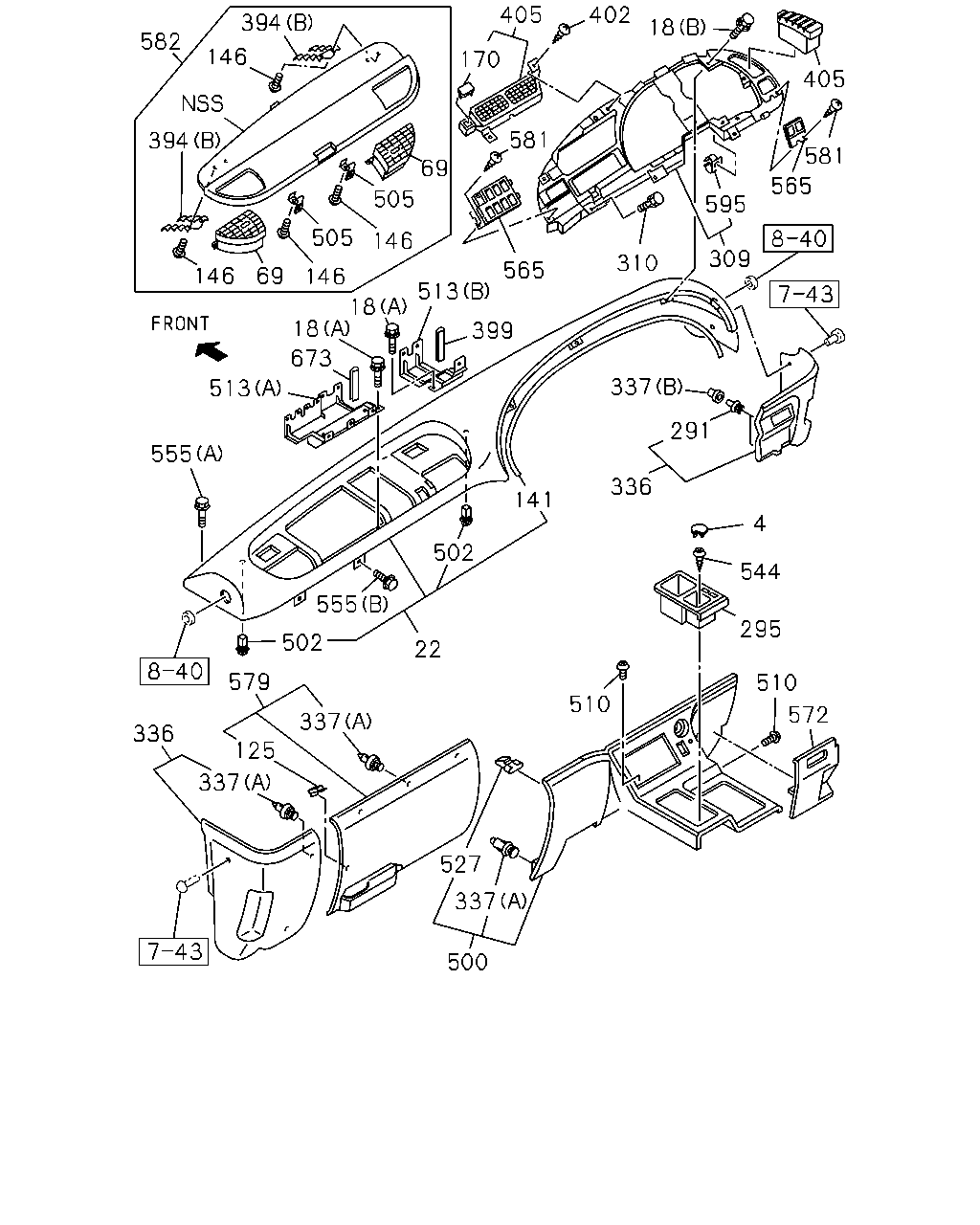

çizim 366066
394 146 582 394 505 69 505 146 146 69 581 170 405 402 405 581 565 595 310 309 337 513 146 18 18 673 513 555 22 502 291 4 544 295 510 572 510 337 500 527 337 502 555 141 336 337 336 125 579 565 399 18
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; INST PNL 1-72537-106-0 01 1 1306- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 1306- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1306- ● ●
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1306- ● ●
22 PAD; INST 1-72317-372-1 01 1 1306- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 1306- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 1306- ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 1306- ● ●
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-97217-066-0 04 1 1306- ● ●
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-97217-066-0 06 1 1306- ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 1306- ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 1306- ● ●
170 COVER; HOLE 1-76367-068-0 01 1 1306- ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 1306- ● ●
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 1306- ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 1306- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1306- ● ●
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 1306- ● ●
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 1306- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 1306- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 1306- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1306- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 1306- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 1306- ● ●
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 1306- ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 1306- ● ●
405 GRILLE ASM; METER VENT 1-76367-062-2 01 1 1306- ● ●
405 GRILLE ASM; METER VENT 1-76367-059-3 01 1 1306- ● ●
500 CLUSTER; INST CENTER 1-72437-619-0 01 1 1306- ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 1306- ● ●
505 LOCK; LID 1-72558-024-2 02 1 1306- ● ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 1306- ● ●
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 1306- ● ●
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 1306- ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 1306- ● ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 1306- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1306- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1306- ● ●
565 BEZEL; SW PANEL 1-72418-010-2 01 1 1306- ● ●
565 BEZEL; SW PANEL 1-72418-011-3 01 1 1306- ● ●
572 COVER; INSPECTION 1-72437-634-0 01 1 1306- ● ●
579 COVER; INST PNL 1-72437-626-0 01 1 1306- ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 1306- ● ●
582 LID; FUSE & RELAY 1-72547-124-0 01 1 1306- ● ●
595 NUT; HOOK 1-72418-013-0 11 1 1306- ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 1306- ● ●

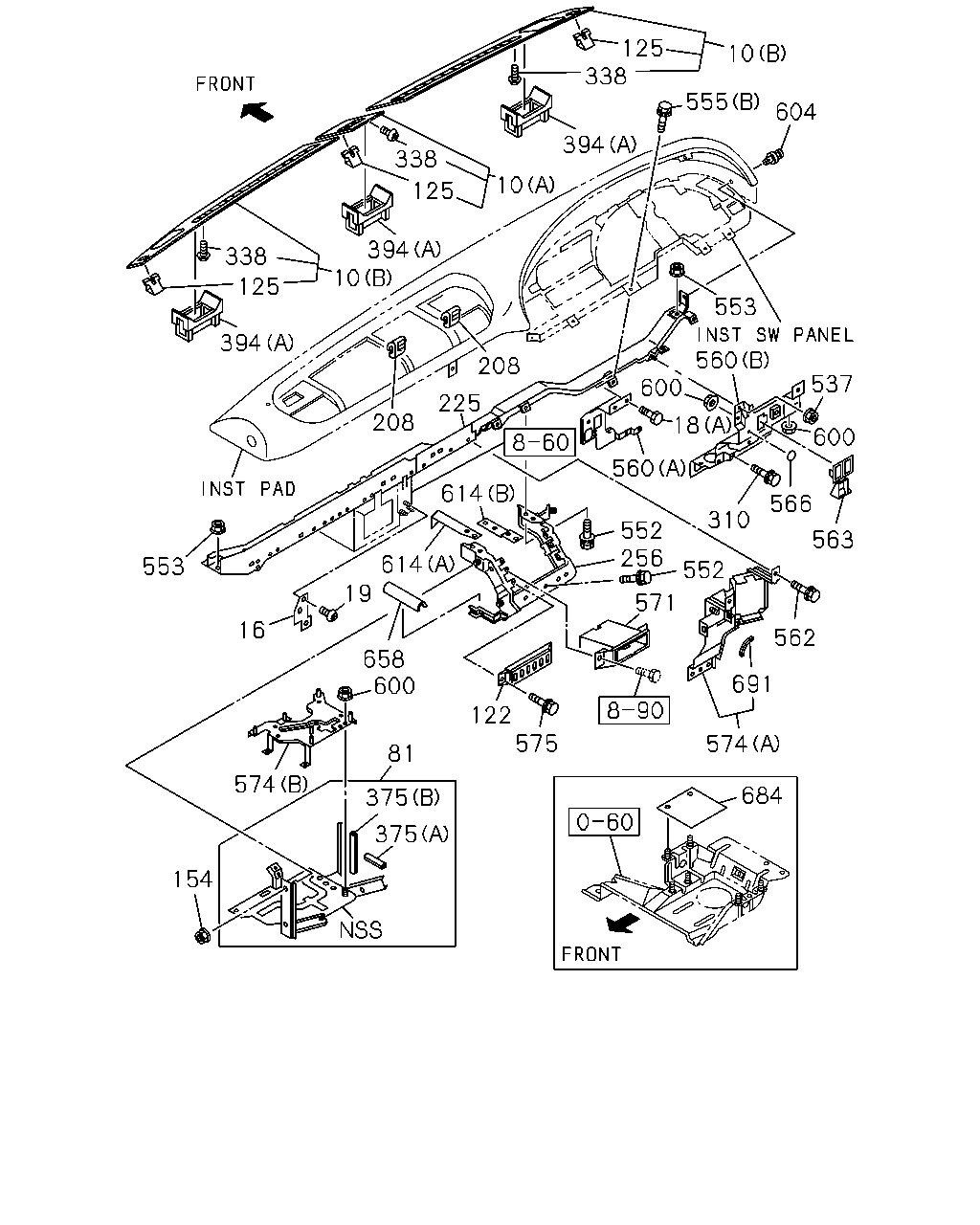

çizim 367142
10 604 555 125 338 394 10 125 338 394 10 125 338 394 553 16 19 614 225 208 208 600 560 537 600 566 563 562 691 574 684 575 122 658 600 553 375 375 81 574 154 560 552 256 571 310 614 552 18
BalonParca AdiParca NoAdetTipApplied Date A B
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-72437-540-6 01 1 1306- ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) W/SPEAKER NET 		1-72437-601-6 01 1 1306- ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) W/SPEAKER NET 		1-72437-600-7 01 1 1306- ● ●
16 BRACKET; INST PNL 1-73908-023-2 01 1 1306- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 1306- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 1306- ● ●
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1306- ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 1306- ● ●
81 BRACKET; ELEC CONT UNIT 1-73907-689-4 01 1 1306- ● ●
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 1306- ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 1306- ● ●
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-97217-066-0 04 1 1306- ● ●
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-97217-066-0 06 1 1306- ● ●
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 1306- ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 1306- ● ●
225 FRAME; FACIA 1-65671-725-8 01 1 1306- ● ●
256 BEZEL ASM; CENTER 1-65671-828-2 01 1 1306- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1306- ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14 		8-94279-325-0 07 1 1306- ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14 		8-94279-325-0 10 1 1306- ● ●
375 FINISHER; BRKT,CONT UNIT
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1306- ● ●
375 FINISHER; BRKT,CONT UNIT
(A) L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1306- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 1306- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 1306- ● ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1306- ● ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1306- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 1306- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1306- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1306- ● ●
560 BRACKET
(A) 		1-65681-197-2 01 1 1306- ● ●
560 BRACKET
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-65671-772-4 01 1 1306- ● ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1306- ● ●
563 BEZEL; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-72448-410-3 01 1 1306- ● ●
566 PLUG; HOLE
TRANSMISSION CONTROL CABLE TYPE(C1A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1306- ● ●
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO CD(UT3) 		1-72438-151-3 01 1 1306- ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 1306- ● ●
574 PANEL; RELAY BOX
(A) 		1-73907-761-2 01 1 1306- ● ●
574 PANEL; RELAY BOX
CAB SUSPENSION-FULL FLOATING(SMK) (B) 		1-73907-690-2 01 1 1306- ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306- ● ●
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 1306- ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 1306- ● ●
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 1306- ● ●
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 1306- ● ●
658 FINISHER; BEZEL
L=80 SERVICED BY L=90 		1-71997-795-0 01 1 1306- ● ●
684 RUBBER; HARNESS 1-82698-417-1 01 1 1306- ● ●
691 FINISHER; HARNESS PROTECTOR
L=50 		8-94270-377-1 01 1 1306- ● ●
