2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#12485) — 173 parça
çizim 78817
466 507 103 35 34 162 46 33 34 71 100 46 34 242 34 71
BalonParca AdiParca NoAdetTipApplied Date
33 BOLT; BRKT,3RD RELAY LEVER
M10X30 FLANGE 		0-28681-030-0 03 1 0105-0512
33 BOLT; BRKT,3RD RELAY LEVER
M10X30 FLANGE 		0-28651-030-0 03 1 0601-
34 SEAT; BALL,RELAY LEVER 1-33659-165-0 04 1 0105-
35 RING; SNAP,RELAY LEVER
OD=34.4 		9-09180-132-0 01 1 0105-
46 SEAL; DUST,RELAY LEVER 1-33659-166-0 02 1 0105-0503
46 SEAL; DUST,RELAY LEVER 1-33659-248-0 02 1 0504-
71 BRACKET; 3RD RELAY LEVER,FRAME
(B) 		1-33657-481-0 01 1 0105-
71 BRACKET; 3RD RELAY LEVER,FRAME
(A) 		1-33657-657-1 01 1 0105-
100 SPRING
(B) 		1-09583-319-0 01 1 0105-
100 SPRING
(A) 		1-09583-351-0 01 1 0105-0301
100 SPRING
(A) 		1-09583-351-0 01 1 0302-
103 NUT
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
103 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
162 LEVER; RELAY 1-33651-625-1 01 1 0105-
242 NUT; FLANGE 3RD RELAY LEVER
M12 FLANGE 		0-91150-212-0 03 1 0105-0602
242 NUT; FLANGE 3RD RELAY LEVER
M12 FLANGE 		0-91180-212-0 03 1 0603-
466 BOLT; FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
466 BOLT; FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
507 PROTECTOR; HEAT 1-14181-315-0 01 1 0105-

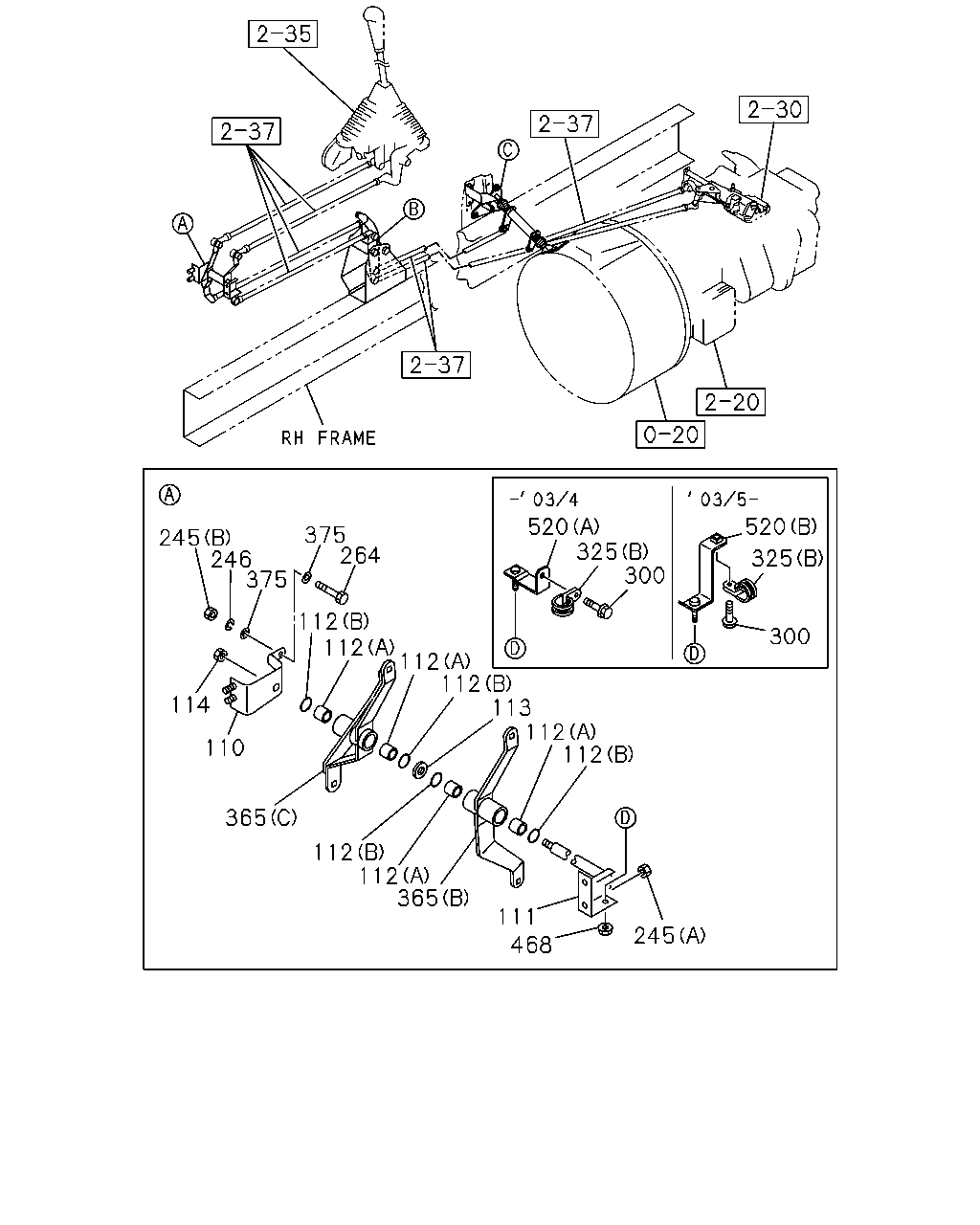

çizim 78822
520 520 325 300 375 264 245 246 375 325 112 112 300 112 112 113 112 112 114 110 365 112 112 365 111 468 245
BalonParca AdiParca NoAdetTipApplied Date
110 BRACKET; RELAY LEVER,1ST 1-33657-598-0 01 1 0105-
111 SHAFT; RELAY LEVER,1ST 1-33619-468-1 01 1 0105-
112 BUSHING; RELAY LEVER
(A) 		1-09330-119-0 04 1 0105-
112 BUSHING; RELAY LEVER
(B) 		1-09623-594-0 04 1 0105-
113 WASHER; RELAY LEVER
ID=17 		9-09160-516-0 01 1 0105-
114 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 01 1 0105-0602
114 NUT; RELAY LEVER
M10 FLANGE 		0-91180-110-0 01 1 0603-
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91150-210-0 02 1 0105-0602
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91180-210-0 02 1 0603-
245 NUT; BRKT,RELAY LEVER
(B) M10 		1-09984-142-0 01 1 0105-
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 01 1 0105-
264 BOLT; BRKT,RELAY LEVER
M10X100 		1-09980-547-0 01 1 0105-0301
264 BOLT; BRKT,RELAY LEVER
M10X105 		1-79198-008-1 01 1 0302-
300 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-
325 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 01 1 0105-0107
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		9-09525-856-0 01 1 0108-
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 04 1 0105-0301
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 04 1 0302-
365 LEVER; RELAY,SELECT
(B) 		1-33651-638-0 01 1 0105-0301
365 LEVER; RELAY,SELECT
(B) 		1-33651-805-1 01 1 0302-
365 LEVER; RELAY,SELECT
(C) 		1-33651-649-0 01 1 0105-0301
365 LEVER; RELAY,SELECT
(C) 		1-33651-790-1 01 1 0302-
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0105-
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0105-
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0105-0301
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0302-
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0105-0301
520 BRACKET; NYLON TUBE
(A) 		1-79996-545-0 01 1 0105-0304
520 BRACKET; NYLON TUBE
(B) 		1-79996-628-0 01 1 0305-

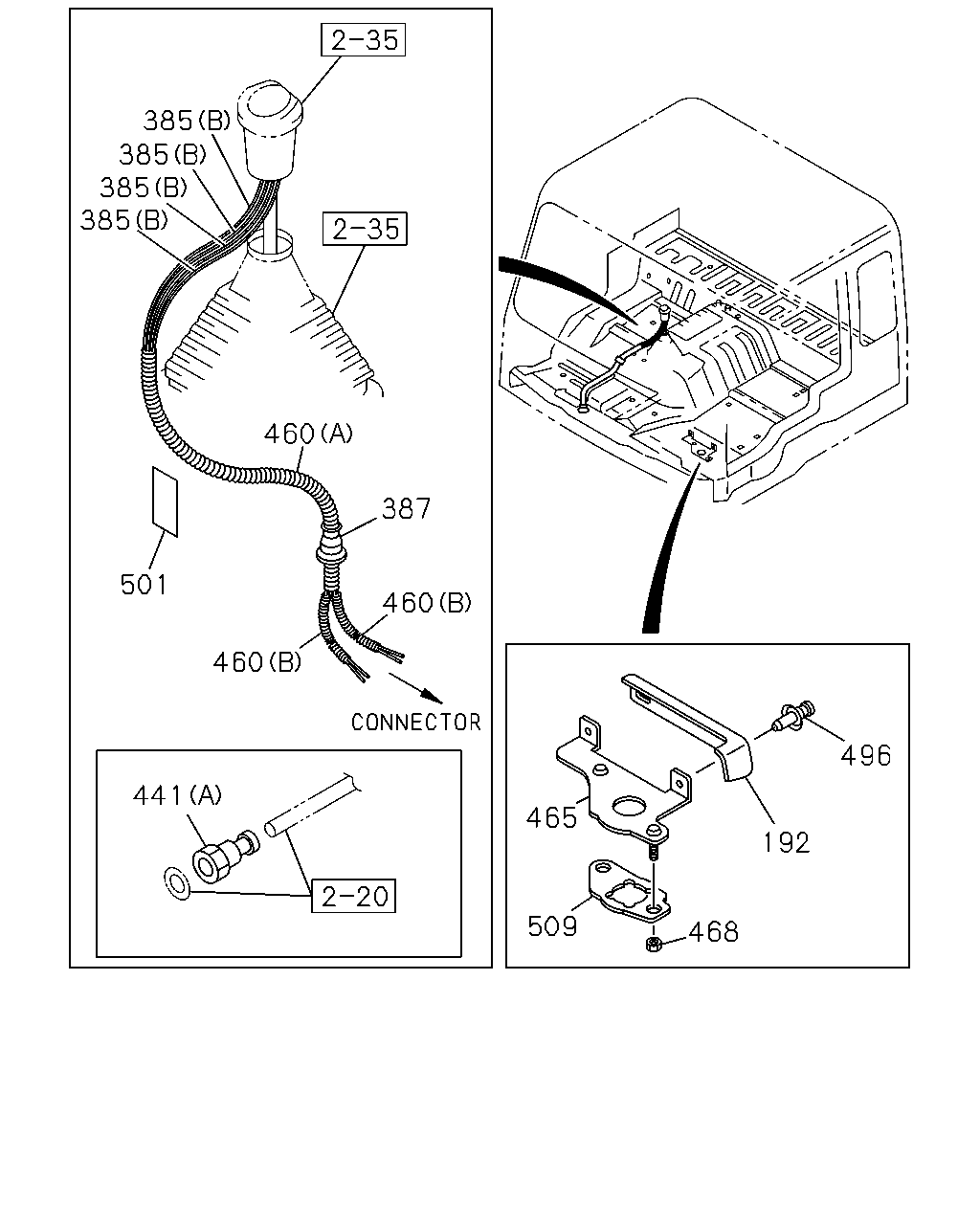

çizim 78866
385 385 385 385 460 387 501 460 460 496 441 465 192 509 468
BalonParca AdiParca NoAdetTipApplied Date
192 COVER 1-79907-090-0 01 1 0105-
385 TUBE; NYLON
(A) L=3100 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0105-0107
385 TUBE; NYLON
(A) L=3130 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0108-
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0105-0301
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0302-0304
385 TUBE; NYLON
(B) L=1770 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0305-
385 TUBE; NYLON
(A) L=3200 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0105-0107
385 TUBE; NYLON
(A) L=3220 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0108-
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0105-0301
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0302-0304
385 TUBE; NYLON
(B) L=1770 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0305-
385 TUBE; NYLON
(A) L=3600 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0105-0107
385 TUBE; NYLON
(A) L=3650 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0108-
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0105-0301
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0302-0304
385 TUBE; NYLON
(B) L=1770 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0305-
385 TUBE; NYLON
(A) L=3200 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0105-0107
385 TUBE; NYLON
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) L=3220 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0108-
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0105-0301
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0302-0304
385 TUBE; NYLON
(B) L=1770 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0305-
385 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3235 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0108-
387 GROMMET; CONT TUBE,FULLER 1-09332-135-0 01 1 0105-
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 0105-
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 04 1 0105-0301
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 04 1 0302-
460 TUBE; CORRUGATE
(B) L=250 SERVICED BY L=800 		1-83129-031-1 02 1 0105-0301
460 TUBE; CORRUGATE
(B) L=250 SERVICED BY L=800 		1-83129-031-1 02 1 0302-
460 TUBE; CORRUGATE
(C) L=750 SERVICED BY L=800 		1-83129-031-1 01 1 0105-0107
460 TUBE; CORRUGATE
(C) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0108-
460 TUBE; CORRUGATE
(D) L=300 SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0105-0107
460 TUBE; CORRUGATE
(D) L=350 SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0108-0301
460 TUBE; CORRUGATE
(D) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0302-
460 TUBE; CORRUGATE
(E) L=2500 SERVICED BY L=4000 ID=10 		1-87410-089-0 01 1 0105-0301
460 TUBE; CORRUGATE
(E) L=2500 SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0302-
460 TUBE; CORRUGATE
(A) L=1190 SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0105-0301
460 TUBE; CORRUGATE
(A) L=1190 SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0302-0304
460 TUBE; CORRUGATE
(A) L=1170 SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0305-
460 TUBE; CORRUGATE
(F) L=50 SERVICED BY L=800 		1-83129-031-1 01 1 0108-
465 BRACKET; CONNECTOR 1-47478-772-1 01 1 0105-
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0105-0301
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0302-
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0105-0301
496 FASTENER
D8X13.5 		1-09987-248-1 02 1 0105-
501 SEAL; HARNESS PROTECTOR
100X40 		1-72498-022-0 04 1 0105-0301
501 SEAL; HARNESS PROTECTOR
100X40 		1-72498-022-0 04 1 0302-0503
501 SEAL; HARNESS PROTECTOR
180X40 		1-72498-019-1 04 1 0504-
509 SEAL; BRKT 1-47477-825-2 01 1 0105-0401
509 SEAL; BRKT 1-47479-978-0 01 1 0402-

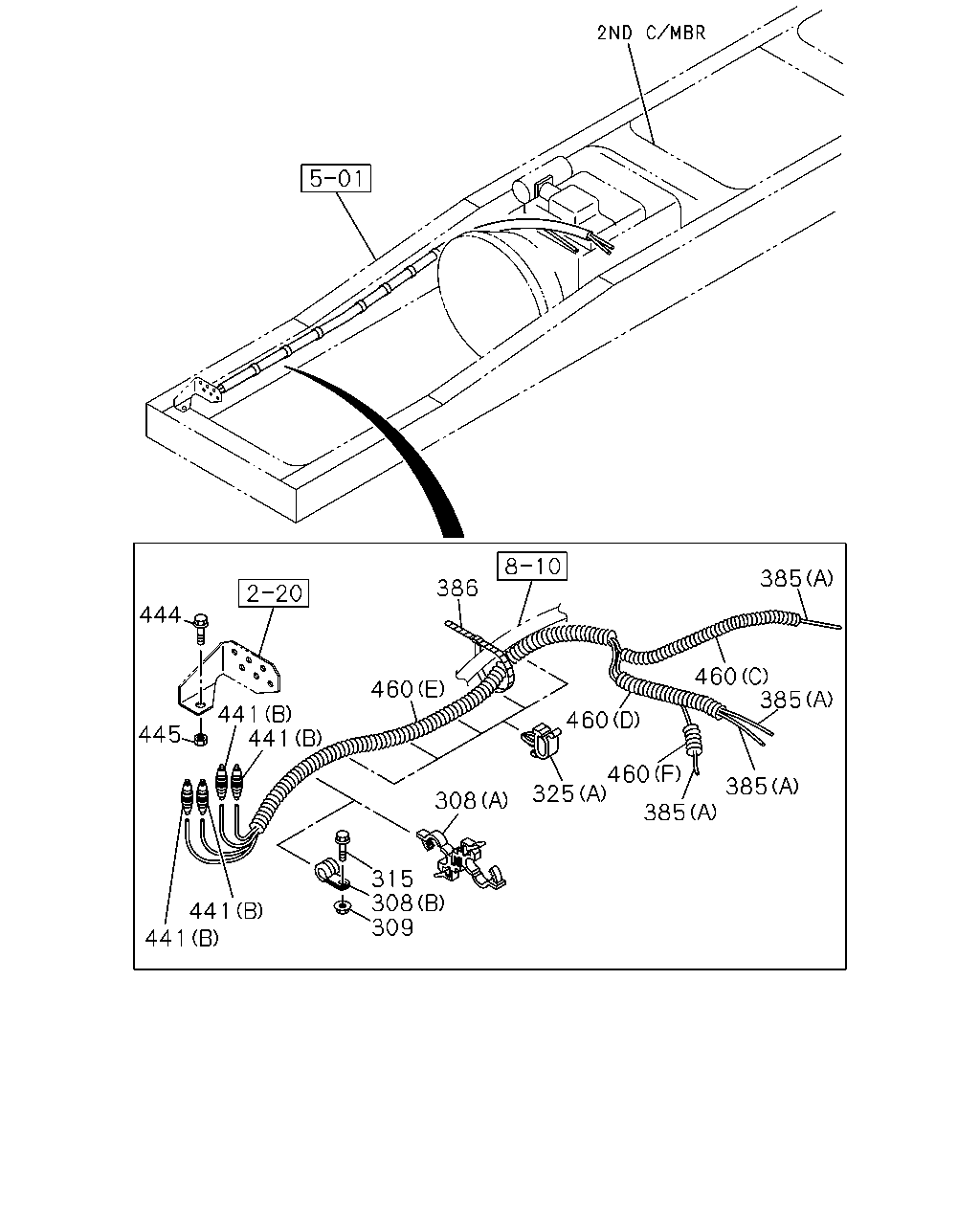

çizim 81251
385 386 444 460 385 460 441 441 460 445 460 385 325 308 385 315 308 309 441 441
BalonParca AdiParca NoAdetTipApplied Date
308 CLIP; PIPE
(B) ID=18 L=28 		1-09701-067-0 01 1 0105-0107
308 CLIP; PIPE
(B) ID=19 L=28 		9-09525-856-0 01 1 0108-
308 CLIP; PIPE
(A) ID=12-16 & 12-16 		1-09709-191-0 01 1 0105-
309 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
309 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
315 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
315 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
325 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 01 1 0105-0107
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		9-09525-856-0 01 1 0108-
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 04 1 0105-0301
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 04 1 0302-
385 TUBE; NYLON
(A) L=3100 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0105-0107
385 TUBE; NYLON
(A) L=3130 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0108-
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0105-0301
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0302-0304
385 TUBE; NYLON
(B) L=1770 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0305-
385 TUBE; NYLON
(A) L=3200 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0105-0107
385 TUBE; NYLON
(A) L=3220 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0108-
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0105-0301
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0302-0304
385 TUBE; NYLON
(B) L=1770 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0305-
385 TUBE; NYLON
(A) L=3600 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0105-0107
385 TUBE; NYLON
(A) L=3650 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0108-
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0105-0301
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0302-0304
385 TUBE; NYLON
(B) L=1770 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0305-
385 TUBE; NYLON
(A) L=3200 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0105-0107
385 TUBE; NYLON
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) L=3220 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0108-
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0105-0301
385 TUBE; NYLON
(B) L=1790 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0302-0304
385 TUBE; NYLON
(B) L=1770 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0305-
385 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3235 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0108-
386 CLIP; CONT CABLE & TUBE
L=250 		1-09707-126-0 08 1 0105-0304
386 CLIP; CONT CABLE & TUBE
L=350 		1-09707-183-0 08 1 0305-
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 0105-
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 04 1 0105-0301
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 04 1 0302-
444 BOLT; BRKT,NIPPLE
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
444 BOLT; BRKT,NIPPLE
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
445 NUT; BRKT,NIPPLE
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
445 NUT; BRKT,NIPPLE
M8 FLANGE 		0-91180-108-0 01 1 0603-
460 TUBE; CORRUGATE
(B) L=250 SERVICED BY L=800 		1-83129-031-1 02 1 0105-0301
460 TUBE; CORRUGATE
(B) L=250 SERVICED BY L=800 		1-83129-031-1 02 1 0302-
460 TUBE; CORRUGATE
(C) L=750 SERVICED BY L=800 		1-83129-031-1 01 1 0105-0107
460 TUBE; CORRUGATE
(C) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0108-
460 TUBE; CORRUGATE
(D) L=300 SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0105-0107
460 TUBE; CORRUGATE
(D) L=350 SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0108-0301
460 TUBE; CORRUGATE
(D) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0302-
460 TUBE; CORRUGATE
(E) L=2500 SERVICED BY L=4000 ID=10 		1-87410-089-0 01 1 0105-0301
460 TUBE; CORRUGATE
(E) L=2500 SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0302-
460 TUBE; CORRUGATE
(A) L=1190 SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0105-0301
460 TUBE; CORRUGATE
(A) L=1190 SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0302-0304
460 TUBE; CORRUGATE
(A) L=1170 SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0305-
460 TUBE; CORRUGATE
(F) L=50 SERVICED BY L=800 		1-83129-031-1 01 1 0108-
çizim 81253
457 118 88 365 268 118 457 457 118 88 115 118 457 100 253 254 16 253 458 283
BalonParca AdiParca NoAdetTipApplied Date
16 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 02 1 0105-0602
16 NUT; RELAY LEVER
M10 FLANGE 		0-91180-110-0 02 1 0603-
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 0105-
100 SPRING
(B) 		1-09583-319-0 01 1 0105-
100 SPRING
(A) 		1-09583-351-0 01 1 0105-0301
100 SPRING
(A) 		1-09583-351-0 01 1 0302-
115 LEVER; RELAY,2ND SHIFT 1-33651-769-1 01 1 0105-
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 0105-
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 0105-
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X35 FLANGE 		0-28681-035-0 02 1 0105-0512
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
254 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-614-0 02 1 0105-
268 BRACKET; LINK ROD 1-33657-216-0 01 1 0105-0301
268 BRACKET; LINK ROD 1-33657-216-0 01 1 0302-
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 0105-
365 LEVER; RELAY,SELECT
(B) 		1-33651-638-0 01 1 0105-0301
365 LEVER; RELAY,SELECT
(B) 		1-33651-805-1 01 1 0302-
365 LEVER; RELAY,SELECT
(C) 		1-33651-649-0 01 1 0105-0301
365 LEVER; RELAY,SELECT
(C) 		1-33651-790-1 01 1 0302-
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0105-
457 GASKET 1-09623-594-0 04 1 0105-
458 BRACKET; 2ND RELAY LEVER 1-33657-664-1 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
