◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11535 - CYZ RHD EURO2 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶

7-10 — CAUTION PLATE AND LABEL (#124848) — 120 parça

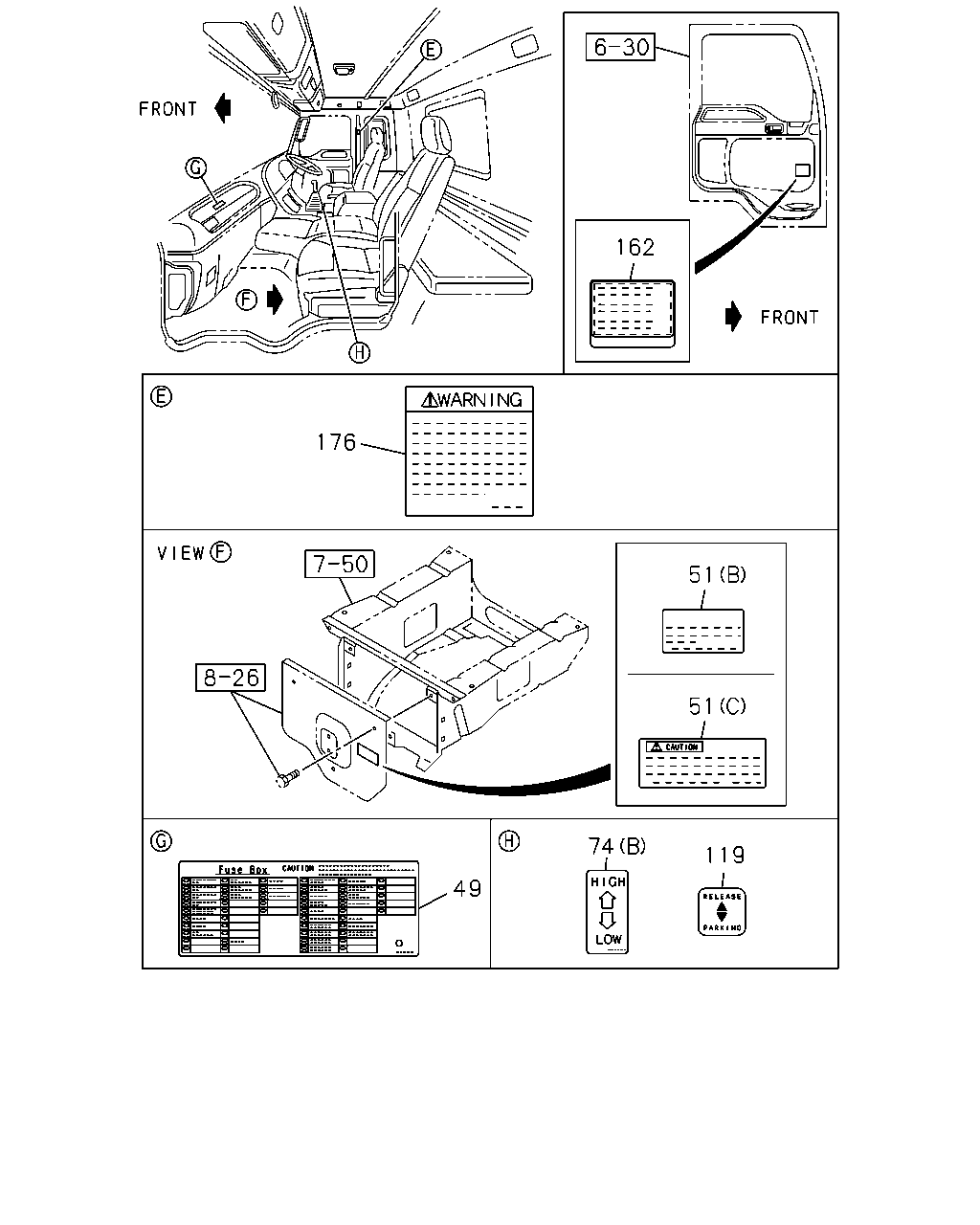

162 176 51 51 119 74 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	8-97646-256-0	01	1	1306-	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS ENGLISH<RR8>	8-97623-001-0	01	1	1306-	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS FRENCH<WJ8>	8-97646-257-0	01	1	1306-	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS PORTUGUESE<NAT>	8-97646-255-0	01	1	1306-	●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS SPANISH<YN1>	8-97646-258-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-787-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8> (A)	1-85880-777-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-786-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS PORTUGUESE<NAT> (A)	8-98161-460-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS SPANISH<YN1> (A)	1-85880-785-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) CAUTIONS ARABIAN<WJ7> (B)	8-97624-052-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) CAUTIONS ENGLISH<RR8> (C)	1-85878-544-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) CAUTIONS FRENCH<WJ8> (B)	8-97633-742-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) CAUTIONS PORTUGUESE<NAT> (B)	8-98162-838-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) CAUTIONS SPANISH<YN1> (B)	8-97613-336-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING EXC. SILENCER SINGLE VERTICAL<N28> (D)	1-85878-571-0	01	1	1306-	●	●
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) (B)	8-98118-493-0	01	1	1306-	●	●
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) CAUTIONS ARABIAN<WJ7> (A)	8-98124-445-0	01	1	1306-	●	●
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) CAUTIONS ENGLISH<RR8> (A)	1-85881-836-0	01	1	1306-	●	●
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) CAUTIONS FRENCH<WJ8> (A)	1-85881-970-0	01	1	1306-	●	●
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) CAUTIONS PORTUGUESE<NAT> (A)	8-98164-667-0	01	1	1306-	●	●
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) CAUTIONS SPANISH<YN1> (A)	1-85881-946-0	01	1	1306-	●	●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS ARABIAN<WJ7> EXC. FULL TRACTOR TRUCK<RD6>	1-85881-979-0	01	1	1306-	●	●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS ENGLISH<RR8> EXC. FULL TRACTOR TRUCK<RD6>	1-85881-759-0	01	1	1306-	●	●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS FRENCH<WJ8> EXC. FULL TRACTOR TRUCK<RD6>	1-85881-945-0	01	1	1306-	●	●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS PORTUGUESE<NAT> FULL TRACTOR TRUCK<RD6>	8-98161-152-0	01	1	1306-	●	●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS PORTUGUESE<NAT> EXC. FULL TRACTOR TRUCK<RD6>	8-98161-151-0	01	1	1306-	●	●
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS SPANISH<YN1> EXC. FULL TRACTOR TRUCK<RD6>	1-85881-944-0	01	1	1306-	●	●
119	PLATE; CAUTION,HAND BRK LEVER FULL TRACTOR TRUCK<RD6> CAUTIONS ARABIAN<WJ7>	1-85881-980-0	01	1	1306-	●	●
119	PLATE; CAUTION,HAND BRK LEVER FULL TRACTOR TRUCK<RD6> CAUTIONS ENGLISH<RR8>	1-85881-791-0	01	1	1306-	●	●
119	PLATE; CAUTION,HAND BRK LEVER FULL TRACTOR TRUCK<RD6> CAUTIONS FRENCH<WJ8>	1-85881-943-0	01	1	1306-	●	●
119	PLATE; CAUTION,HAND BRK LEVER FULL TRACTOR TRUCK<RD6> CAUTIONS SPANISH<YN1>	1-85881-942-0	01	1	1306-	●	●
162	PLATE; CAUTION,FUEL CAUTIONS ENGLISH<RR8>	8-97623-712-0	01	1	1306-	●	●
162	PLATE; CAUTION,FUEL CAUTIONS FRENCH<WJ8>	8-97621-140-0	01	1	1306-	●	●
162	PLATE; CAUTION,FUEL CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7>	8-98083-160-0	01	1	1306-	●	●
162	PLATE; CAUTION,FUEL CAUTIONS SPANISH<YN1>	8-97635-806-0	01	1	1306-	●	●
176	LABEL; SEAT BELT CAUTIONS ENGLISH<RR8> SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC)	1-85878-486-0	01	1	1306-	●	●

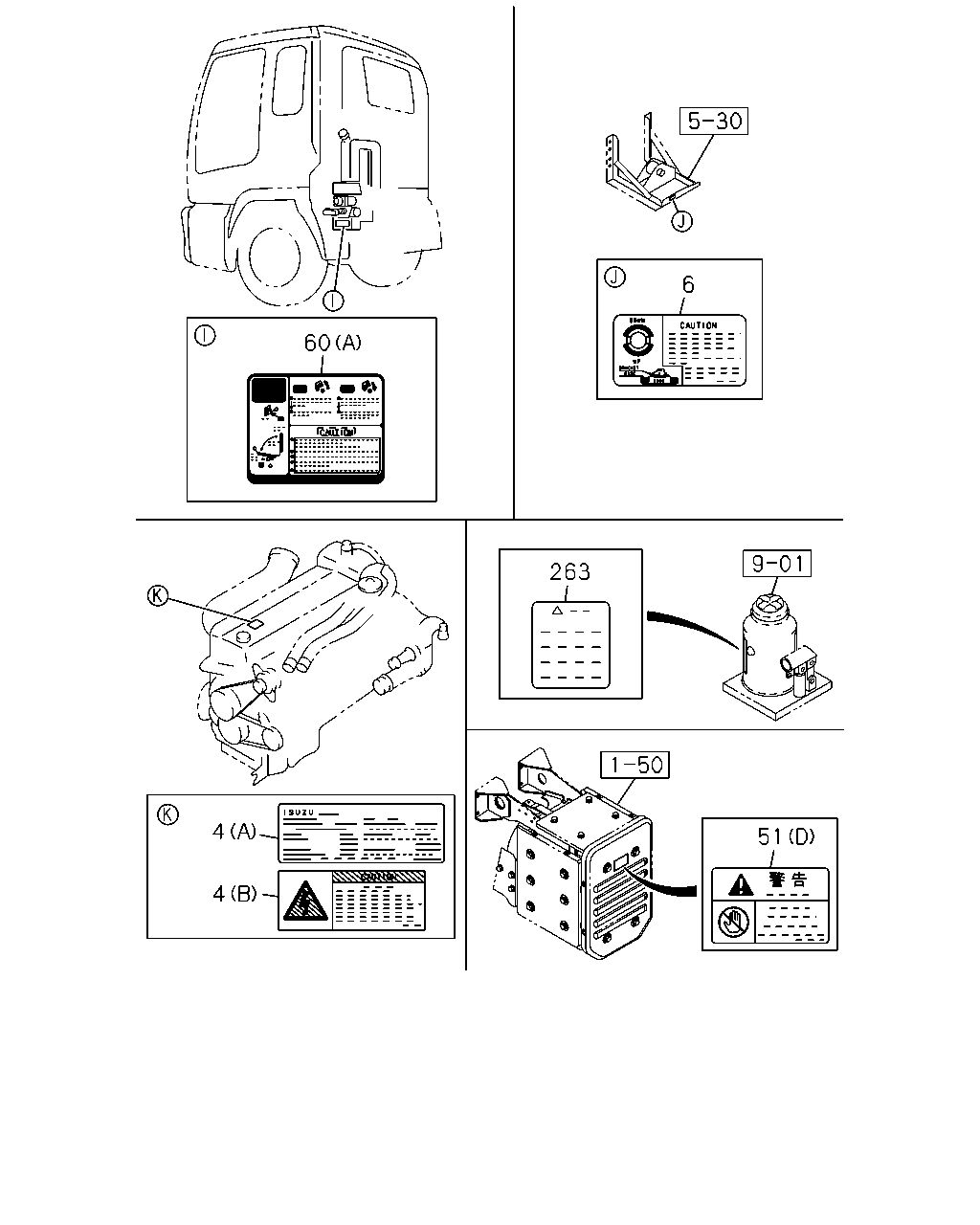

60 6 263 4 4 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	LABEL; ENG MAINTENANCE CAUTIONS ARABIAN<WJ7> (B)	8-98088-627-0	01	1	1306-	●	●
4	LABEL; ENG MAINTENANCE CAUTIONS ARABIAN<WJ7> (A)	8-98088-630-0	01	1	1306-	●	●
4	LABEL; ENG MAINTENANCE CAUTIONS ENGLISH<RR8> (B)	8-94391-524-0	01	1	1306-	●	●
4	LABEL; ENG MAINTENANCE CAUTIONS ENGLISH<RR8>,CAUTIONS SPANISH<YN1> (A)	1-85875-462-1	01	1	1306-	●	●
4	LABEL; ENG MAINTENANCE CAUTIONS FRENCH<WJ8> (A)	8-98160-129-0	01	1	1306-	●	●
4	LABEL; ENG MAINTENANCE CAUTIONS FRENCH<WJ8> (B)	8-98160-132-0	01	1	1306-	●	●
4	LABEL; ENG MAINTENANCE CAUTIONS PORTUGUESE<NAT> (A)	8-98160-127-0	01	1	1306-	●	●
4	LABEL; ENG MAINTENANCE CAUTIONS PORTUGUESE<NAT> (B)	8-98160-131-0	01	1	1306-	●	●
4	LABEL; ENG MAINTENANCE CAUTIONS SPANISH<YN1> (B)	8-98160-130-0	01	1	1306-	●	●
6	PLATE; CAUTION,SPARE TIRE CAUTIONS PORTUGUESE<NAT> SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53639-045-0	01	1	1306-	●
6	PLATE; CAUTION,SPARE TIRE CAUTIONS PORTUGUESE<NAT> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53639-045-0	01	1	1306-		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7>	8-98082-441-0	01	1	1306-	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7>	8-98082-441-0	01	1	1306-		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ENGLISH<RR8>	8-98082-437-0	01	1	1306-	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ENGLISH<RR8>	8-98082-437-0	01	1	1306-		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8>	8-98082-440-0	01	1	1306-	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8>	8-98082-440-0	01	1	1306-		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1>	8-98082-439-0	01	1	1306-	●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1>	8-98082-439-0	01	1	1306-		●
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-787-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8> (A)	1-85880-777-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-786-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS PORTUGUESE<NAT> (A)	8-98161-460-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS SPANISH<YN1> (A)	1-85880-785-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) CAUTIONS ARABIAN<WJ7> (B)	8-97624-052-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) CAUTIONS ENGLISH<RR8> (C)	1-85878-544-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) CAUTIONS FRENCH<WJ8> (B)	8-97633-742-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) CAUTIONS PORTUGUESE<NAT> (B)	8-98162-838-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) CAUTIONS SPANISH<YN1> (B)	8-97613-336-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING EXC. SILENCER SINGLE VERTICAL<N28> (D)	1-85878-571-0	01	1	1306-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7> (A)	8-98192-182-0	01	1	1306-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7> (B)	8-98192-184-0	01	1	1306-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS ENGLISH<RR8> (A)	8-98174-581-0	01	1	1306-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS ENGLISH<RR8> (B)	8-98174-582-0	01	1	1306-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8> (A)	8-98237-661-0	01	1	1306-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8> (B)	8-98237-663-0	01	1	1306-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS PORTUGUESE<NAT> (A)	8-98237-662-0	01	1	1306-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS PORTUGUESE<NAT> (B)	8-98237-664-0	01	1	1306-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1> (A)	8-98192-183-0	01	1	1306-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1> (B)	8-98192-185-0	01	1	1306-	●	●
263	PLATE; CAUTION,JACK TOOL B KIT<SL1> CAUTIONS ARABIAN<WJ7>	8-98094-561-0	01	1	1306-	●	●

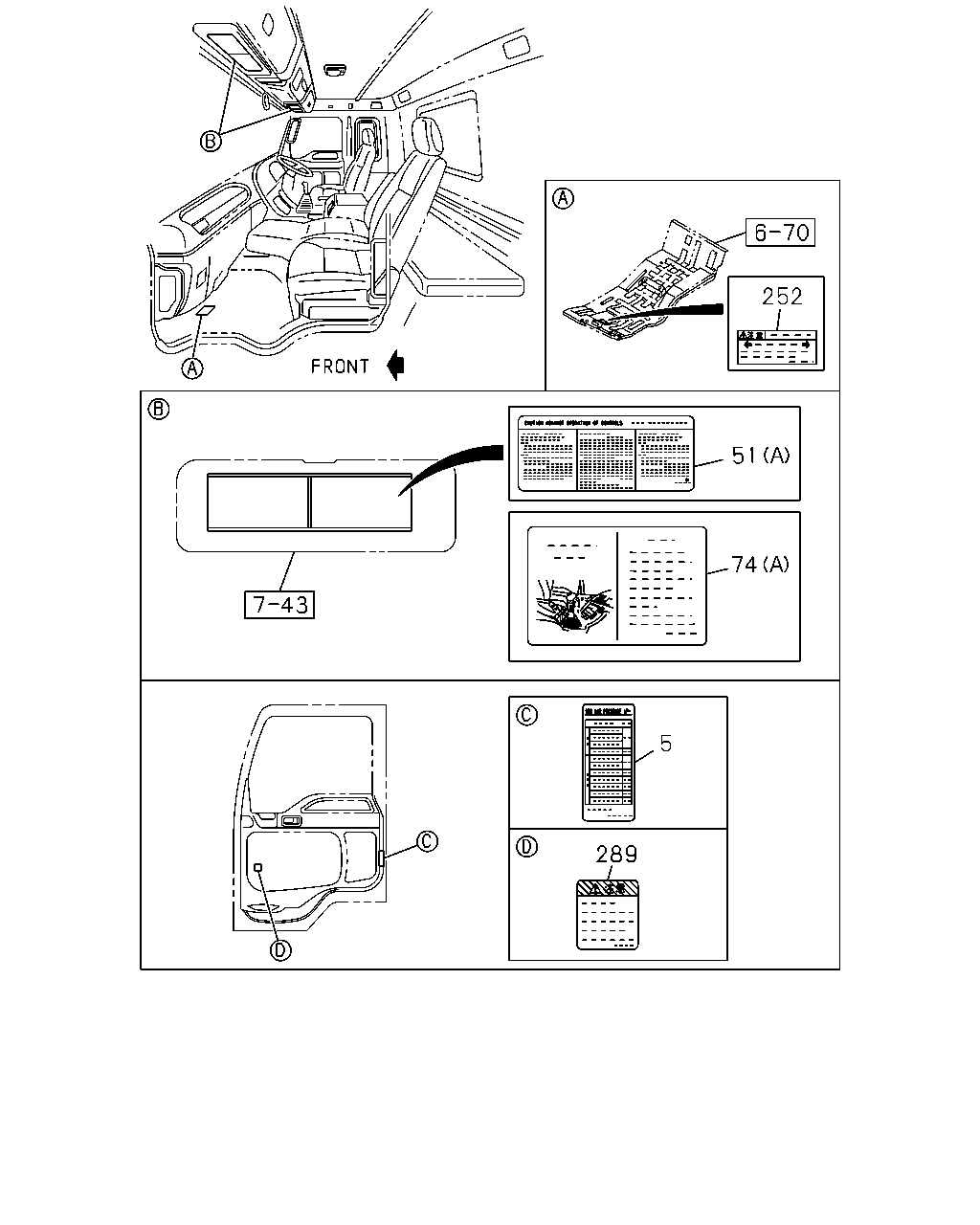

51 74 5 289 252

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	LABEL; TIRE AIR PRESSURE TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIRE FT 11R22.5-16 WEA RR 11R22.5-16LUG NZ(28X),TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE315/80R22.5-156 /150K RIBLUG LATIN AMERICA(5N2),TIRE 11.00R20-16 RIBLUG OFF ROAD(5N4),TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) CAUTIONS PORTUGUESE<NAT>,CAUTIONS ENGLISH<RR8>, CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85880-778-0	01	1	1306-	●
5	LABEL; TIRE AIR PRESSURE TIRE FT 11R22.5-16 WEA RR 11R22.5-16LUG NZ(28X), TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150L RIB EEC(5J5),TIRE315/80R22.5-156/150K RIBLUG LATIN AMERICA(5N2),TIRE 11.00R20-16 RIBLUG OFF ROAD(5N4),TIRE 11.00R20-16 RIB(85R),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) CAUTIONS PORTUGUESE<NAT>,CAUTIONS ENGLISH<RR8>, CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1>	1-85880-778-0	01	1	1306-		●
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-787-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS ENGLISH<RR8> (A)	1-85880-777-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-786-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS PORTUGUESE<NAT> (A)	8-98161-460-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING CAUTIONS SPANISH<YN1> (A)	1-85880-785-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) CAUTIONS ARABIAN<WJ7> (B)	8-97624-052-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) CAUTIONS ENGLISH<RR8> (C)	1-85878-544-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) CAUTIONS FRENCH<WJ8> (B)	8-97633-742-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) CAUTIONS PORTUGUESE<NAT> (B)	8-98162-838-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING MJX16P M/T(Y3Z) CAUTIONS SPANISH<YN1> (B)	8-97613-336-0	01	1	1306-	●	●
51	PLATE; CAUTION,WARNING EXC. SILENCER SINGLE VERTICAL<N28> (D)	1-85878-571-0	01	1	1306-	●	●
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) (B)	8-98118-493-0	01	1	1306-	●	●
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) CAUTIONS ARABIAN<WJ7> (A)	8-98124-445-0	01	1	1306-	●	●
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) CAUTIONS ENGLISH<RR8> (A)	1-85881-836-0	01	1	1306-	●	●
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) CAUTIONS FRENCH<WJ8> (A)	1-85881-970-0	01	1	1306-	●	●
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) CAUTIONS PORTUGUESE<NAT> (A)	8-98164-667-0	01	1	1306-	●	●
74	PLATE; CAUTION,CHANGE LEV MJX16P M/T(Y3Z) CAUTIONS SPANISH<YN1> (A)	1-85881-946-0	01	1	1306-	●	●
252	PLATE; CAUTION,HARNESS CAUTIONS ARABIAN<WJ7>	8-97623-996-0	01	1	1306-	●	●
252	PLATE; CAUTION,HARNESS CAUTIONS ENGLISH<RR8>	1-85878-488-1	01	1	1306-	●	●
252	PLATE; CAUTION,HARNESS CAUTIONS FRENCH<WJ8>	1-85878-560-0	01	1	1306-	●	●
252	PLATE; CAUTION,HARNESS CAUTIONS PORTUGUESE<NAT>	8-97636-218-0	01	1	1306-	●	●
252	PLATE; CAUTION,HARNESS CAUTIONS SPANISH<YN1>	1-85878-559-0	01	1	1306-	●	●
289	PLATE; CAUTION,DRIVING CAUTIONS ARABIAN<WJ7>	8-98093-472-0	01	1	1306-	●	●

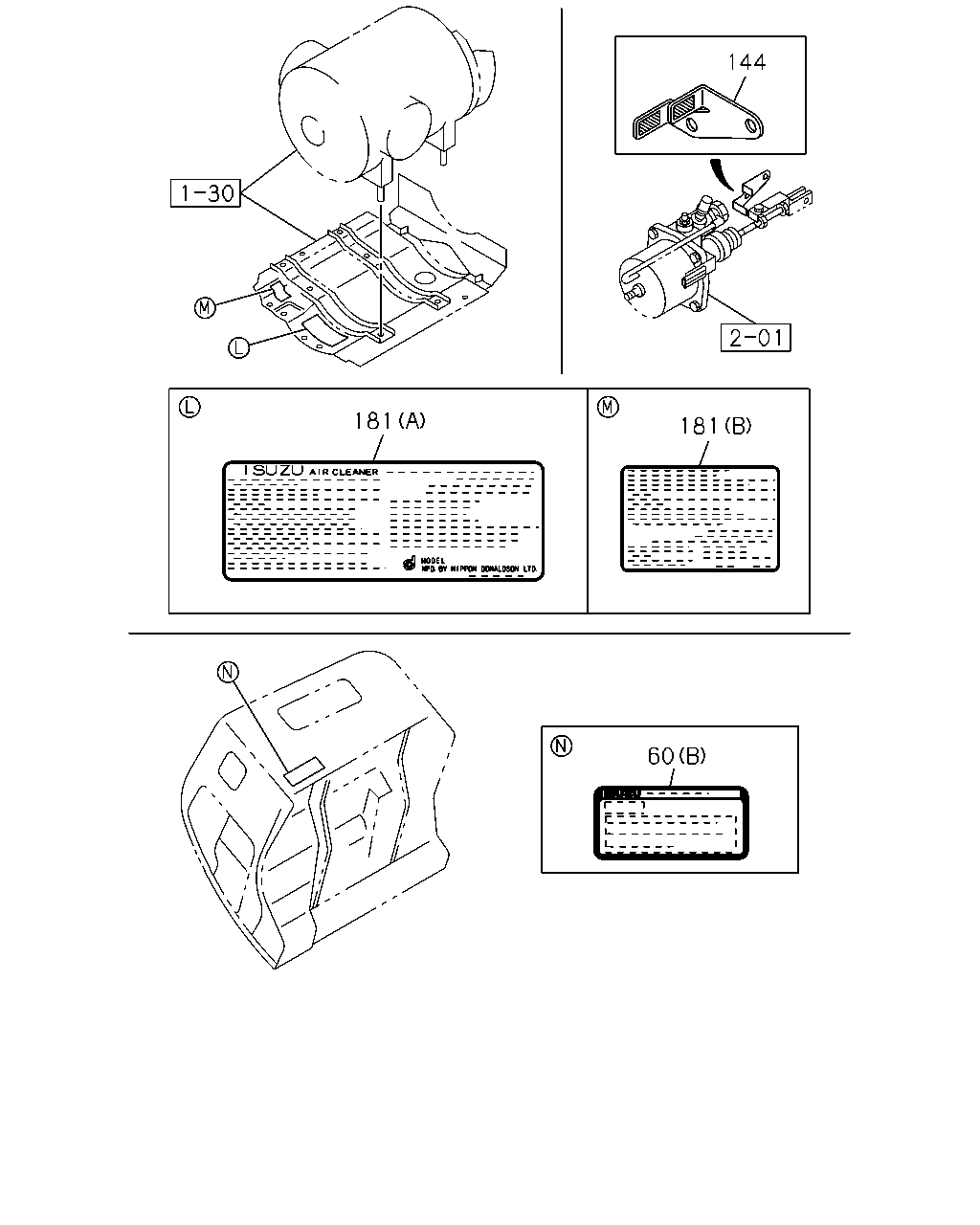

144 181 181 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7> (A)	8-98192-182-0	01	1	1306-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7> (B)	8-98192-184-0	01	1	1306-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS ENGLISH<RR8> (A)	8-98174-581-0	01	1	1306-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS ENGLISH<RR8> (B)	8-98174-582-0	01	1	1306-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8> (A)	8-98237-661-0	01	1	1306-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8> (B)	8-98237-663-0	01	1	1306-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS PORTUGUESE<NAT> (A)	8-98237-662-0	01	1	1306-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS PORTUGUESE<NAT> (B)	8-98237-664-0	01	1	1306-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1> (A)	8-98192-183-0	01	1	1306-	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS SPANISH<YN1> (B)	8-98192-185-0	01	1	1306-	●	●
144	PLATE; CAUTION,CLU MJX16P M/T(Y3Z)	1-85878-345-0	01	1	1306-	●	●
181	PLATE; CAUTION,AIR CLEANER (A)	1-85886-796-1	01	1	1306-	●	●
181	PLATE; CAUTION,AIR CLEANER (B)	1-85886-813-1	01	1	1306-	●	●

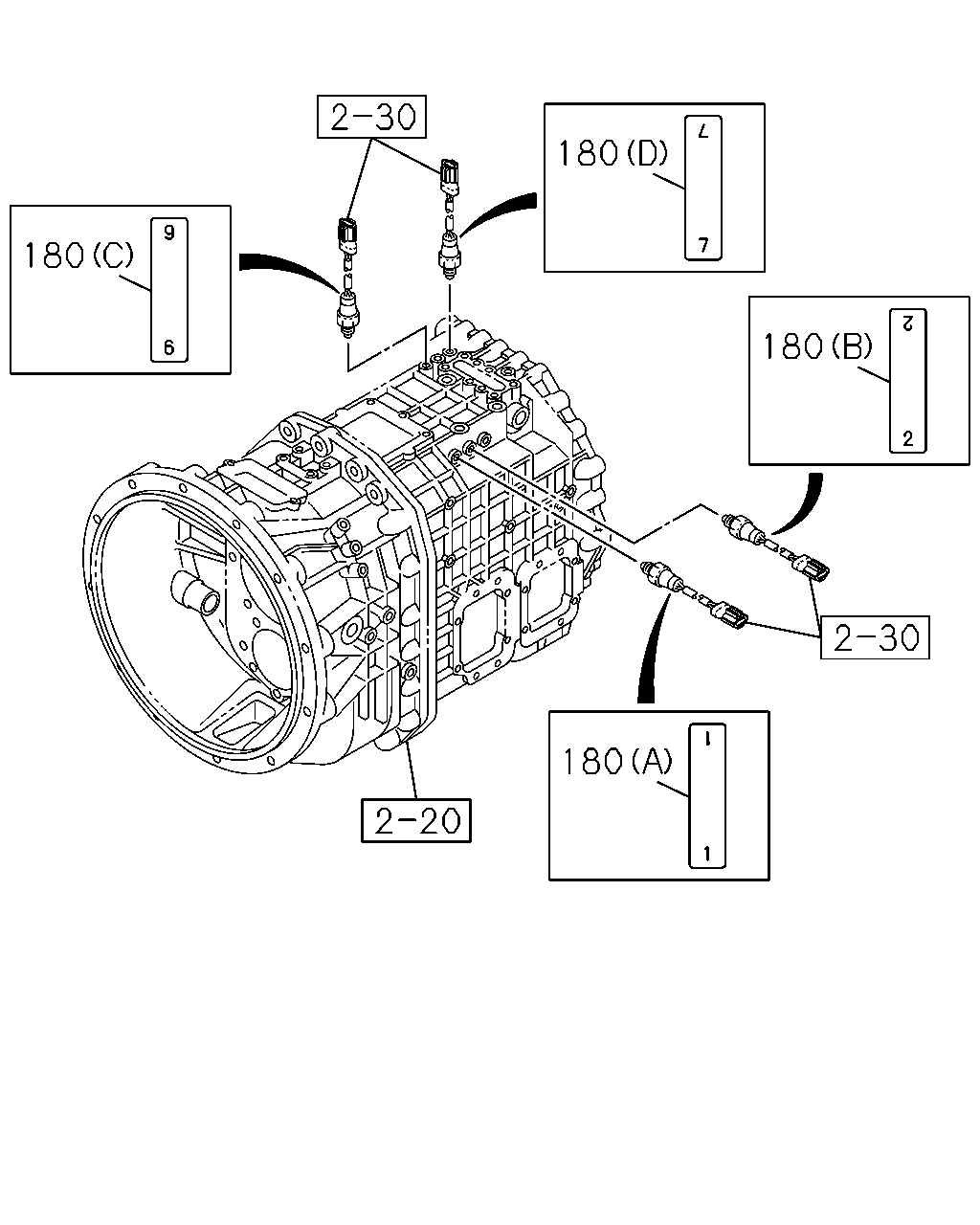

180 180 180 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
180	PLATE; CAUTION,SWITCH MJX16P M/T(Y3Z) (C)	1-85881-880-0	01	1	1507-	●	●
180	PLATE; CAUTION,SWITCH MJX16P M/T(Y3Z) (D)	1-85881-881-0	01	1	1507-	●	●
180	PLATE; CAUTION,SWITCH MJX16P M/T(Y3Z) (A)	1-85881-871-0	01	1	1306-1506	●	●
180	PLATE; CAUTION,SWITCH MJX16P M/T(Y3Z) (B)	1-85881-872-0	01	1	1507-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
