Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11535 - CYZ RHD EURO2
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#124835) — 149 parça
Tümü
A - CYZ5MC
B - CYZ5MF
◀
[647A] COMPONENT;NOISE SHUTTER NO.2 (19 parça)

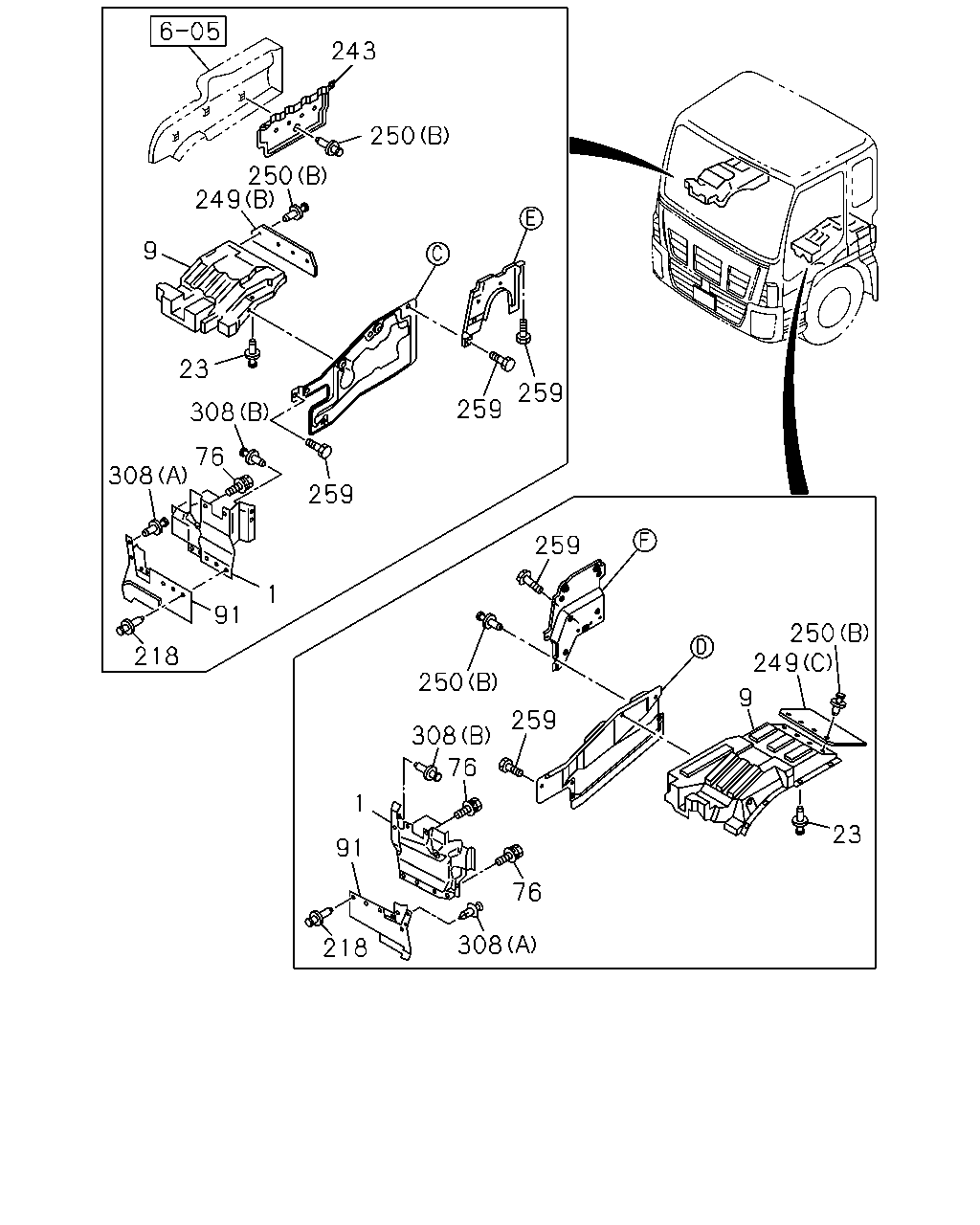

[647A] SPLASH GUARD AND MUD GUARD FRONT (28 parça)
[647A] SIDE PANEL (33 parça)
[647A] COMPONENT;NOISE SHUTTER NO.1 (19 parça)

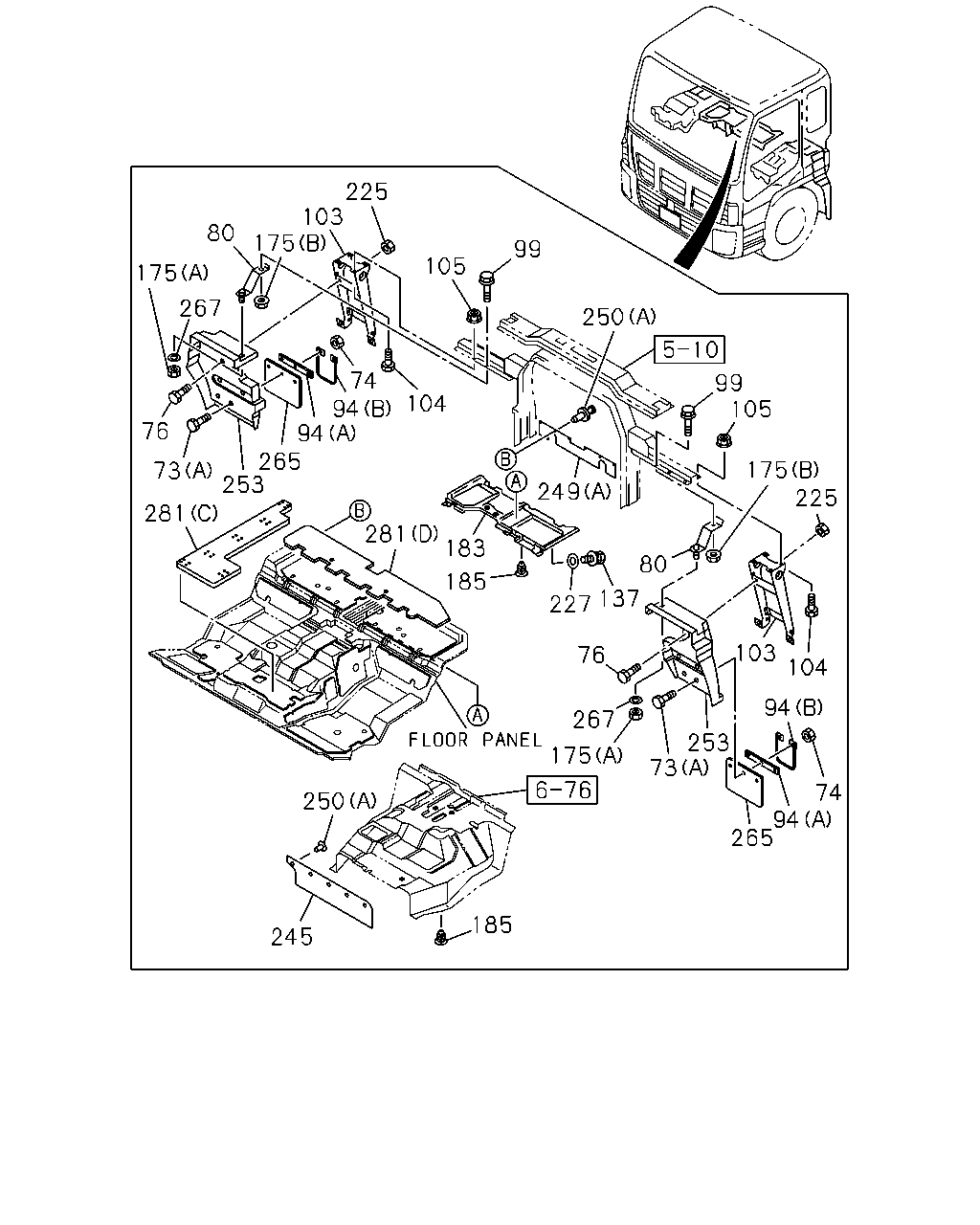

[647A] INSULATOR AND MUD GUARD REAR (50 parça)
▶
130
185
130
281
185
249
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
130
PANEL; SHUTTER NOISE
(B)
1-79937-960-5
01
1
1306-
●
●
130
PANEL; SHUTTER NOISE
(C)
8-98167-256-0
01
1
1306-
●
●
130
PANEL; SHUTTER NOISE
(A)
8-98240-672-0
01
1
1306-
●
●
130
PANEL; SHUTTER NOISE
(A)
1-53194-386-1
01
1
1306-
●
●
130
PANEL; SHUTTER NOISE
(B)
8-98079-170-1
01
1
1306-
●
●
130
PANEL; SHUTTER NOISE
(D)
8-98125-820-0
01
1
1306-
●
●
185
CLIP; HEAT INSULATOR
ID=6.2 L=11.4
8-97808-623-0
05
1
1306-
●
●
185
CLIP; HEAT INSULATOR
ID=6.2 L=11.4
8-97808-623-0
35
1
1306-
●
●
249
RUBBER; SHUTTER
(A)
1-79937-924-2
01
1
1306-
●
●
249
RUBBER; SHUTTER
(D)
1-79937-966-2
01
1
1306-
●
●
249
RUBBER; SHUTTER
(C)
1-79937-981-1
01
1
1306-
●
●
249
RUBBER; SHUTTER
(E)
8-98079-173-0
01
1
1306-
●
●
249
RUBBER; SHUTTER
(B)
1-79937-979-1
01
1
1306-
●
●
249
RUBBER; SHUTTER
(D)
8-98079-172-0
01
1
1306-
●
●
281
INSULATOR; NOISE
(A)
1-71907-171-2
01
1
1306-
●
●
281
INSULATOR; NOISE
(B)
1-71907-742-0
01
1
1306-
●
●
281
INSULATOR; NOISE
(A)
1-71907-170-1
01
1
1306-
●
●
281
INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (C)
1-73237-931-0
01
1
1306-
●
●
281
INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D)
1-73237-445-4
01
1
1306-
●
●
243
250
250
249
9
23
259
259
259
308
76
308
1
91
218
259
250
259
308
76
1
91
76
308
218
23
9
249
250
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GUARD; MUD,FRT
1-79937-894-6
01
1
1306-
●
●
1
GUARD; MUD,FRT
1-79937-895-5
01
1
1306-
●
●
9
GUARD; SPLASH,WHEEL HOUSE
1-79937-908-4
01
1
1306-
●
●
9
GUARD; SPLASH,WHEEL HOUSE
1-79937-907-4
01
1
1306-
●
●
23
FASTENER; MUD COVER
D8X13.5
1-09987-248-1
21
1
1306-
●
●
76
BOLT; MUD GUARD
M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
1306-
●
●
76
BOLT; MUD GUARD
M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
1306-
●
●
76
BOLT; MUD GUARD
M8X30 W/LK&PL WASHER
8-94279-210-0
06
1
1306-
●
●
91
COVER; MUD,FRT
8-98134-826-2
01
1
1306-
●
●
91
COVER; MUD,FRT
8-98134-825-2
01
1
1306-
●
●
218
FASTENER; RUBBER
D8X13.5
1-09987-248-1
08
1
1306-
●
●
243
PROTECTOR; NOISE SHUT PANEL
1-79937-906-2
01
1
1306-
●
●
249
RUBBER; SHUTTER
(A)
1-79937-924-2
01
1
1306-
●
●
249
RUBBER; SHUTTER
(D)
1-79937-966-2
01
1
1306-
●
●
249
RUBBER; SHUTTER
(C)
1-79937-981-1
01
1
1306-
●
●
249
RUBBER; SHUTTER
(E)
8-98079-173-0
01
1
1306-
●
●
249
RUBBER; SHUTTER
(B)
1-79937-979-1
01
1
1306-
●
●
249
RUBBER; SHUTTER
(D)
8-98079-172-0
01
1
1306-
●
●
250
FASTENER; SHUTTER
(A) D6X16 PUSH RIVET
1-09983-105-0
05
1
1306-
●
●
250
FASTENER; SHUTTER
(A) D6X16 PUSH RIVET
1-09983-105-0
06
1
1306-
●
●
250
FASTENER; SHUTTER
(B) D8X13.5
1-09987-248-1
01
1
1306-1510
●
●
250
FASTENER; SHUTTER
(B) D8X13.5
1-09987-248-1
10
1
1511-
●
●
250
FASTENER; SHUTTER
(B) D8X13.5
1-09987-248-1
09
1
1306-1510
●
●
259
BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER
8-98059-720-0
12
1
1306-1510
●
●
259
BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER
8-98059-720-0
06
1
1511-
●
●
259
BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER
8-98059-720-0
06
1
1511-
●
●
308
FASTENER; MUD GUARD
(A)
1-09470-007-0
08
1
1306-
●
●
308
FASTENER; MUD GUARD
(B) ID=6X6 OD=8
1-09987-194-0
02
1
1306-
●
●
114
114
114
131
73
133
130
162
163
163
162
135
135
133
135
130
61
167
164
114
114
114
131
122
160
122
160
167
168
122
167
122
162
162
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
61
BRACKET; COVER
EXC. SILENCER SINGLE VERTICAL<N28>
8-98039-501-1
01
1
1306-
●
●
73
BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
03
1
1306-
●
●
73
BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
03
1
1306-
●
●
73
BOLT; MUD COVER BRKT
(B) M8X16 FLANGE
0-28050-816-0
03
1
1306-
●
●
114
BOLT
M8X20 FLANGE
0-28650-820-0
02
1
1306-
●
●
114
BOLT
M8X22 W/LK&PL WASHER
1-09030-042-0
09
1
1306-
●
●
122
BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE
0-28650-820-0
03
1
1306-
●
●
122
BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE
0-28650-830-0
03
1
1306-
●
●
130
PANEL; SHUTTER NOISE
(B)
1-79937-960-5
01
1
1306-
●
●
130
PANEL; SHUTTER NOISE
(C)
8-98167-256-0
01
1
1306-
●
●
130
PANEL; SHUTTER NOISE
(A)
8-98240-672-0
01
1
1306-
●
●
130
PANEL; SHUTTER NOISE
(A)
1-53194-386-1
01
1
1306-
●
●
130
PANEL; SHUTTER NOISE
(B)
8-98079-170-1
01
1
1306-
●
●
130
PANEL; SHUTTER NOISE
(D)
8-98125-820-0
01
1
1306-
●
●
131
BOLT; PANEL
M8X25 W/LK&PL WASHER
1-09030-093-0
07
1
1306-
●
●
133
BOLT; FRAME
M8X25 FLANGE
0-28650-825-0
02
1
1306-
●
●
133
BOLT; FRAME
M8X30 FLANGE
0-28650-830-0
02
1
1306-
●
●
133
BOLT; FRAME
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X35 FLANGE
0-28651-035-0
01
1
1306-
●
●
133
BOLT; FRAME
TRANSMISSION CONTROL CABLE TYPE(C1A) M14X45 FLANGE
0-28851-445-0
01
1
1306-
●
●
135
BRACKET; SIDE PANEL
(C)
8-98216-298-1
01
1
1306-
●
●
135
BRACKET; SIDE PANEL
(B)
1-53441-598-1
01
1
1306-
●
●
135
BRACKET; SIDE PANEL
(A)
8-98225-728-0
01
1
1306-
●
●
160
COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (A)
1-79931-411-2
01
1
1306-
●
●
160
COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (B)
1-79931-412-1
01
1
1306-
●
●
162
BRACKET
SILENCER SINGLE VERTICAL<N28> (A)
1-53441-520-0
01
1
1306-
●
●
162
BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (A)
1-53441-520-0
02
1
1306-
●
●
162
BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (B)
1-53441-521-2
01
1
1306-
●
●
162
BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (C)
1-53441-522-0
01
1
1306-
●
●
163
BOLT; BRKT
SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE
0-28650-820-0
02
1
1306-
●
●
163
BOLT; BRKT
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE
0-28650-820-0
04
1
1306-
●
●
164
BOLT; FLEX COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE
0-28650-820-0
02
1
1306-
●
●
167
BOLT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE
0-28650-820-0
05
1
1306-
●
●
168
NUT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE
0-91180-108-0
01
1
1306-
●
●
130
281
185
249
130
281
185
249
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
130
PANEL; SHUTTER NOISE
(B)
1-79937-960-5
01
1
1306-
●
●
130
PANEL; SHUTTER NOISE
(C)
8-98167-256-0
01
1
1306-
●
●
130
PANEL; SHUTTER NOISE
(A)
8-98240-672-0
01
1
1306-
●
●
130
PANEL; SHUTTER NOISE
(A)
1-53194-386-1
01
1
1306-
●
●
130
PANEL; SHUTTER NOISE
(B)
8-98079-170-1
01
1
1306-
●
●
130
PANEL; SHUTTER NOISE
(D)
8-98125-820-0
01
1
1306-
●
●
185
CLIP; HEAT INSULATOR
ID=6.2 L=11.4
8-97808-623-0
05
1
1306-
●
●
185
CLIP; HEAT INSULATOR
ID=6.2 L=11.4
8-97808-623-0
35
1
1306-
●
●
249
RUBBER; SHUTTER
(A)
1-79937-924-2
01
1
1306-
●
●
249
RUBBER; SHUTTER
(D)
1-79937-966-2
01
1
1306-
●
●
249
RUBBER; SHUTTER
(C)
1-79937-981-1
01
1
1306-
●
●
249
RUBBER; SHUTTER
(E)
8-98079-173-0
01
1
1306-
●
●
249
RUBBER; SHUTTER
(B)
1-79937-979-1
01
1
1306-
●
●
249
RUBBER; SHUTTER
(D)
8-98079-172-0
01
1
1306-
●
●
281
INSULATOR; NOISE
(A)
1-71907-171-2
01
1
1306-
●
●
281
INSULATOR; NOISE
(B)
1-71907-742-0
01
1
1306-
●
●
281
INSULATOR; NOISE
(A)
1-71907-170-1
01
1
1306-
●
●
281
INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (C)
1-73237-931-0
01
1
1306-
●
●
281
INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D)
1-73237-445-4
01
1
1306-
●
●
185
245
250
74
94
265
73
175
253
94
104
103
267
76
227
137
80
225
175
105
99
250
249
185
183
281
99
105
104
74
94
94
265
253
281
73
76
267
175
80
175
103
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
73
BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
03
1
1306-
●
●
73
BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
03
1
1306-
●
●
73
BOLT; MUD COVER BRKT
(B) M8X16 FLANGE
0-28050-816-0
03
1
1306-
●
●
74
NUT
M8 FLANGE
0-91180-108-0
03
1
1306-
●
●
74
NUT
M8 FLANGE
0-91180-108-0
03
1
1306-
●
●
76
BOLT; MUD GUARD
M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
1306-
●
●
76
BOLT; MUD GUARD
M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
1306-
●
●
76
BOLT; MUD GUARD
M8X30 W/LK&PL WASHER
8-94279-210-0
06
1
1306-
●
●
80
BRACKET; MUD GUARD STAY
1-79931-159-1
02
1
1306-
●
●
94
RETAINER; FLAP RUBBER
(A)
1-79931-091-2
01
1
1306-
●
●
94
RETAINER; FLAP RUBBER
(A)
1-79931-091-2
01
1
1306-
●
●
94
RETAINER; FLAP RUBBER
(B)
1-79931-524-0
01
1
1306-
●
●
94
RETAINER; FLAP RUBBER
(B)
1-79931-194-0
01
1
1306-
●
●
99
BOLT; STAY TO MUD GUARD
M10X25 FLANGE
0-28651-025-0
02
1
1306-
●
●
103
BRACKET ASM; RR MUD FLAP
1-79931-527-0
01
1
1306-1502
●
●
103
BRACKET ASM; RR MUD FLAP
8-98306-895-0
01
1
1503-
●
●
103
BRACKET ASM; RR MUD FLAP
1-79931-444-0
01
1
1306-1502
●
●
103
BRACKET ASM; RR MUD FLAP
8-98306-892-0
01
1
1503-
●
●
104
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
08
1
1306-
●
●
105
NUT; BRKT
M10 FLANGE
0-91180-210-0
07
1
1306-
●
●
137
BOLT
M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
1306-
●
●
175
NUT; STAY FIX
(A) M8 FLANGE
0-91180-108-0
02
1
1306-
●
●
175
NUT; STAY FIX
(B) M10 FLANGE
0-91180-210-0
02
1
1306-
●
●
183
INSULATOR; HEAT,BED PAN
1-71907-526-4
01
1
1306-
●
●
185
CLIP; HEAT INSULATOR
ID=6.2 L=11.4
8-97808-623-0
05
1
1306-
●
●
185
CLIP; HEAT INSULATOR
ID=6.2 L=11.4
8-97808-623-0
35
1
1306-
●
●
225
NUT; MUD GUARD
M8 FLANGE
0-91180-108-0
08
1
1306-
●
●
227
SEAL; MUD GUARD
T=2.0
8-94279-641-0
01
1
1306-
●
●
245
RUBBER; SHUTTER,RAD
8-98227-395-0
01
1
1306-
●
●
249
RUBBER; SHUTTER
(A)
1-79937-924-2
01
1
1306-
●
●
249
RUBBER; SHUTTER
(D)
1-79937-966-2
01
1
1306-
●
●
249
RUBBER; SHUTTER
(C)
1-79937-981-1
01
1
1306-
●
●
249
RUBBER; SHUTTER
(E)
8-98079-173-0
01
1
1306-
●
●
249
RUBBER; SHUTTER
(B)
1-79937-979-1
01
1
1306-
●
●
249
RUBBER; SHUTTER
(D)
8-98079-172-0
01
1
1306-
●
●
250
FASTENER; SHUTTER
(A) D6X16 PUSH RIVET
1-09983-105-0
05
1
1306-
●
●
250
FASTENER; SHUTTER
(A) D6X16 PUSH RIVET
1-09983-105-0
06
1
1306-
●
●
250
FASTENER; SHUTTER
(B) D8X13.5
1-09987-248-1
01
1
1306-1510
●
●
250
FASTENER; SHUTTER
(B) D8X13.5
1-09987-248-1
10
1
1511-
●
●
250
FASTENER; SHUTTER
(B) D8X13.5
1-09987-248-1
09
1
1306-1510
●
●
253
GUARD; MUD
8-98134-766-1
01
1
1306-
●
●
253
GUARD; MUD
8-98134-759-0
01
1
1306-
●
●
265
RUBBER; FLAP,REAR
1-79930-978-0
01
1
1306-
●
●
265
RUBBER; FLAP,REAR
1-79930-978-0
01
1
1306-
●
●
267
WASHER; PL,STAY
ID=8.4 OD=26
0-91614-808-0
02
1
1306-
●
●
281
INSULATOR; NOISE
(A)
1-71907-171-2
01
1
1306-
●
●
281
INSULATOR; NOISE
(B)
1-71907-742-0
01
1
1306-
●
●
281
INSULATOR; NOISE
(A)
1-71907-170-1
01
1
1306-
●
●
281
INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (C)
1-73237-931-0
01
1
1306-
●
●
281
INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (D)
1-73237-445-4
01
1
1306-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
