5-20 — BATTERY CARRIER (#124822) — 56 parça

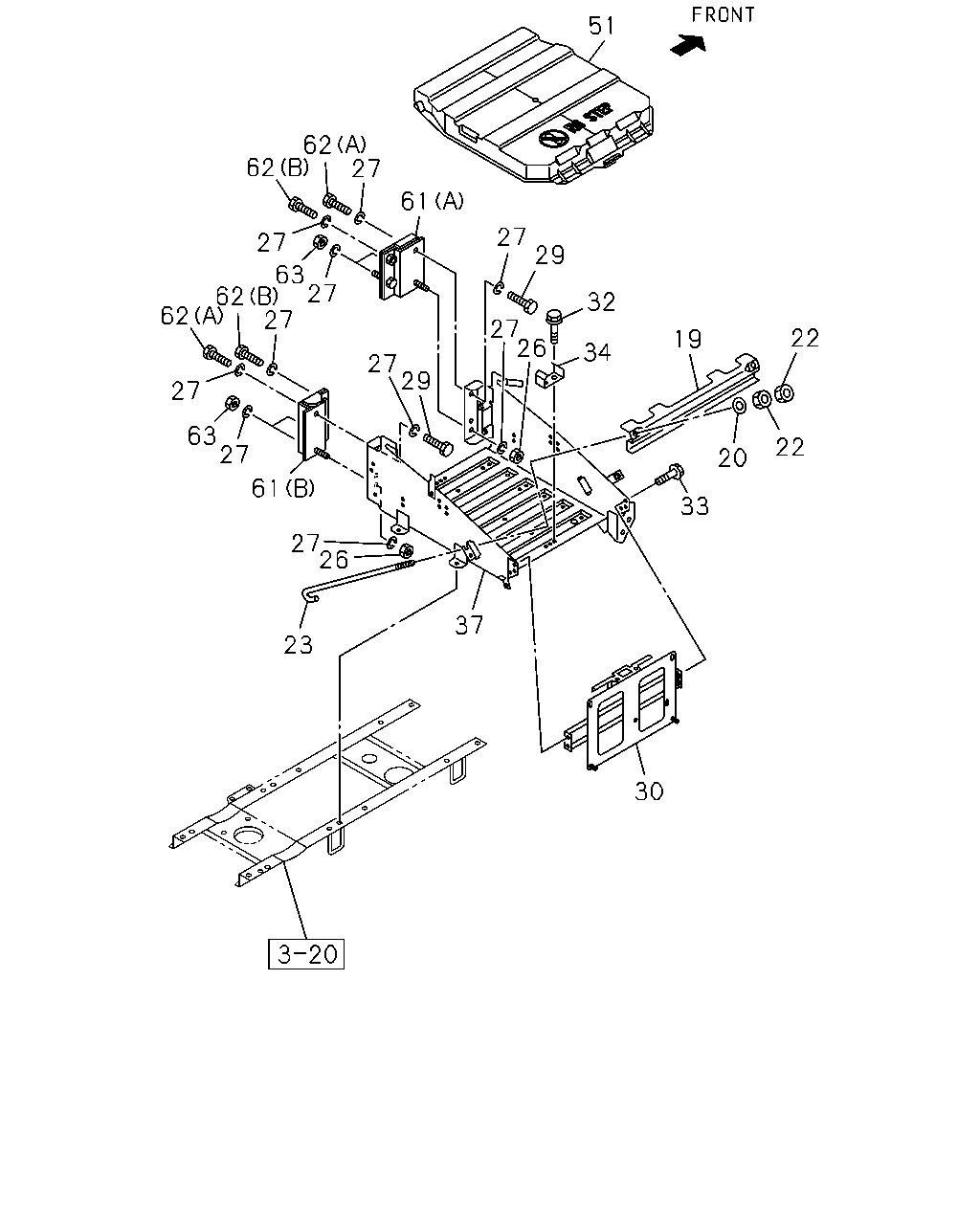

30 33 20 22 22 19 34 32 26 27 29 27 61 51 27 62 62 27 27 63 62 62 27 63 61 27 27 27 26 23 37 29 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	STAY; BATTERY	1-53618-039-2	01	1	1306-	●	●
20	WASHER; PL,STAY ID=8.4 OD=22	0-91614-708-0	02	1	1306-	●	●
22	NUT; STAY M8	0-91110-508-0	04	1	1306-	●	●
23	BOLT; STAY L=250	1-53616-108-0	02	1	1306-	●	●
26	NUT; BRKT M14	0-91110-514-0	02	1	1306-	●
26	NUT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M14	0-91110-514-0	02	1	1306-		●
26	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M14	1-09440-072-0	02	1	1306-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1306-	●
27	WASHER; LK,BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> ID=14.2	0-91510-514-0	08	1	1306-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	04	1	1306-	●	●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1306-	●
29	BOLT; BRKT TO FRAME EXC. BATTERY LAYOUT REAR VAR1<NCT> M14X30	0-20851-430-0	02	1	1306-		●
29	BOLT; BRKT TO FRAME BATTERY LAYOUT REAR VAR1<NCT> M14X45	1-09000-764-0	02	1	1306-		●
30	PLATE; BATTERY	8-97635-039-2	01	1	1306-	●	●
32	BOLT; PLATE TO SPACER BATTERY 115F51 N120<SJ3> M8X16 FLANGE	0-28050-816-0	04	1	1306-	●	●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28650-820-0	04	1	1306-	●	●
34	SPACER; BATTERY BRKT BATTERY 115F51 N120<SJ3>	1-53619-084-0	02	1	1306-	●	●
37	BRACKET; BATTERY	8-98218-501-2	01	1	1306-	●
37	BRACKET; BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT>	8-98218-501-2	01	1	1306-		●
37	BRACKET; BATTERY BATTERY LAYOUT REAR VAR1<NCT>	8-98097-706-2	01	1	1306-		●
51	COVER; BATTERY	8-98097-715-3	01	1	1306-	●	●
61	DISTANCE; BRKT,BATTERY (B)	1-53613-505-0	01	1	1306-	●
61	DISTANCE; BRKT,BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> (B)	1-53613-505-0	01	1	1306-		●
61	DISTANCE; BRKT,BATTERY MIXER TRUCK<RA2> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53613-489-0	01	1	1306-	●
61	DISTANCE; BRKT,BATTERY SILENCER SINGLE VERTICAL<N28> MIXER TRUCK<RA2> (A)	8-98177-609-0	01	1	1306-	●
61	DISTANCE; BRKT,BATTERY SILENCER SINGLE VERTICAL<N28> EXC. MIXER TRUCK<RA2> (A)	8-97623-013-0	01	1	1306-	●
61	DISTANCE; BRKT,BATTERY SILENCER SINGLE VERTICAL<N28> EXC. BATTERY LAYOUT REAR VAR1<NCT> (A)	8-97623-013-0	01	1	1306-		●
61	DISTANCE; BRKT,BATTERY EXC. SILENCER SINGLE VERTICAL<N28>,MIXER TRUCK<RA2> (A)	1-53613-504-0	01	1	1306-	●
61	DISTANCE; BRKT,BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT>,SILENCER SINGLEVERTICAL<N28> (A)	1-53613-504-0	01	1	1306-		●
62	BOLT; DIST TO FRAME,BATTERY (A) M14X45	1-09000-764-0	02	1	1306-	●
62	BOLT; DIST TO FRAME,BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> (A) M14X45	1-09000-764-0	02	1	1306-		●
62	BOLT; DIST TO FRAME,BATTERY (B) M14X60	1-09000-778-0	02	1	1306-	●
62	BOLT; DIST TO FRAME,BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) M14X60	1-09000-778-0	02	1	1306-		●
63	NUT; DIST TO FRAME M14	1-09440-072-0	04	1	1306-	●
63	NUT; DIST TO FRAME EXC. BATTERY LAYOUT REAR VAR1<NCT> M14	1-09440-072-0	04	1	1306-		●

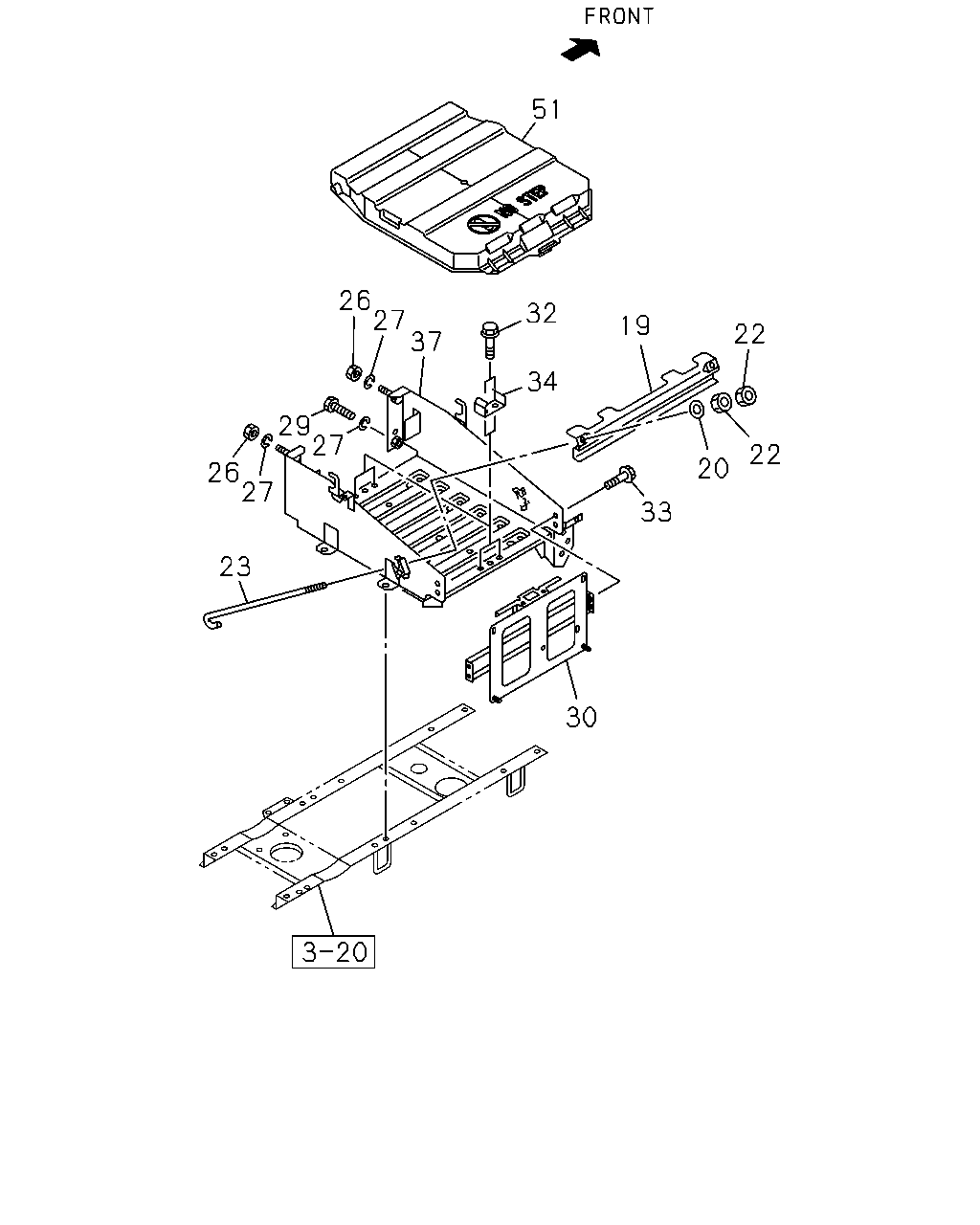

22 22 20 33 19 32 51 37 27 26 27 29 27 26 23 34 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	STAY; BATTERY	1-53618-039-2	01	1	1306-	●	●
20	WASHER; PL,STAY ID=8.4 OD=22	0-91614-708-0	02	1	1306-	●	●
22	NUT; STAY M8	0-91110-508-0	04	1	1306-	●	●
23	BOLT; STAY L=250	1-53616-108-0	02	1	1306-	●	●
26	NUT; BRKT M14	0-91110-514-0	02	1	1306-	●
26	NUT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M14	0-91110-514-0	02	1	1306-		●
26	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M14	1-09440-072-0	02	1	1306-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1306-	●
27	WASHER; LK,BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> ID=14.2	0-91510-514-0	08	1	1306-		●
27	WASHER; LK,BRKT ID=14.2	0-91510-514-0	04	1	1306-	●	●
29	BOLT; BRKT TO FRAME M14X30	0-20851-430-0	02	1	1306-	●
29	BOLT; BRKT TO FRAME EXC. BATTERY LAYOUT REAR VAR1<NCT> M14X30	0-20851-430-0	02	1	1306-		●
29	BOLT; BRKT TO FRAME BATTERY LAYOUT REAR VAR1<NCT> M14X45	1-09000-764-0	02	1	1306-		●
30	PLATE; BATTERY	8-97635-039-2	01	1	1306-	●	●
32	BOLT; PLATE TO SPACER BATTERY 115F51 N120<SJ3> M8X16 FLANGE	0-28050-816-0	04	1	1306-	●	●
33	BOLT; PLATE TO BRKT M8X20 FLANGE	0-28650-820-0	04	1	1306-	●	●
34	SPACER; BATTERY BRKT BATTERY 115F51 N120<SJ3>	1-53619-084-0	02	1	1306-	●	●
37	BRACKET; BATTERY	8-98218-501-2	01	1	1306-	●
37	BRACKET; BATTERY EXC. BATTERY LAYOUT REAR VAR1<NCT>	8-98218-501-2	01	1	1306-		●
37	BRACKET; BATTERY BATTERY LAYOUT REAR VAR1<NCT>	8-98097-706-2	01	1	1306-		●
51	COVER; BATTERY	8-98097-715-3	01	1	1306-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
