5-01 — FRAME AND OTHER PARTS (#124817) — 87 parça

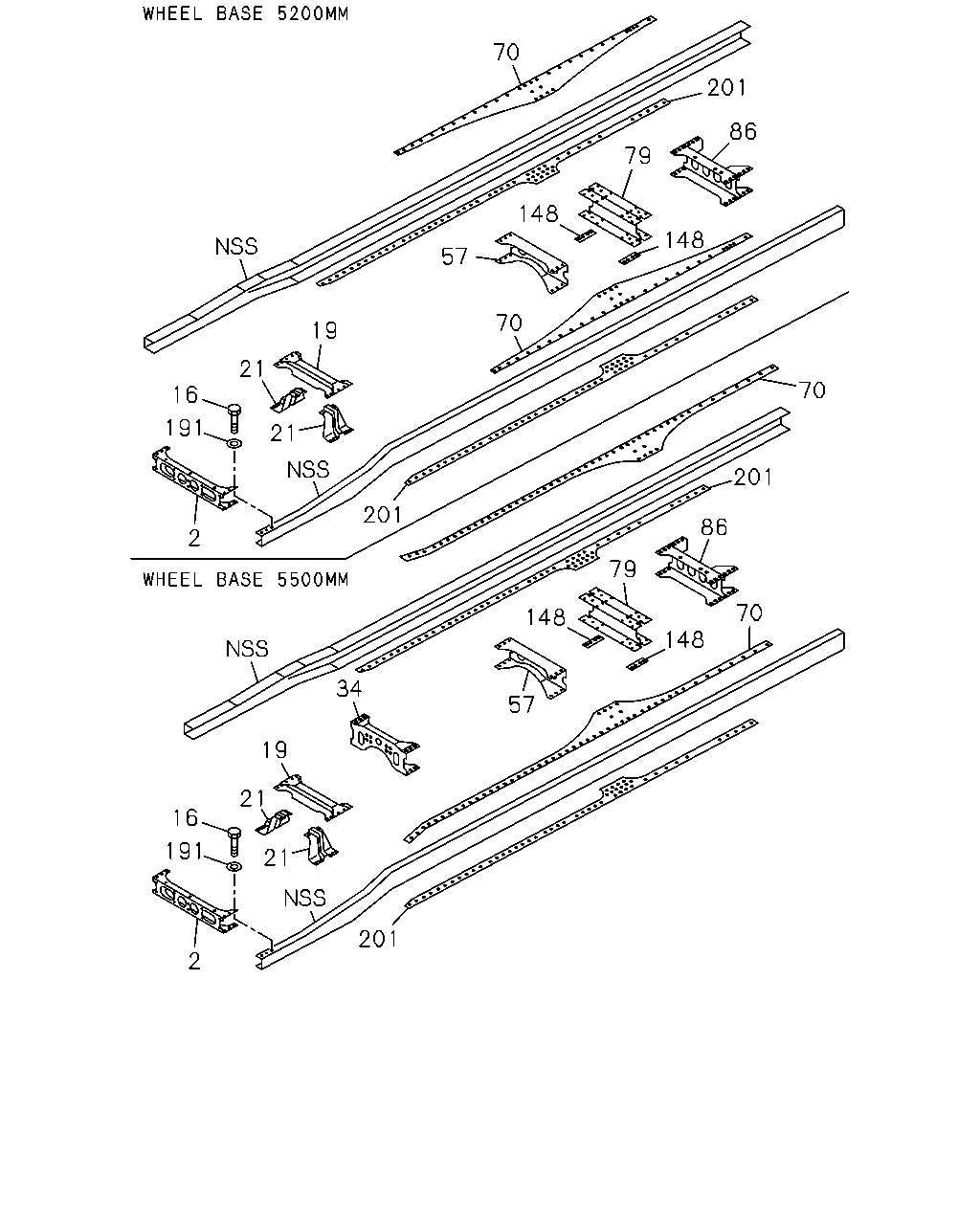

çizim 364644
70 201 86 79 148 148 57 70 19 21 21 16 2 191 34 201 148 86 70 201 70 148 79 57 201 19 21 21 16 191 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-98232-274-1 01 1 1306- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20951-640-0 02 1 1306- ● ● ●
19 MEMBER; CROSS,2ND 8-98098-302-0 01 1 1306- ● ● ●
21 GUSSET; 2ND CROSS 8-98224-525-0 02 1 1306- ● ● ●
34 MEMBER; CROSS,3RD 8-98224-576-0 01 1 1306- ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-98224-535-0 01 1 1306- ● ● ●
70 GUSSET; TRUNNION,UPR
DUMP TRUCK<RA1> FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> GENERAL EXPORT EQUIPMENT(TAA) 		8-98280-943-0 02 1 1409- ●
70 GUSSET; TRUNNION,UPR 8-98138-147-0 02 1 1306-1408 ●
70 GUSSET; TRUNNION,UPR
MIXER TRUCK<RA2> 		8-98138-147-0 02 1 1409- ●
70 GUSSET; TRUNNION,UPR 8-98138-148-0 02 1 1306- ●
70 GUSSET; TRUNNION,UPR 8-98164-250-0 02 1 1306- ●
79 MEMBER; CROSS,TRUNNION ASM 8-98224-537-0 01 1 1306- ● ●
79 MEMBER; CROSS,TRUNNION ASM 8-98244-229-0 01 1 1306- ●
86 MEMBER; CROSS,RR SUSP RR 8-98224-542-0 01 1 1306- ● ● ●
148 SPACER; C/MBR 8-97623-199-0 02 1 1306- ●
148 SPACER; C/MBR 8-97623-202-0 02 1 1306- ● ●
191 WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2 		1-09503-316-0 02 1 1306- ● ● ●
201 GUSSET; C/MBR 8-98138-151-1 02 1 1306- ●
201 GUSSET; C/MBR 8-98138-152-0 02 1 1306- ●
201 GUSSET; C/MBR 8-98138-153-1 02 1 1306- ●

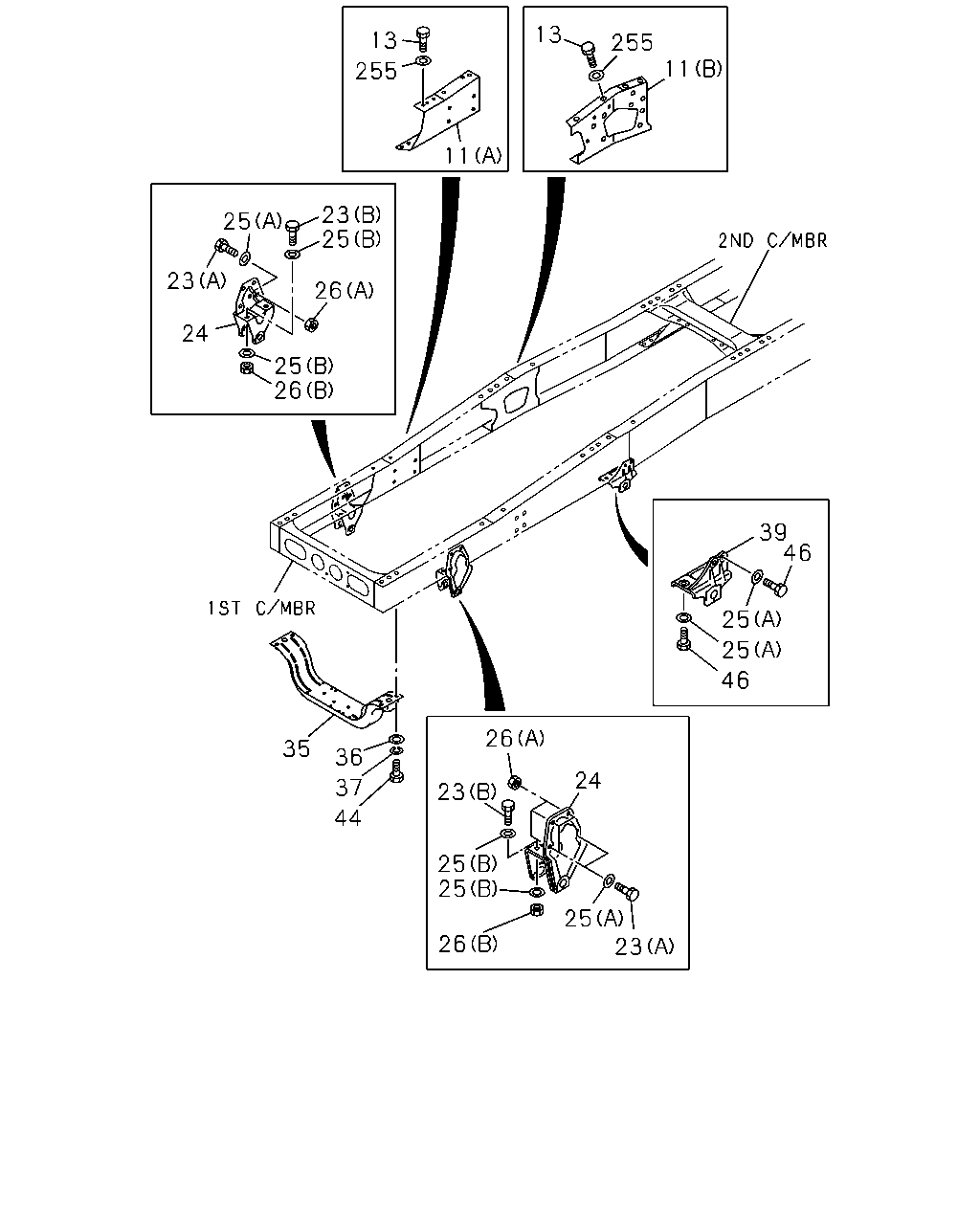

çizim 364646
11 255 13 13 11 255 39 23 46 25 25 26 23 25 24 26 25 25 46 26 24 23 25 25 26 25 23 44 35 36 37
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG
DUMP TRUCK<RA1> (B) 		1-53239-142-1 01 1 1306- ●
11 BRACKET; ENG MTG
(B) 		1-53239-142-1 01 1 1306- ● ●
11 BRACKET; ENG MTG
DUMP TRUCK<RA1> (B) 		1-53239-141-1 01 1 1306- ●
11 BRACKET; ENG MTG
(B) 		1-53239-141-1 01 1 1306- ● ●
11 BRACKET; ENG MTG
MIXER TRUCK<RA2> (B) 		8-97618-424-1 01 1 1306- ●
11 BRACKET; ENG MTG
MIXER TRUCK<RA2> (B) 		1-53239-139-1 01 1 1306- ●
11 BRACKET; ENG MTG
(A) 		1-53211-400-0 01 1 1306- ● ● ●
11 BRACKET; ENG MTG
(A) 		1-53211-399-0 01 1 1306- ● ● ●
13 BOLT; BRKT,ENG MTG
M14X40 		0-20951-440-0 06 1 1306- ● ●
13 BOLT; BRKT,ENG MTG
M14X40 		0-20951-440-0 04 1 1306- ●
23 BOLT; BRKT,SPR
(A) M14X40 		0-20951-440-0 08 1 1306- ● ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 1306- ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-238-1 01 1 1306- ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-237-1 01 1 1306- ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1306- ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 16 1 1306- ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 12 1 1306- ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1306- ● ● ●
35 MEMBER; UNDER 1-53174-263-2 01 1 1306- ● ● ●
36 WASHER; PL,UNDER MBR
ID=17 		0-91614-516-0 04 1 1306- ● ● ●
37 WASHER; LK,UNDER MBR
ID=16.2 		0-91510-816-0 04 1 1306- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-180-0 01 1 1306- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-179-0 01 1 1306- ● ● ●
44 BOLT; UNDER MBR
M16X60 		0-20951-660-0 04 1 1306- ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1306- ● ● ●
255 WASHER; PL,BRKT
ID=15 		8-98010-627-1 06 1 1306- ● ●
255 WASHER; PL,BRKT
ID=15 		8-98010-627-1 08 1 1306- ●

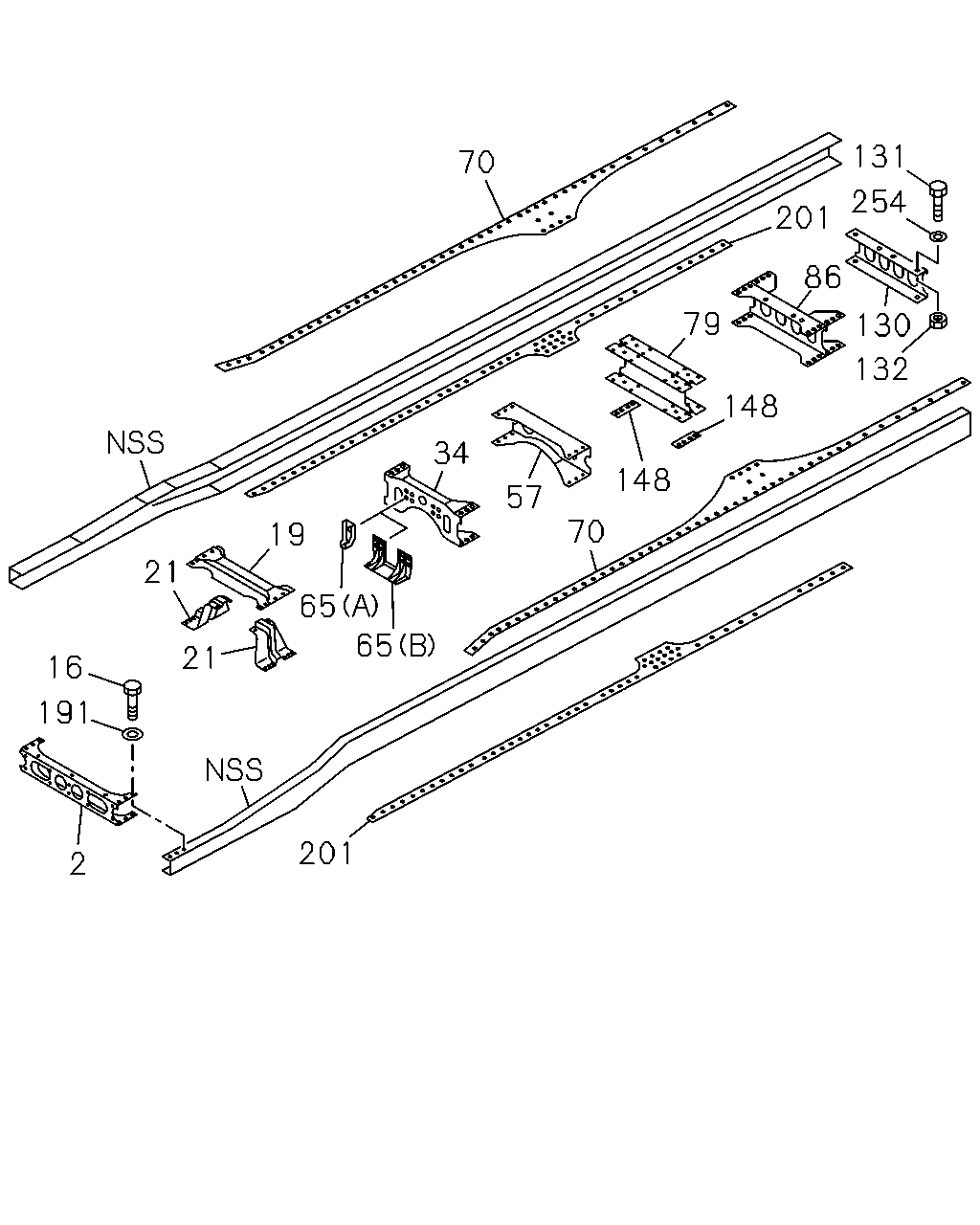

çizim 364740
70 21 21 16 191 19 65 65 201 2 34 70 148 148 79 57 201 254 131 130 86 132
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-98232-274-1 01 1 1306- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20951-640-0 02 1 1306- ● ● ●
19 MEMBER; CROSS,2ND 8-98098-302-0 01 1 1306- ● ● ●
21 GUSSET; 2ND CROSS 8-98224-525-0 02 1 1306- ● ● ●
34 MEMBER; CROSS,3RD 8-98224-576-0 01 1 1306- ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-98224-535-0 01 1 1306- ● ● ●
65 BRACKET; CENTER BRG
MJT7S M/T(Y3E) (A) 		8-97614-134-0 02 1 1306- ●
65 BRACKET; CENTER BRG
MJX16P M/T(Y3Z) (B) 		8-98140-252-0 01 1 1306- ●
70 GUSSET; TRUNNION,UPR
DUMP TRUCK<RA1> FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> GENERAL EXPORT EQUIPMENT(TAA) 		8-98280-943-0 02 1 1409- ●
70 GUSSET; TRUNNION,UPR 8-98138-147-0 02 1 1306-1408 ●
70 GUSSET; TRUNNION,UPR
MIXER TRUCK<RA2> 		8-98138-147-0 02 1 1409- ●
70 GUSSET; TRUNNION,UPR 8-98138-148-0 02 1 1306- ●
70 GUSSET; TRUNNION,UPR 8-98164-250-0 02 1 1306- ●
79 MEMBER; CROSS,TRUNNION ASM 8-98224-537-0 01 1 1306- ● ●
79 MEMBER; CROSS,TRUNNION ASM 8-98244-229-0 01 1 1306- ●
86 MEMBER; CROSS,RR SUSP RR 8-98224-542-0 01 1 1306- ● ● ●
130 MEMBER; CROSS,END 8-98224-587-0 01 1 1306- ●
131 BOLT; END C/MBR
M14X40 		0-20951-440-0 02 1 1306- ●
131 BOLT; END C/MBR
M14X50 		0-20951-450-0 02 1 1306- ●
132 NUT; END C/MBR
M14 		0-91110-514-0 04 1 1306- ●
148 SPACER; C/MBR 8-97623-199-0 02 1 1306- ●
148 SPACER; C/MBR 8-97623-202-0 02 1 1306- ● ●
191 WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2 		1-09503-316-0 02 1 1306- ● ● ●
201 GUSSET; C/MBR 8-98138-151-1 02 1 1306- ●
201 GUSSET; C/MBR 8-98138-152-0 02 1 1306- ●
201 GUSSET; C/MBR 8-98138-153-1 02 1 1306- ●
254 WASHER; PL,C/MBR
ID=15 		8-98010-627-1 04 1 1306- ●

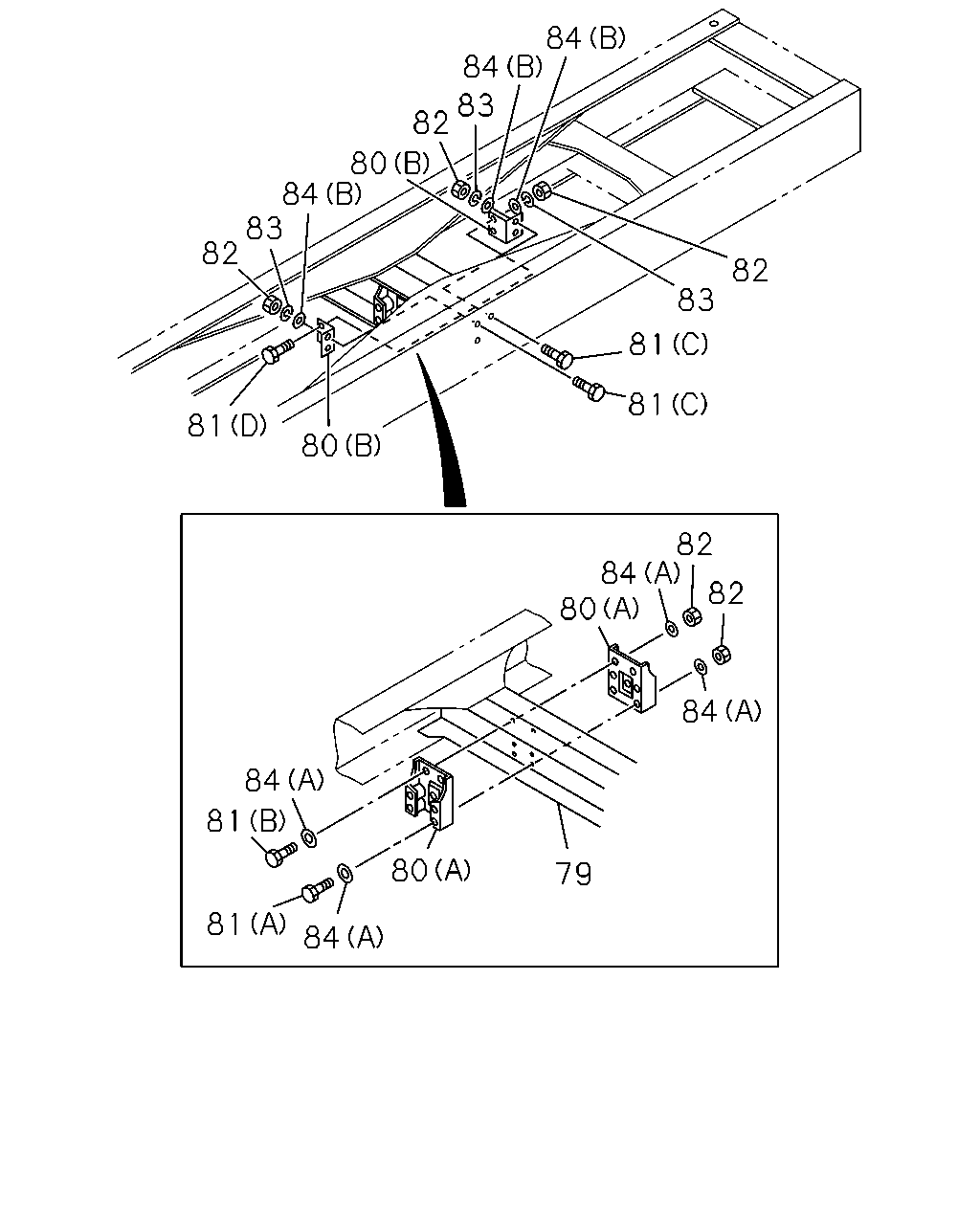

çizim 364766
84 84 82 83 81 83 82 80 81 84 83 82 81 82 80 82 84 80 84 79 80 84 81 81 84
BalonParca AdiParca NoAdetTipApplied Date A B C
79 MEMBER; CROSS,TRUNNION ASM 8-98224-537-0 01 1 1306- ● ●
79 MEMBER; CROSS,TRUNNION ASM 8-98244-229-0 01 1 1306- ●
80 BRACKET; C/MBR
(B) 		1-53167-288-1 04 1 1306- ● ● ●
80 BRACKET; C/MBR
(A) 		1-53363-031-2 02 1 1306- ● ● ●
81 BOLT; BRKT
(C) M14X45 		0-20951-445-0 08 1 1306- ● ● ●
81 BOLT; BRKT
(B) M14X50 		0-20951-450-0 02 1 1306- ● ● ●
81 BOLT; BRKT
(D) M14X60 		0-20951-460-0 04 1 1306- ● ● ●
81 BOLT; BRKT
(A) M14X205 		1-09000-147-0 02 1 1306- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 12 1 1306- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 04 1 1306- ● ● ●
83 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 12 1 1306- ● ● ●
84 WASHER; PL,BRKT
(B) ID=15 OD=26 		0-91614-514-0 16 1 1306- ● ● ●
84 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 08 1 1306- ● ● ●
