4-60 — REAR SUSPENSION (#124814) — 93 parça

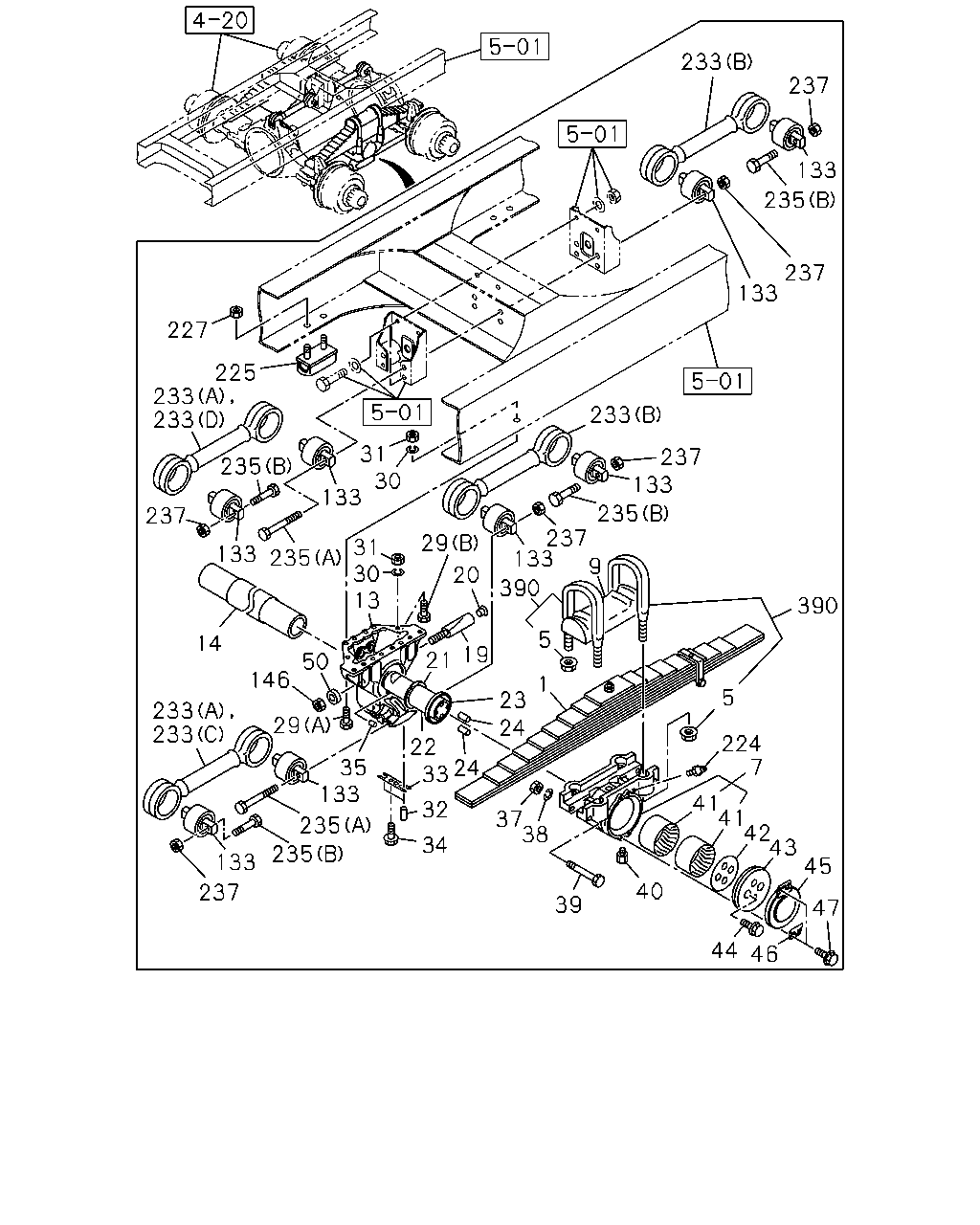

çizim 363311
237 235 133 237 233 133 237 235 133 237 233 133 390 20 29 31 30 133 235 225 227 233 233 237 235 133 13 30 31 14 50 19 9 5 390 1 21 146 233 233 29 23 24 22 24 33 35 133 235 235 133 237 32 34 38 37 5 224 7 41 41 42 43 45 47 46 44 40 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> EXC. PAPUA NEW GUINEA EQUIPMENT(PV5),DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,GENERAL EXPORT EQUIPMENT(TAA) 5-LEAF 		8-98101-101-1 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. CRANE TRUCK<RA4> TAPER LEAF SUSP RR<SAT> 5-LEAF 		8-98101-101-1 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> EXC. PAPUA NEW GUINEA EQUIPMENT(PV5),DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,GENERAL EXPORT EQUIPMENT(TAA) 5-LEAF 		8-98101-101-1 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR<SAS> DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 9-LEAF 		8-98140-159-0 02 1 1306-1510 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> MULTI LEAF SUSP RR<SAS> 9-LEAF 		8-98140-159-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR<SAS> EXC. PAPUA NEW GUINEA EQUIPMENT(PV5),DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,GENERAL EXPORT EQUIPMENT(TAA) 9-LEAF 		8-98140-159-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP TRUCK<RA1>,CRANE TRUCK<RA4> MULTI LEAF SUSP RR<SAS> 9-LEAF 		8-98140-159-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR<SAS> EXC. PAPUA NEW GUINEA EQUIPMENT(PV5),DUMP TRUCK<RA1>,CRANE TRUCK<RA4>,GENERAL EXPORT EQUIPMENT(TAA) 9-LEAF 		8-98140-159-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR<SAS> EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 10-LEAF 		8-98157-786-0 02 1 1306-1510 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR<SAS> EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 10-LEAF 		8-98157-786-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR<SAS> EXC. DUMP TRUCK<RA1> 10-LEAF 		8-98157-786-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 5-LEAF 		8-98159-622-0 02 1 1306-1510 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 5200MM(52W) PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) FULL TRACTOR TRUCK<RD6> TAPER LEAF SUSP RR<SAT> 5-LEAF 		8-98159-622-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> TAPER LEAF SUSP RR<SAT> 5-LEAF 		8-98159-622-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 5500MM(55W) PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) FULL TRACTOR TRUCK<RD6> TAPER LEAF SUSP RR<SAT> 5-LEAF 		8-98159-622-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP TRUCK<RA1>,CRANE TRUCK<RA4> TAPER LEAF SUSP RR<SAT> 5-LEAF 		8-98159-622-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 5-LEAF 		8-98138-268-0 02 1 1306-1510 ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 5-LEAF 		8-98138-268-0 02 1 1511- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> EXC. DUMP TRUCK<RA1>,CRANE TRUCK<RA4> 5-LEAF 		8-98138-268-0 02 1 1511- ●
5 NUT; U-BOLT,RR SPR
M27 FLANGE 		1-09440-058-0 08 1 1306- ● ●
7 SEAT; SPR,LWR 8-97614-049-2 02 1 1306- ● ●
9 PAD; U BOLT,RR SPR 8-98177-265-0 02 1 1306- ● ●
13 BRACKET; TRUNNION SHAFT 1-53361-079-0 02 1 1306- ● ●
14 PIPE; TRUNNION BRKT 1-51389-032-1 01 1 1306- ● ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 1306- ● ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 1306- ● ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 1306- ● ●
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-3 02 1 1306- ● ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 1306- ● ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 1306- ● ●
29 BOLT; BRKT TO FRAME
(A) M18X75 		8-98012-872-0 24 1 1306- ●
29 BOLT; BRKT TO FRAME
WHEEL BASE 5500MM(55W) (A) M18X75 		8-98012-872-0 24 1 1306- ●
29 BOLT; BRKT TO FRAME
(B) M18X55 		9-92061-855-0 04 1 1306-1510 ● ●
29 BOLT; BRKT TO FRAME
(B) M18X55 		0-20951-855-0 04 1 1511- ● ●
29 BOLT; BRKT TO FRAME
WHEEL BASE 5900MM(59W) (A) M18X80 		1-09000-428-1 24 1 1306- ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 1306- ● ●
31 NUT; TRUNNION BRKT
M18 		0-91110-518-0 28 1 1306- ● ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 1306- ● ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 1306- ● ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28051-016-0 02 1 1306- ● ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 1306- ● ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 1306- ● ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 1306- ● ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 1306- ● ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 1306- ● ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 1306- ● ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 1306- ● ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 1306- ● ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 1306- ● ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 1306- ● ●
46 BRACKET; COVER 1-51387-015-2 02 1 1306- ● ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28050-812-0 08 1 1306- ● ●
50 WASHER; PL,TRUNNION SHAFT
ID=25 		8-98012-871-0 02 1 1306- ● ●
133 BUSHING; RUBBER,TORQUE ROD
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) OD=105 		1-51519-113-1 04 1 1511- ● ●
133 BUSHING; RUBBER,TORQUE ROD
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) OD=105 		1-51519-113-1 08 1 1511- ● ●
133 BUSHING; RUBBER,TORQUE ROD
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) BEST VALUE PARTS 		1-87411-074-2 04 1 1511- ● ●
133 BUSHING; RUBBER,TORQUE ROD
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) BEST VALUE PARTS 		1-87411-074-2 08 1 1511- ● ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 06 1 1306-1510 ● ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 06 1 1306-1510 ● ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 06 1 1511- ● ●
133 BUSHING; RUBBER,TORQUE ROD
PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) OD=105 		1-51519-113-1 06 1 1511- ● ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 06 1 1306-1510 ● ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 06 1 1306-1510 ● ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 06 1 1511- ● ●
133 BUSHING; RUBBER,TORQUE ROD
PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) BEST VALUE PARTS 		1-87411-074-2 06 1 1511- ● ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 1306- ● ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1306- ● ●
225 RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH 		1-53366-073-2 02 1 1306- ● ●
225 RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD RH 		1-53366-143-1 02 1 1306-1510 ● ●
225 RUBBER; CUSHION,RR SPR 1-53366-143-1 02 1 1511- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 1306- ● ●
233 ROD ASM; TORQUE,RR SUSP
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) (D) L=525 		1-51511-656-0 01 1 1511- ● ●
233 ROD ASM; TORQUE,RR SUSP
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) (C) L=525 		1-51511-656-0 02 1 1511- ● ●
233 ROD ASM; TORQUE,RR SUSP
EXC. PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) (B) L=550 		1-51511-659-0 03 1 1511- ● ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5200MM(52W) PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) (A) L=555 		1-51511-660-0 03 1 1306- ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5500MM(55W) PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) (A) L=555 		1-51511-660-0 03 1 1306- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=580 		1-51511-661-0 03 1 1306-1510 ● ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=580 		1-51511-661-0 03 1 1511- ● ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5900MM(59W) PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) (C) L=545 		1-51511-658-0 02 1 1306- ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5900MM(59W) PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) (D) L=565 		1-51511-685-0 01 1 1306- ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 1306- ● ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 1306- ● ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 1306- ● ●
390 U-BOLT SET; RR SPRING
MULTI LEAF SUSP RR<SAS> L=350 		1-87870-392-1 04 1 1306-1510 ● ●
390 U-BOLT SET; RR SPRING
TAPER LEAF SUSP RR<SAT> EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=350 		1-87870-392-1 04 1 1306-1510 ● ●
390 U-BOLT SET; RR SPRING
EXC. TAPER LEAF SUSP RR<SAT> L=350 		1-87870-392-1 04 1 1511- ● ●
390 U-BOLT SET; RR SPRING
TAPER LEAF SUSP RR<SAT> EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=350 		1-87870-392-1 04 1 1511- ●
390 U-BOLT SET; RR SPRING
TAPER LEAF SUSP RR<SAT> EXC. DUMP TRUCK<RA1> L=350 		1-87870-392-1 04 1 1511- ●
390 U-BOLT SET; RR SPRING
TAPER LEAF SUSP RR<SAT> DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=370 		1-87870-217-3 04 1 1306-1510 ● ●
390 U-BOLT SET; RR SPRING
WHEEL BASE 5200MM(52W) PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) FULL TRACTOR TRUCK<RD6> TAPER LEAF SUSP RR<SAT> L=370 		1-87870-217-3 04 1 1511- ●
390 U-BOLT SET; RR SPRING
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> TAPER LEAF SUSP RR<SAT> L=370 		1-87870-217-3 04 1 1511- ●
390 U-BOLT SET; RR SPRING
WHEEL BASE 5500MM(55W) PAPUA NEW GUINEA EQUIPMENT(PV5),GENERAL EXPORT EQUIPMENT(TAA) FULL TRACTOR TRUCK<RD6> TAPER LEAF SUSP RR<SAT> L=370 		1-87870-217-3 04 1 1511- ●
390 U-BOLT SET; RR SPRING
DUMP TRUCK<RA1>,CRANE TRUCK<RA4> TAPER LEAF SUSP RR<SAT> L=370 		1-87870-217-3 04 1 1511- ●
