2-20 — MANUAL TRANSMISSION ASM AND CASE (#12480) — 53 parça

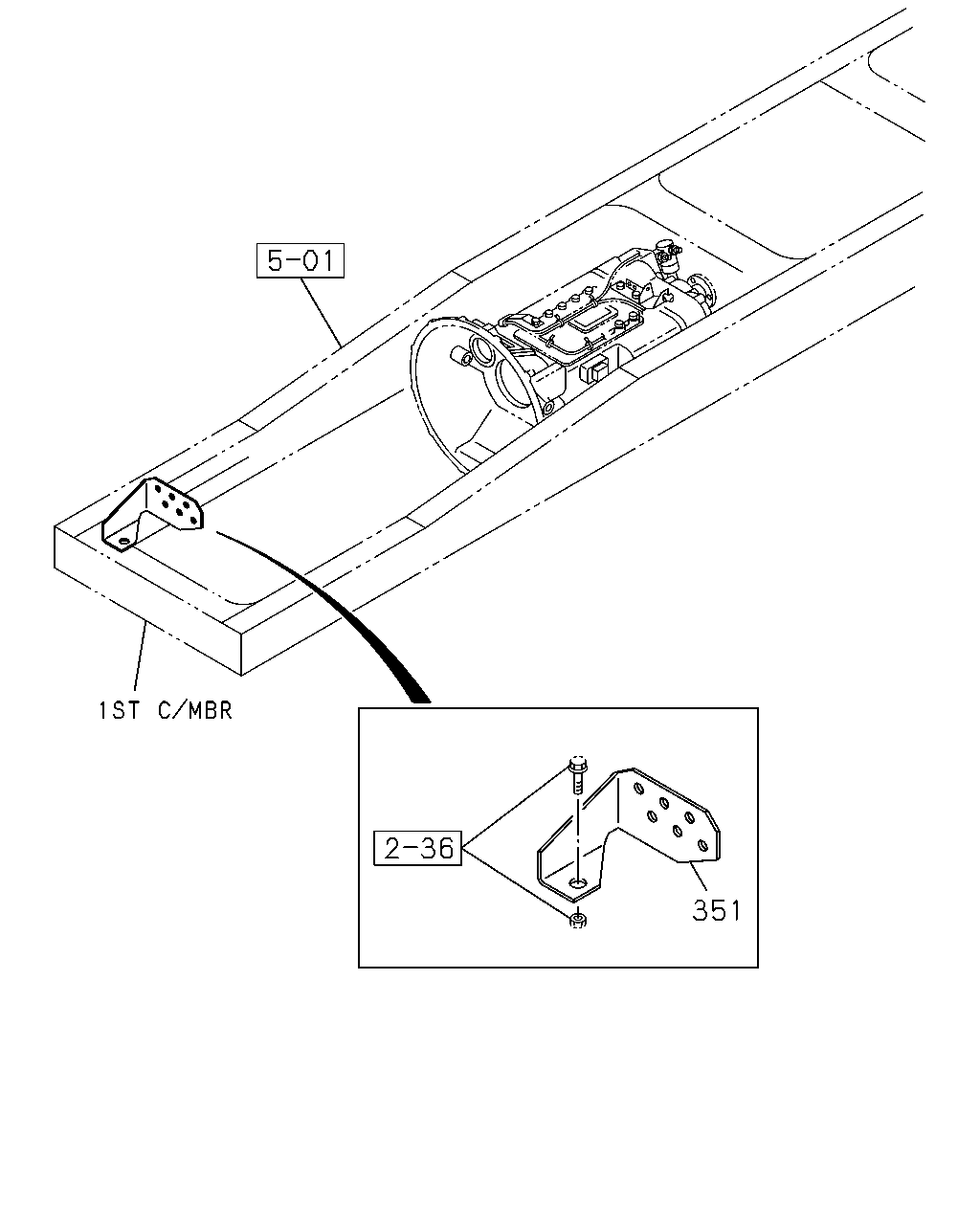

çizim 21654
351
BalonParca AdiParca NoAdetTipApplied Date A B C D
351 BRACKET; UNION,FLEX HOSE 1-47478-747-0 01 1 0105- ● ● ● ●

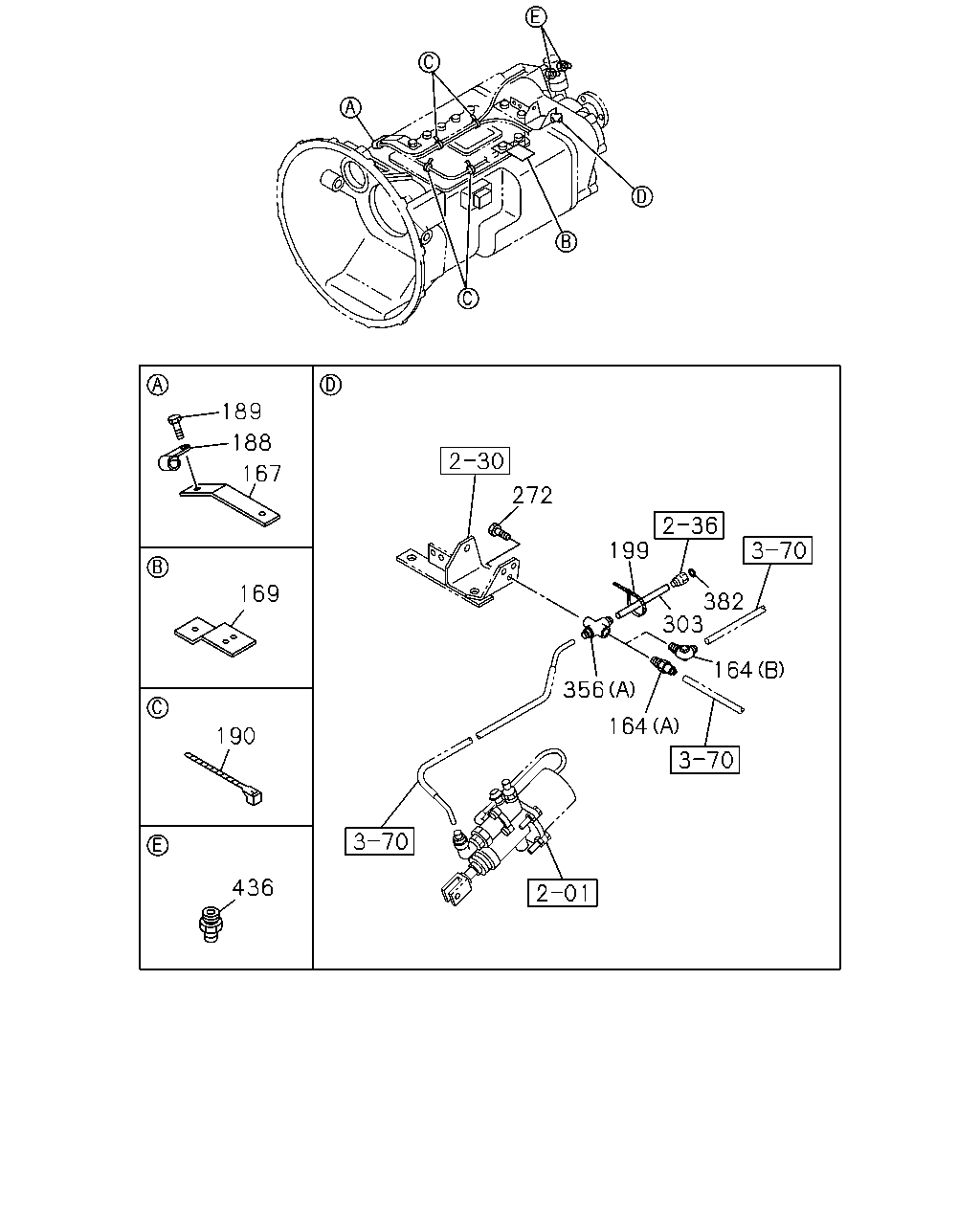

çizim 22120
189 188 167 272 199 169 382 303 164 356 164 190 436
BalonParca AdiParca NoAdetTipApplied Date A B C D
164 CONNECTOR; ELBOW
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0105-0105 ● ● ● ●
164 CONNECTOR; ELBOW
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0106- ● ● ● ●
167 BRACKET; CLIP,AIR TUBE 1-82699-123-1 01 1 0105- ● ● ● ●
169 BRACKET; CLIP,PIPE HOSE 1-47475-633-0 01 1 0105- ● ● ● ●
188 CLIP; PIPE,BRKT
ID=16 L=28 		9-09525-556-0 01 1 0105- ● ● ● ●
189 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512 ● ● ● ●
189 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
190 CLIP; BAND,CONT TUBE
L=250 		1-09707-126-0 05 1 0105-0304 ● ● ● ●
190 CLIP; BAND,CONT TUBE
L=350 		1-09707-183-0 05 1 0305- ● ● ● ●
199 CLIP; NYLON TUBE
L=250 		1-09707-126-0 01 1 0105-0304 ● ● ● ●
199 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 0305- ● ● ● ●
272 BOLT
M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512 ● ● ● ●
272 BOLT
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0105- ● ● ● ●
356 UNION
(A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0105- ● ● ● ●
356 UNION
(B) 		1-09664-020-1 02 1 0105- ● ● ● ●
382 GASKET; ADAPTER
ID=11 OD=18 		9-09572-510-0 01 1 0105- ● ● ● ●
436 CONNECTOR; AIR HOSE,SUPPLY
L=35 		1-09660-039-0 01 1 0105- ● ● ● ●

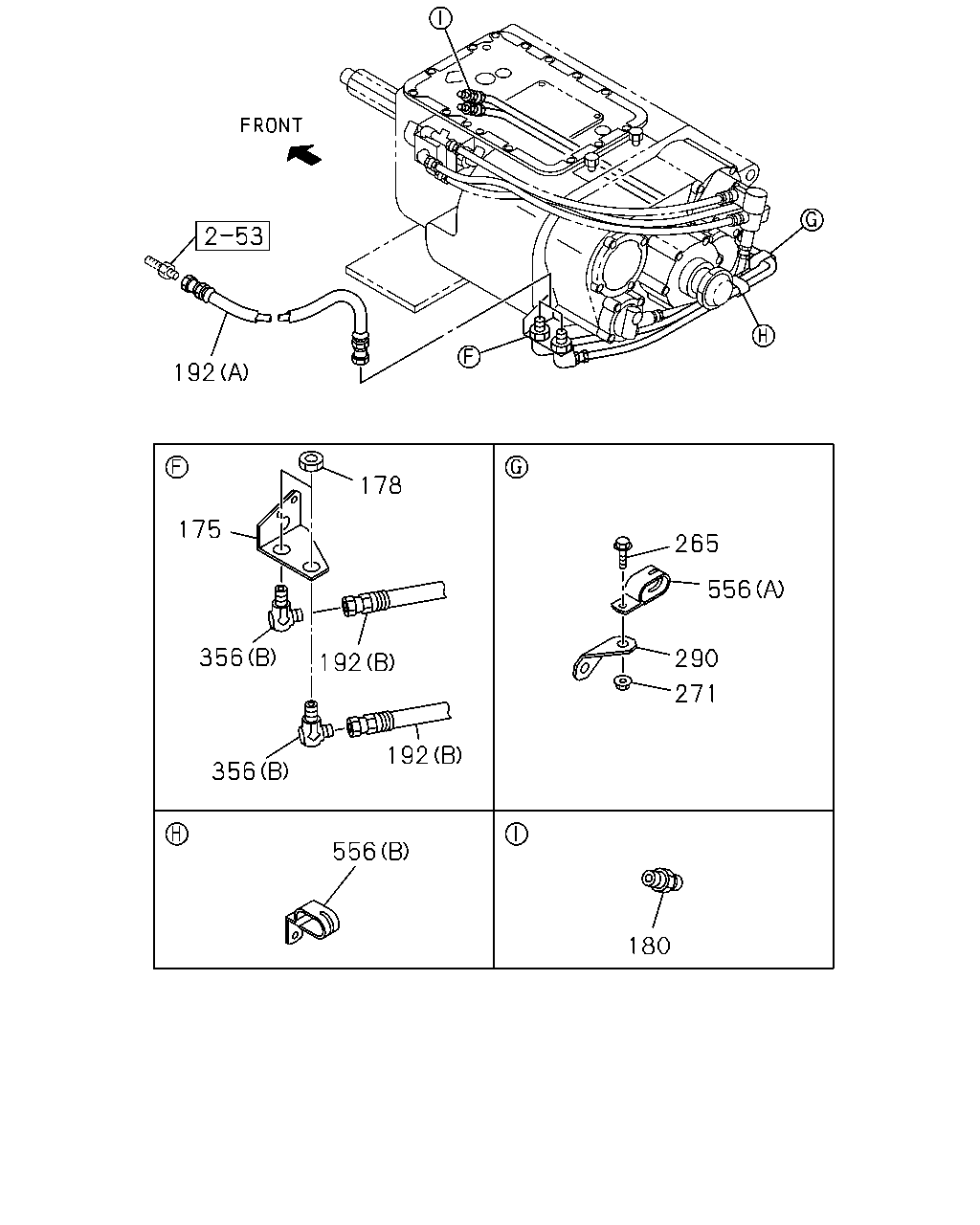

çizim 78393
192 178 175 265 556 356 290 192 271 192 356 556 180
BalonParca AdiParca NoAdetTipApplied Date A B C D
175 BRACKET; UNION 1-47478-084-0 01 1 0105- ● ● ● ●
178 NUT; UNION
M22 		9-09111-522-0 02 1 0105-0512 ● ● ● ●
178 NUT; UNION
M22 		0-91111-522-0 02 1 0601- ● ● ● ●
180 CONNECTOR; NYLON TUBE 1-09661-055-0 02 1 0105- ● ● ● ●
192 HOSE; FLEX,TRANS
(B) L=1120 		1-09365-010-0 02 1 0105- ● ● ● ●
192 HOSE; FLEX,TRANS
(A) L=460 		1-09365-008-0 01 1 0105- ● ● ● ●
192 HOSE; FLEX,TRANS
(A) L=520 		1-09365-009-0 01 1 0105- ● ● ● ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512 ● ● ● ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ● ●
271 NUT; CLIP
M8 FLANGE 		0-91150-208-0 01 1 0105-0602 ● ● ● ●
271 NUT; CLIP
M8 FLANGE 		0-91180-208-0 01 1 0603- ● ● ● ●
290 BRACKET; CLIP 1-38329-074-0 01 1 0105- ● ● ● ●
356 UNION
(A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0105- ● ● ● ●
356 UNION
(B) 		1-09664-020-1 02 1 0105- ● ● ● ●
556 CLIP; OIL HOSE
(A) ID=24X2 L=35 		1-09701-121-0 01 1 0105- ● ● ● ●
556 CLIP; OIL HOSE
(B) 		8-97019-083-0 01 1 0105- ● ● ● ●

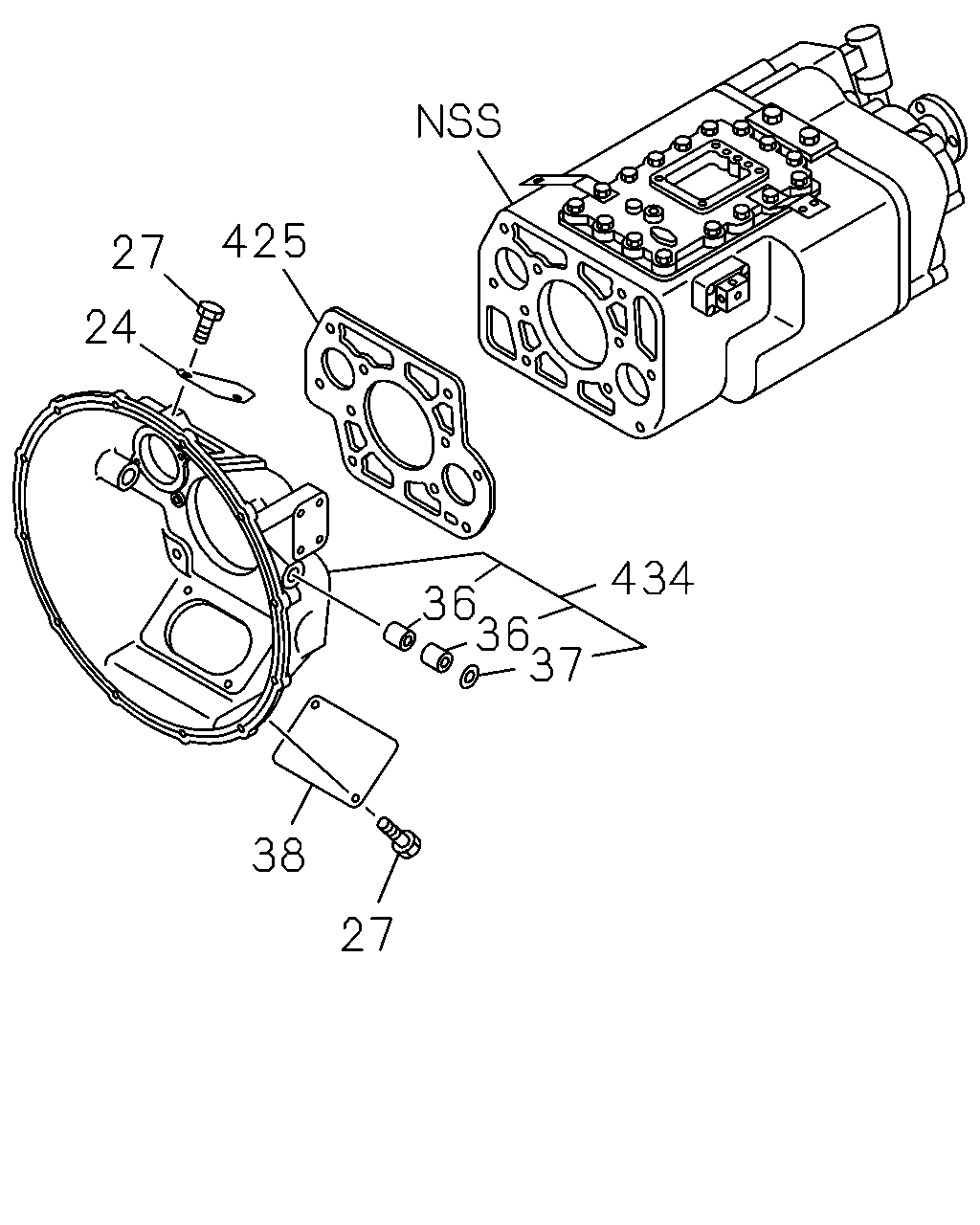

çizim 80645
425 27 24 434 36 36 37 38 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
24 COVER; CHECK HOLE,DUST 1-31131-003-0 01 1 0105- ● ● ● ●
27 BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER 		0-50040-816-0 04 1 0105-0105 ● ● ● ●
27 BOLT; COVER TO CLU HSG
M8X16 FLANGE 		0-28080-816-0 04 1 0106-0512 ● ● ● ●
27 BOLT; COVER TO CLU HSG
M8X16 FLANGE 		0-28050-816-0 04 1 0601- ● ● ● ●
36 BEARING; NEEDLE,CLU HSG
NTN 		1-09811-181-0 04 1 0105- ● ● ● ●
37 SEAL; DUST,CLU HSG 1-09625-215-0 02 1 0105- ● ● ● ●
38 COVER; CHECK HOLE,LWR 1-31131-014-0 01 1 0105-0105 ● ● ● ●
38 COVER; CHECK HOLE,LWR 1-31131-044-1 01 1 0106- ● ● ● ●
425 GASKET; CLU HSG TO TRANS CASE 1-31121-011-0 01 1 0508-0511 ●
425 GASKET; CLU HSG TO TRANS CASE 1-31121-011-0 01 1 0512- ● ●
425 GASKET; CLU HSG TO TRANS CASE 1-31121-004-0 01 1 0105-0507 ● ● ● ●
425 GASKET; CLU HSG TO TRANS CASE 1-31121-004-0 01 1 0508-0511 ● ● ●
425 GASKET; CLU HSG TO TRANS CASE 1-31121-004-0 01 1 0512- ● ●
434 HOUSING; CLU 1-31110-209-0 01 1 0310-0412 ● ●
434 HOUSING; CLU 1-31110-103-0 01 1 0105-0110 ● ● ● ●
434 HOUSING; CLU 1-31110-208-1 01 1 0111-0309 ● ● ● ●
434 HOUSING; CLU 1-31110-208-1 01 1 0310-0412 ● ●
434 HOUSING; CLU 1-31110-220-0 01 1 0501- ● ● ● ●
