Sayfa 3-80 - Isuzu EPC

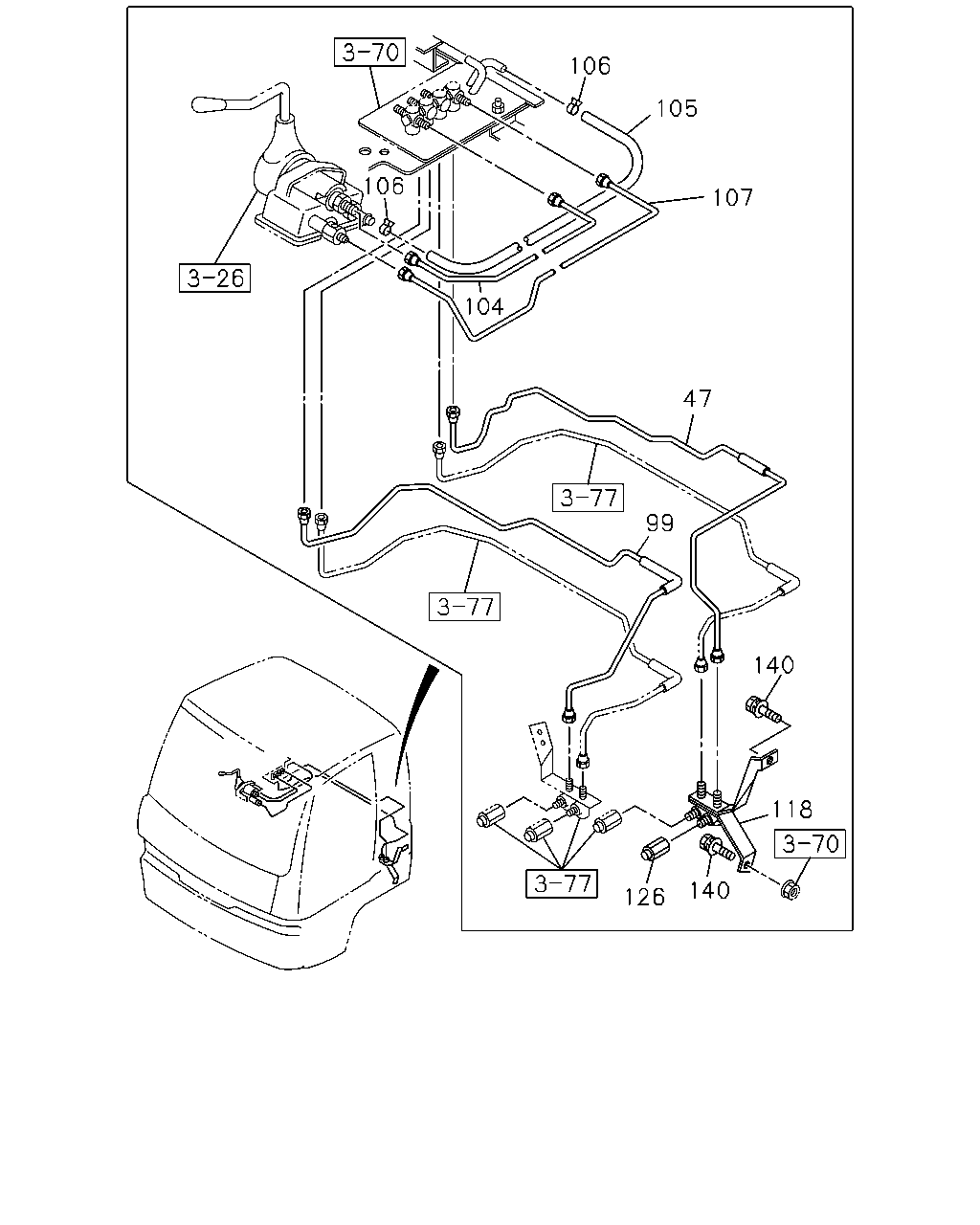

106 105 107 104 106 47 99 140 126 140 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	PIPE; AIR,UNION TO UNION FULL TRAILER PIPING<Z25> L=1910 SERVICED BY L=1950	1-47428-854-0	01	1	1306-	●	●
99	PIPE; AIR,JOINT TO JOINT FULL TRAILER PIPING<Z25>	1-49122-057-1	01	1	1306-	●	●
104	PIPE; AIR,JOINT TO PARKING BRK VLV FULL TRAILER PIPING<Z25>	1-49121-477-0	01	1	1306-	●	●
105	PIPE; VINYL,EXH,PARKING BRK VLV FULL TRAILER PIPING<Z25> L=400 SERVICED BY L=10000	9-09914-701-0	01	1	1306-	●	●
106	CLIP; PIPE FULL TRAILER PIPING<Z25> ID=14	8-94238-572-0	02	1	1306-	●	●
107	PIPE; AIR,JOINT TO PARKING BRK VLV FULL TRAILER PIPING<Z25>	1-47495-160-0	01	1	1306-	●	●
118	JOINT; AIR PIPE FULL TRAILER PIPING<Z25>	1-47470-608-1	01	1	1306-	●	●
126	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1306-	●	●
140	BOLT; UNION FULL TRAILER PIPING<Z25> M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1306-	●	●

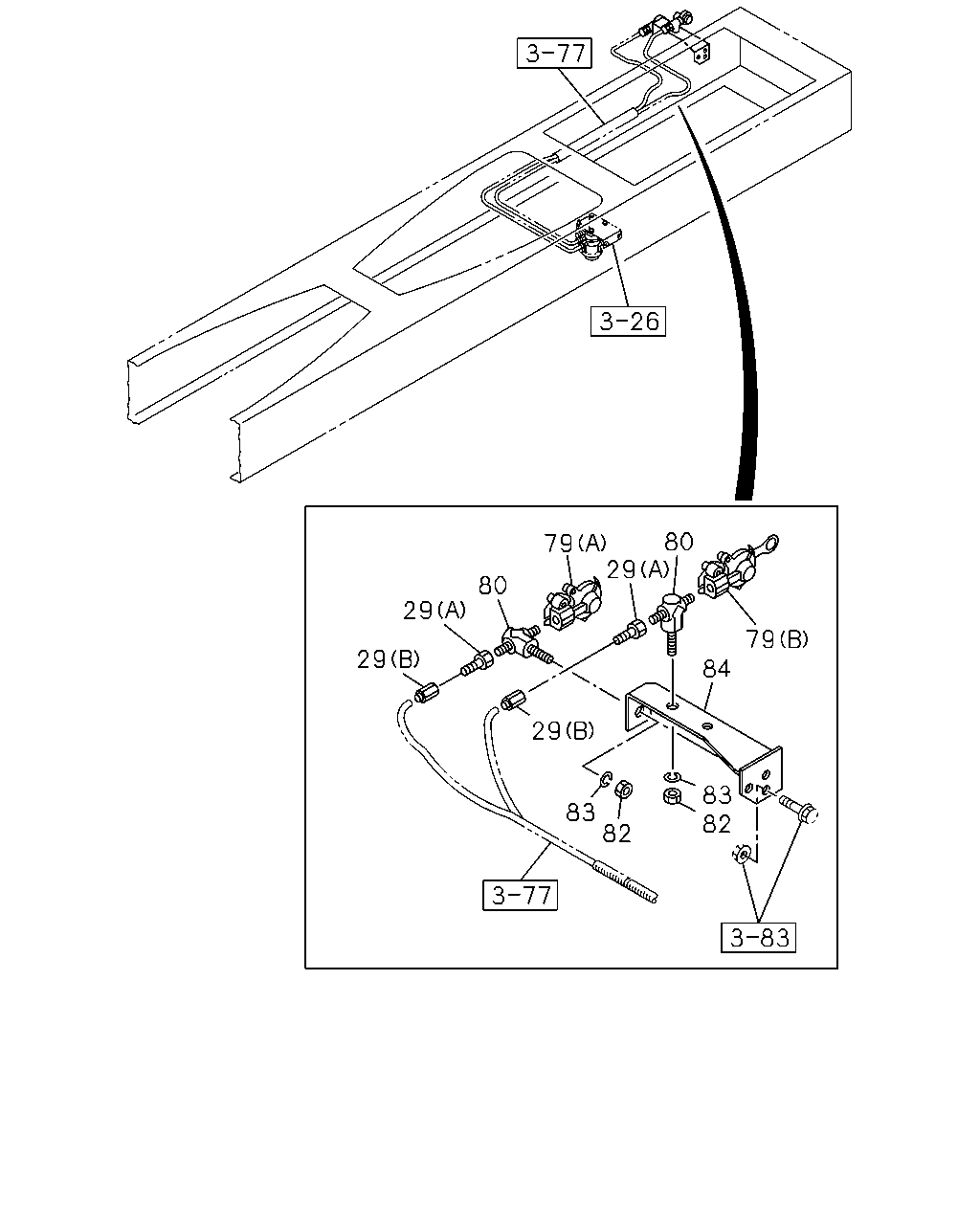

80 29 79 80 29 29 29 84 79 83 82 82 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	CONNECTOR; COCK FULL TRAILER PIPING<Z25> (A) M16 & PT1/2 STRAIGHT	1-09650-222-1	02	1	1306-	●	●
29	CONNECTOR; COCK FULL TRAILER PIPING<Z25> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	1306-	●	●
79	COUPLING; AIR,TRAILER FULL TRAILER PIPING<Z25> (A) RED	1-47478-466-1	01	1	1306-	●	●
79	COUPLING; AIR,TRAILER FULL TRAILER PIPING<Z25> (B) YELLOW	1-47478-467-1	01	1	1306-	●	●
80	NIPPLE; AIR COUPLING FULL TRAILER PIPING<Z25>	1-09656-377-1	02	1	1306-	●	●
82	NUT; LK,CONNECTOR FULL TRAILER PIPING<Z25> M16	0-91111-516-0	02	1	1306-	●	●
83	WASHER; LK,CONNECTOR FULL TRAILER PIPING<Z25> ID=16.2	0-91510-516-0	02	1	1306-	●	●
84	BRACKET; COUPLER FULL TRAILER PIPING<Z25>	1-47465-883-1	01	1	1306-	●	●
