3-78 — FIXING PARTS; AIR PIPING (#124797) — 321 parça

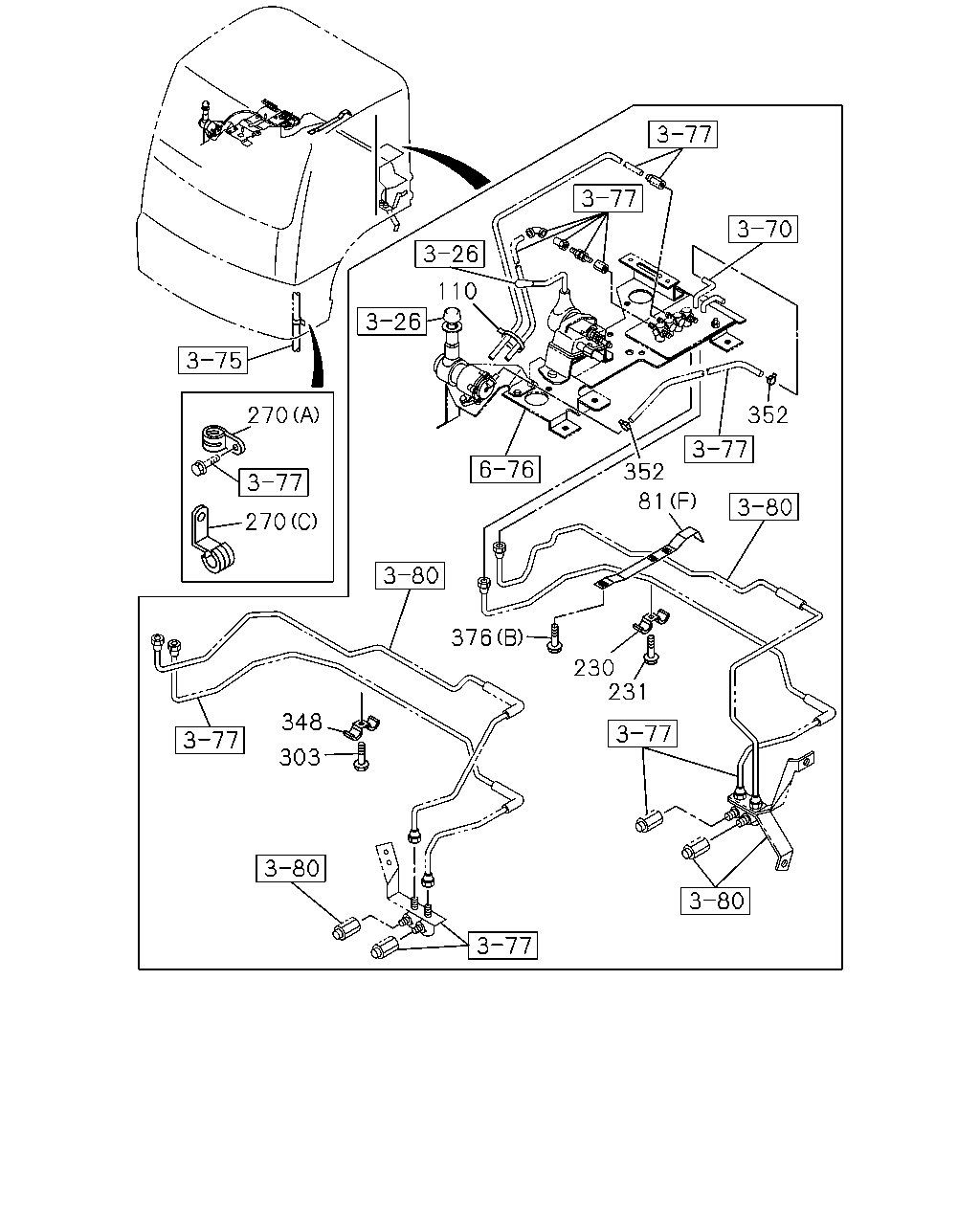

270 270 348 303 231 230 376 81 352 352 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	BRACKET; CLIP (E) L=150	1-47471-217-0	02	1	1306-	●	●
81	BRACKET; CLIP (D)	8-98046-950-0	01	1	1306-	●	●
81	BRACKET; CLIP (C)	8-98052-412-0	01	1	1306-	●	●
81	BRACKET; CLIP (B)	8-98052-414-0	01	1	1306-	●	●
81	BRACKET; CLIP (A)	8-98061-758-0	02	1	1306-	●	●
81	BRACKET; CLIP FULL TRAILER PIPING<Z25> (F)	1-47477-483-0	01	1	1306-	●	●
110	CLIP; BAND,NYLON TUBE FULL TRAILER PIPING<Z25> L=140	5-09707-031-1	02	1	1306-	●	●
230	CLIP; PIPE,AIR FULL TRAILER PIPING<Z25> ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	1306-	●	●
231	BOLT; CLIP FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1306-	●	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1306-	●	●
270	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1306-	●	●
270	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	1306-	●	●
270	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (A) ID=28 L=40	1-09700-995-1	01	1	1306-	●	●
303	BOLT; PIPE CLIP FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1306-	●	●
348	CLIP; AIR PIPE FULL TRAILER PIPING<Z25> ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	1306-	●	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	1306-	●	●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
376	BOLT; BRKT FULL TRAILER PIPING<Z25> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1306-	●	●

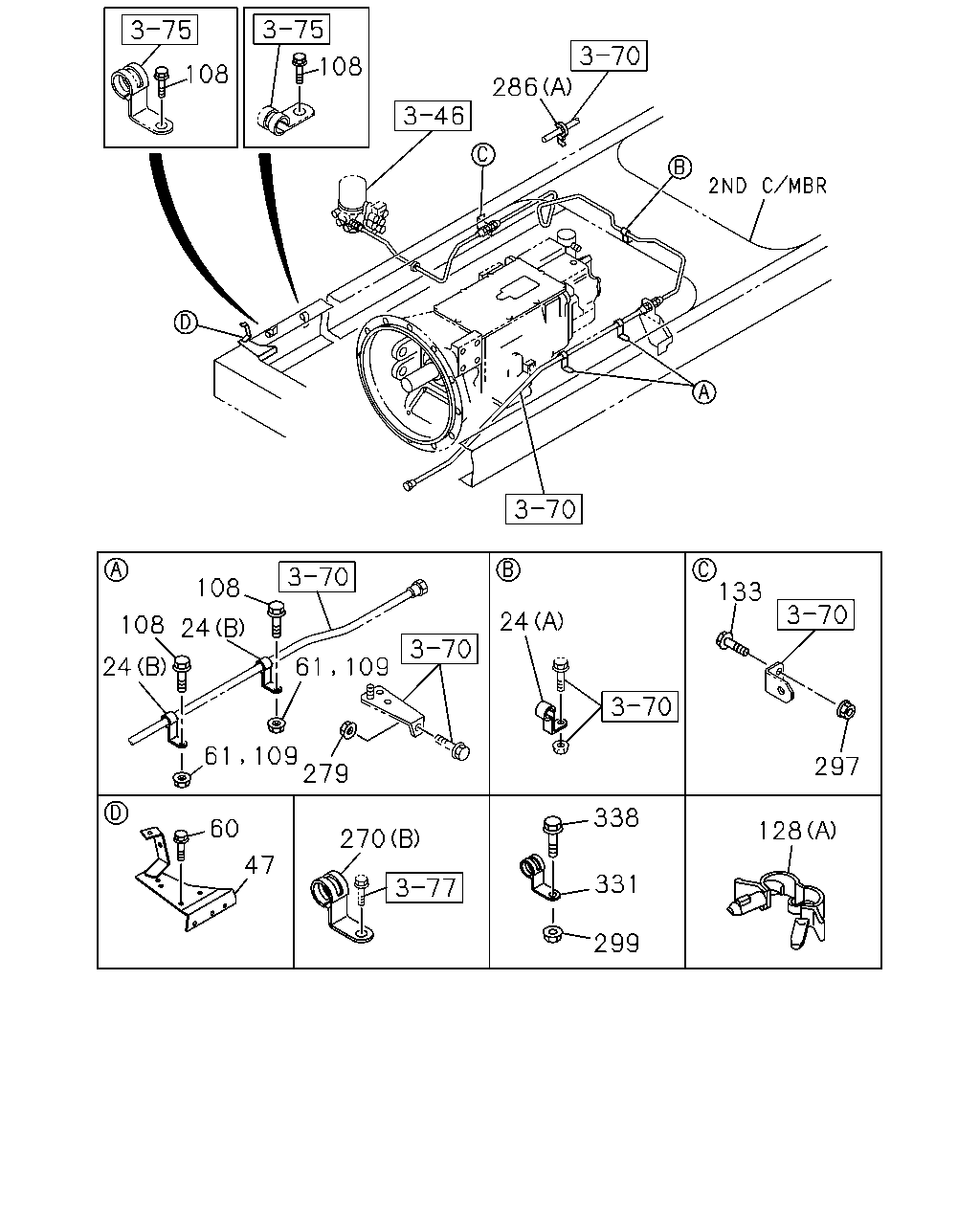

108 108 286 108 108 24 24 61 61 109 109 279 60 47 270 24 133 297 128 338 331 299

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1306-	●	●
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1306-	●	●
47	BRACKET; PIPE CLIP	8-98226-739-0	01	1	1306-	●	●
60	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	01	1	1306-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	05	1	1306-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1306-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1306-	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	01	1	1306-	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1306-	●	●
108	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	01	1	1306-	●	●
108	BOLT; TUBE CLIP EXC. FULL TRAILER PIPING<Z25> M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
109	NUT; TUBE CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	04	1	1306-	●	●
128	CLIP; NYLON TUBE WHEEL BASE 5200MM(52W) (B) L=350	1-09707-183-0	16	1	1306-	●
128	CLIP; NYLON TUBE (A) ID=13-18 L=18	1-09709-291-0	01	1	1306-	●	●
128	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (B) L=350	1-09707-183-0	17	1	1306-		●
128	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W) (B) L=350	1-09707-183-0	18	1	1306-		●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	04	1	1306-	●
133	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	04	1	1306-		●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1306-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1306-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1306-		●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X35 FLANGE	0-28650-835-0	01	1	1306-	●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1306-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1306-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1306-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-		●
133	BOLT; BRKT FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	01	1	1306-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	1306-		●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1306-	●	●
270	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1306-	●	●
270	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	1306-	●	●
270	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (A) ID=28 L=40	1-09700-995-1	01	1	1306-	●	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1306-1504	●
279	NUT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	07	1	1306-1504		●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1505-	●	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
279	NUT; BRKT BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	06	1	1306-		●
286	CLIP; NYLON TUBE MJT7S M/T(Y3E) (A) ID=15 & 7	1-09709-311-0	01	1	1306-	●	●
286	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (B) ID=15 L=28	1-09701-216-0	01	1	1306-	●	●
297	NUT; BRKT WHEEL BASE 5200MM(52W) M8 FLANGE	0-91180-108-0	06	1	1306-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1306-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT WHEEL BASE 5500MM(55W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1306-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1306-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	07	1	1306-		●
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	03	1	1306-	●
331	CLIP; NYLON TUBE BATTERY LAYOUT REAR VAR1<NCT> ID=13 H=75 L=25	1-09700-601-0	02	1	1306-		●
338	BOLT; PIPE CLIP BATTERY LAYOUT REAR VAR1<NCT> M8X30 FLANGE	0-28650-830-0	02	1	1306-		●

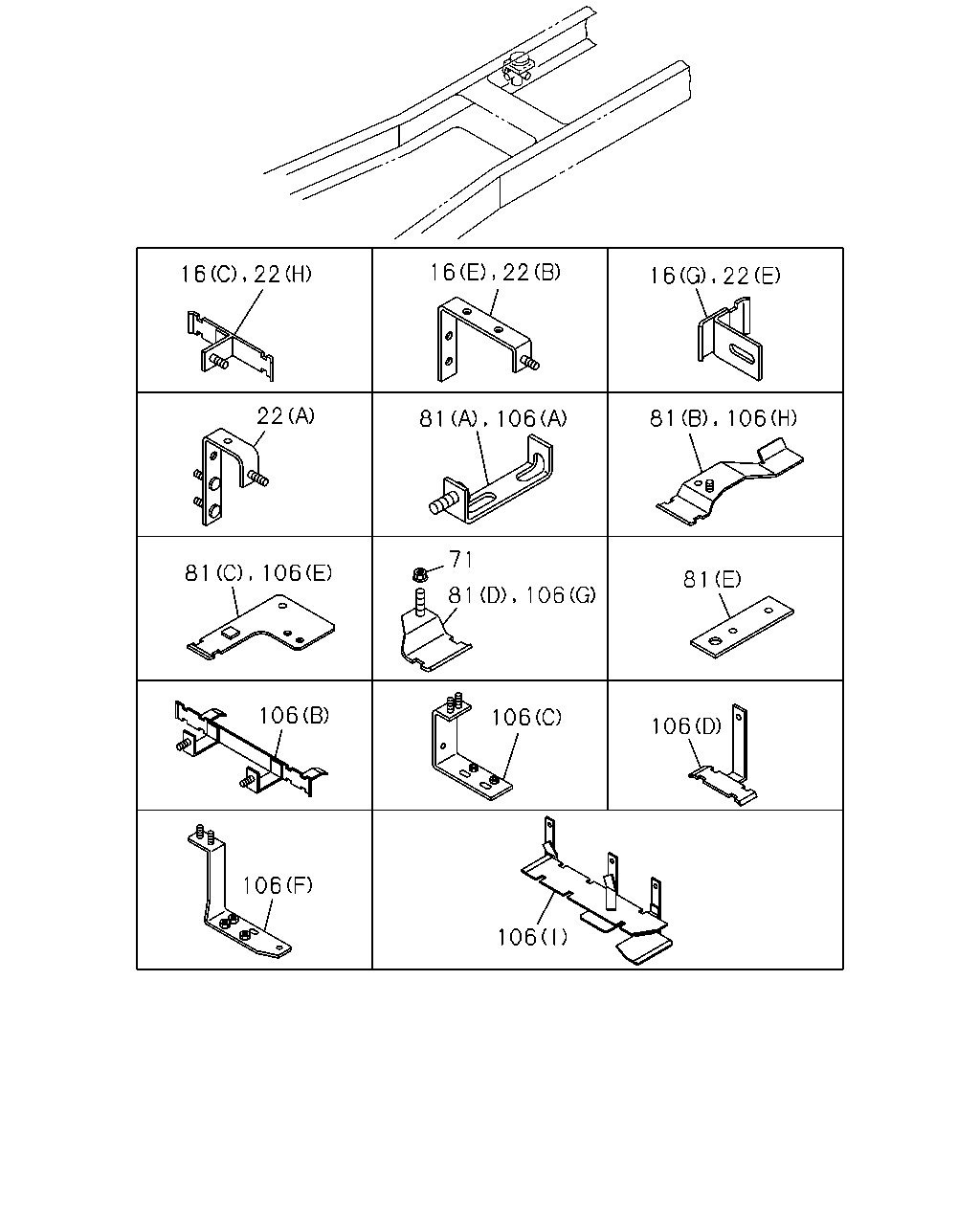

16 22 16 22 16 22 22 81 106 81 106 81 106 71 106 81 106 106 106 106 106 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BRACKET; PIPE CLIP WHEEL BASE 5200MM(52W) (G)	1-47479-693-0	01	1	1306-	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-721-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (H)	1-47479-722-1	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (E)	1-47479-800-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (D)	1-47479-898-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (I)	8-98142-172-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	02	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 5200MM(52W) (C) L=150	1-47471-217-0	01	1	1306-	●
22	BRACKET; CLIP WHEEL BASE 5200MM(52W) (A)	1-47479-329-0	01	1	1306-	●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W) (A)	1-47479-329-0	01	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 5200MM(52W) (E)	1-47479-693-0	01	1	1306-	●
22	BRACKET; CLIP (I)	1-47479-546-0	01	1	1306-	●	●
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	1306-	●	●
22	BRACKET; CLIP (D)	1-47479-720-0	01	1	1306-	●	●
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	1306-	●	●
22	BRACKET; CLIP (F)	1-47479-898-0	01	1	1306-	●	●
22	BRACKET; CLIP (J)	8-98142-173-0	01	1	1306-	●	●
22	BRACKET; CLIP FULL TRAILER PIPING<Z25> (G) L=100 H=30	1-47477-645-2	02	1	1306-	●	●
22	BRACKET; CLIP EXC. FULL TRAILER PIPING<Z25> (G) L=100 H=30	1-47477-645-2	01	1	1306-	●	●
22	BRACKET; CLIP (C) L=150	1-47471-217-0	02	1	1306-		●
22	BRACKET; CLIP (E)	1-47479-693-0	02	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (A)	1-47471-188-0	01	1	1306-		●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1306-	●	●
81	BRACKET; CLIP (E) L=150	1-47471-217-0	02	1	1306-	●	●
81	BRACKET; CLIP (D)	8-98046-950-0	01	1	1306-	●	●
81	BRACKET; CLIP (C)	8-98052-412-0	01	1	1306-	●	●
81	BRACKET; CLIP (B)	8-98052-414-0	01	1	1306-	●	●
81	BRACKET; CLIP (A)	8-98061-758-0	02	1	1306-	●	●
81	BRACKET; CLIP FULL TRAILER PIPING<Z25> (F)	1-47477-483-0	01	1	1306-	●	●
106	BRACKET; TUBE CLIP (F)	1-47471-108-0	01	1	1306-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (F)	1-47471-108-0	01	1	1306-		●
106	BRACKET; TUBE CLIP (D)	1-47479-870-0	01	1	1306-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (D)	1-47479-870-0	01	1	1306-		●
106	BRACKET; TUBE CLIP (I)	8-98243-283-0	01	1	1306-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (I)	8-98243-283-0	01	1	1306-		●
106	BRACKET; TUBE CLIP (J) L=82 B=20	1-47478-420-0	01	1	1306-1404	●	●
106	BRACKET; TUBE CLIP (J) L=82 B=20	8-98259-390-0	01	1	1405-	●	●
106	BRACKET; TUBE CLIP (B)	1-47479-553-0	01	1	1306-	●	●
106	BRACKET; TUBE CLIP (G)	8-98046-949-0	01	1	1306-	●	●
106	BRACKET; TUBE CLIP (E)	8-98052-408-0	01	1	1306-1412	●	●
106	BRACKET; TUBE CLIP (E)	8-98297-188-0	01	1	1501-	●	●
106	BRACKET; TUBE CLIP (H)	8-98052-410-0	01	1	1306-	●	●
106	BRACKET; TUBE CLIP (A)	8-98061-758-0	01	1	1306-	●	●
106	BRACKET; TUBE CLIP BATTERY LAYOUT REAR VAR1<NCT> (C)	1-47479-754-0	01	1	1306-		●

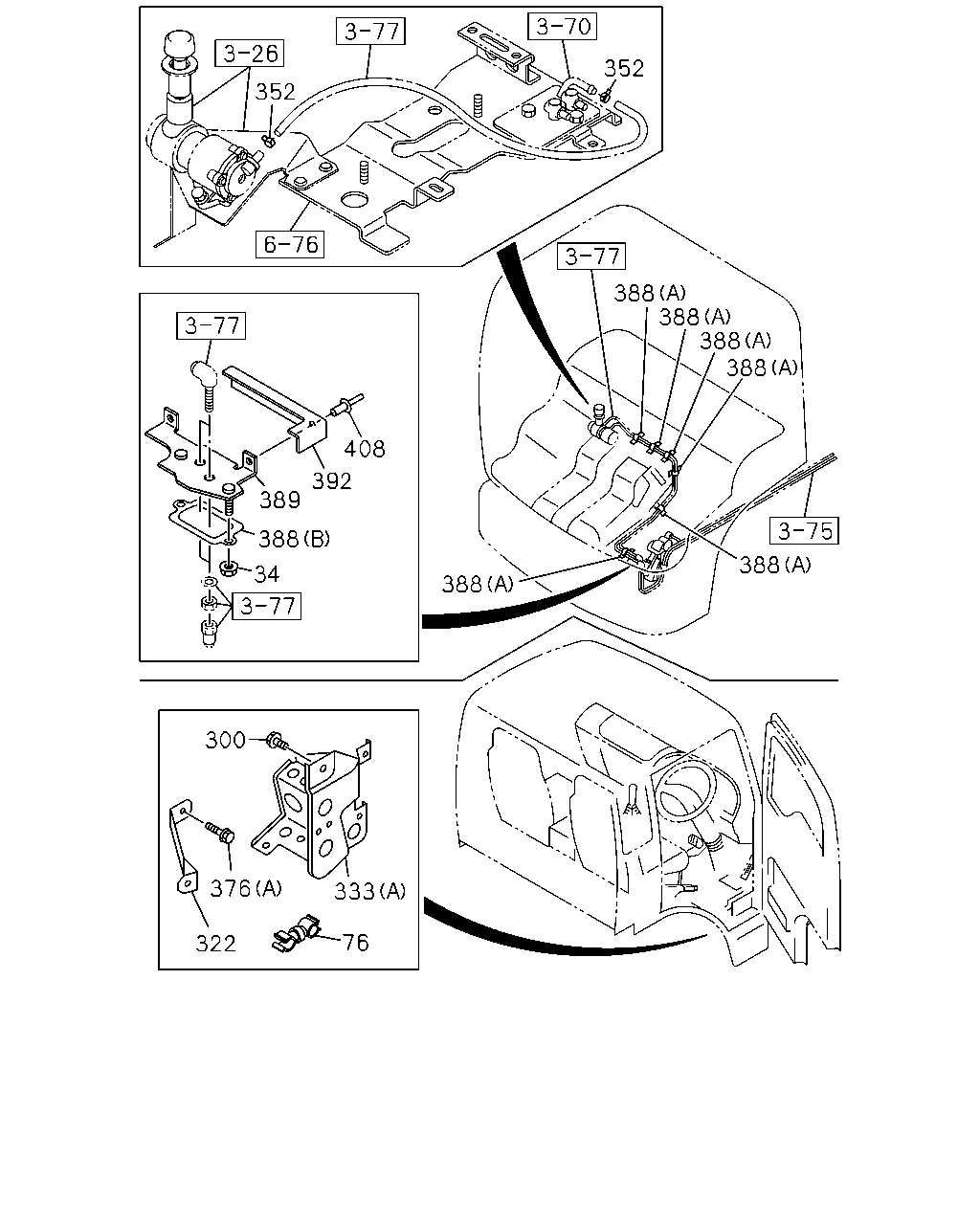

352 388 388 388 388 388 388 408 392 389 388 34 300 376 322 333 76 352

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	NUT; BRKT EXC. FULL TRAILER PIPING<Z25> M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	1306-	●	●
76	CLIP; NYLON TUBE ID=6 & 8.3	8-94167-742-0	02	1	1306-	●	●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1306-1510	●	●
300	BOLT; TUBE CLIP CAB SUSPENSION-FULL FLOATING(SMK) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1511-	●	●
322	BRACKET; CLIP	8-98227-231-0	01	1	1306-	●	●
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	1306-	●	●
333	BRACKET; BRK AIR PIPE (A)	1-79907-150-0	01	1	1306-	●	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	1306-	●	●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
376	BOLT; BRKT FULL TRAILER PIPING<Z25> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1306-	●	●
388	SEAL EXC. FULL TRAILER PIPING<Z25> (B)	1-47478-174-1	01	1	1306-	●	●
388	SEAL EXC. FULL TRAILER PIPING<Z25> (A) 180X40	1-72498-019-1	07	1	1306-	●	●
389	BRACKET; UNION EXC. FULL TRAILER PIPING<Z25>	1-47479-166-1	01	1	1306-	●	●
392	COVER; BRKT EXC. FULL TRAILER PIPING<Z25>	1-79907-090-0	01	1	1306-	●	●
408	FASTENER; COVER EXC. FULL TRAILER PIPING<Z25> D8X13.5	1-09987-248-1	02	1	1306-	●	●

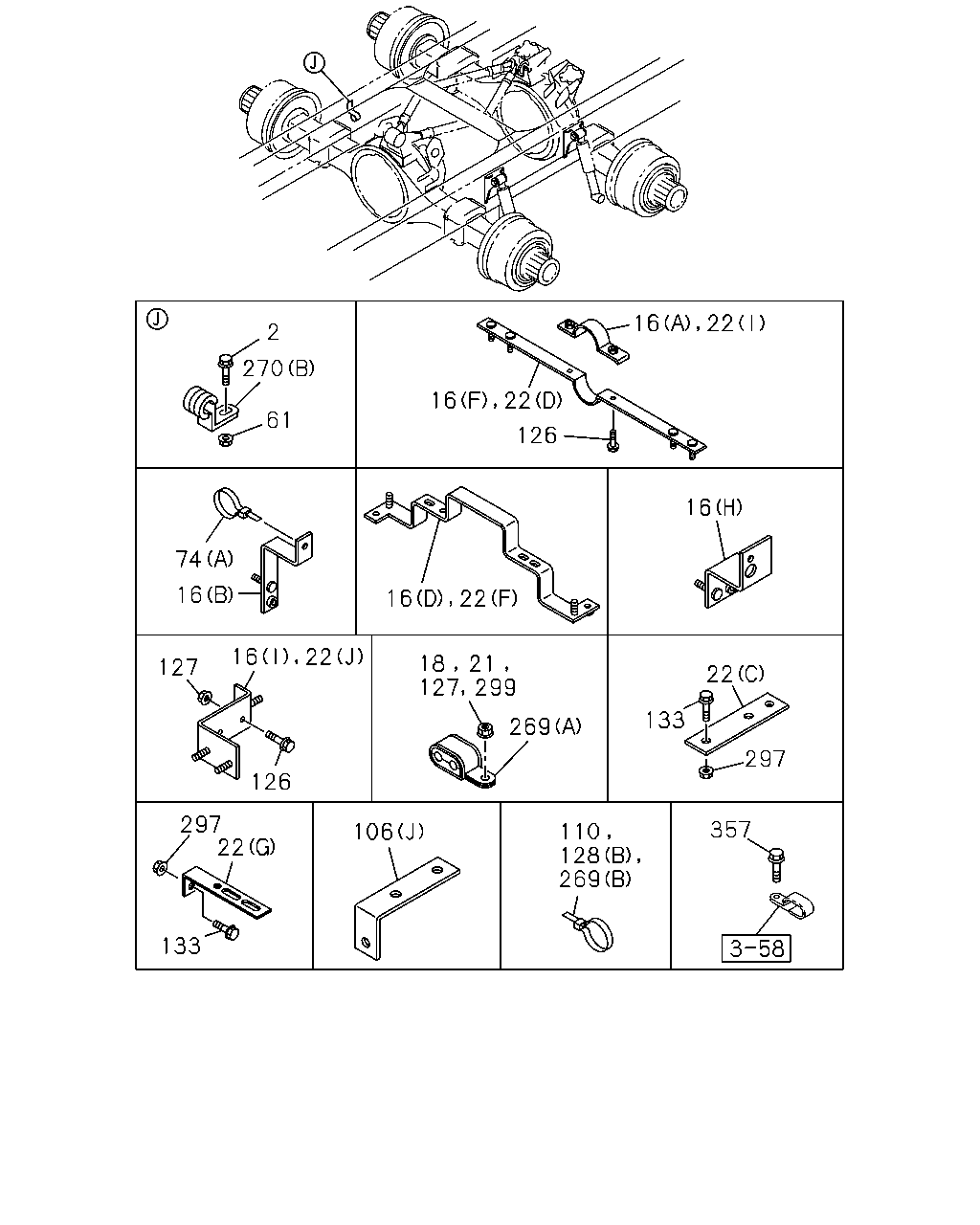

2 270 61 16 22 126 16 22 74 16 16 22 16 22 297 133 21 18 127 299 269 127 22 16 126 297 22 106 110 128 269 357 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP WHEEL BASE 5200MM(52W) (G)	1-47479-693-0	01	1	1306-	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-721-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (H)	1-47479-722-1	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (E)	1-47479-800-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (D)	1-47479-898-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (I)	8-98142-172-0	01	1	1306-	●	●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	02	1	1306-		●
18	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1306-	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	09	1	1306-	●	●
22	BRACKET; CLIP WHEEL BASE 5200MM(52W) (C) L=150	1-47471-217-0	01	1	1306-	●
22	BRACKET; CLIP WHEEL BASE 5200MM(52W) (A)	1-47479-329-0	01	1	1306-	●
22	BRACKET; CLIP WHEEL BASE 5500MM(55W) (A)	1-47479-329-0	01	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 5200MM(52W) (E)	1-47479-693-0	01	1	1306-	●
22	BRACKET; CLIP (I)	1-47479-546-0	01	1	1306-	●	●
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	1306-	●	●
22	BRACKET; CLIP (D)	1-47479-720-0	01	1	1306-	●	●
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	1306-	●	●
22	BRACKET; CLIP (F)	1-47479-898-0	01	1	1306-	●	●
22	BRACKET; CLIP (J)	8-98142-173-0	01	1	1306-	●	●
22	BRACKET; CLIP FULL TRAILER PIPING<Z25> (G) L=100 H=30	1-47477-645-2	02	1	1306-	●	●
22	BRACKET; CLIP EXC. FULL TRAILER PIPING<Z25> (G) L=100 H=30	1-47477-645-2	01	1	1306-	●	●
22	BRACKET; CLIP (C) L=150	1-47471-217-0	02	1	1306-		●
22	BRACKET; CLIP (E)	1-47479-693-0	02	1	1306-		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (A)	1-47471-188-0	01	1	1306-		●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
74	CLIP; NYLON TUBE WHEEL BASE 5200MM(52W) (A) L=350	1-09707-183-0	18	1	1306-	●
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	1306-	●	●
74	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	04	1	1306-1511	●	●
74	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	04	1	1512-		●
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	20	1	1306-		●
74	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W) (A) L=350	1-09707-183-0	21	1	1306-		●
106	BRACKET; TUBE CLIP (F)	1-47471-108-0	01	1	1306-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (F)	1-47471-108-0	01	1	1306-		●
106	BRACKET; TUBE CLIP (D)	1-47479-870-0	01	1	1306-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (D)	1-47479-870-0	01	1	1306-		●
106	BRACKET; TUBE CLIP (I)	8-98243-283-0	01	1	1306-	●
106	BRACKET; TUBE CLIP EXC. BATTERY LAYOUT REAR VAR1<NCT> (I)	8-98243-283-0	01	1	1306-		●
106	BRACKET; TUBE CLIP (J) L=82 B=20	1-47478-420-0	01	1	1306-1404	●	●
106	BRACKET; TUBE CLIP (J) L=82 B=20	8-98259-390-0	01	1	1405-	●	●
106	BRACKET; TUBE CLIP (B)	1-47479-553-0	01	1	1306-	●	●
106	BRACKET; TUBE CLIP (G)	8-98046-949-0	01	1	1306-	●	●
106	BRACKET; TUBE CLIP (E)	8-98052-408-0	01	1	1306-1412	●	●
106	BRACKET; TUBE CLIP (E)	8-98297-188-0	01	1	1501-	●	●
106	BRACKET; TUBE CLIP (H)	8-98052-410-0	01	1	1306-	●	●
106	BRACKET; TUBE CLIP (A)	8-98061-758-0	01	1	1306-	●	●
106	BRACKET; TUBE CLIP BATTERY LAYOUT REAR VAR1<NCT> (C)	1-47479-754-0	01	1	1306-		●
110	CLIP; BAND,NYLON TUBE FULL TRAILER PIPING<Z25> L=140	5-09707-031-1	02	1	1306-	●	●
126	BOLT; CLIP BRKT WHEEL BASE 5200MM(52W) M8X25 FLANGE	0-28650-825-0	01	1	1306-	●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1306-		●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-	●	●
127	NUT; CLIP BRKT WHEEL BASE 5200MM(52W) M8 FLANGE	0-91180-108-0	03	1	1306-	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	04	1	1306-		●
128	CLIP; NYLON TUBE WHEEL BASE 5200MM(52W) (B) L=350	1-09707-183-0	16	1	1306-	●
128	CLIP; NYLON TUBE (A) ID=13-18 L=18	1-09709-291-0	01	1	1306-	●	●
128	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (B) L=350	1-09707-183-0	17	1	1306-		●
128	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W) (B) L=350	1-09707-183-0	18	1	1306-		●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	04	1	1306-	●
133	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	04	1	1306-		●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1306-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1306-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1306-		●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X35 FLANGE	0-28650-835-0	01	1	1306-	●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1306-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1306-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1306-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-		●
133	BOLT; BRKT FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	01	1	1306-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	1306-		●
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	03	1	1306-	●	●
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	06	1	1306-	●	●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	02	1	1306-	●	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1306-	●	●
270	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1306-	●	●
270	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	1306-	●	●
270	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (A) ID=28 L=40	1-09700-995-1	01	1	1306-	●	●
297	NUT; BRKT WHEEL BASE 5200MM(52W) M8 FLANGE	0-91180-108-0	06	1	1306-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1306-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT WHEEL BASE 5500MM(55W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1306-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1306-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	07	1	1306-		●
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	03	1	1306-	●
357	BOLT; CLIP FIX M8X10 FLANGE	0-28050-810-0	02	1	1306-	●	●

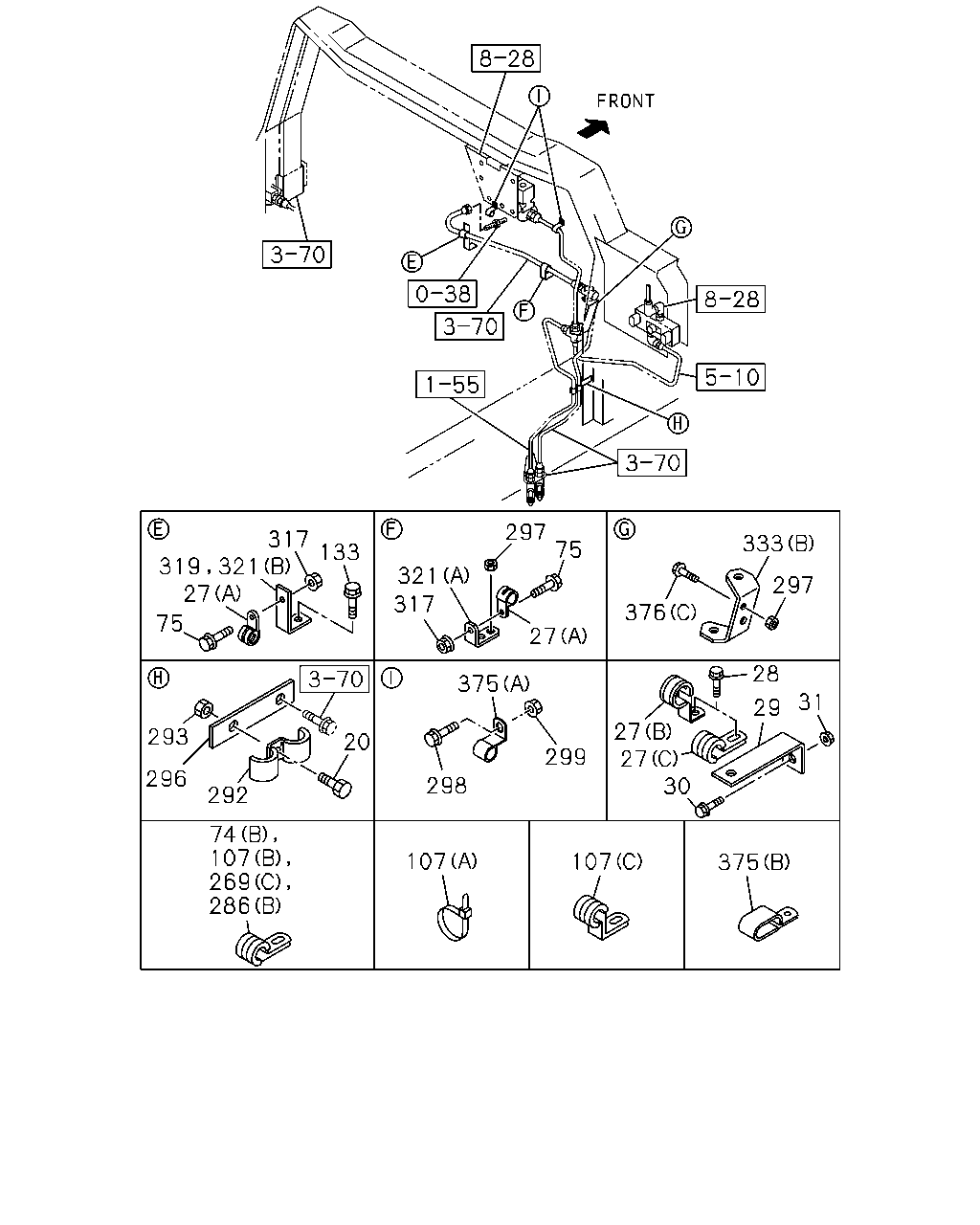

319 317 133 321 27 75 293 296 292 20 321 317 297 75 27 376 333 297 375 299 298 27 28 29 31 27 30 74 107 269 286 107 107 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
27	CLIP; FLEX HOSE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1306-	●
27	CLIP; FLEX HOSE EXC. BATTERY LAYOUT REAR VAR1<NCT> (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1306-		●
27	CLIP; FLEX HOSE EXC. MIXER TRUCK<RA2> (A) ID=15 L=28	1-09701-216-0	02	1	1306-	●
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	1306-		●
27	CLIP; FLEX HOSE BATTERY LAYOUT REAR VAR1<NCT> (C) ID=26 L=27	1-09701-006-0	01	1	1306-		●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	02	1	1306-	●
28	BOLT; CLIP,FLEX HOSE EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	02	1	1306-		●
28	BOLT; CLIP,FLEX HOSE BATTERY LAYOUT REAR VAR1<NCT> M8X20 FLANGE	0-28650-820-0	01	1	1306-		●
29	BRACKET; CLIP,AIR PIPE BATTERY LAYOUT REAR VAR1<NCT> L=95	1-82699-085-0	01	1	1306-		●
30	BOLT; CLIP BRKT BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	01	1	1306-		●
31	NUT; CLIP BRKT BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	01	1	1306-		●
74	CLIP; NYLON TUBE WHEEL BASE 5200MM(52W) (A) L=350	1-09707-183-0	18	1	1306-	●
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	1306-	●	●
74	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	04	1	1306-1511	●	●
74	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W) FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	04	1	1512-		●
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	20	1	1306-		●
74	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W) (A) L=350	1-09707-183-0	21	1	1306-		●
75	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	02	1	1306-	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1306-		●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (C) ID=31 H=30 L=35	1-09700-994-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (C) ID=39 H=28 L=32	1-09701-263-0	02	1	1306-	●	●
107	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	13	1	1306-	●	●
107	CLIP; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (C) ID=25 H=30 L=35	1-09700-875-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (C) ID=31 H=30 L=35	1-09700-994-0	02	1	1306-	●	●
107	CLIP; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (B) ID=28 L=40	1-09701-261-0	01	1	1306-	●	●
107	CLIP; NYLON TUBE EXC. FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	14	1	1306-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	04	1	1306-	●
133	BOLT; BRKT EXC. BATTERY LAYOUT REAR VAR1<NCT> M8X35 FLANGE	0-28650-835-0	04	1	1306-		●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1306-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1306-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	1306-		●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●
133	BOLT; BRKT WHEEL BASE 5200MM(52W) M8X35 FLANGE	0-28650-835-0	01	1	1306-	●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1306-	●	●
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1306-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1306-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1306-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-		●
133	BOLT; BRKT FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	01	1	1306-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	1306-		●
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	03	1	1306-	●	●
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	06	1	1306-	●	●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	02	1	1306-	●	●
286	CLIP; NYLON TUBE MJT7S M/T(Y3E) (A) ID=15 & 7	1-09709-311-0	01	1	1306-	●	●
286	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (B) ID=15 L=28	1-09701-216-0	01	1	1306-	●	●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	1306-	●	●
293	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
296	BRACKET; CLIP	1-47475-648-0	01	1	1306-	●	●
297	NUT; BRKT WHEEL BASE 5200MM(52W) M8 FLANGE	0-91180-108-0	06	1	1306-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1306-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
297	NUT; BRKT WHEEL BASE 5500MM(55W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1306-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	08	1	1306-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) EXC. BATTERY LAYOUT REAR VAR1<NCT> M8 FLANGE	0-91180-108-0	07	1	1306-		●
298	BOLT; CLIP MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	03	1	1306-	●
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	03	1	1306-	●
317	NUT; CLIP EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	1306-	●
317	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1306-		●
319	BRACKET; CLIP MIXER TRUCK<RA2> L=75	1-47477-119-0	01	1	1306-	●
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (B) L=75	1-47478-328-0	01	1	1306-	●
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	1306-		●
321	BRACKET; CLIP MJX16P M/T(Y3Z) (A)	1-47477-337-1	01	1	1306-	●	●
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	1306-	●	●
333	BRACKET; BRK AIR PIPE (A)	1-79907-150-0	01	1	1306-	●	●
375	CLIP; AIR PIPE MIXER TRUCK<RA2> (B) ID=7 L=20	0-95234-635-0	02	1	1306-	●
375	CLIP; AIR PIPE MIXER TRUCK<RA2> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	1306-	●
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
376	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	1306-	●	●
376	BOLT; BRKT FULL TRAILER PIPING<Z25> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1306-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
