◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11535 - CYZ RHD EURO2 ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#124795) — 112 parça
çizim 363638
52 52 56 149 52 149 47 98
BalonParca AdiParca NoAdetTipApplied Date A B
47 BRACKET; PIPE UNION
TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> 		8-97636-508-0 01 1 1306- ● ●
52 CONNECTOR; NYLON TUBE
TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1306- ● ●
52 CONNECTOR; NYLON TUBE
TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY 		1-09661-133-0 03 1 1306- ● ●
56 BOLT; UNION BRKT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1306- ● ●
56 BOLT; UNION BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1306- ● ●
56 BOLT; UNION BRKT
FULL TRAILER PIPING<Z25> (B) M12X30 FLANGE 		0-28051-230-0 02 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1306- ● ●
98 TUBE; NYLON
(B) 		8-98169-619-0 02 1 1306- ● ●
98 TUBE; NYLON
(C) 		8-98234-168-0 01 1 1306- ● ●
98 TUBE; NYLON
(D) 		8-98240-191-0 01 1 1306- ● ●
98 TUBE; NYLON
(D) 		8-98240-190-0 01 1 1306- ● ●
149 BOLT; UNION
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1306- ● ●
149 BOLT; UNION
(C) M8X35 FLANGE 		0-28650-835-0 04 1 1306- ● ●
149 BOLT; UNION
TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ● ●
149 BOLT; UNION
TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (D) M8X20 FLANGE 		0-28050-820-0 02 1 1306- ● ●

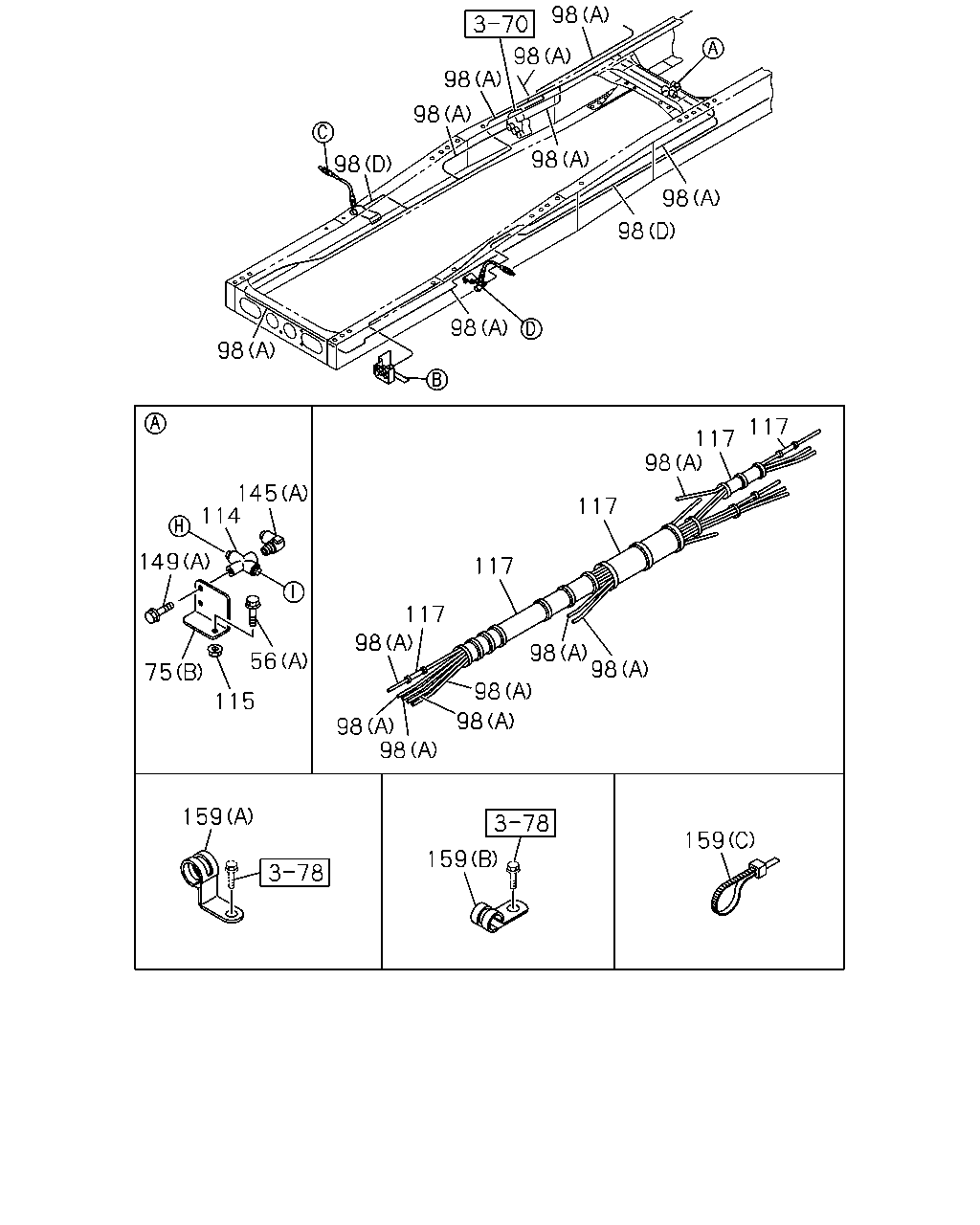

çizim 364405
98 98 98 98 98 98 98 98 98 98 145 114 149 75 56 115 159 117 117 98 117 117 117 98 98 98 98 98 98 98 159 159
BalonParca AdiParca NoAdetTipApplied Date A B
56 BOLT; UNION BRKT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1306- ● ●
56 BOLT; UNION BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1306- ● ●
56 BOLT; UNION BRKT
FULL TRAILER PIPING<Z25> (B) M12X30 FLANGE 		0-28051-230-0 02 1 1306- ● ●
75 BRACKET; UNION
(B) 		1-47471-145-0 01 1 1306- ● ●
75 BRACKET; UNION
(C) 		8-98176-142-0 01 1 1306- ● ●
75 BRACKET; UNION
(A) 		8-98235-169-0 01 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1306- ● ●
98 TUBE; NYLON
(B) 		8-98169-619-0 02 1 1306- ● ●
98 TUBE; NYLON
(C) 		8-98234-168-0 01 1 1306- ● ●
98 TUBE; NYLON
(D) 		8-98240-191-0 01 1 1306- ● ●
98 TUBE; NYLON
(D) 		8-98240-190-0 01 1 1306- ● ●
114 UNION; NYLON TUBE
DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 1306- ● ●
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 01 1 1306- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1306- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1306- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1306- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1306- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1306- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1306- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1306- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 1306- ● ●
145 PLUG
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306- ● ●
145 PLUG
(B) PT1/4 		9-99204-513-0 02 1 1306- ● ●
149 BOLT; UNION
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1306- ● ●
149 BOLT; UNION
(C) M8X35 FLANGE 		0-28650-835-0 04 1 1306- ● ●
149 BOLT; UNION
TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ● ●
149 BOLT; UNION
TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (D) M8X20 FLANGE 		0-28050-820-0 02 1 1306- ● ●
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 17 1 1306- ●
159 CLIP; NYLON TUBE
EXC. BATTERY LAYOUT REAR VAR1<NCT> (C) L=350 		1-09707-183-0 17 1 1306- ●
159 CLIP; NYLON TUBE
(A) ID=21 L=30 H=40 		1-09700-991-1 03 1 1306- ● ●
159 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306- ● ●
159 CLIP; NYLON TUBE
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1306- ● ●
159 CLIP; NYLON TUBE
(B) ID=21 L=24 		8-98019-191-0 01 1 1306- ● ●
159 CLIP; NYLON TUBE
MJT7S M/T(Y3E) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=35 L=33 		1-09700-945-0 02 1 1306- ● ●
159 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) L=350 		1-09707-183-0 01 1 1306- ● ●
159 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) L=350 		1-09707-183-0 01 1 1306- ● ●
159 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=39 L=33 		8-98009-359-0 02 1 1306- ● ●
159 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=39 L=33 		8-98009-359-0 02 1 1306- ● ●
159 CLIP; NYLON TUBE
BATTERY LAYOUT REAR VAR1<NCT> (C) L=350 		1-09707-183-0 12 1 1306- ●

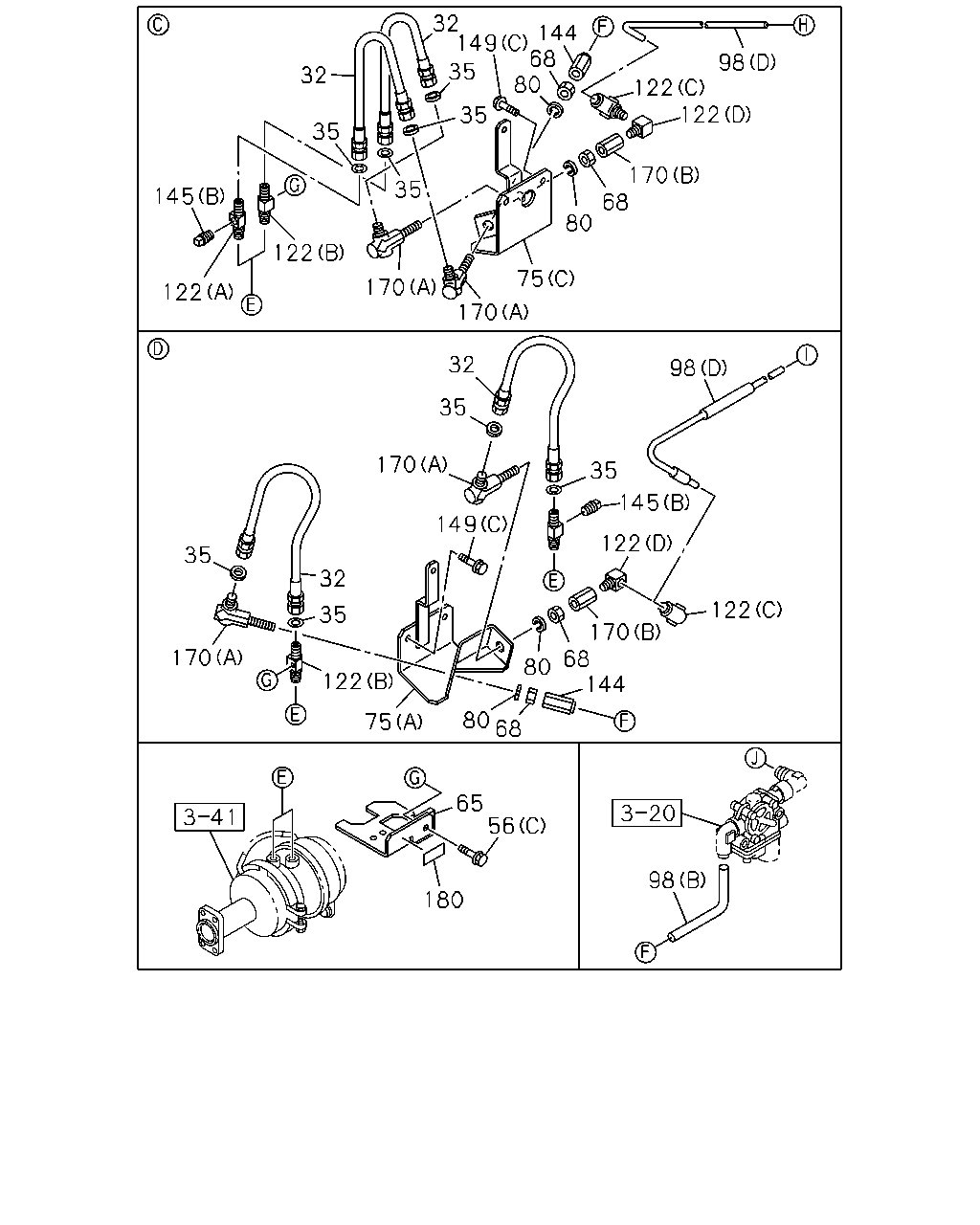

çizim 366709
32 144 68 80 35 35 32 35 35 122 145 122 170 170 75 80 68 170 122 122 98 32 35 170 98 35 145 122 149 122 170 68 80 144 68 80 75 122 35 32 35 170 65 56 180 98 149
BalonParca AdiParca NoAdetTipApplied Date A B
32 HOSE; FLEX,FRT
L=470 		0-57847-470-1 04 1 1306- ● ●
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 08 1 1306- ● ●
56 BOLT; UNION BRKT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1306- ● ●
56 BOLT; UNION BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1306- ● ●
56 BOLT; UNION BRKT
FULL TRAILER PIPING<Z25> (B) M12X30 FLANGE 		0-28051-230-0 02 1 1306- ● ●
65 BRACKET; FLEX HOSE 8-98163-032-2 01 1 1306- ● ●
65 BRACKET; FLEX HOSE 8-98163-031-2 01 1 1306- ● ●
68 NUT; UNION
M20 		0-91111-520-0 02 1 1306- ● ●
68 NUT; UNION
M20 		0-91111-520-0 02 1 1306- ● ●
75 BRACKET; UNION
(B) 		1-47471-145-0 01 1 1306- ● ●
75 BRACKET; UNION
(C) 		8-98176-142-0 01 1 1306- ● ●
75 BRACKET; UNION
(A) 		8-98235-169-0 01 1 1306- ● ●
80 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 02 1 1306- ● ●
80 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 02 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1306- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1306- ● ●
98 TUBE; NYLON
(B) 		8-98169-619-0 02 1 1306- ● ●
98 TUBE; NYLON
(C) 		8-98234-168-0 01 1 1306- ● ●
98 TUBE; NYLON
(D) 		8-98240-191-0 01 1 1306- ● ●
98 TUBE; NYLON
(D) 		8-98240-190-0 01 1 1306- ● ●
122 CONNECTOR; FLEX HOSE
(D) PT3/8 ELBOW 		1-09660-696-0 01 1 1306- ● ●
122 CONNECTOR; FLEX HOSE
(D) PT3/8 ELBOW 		1-09660-696-0 01 1 1306- ● ●
122 CONNECTOR; FLEX HOSE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306- ● ●
122 CONNECTOR; FLEX HOSE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306- ● ●
122 CONNECTOR; FLEX HOSE
(A) 		8-98162-734-0 01 1 1306- ● ●
122 CONNECTOR; FLEX HOSE
(B) 		8-98162-735-0 01 1 1306- ● ●
122 CONNECTOR; FLEX HOSE
(A) 		8-98162-043-0 01 1 1306- ● ●
122 CONNECTOR; FLEX HOSE
(B) 		8-98162-044-0 01 1 1306- ● ●
144 ADAPTER
DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1306- ● ●
144 ADAPTER
DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1306- ● ●
145 PLUG
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306- ● ●
145 PLUG
(B) PT1/4 		9-99204-513-0 02 1 1306- ● ●
149 BOLT; UNION
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1306- ● ●
149 BOLT; UNION
(C) M8X35 FLANGE 		0-28650-835-0 04 1 1306- ● ●
149 BOLT; UNION
TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ● ●
149 BOLT; UNION
TRAILER BRAKE HAND CONTROL(NLG) FULL TRAILER PIPING<Z25> (D) M8X20 FLANGE 		0-28050-820-0 02 1 1306- ● ●
170 UNION; FLARE
(A) M20 & M20 ELBOW 		1-09654-397-1 02 1 1306- ● ●
170 UNION; FLARE
(A) M20 & M20 ELBOW 		1-09654-397-1 02 1 1306- ● ●
170 UNION; FLARE
(B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1306- ● ●
170 UNION; FLARE
(B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1306- ● ●
180 PLATE; CAUTION 8-98164-504-0 02 1 1306- ● ●
