3-26 — TRAILER CONTROL (#124787) — 161 parça

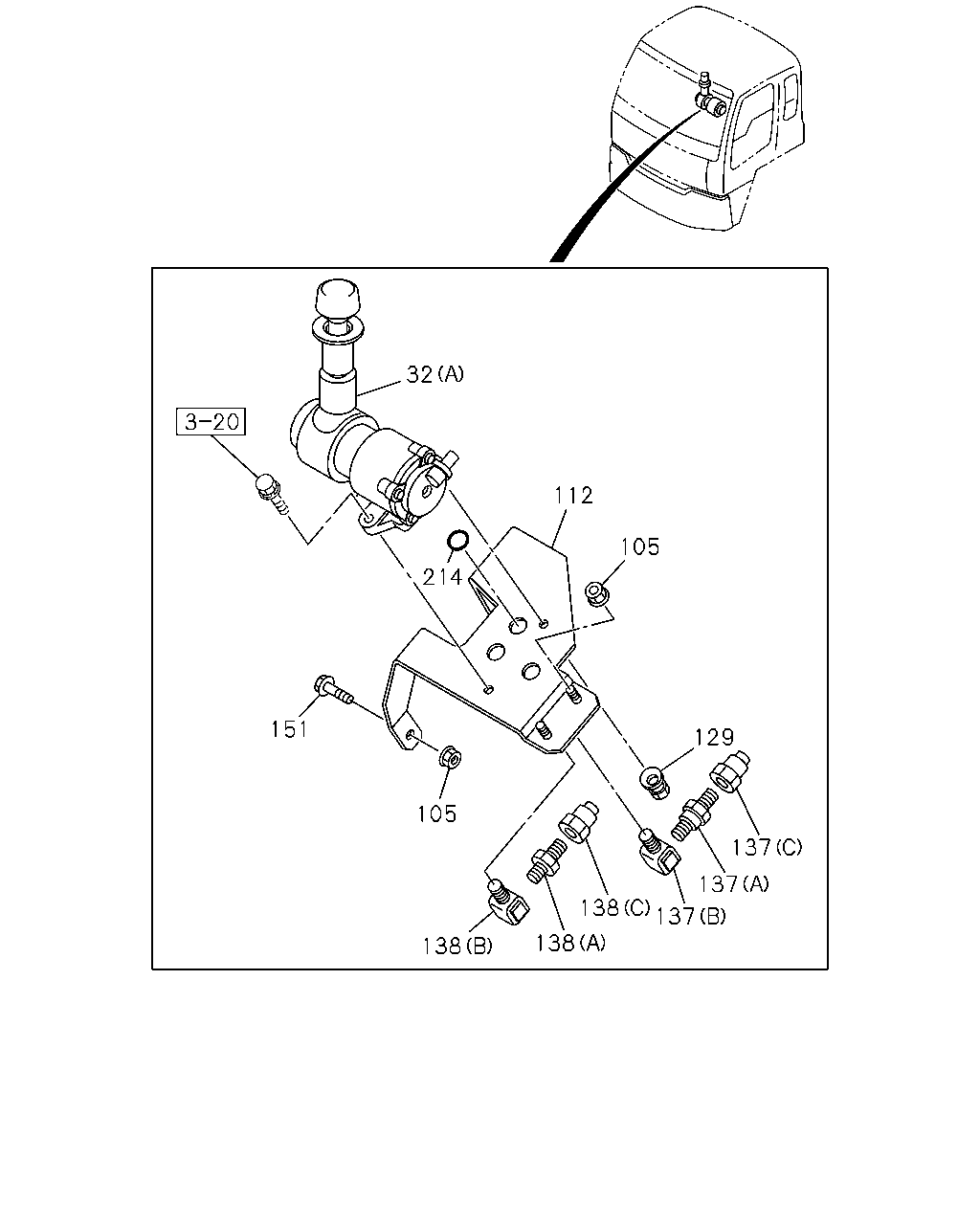

32 151 105 214 112 105 138 138 138 129 137 137 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-339-1	01	1	1306-	●	●
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-340-1	01	1	1306-	●	●
105	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
112	BRACKET; CONT VLV	1-79996-387-0	01	1	1306-	●	●
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
129	NUT; VLV FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	05	1	1306-	●	●
137	CONNECTOR; SUPPLY (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1306-	●	●
137	CONNECTOR; SUPPLY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1306-	●	●
137	CONNECTOR; SUPPLY FULL TRAILER PIPING<Z25> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1306-	●	●
137	CONNECTOR; SUPPLY EXC. FULL TRAILER PIPING<Z25> (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1306-	●	●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1306-	●	●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1306-	●	●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (F) DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	1306-	●	●
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	1306-	●	●
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1306-	●	●
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1306-	●	●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1306-	●	●
214	SEAL; COVER,HAND BRK FULL TRAILER PIPING<Z25> OD=25 BLACK	1-76798-019-0	01	1	1306-	●	●
214	SEAL; COVER,HAND BRK EXC. FULL TRAILER PIPING<Z25> OD=25 BLACK	1-76798-019-0	02	1	1306-	●	●

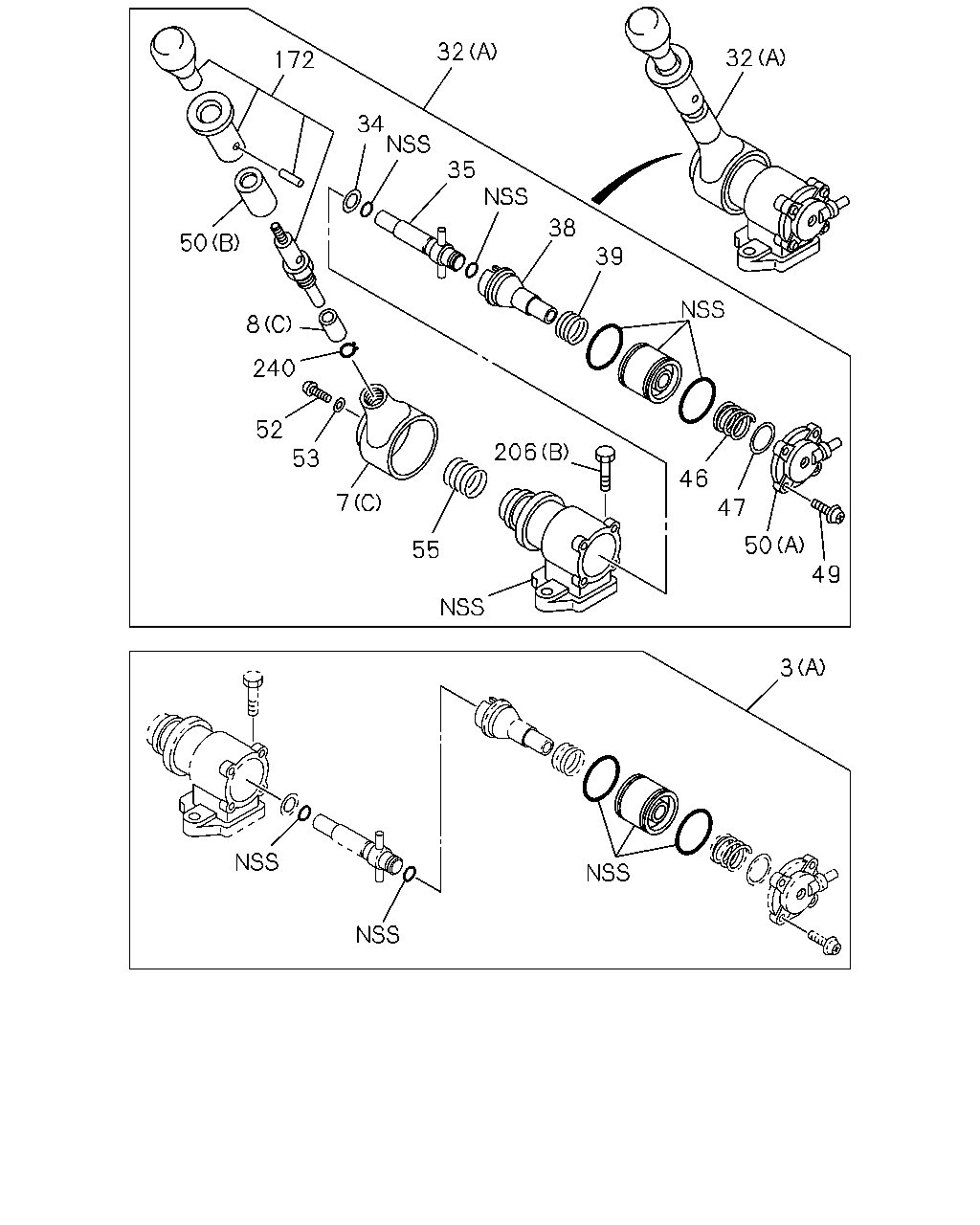

50 8 240 52 53 7 55 32 172 34 35 38 39 32 206 46 47 50 49 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV FULL TRAILER PIPING<Z25> (B)	1-85576-376-0	01	1	1306-	●	●
3	REPAIR KIT; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (A)	1-85576-375-0	01	1	1306-	●	●
7	HEAD; BRK VLV FULL TRAILER PIPING<Z25> (B)	1-48469-201-0	01	1	1306-	●	●
7	HEAD; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-195-0	01	1	1306-	●	●
7	HEAD; BRK VLV TRAILER BRAKE HAND CONTROL(NLG) (A)	1-48119-131-1	01	1	1306-	●	●
8	STOPPER; BRK VLV FULL TRAILER PIPING<Z25> (B)	1-48469-200-0	01	1	1306-	●	●
8	STOPPER; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-194-0	01	1	1306-	●	●
8	STOPPER; BRK VLV TRAILER BRAKE HAND CONTROL(NLG) (A)	1-48119-239-0	01	1	1306-	●	●
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-339-1	01	1	1306-	●	●
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-340-1	01	1	1306-	●	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1306-	●	●
35	HOLDER; CAM FULL TRAILER PIPING<Z25>	1-48469-171-0	01	1	1306-	●	●
35	HOLDER; CAM EXC. FULL TRAILER PIPING<Z25>	1-48469-148-0	01	1	1306-	●	●
38	SEAT; EXH VLV FULL TRAILER PIPING<Z25>	1-48469-172-0	01	1	1306-	●	●
38	SEAT; EXH VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-149-0	01	1	1306-	●	●
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	1306-	●	●
46	SPRING; MAIN,PISTON FULL TRAILER PIPING<Z25>	1-48469-173-0	01	1	1306-	●	●
46	SPRING; MAIN,PISTON EXC. FULL TRAILER PIPING<Z25>	1-48469-152-0	01	1	1306-	●	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1306-	●	●
49	SCREW; COVER	1-48469-169-0	04	1	1306-	●	●
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	1306-	●	●
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	1306-	●	●
52	SCREW; HANDLE	1-48469-062-0	01	1	1306-	●	●
53	WASHER; HANDLE	1-48469-061-0	01	1	1306-	●	●
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	1306-	●	●
172	KNOB; VALVE FULL TRAILER PIPING<Z25>	1-48469-203-0	01	1	1306-	●	●
172	KNOB; VALVE EXC. FULL TRAILER PIPING<Z25>	1-48469-204-0	01	1	1306-	●	●
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	1306-	●	●
206	BOLT; HAND BRK VALVE TRAILER BRAKE HAND CONTROL(NLG) (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	1306-	●	●
240	RING; STOPPER FULL TRAILER PIPING<Z25>	1-48469-199-0	01	1	1306-	●	●
240	RING; STOPPER EXC. FULL TRAILER PIPING<Z25>	1-48469-193-0	01	1	1306-	●	●

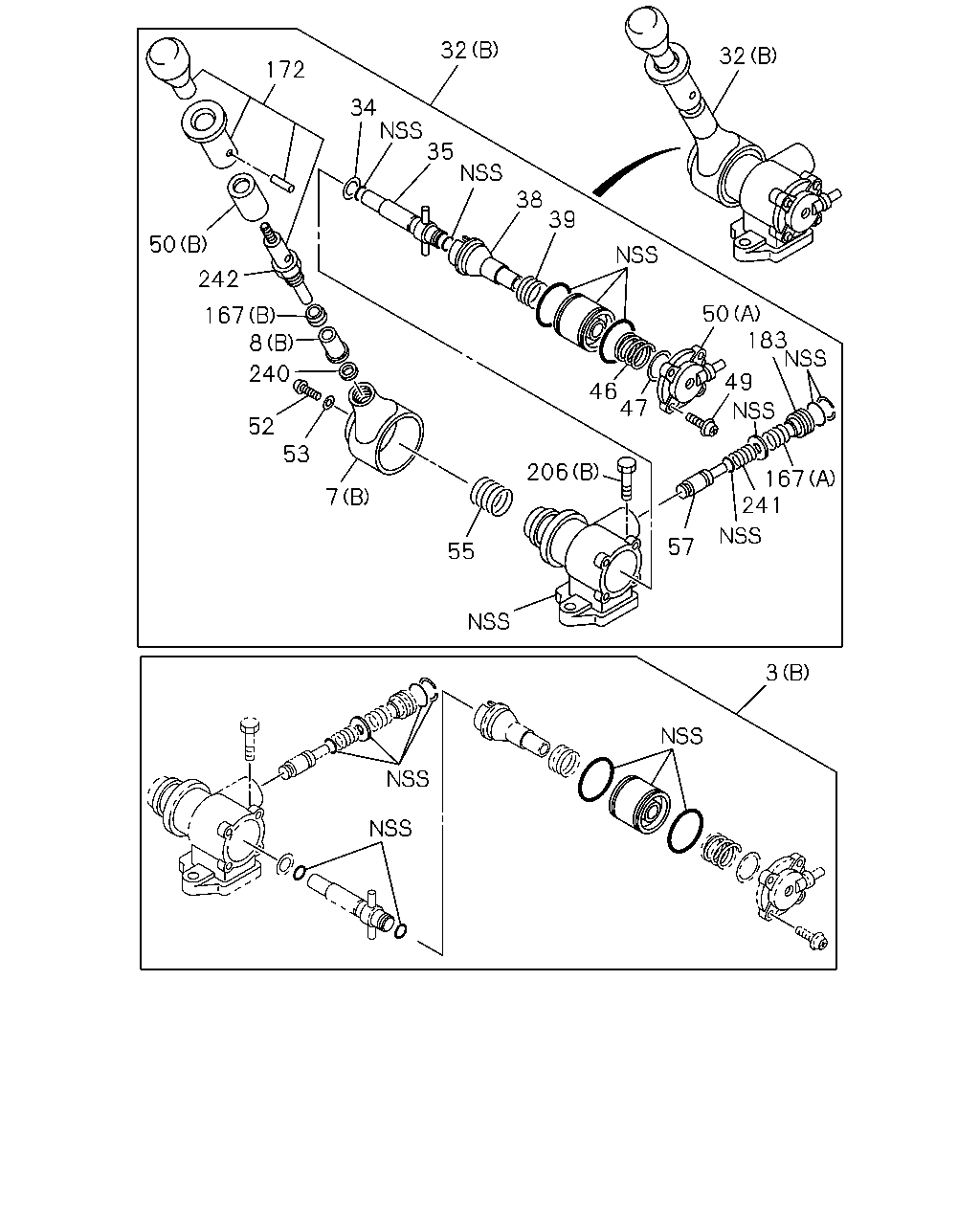

172 34 32 32 35 38 39 50 183 49 167 241 57 47 46 206 55 7 53 52 240 8 167 242 50 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV FULL TRAILER PIPING<Z25> (B)	1-85576-376-0	01	1	1306-	●	●
3	REPAIR KIT; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (A)	1-85576-375-0	01	1	1306-	●	●
7	HEAD; BRK VLV FULL TRAILER PIPING<Z25> (B)	1-48469-201-0	01	1	1306-	●	●
7	HEAD; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-195-0	01	1	1306-	●	●
7	HEAD; BRK VLV TRAILER BRAKE HAND CONTROL(NLG) (A)	1-48119-131-1	01	1	1306-	●	●
8	STOPPER; BRK VLV FULL TRAILER PIPING<Z25> (B)	1-48469-200-0	01	1	1306-	●	●
8	STOPPER; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-194-0	01	1	1306-	●	●
8	STOPPER; BRK VLV TRAILER BRAKE HAND CONTROL(NLG) (A)	1-48119-239-0	01	1	1306-	●	●
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-339-1	01	1	1306-	●	●
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-340-1	01	1	1306-	●	●
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1306-	●	●
35	HOLDER; CAM FULL TRAILER PIPING<Z25>	1-48469-171-0	01	1	1306-	●	●
35	HOLDER; CAM EXC. FULL TRAILER PIPING<Z25>	1-48469-148-0	01	1	1306-	●	●
38	SEAT; EXH VLV FULL TRAILER PIPING<Z25>	1-48469-172-0	01	1	1306-	●	●
38	SEAT; EXH VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-149-0	01	1	1306-	●	●
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	1306-	●	●
46	SPRING; MAIN,PISTON FULL TRAILER PIPING<Z25>	1-48469-173-0	01	1	1306-	●	●
46	SPRING; MAIN,PISTON EXC. FULL TRAILER PIPING<Z25>	1-48469-152-0	01	1	1306-	●	●
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1306-	●	●
49	SCREW; COVER	1-48469-169-0	04	1	1306-	●	●
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	1306-	●	●
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	1306-	●	●
52	SCREW; HANDLE	1-48469-062-0	01	1	1306-	●	●
53	WASHER; HANDLE	1-48469-061-0	01	1	1306-	●	●
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	1306-	●	●
57	PLUNGER; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-180-0	01	1	1306-	●	●
167	SPRING; VALVE FULL TRAILER PIPING<Z25> (A)	1-48469-177-0	01	1	1306-	●	●
167	SPRING; VALVE FULL TRAILER PIPING<Z25> (B)	1-48469-184-0	01	1	1306-	●	●
172	KNOB; VALVE FULL TRAILER PIPING<Z25>	1-48469-203-0	01	1	1306-	●	●
172	KNOB; VALVE EXC. FULL TRAILER PIPING<Z25>	1-48469-204-0	01	1	1306-	●	●
183	RETAINER; VALVE FULL TRAILER PIPING<Z25>	1-48469-185-0	01	1	1306-	●	●
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	1306-	●	●
206	BOLT; HAND BRK VALVE TRAILER BRAKE HAND CONTROL(NLG) (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	1306-	●	●
240	RING; STOPPER FULL TRAILER PIPING<Z25>	1-48469-199-0	01	1	1306-	●	●
240	RING; STOPPER EXC. FULL TRAILER PIPING<Z25>	1-48469-193-0	01	1	1306-	●	●
241	SPRING; RETURN FULL TRAILER PIPING<Z25>	1-48469-182-0	01	1	1306-	●	●
242	NUT; LK FULL TRAILER PIPING<Z25>	1-48469-179-0	01	1	1306-	●	●

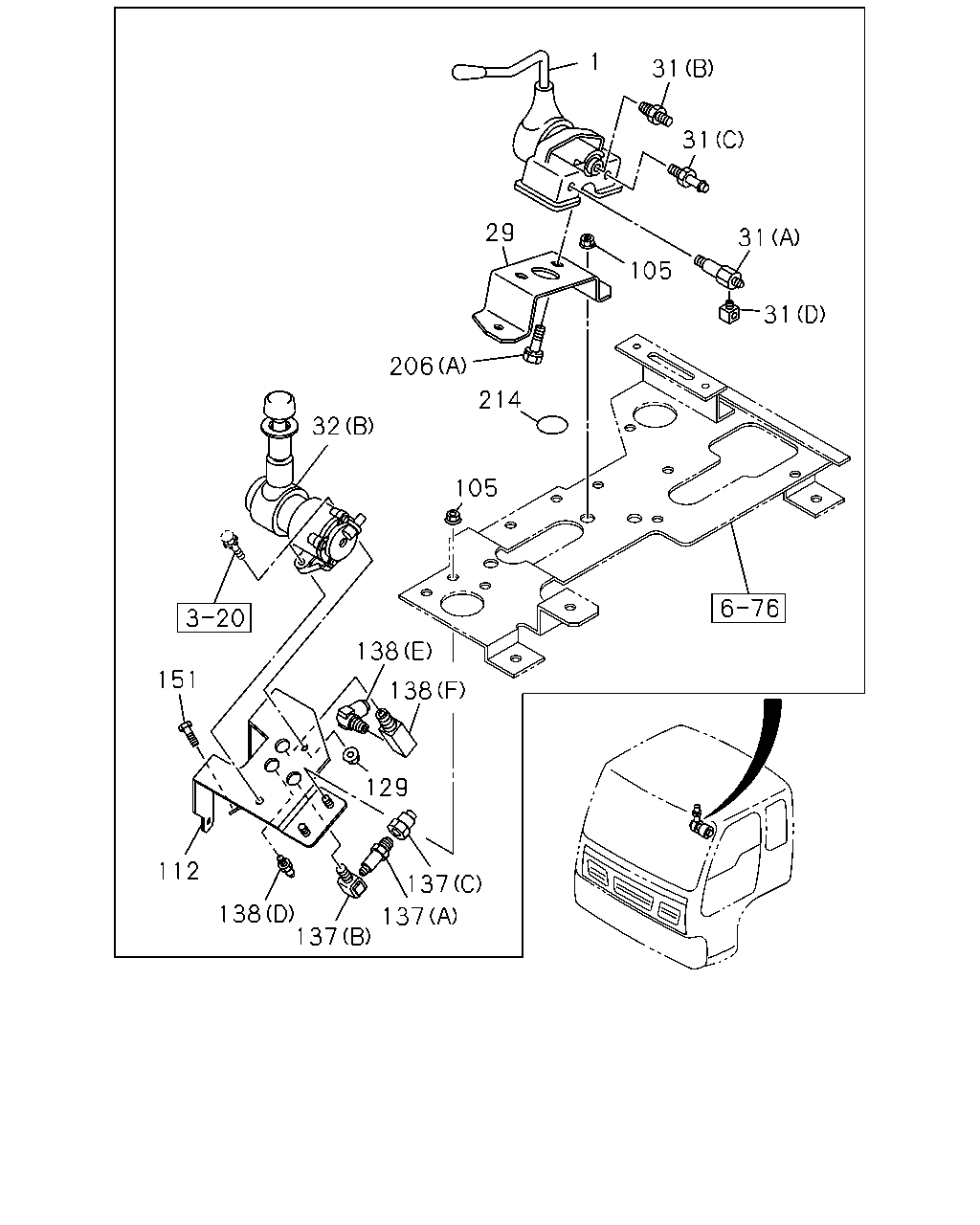

1 31 31 31 31 105 29 206 32 214 105 138 138 129 137 137 137 138 112 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; HAND BRK TRAILER BRAKE HAND CONTROL(NLG)	1-48100-848-0	01	1	1306-	●	●
29	BRACKET; HAND BRK FULL TRAILER PIPING<Z25>	1-79997-357-1	01	1	1306-	●	●
31	CONNECTOR; HAND BRK VLV FULL TRAILER PIPING<Z25> (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1306-	●	●
31	CONNECTOR; HAND BRK VLV FULL TRAILER PIPING<Z25> (A) M14	1-09656-391-2	01	1	1306-	●	●
31	CONNECTOR; HAND BRK VLV FULL TRAILER PIPING<Z25> (D) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1306-	●	●
31	CONNECTOR; HAND BRK VLV FULL TRAILER PIPING<Z25> (C) L=45	8-94338-874-0	01	1	1306-	●	●
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-339-1	01	1	1306-	●	●
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-340-1	01	1	1306-	●	●
105	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-	●	●
112	BRACKET; CONT VLV	1-79996-387-0	01	1	1306-	●	●
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
129	NUT; VLV FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	05	1	1306-	●	●
137	CONNECTOR; SUPPLY (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1306-	●	●
137	CONNECTOR; SUPPLY (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1306-	●	●
137	CONNECTOR; SUPPLY FULL TRAILER PIPING<Z25> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1306-	●	●
137	CONNECTOR; SUPPLY EXC. FULL TRAILER PIPING<Z25> (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1306-	●	●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1306-	●	●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1306-	●	●
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (F) DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	1306-	●	●
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	1306-	●	●
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1306-	●	●
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1306-	●	●
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1306-	●	●
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	1306-	●	●
206	BOLT; HAND BRK VALVE TRAILER BRAKE HAND CONTROL(NLG) (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	1306-	●	●
214	SEAL; COVER,HAND BRK FULL TRAILER PIPING<Z25> OD=25 BLACK	1-76798-019-0	01	1	1306-	●	●
214	SEAL; COVER,HAND BRK EXC. FULL TRAILER PIPING<Z25> OD=25 BLACK	1-76798-019-0	02	1	1306-	●	●

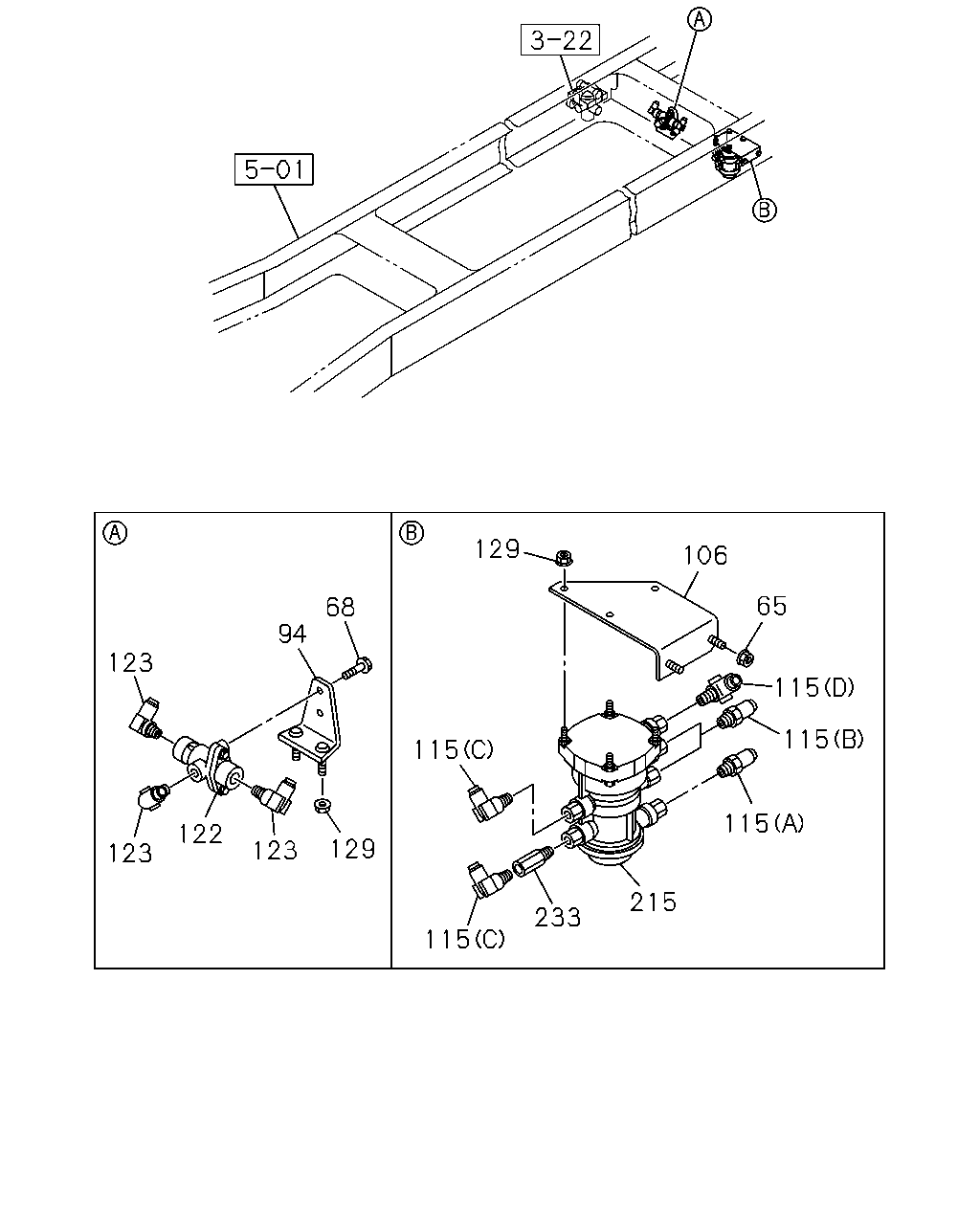

123 94 68 129 123 122 129 106 65 115 115 115 215 233 115 115 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	NUT; RELAY VLV FULL TRAILER PIPING<Z25> M10 FLANGE	0-91180-210-0	02	1	1306-	●	●
68	BOLT; DOUBLE CHECK VLV FULL TRAILER PIPING<Z25> M8X16 FLANGE	0-28050-816-0	02	1	1306-1404	●	●
68	BOLT; DOUBLE CHECK VLV FULL TRAILER PIPING<Z25> M8X14 FLANGE	0-28080-814-0	02	1	1405-	●	●
94	BRACKET; CHECK VLV FULL TRAILER PIPING<Z25>	8-98153-162-0	01	1	1306-	●	●
106	BRACKET; VLV FULL TRAILER PIPING<Z25>	8-98142-101-1	01	1	1306-	●	●
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1306-	●	●
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1306-	●	●
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	1306-	●	●
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1306-	●	●
122	VALVE ASM; DOUBLE CHECK FULL TRAILER PIPING<Z25>	1-48410-531-1	01	1	1306-	●	●
123	CONNECTOR; DBL CHECK VLV FULL TRAILER PIPING<Z25> DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1306-	●	●
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	1306-	●	●
129	NUT; VLV FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	05	1	1306-	●	●
215	VALVE; TRAILER CONT FULL TRAILER PIPING<Z25>	8-98091-694-0	01	1	1306-	●	●
233	ADAPTER; VLV FULL TRAILER PIPING<Z25> PT3/8	1-48319-058-0	01	1	1306-	●	●

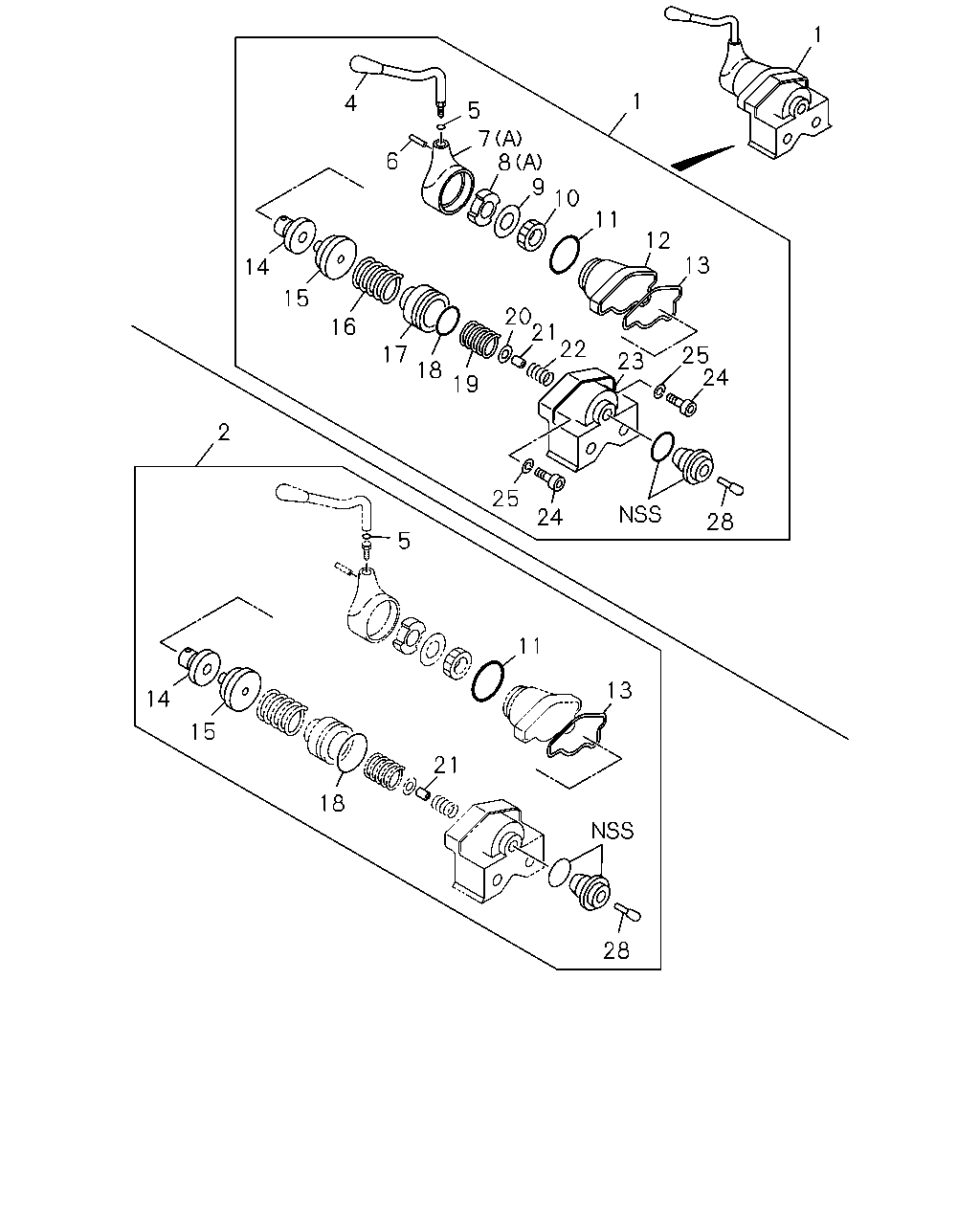

1 4 5 7 8 9 1 10 11 12 13 25 24 28 24 25 19 18 17 16 15 14 2 5 11 13 28 21 18 15 14 6 23 22 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; HAND BRK TRAILER BRAKE HAND CONTROL(NLG)	1-48100-848-0	01	1	1306-	●	●
2	REPAIR KIT; HAND BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-85576-181-0	01	1	1306-	●	●
4	HANDLE ASM; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48119-517-0	01	1	1306-	●	●
5	GASKET; HANDLE TRAILER BRAKE HAND CONTROL(NLG)	1-48119-128-0	01	1	1306-	●	●
6	PIN; SPR TRAILER BRAKE HAND CONTROL(NLG)	1-48119-143-0	01	1	1306-	●	●
7	HEAD; BRK VLV FULL TRAILER PIPING<Z25> (B)	1-48469-201-0	01	1	1306-	●	●
7	HEAD; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-195-0	01	1	1306-	●	●
7	HEAD; BRK VLV TRAILER BRAKE HAND CONTROL(NLG) (A)	1-48119-131-1	01	1	1306-	●	●
8	STOPPER; BRK VLV FULL TRAILER PIPING<Z25> (B)	1-48469-200-0	01	1	1306-	●	●
8	STOPPER; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-194-0	01	1	1306-	●	●
8	STOPPER; BRK VLV TRAILER BRAKE HAND CONTROL(NLG) (A)	1-48119-239-0	01	1	1306-	●	●
9	WASHER; LK,ADJ TRAILER BRAKE HAND CONTROL(NLG)	1-48119-123-0	01	1	1306-	●	●
10	RING; ADJ TRAILER BRAKE HAND CONTROL(NLG)	1-48119-122-0	01	1	1306-	●	●
11	GASKET; HD TO COVER TRAILER BRAKE HAND CONTROL(NLG)	1-48119-130-0	01	1	1306-	●	●
12	COVER; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-097-1	01	1	1306-	●	●
13	GASKET; BODY TO COVER TRAILER BRAKE HAND CONTROL(NLG)	1-48119-120-0	01	1	1306-	●	●
14	FOLLOWER; CAM TRAILER BRAKE HAND CONTROL(NLG)	1-48129-135-0	01	1	1306-	●	●
15	CAM; FOLLOWER TRAILER BRAKE HAND CONTROL(NLG)	1-48129-134-0	01	1	1306-	●	●
16	SPRING; GRUDUATING TRAILER BRAKE HAND CONTROL(NLG)	1-48129-101-0	01	1	1306-	●	●
17	PISTON; SPR TRAILER BRAKE HAND CONTROL(NLG)	1-48129-095-0	01	1	1306-	●	●
18	GASKET; BODY TRAILER BRAKE HAND CONTROL(NLG)	1-48129-096-0	01	1	1306-	●	●
19	SPRING; PISTON TRAILER BRAKE HAND CONTROL(NLG)	1-48129-094-0	01	1	1306-	●	●
20	GUIDE; VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-090-0	01	1	1306-	●	●
21	VALVE; IN & EXH TRAILER BRAKE HAND CONTROL(NLG)	1-48121-017-0	01	1	1306-	●	●
22	SPRING; VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48123-024-0	01	1	1306-	●	●
23	BODY; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48111-060-1	01	1	1306-	●	●
24	BOLT; EXH VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-092-0	02	1	1306-	●	●
25	WASHER; LK,EXH VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-093-0	02	1	1306-	●	●
28	STEM ASM; BRK VLV TRAILER BRAKE HAND CONTROL(NLG)	1-48129-089-0	01	1	1306-	●	●

180

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	180	REPAIR KIT; RELAY VLV FULL TRAILER PIPING<Z25>	1-85576-449-0	01	1	1306-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
